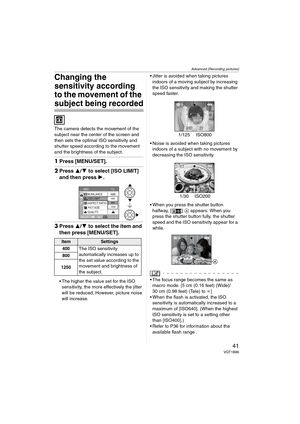

Advanced (Recording pictures)
41VQT1B86
Changing the
sensitivity according
to the movement of the
subject being recorded
The camera detects the movement of the
subject near the center of the screen and
then sets the optimal ISO sensitivity and
shutter speed according to the movement
and the brightness of the subject.
1Press [MENU/SET].
2Press 3/4 to select [ISO LIMIT]
and then press 1.
3Press 3/4 to select the item and
then press [MENU/SET].
 The higher the value set for the ISO
sensitivity,...

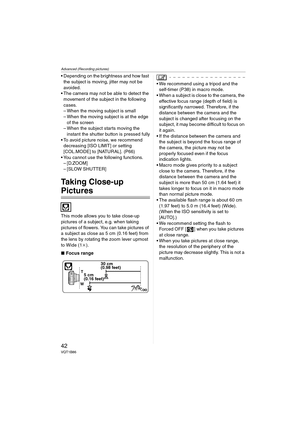

Advanced (Recording pictures)
42VQT1B86
 Depending on the brightness and how fast
the subject is moving, jitter may not be
avoided.
 The camera may not be able to detect the
movement of the subject in the following
cases.
– When the moving subject is small
– When the moving subject is at the edge
of the screen
– When the subject starts moving the
instant the shutter button is pressed fully
 To avoid picture noise, we recommend
decreasing [ISO LIMIT] or setting
[COL.MODE] to [NATURAL]. (P66)
 You...

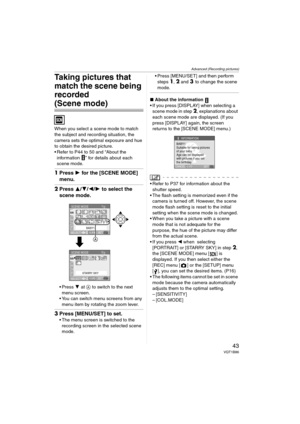

Advanced (Recording pictures)
43VQT1B86
Taking pictures that
match the scene being
recorded
(Scene mode)
When you select a scene mode to match
the subject and recording situation, the
camera sets the optimal exposure and hue
to obtain the desired picture.
 Refer to P44 to 50 and “About the
information ” for details about each
scene mode.
1Press 1 for the [SCENE MODE]
menu.
2Press 3/4/2/1 to select the
scene mode.
4 at A to switch to the next
menu screen.
 You can switch menu screens from any...

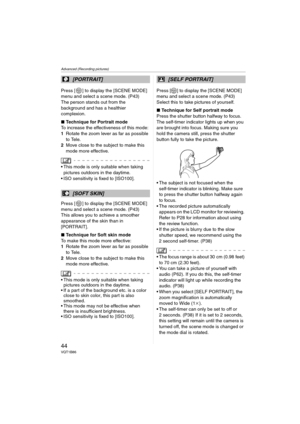

Advanced (Recording pictures)
44VQT1B86
Press [ ] to display the [SCENE MODE]
menu and select a scene mode. (P43)
The person stands out from the
background and has a healthier
complexion.
∫Technique for Portrait mode
To increase the effectiveness of this mode:
1Rotate the zoom lever as far as possible
to Tele.
2Move close to the subject to make this
mode more effective.
 This mode is only suitable when taking
pictures outdoors in the daytime.
 ISO sensitivity is fixed to [ISO100].
Press [ ] to...

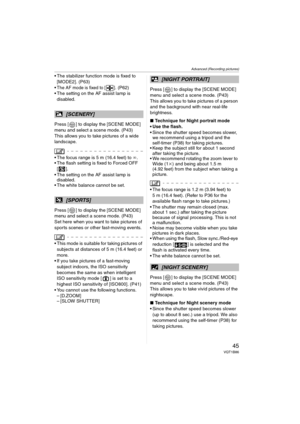

Advanced (Recording pictures)
45VQT1B86
 The stabilizer function mode is fixed to
[MODE2]. (P63)

The AF mode is fixed to [ ]. (P62)
 The setting on the AF assist lamp is
disabled.
Press [ ] to display the [SCENE MODE]
menu and select a scene mode. (P43)
This allows you to take pictures of a wide
landscape.
 The focus range is 5 m (16.4 feet) to ¶.
 The flash setting is fixed to Forced OFF
[].
 The setting on the AF assist lamp is
disabled.
 The white balance cannot be set.
Press [ ] to display the...

Advanced (Recording pictures)

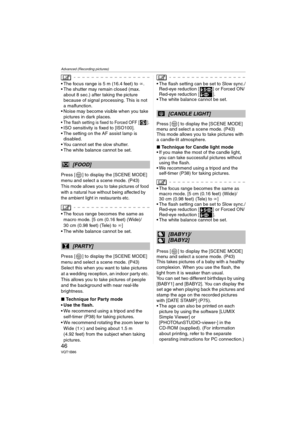

46VQT1B86
 The focus range is 5 m (16.4 feet) to ¶.
 The shutter may remain closed (max.
about 8 sec.) after taking the picture
because of signal processing. This is not
a malfunction.
 Noise may become visible when you take
pictures in dark places.
 The flash setting is fixed to Forced OFF [ ]. ISO sensitivity is fixed to [ISO100].
 The setting on the AF assist lamp is
disabled.
 You cannot set the slow shutter.
 The white balance cannot be set.
Press [ ] to display...

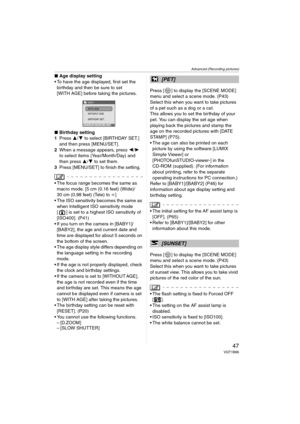

Advanced (Recording pictures)
47VQT1B86
∫Age display setting
 To have the age displayed, first set the
birthday and then be sure to set
[WITH AGE] before taking the pictures.
∫Birthday setting
1Press 3/4 to select [BIRTHDAY SET.]
and then press [MENU/SET].
2When a message appears, press 2/1
to select items (Year/Month/Day) and
then press 3/4 to set them.
3Press [MENU/SET] to finish the setting.
 The focus range becomes the same as
macro mode. [5 cm (0.16 feet) (Wide)/
30 cm (0.98 feet) (Tele) to...

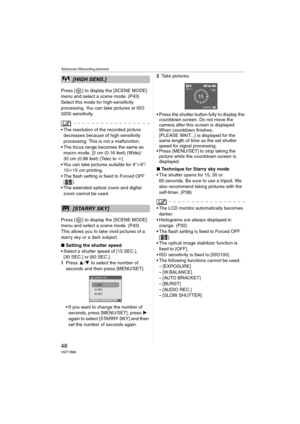

Advanced (Recording pictures)
48VQT1B86
Press [ ] to display the [SCENE MODE]
menu and select a scene mode. (P43)
Select this mode for high-sensitivity
processing. You can take pictures at ISO
3200 sensitivity.
 The resolution of the recorded picture
decreases because of high sensitivity
processing. This is not a malfunction.
 The focus range becomes the same as
macro mode. [5 cm (0.16 feet) (Wide)/
30 cm (0.98 feet) (Tele) to ¶]
 You can take pictures suitable for 4qk6q/
10k15 cm printing.
 The...

Advanced (Recording pictures)

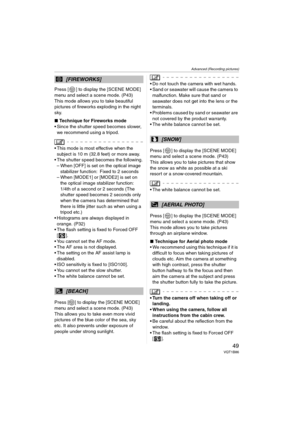

49VQT1B86
Press [ ] to display the [SCENE MODE]
menu and select a scene mode. (P43)
This mode allows you to take beautiful
pictures of fireworks exploding in the night
sky.
∫Technique for Fireworks mode
 Since the shutter speed becomes slower,
we recommend using a tripod.
 This mode is most effective when the
subject is 10 m (32.8 feet) or more away.
 The shutter speed becomes the following.
– When [OFF] is set on the optical image
stabilizer function: Fixed to 2...

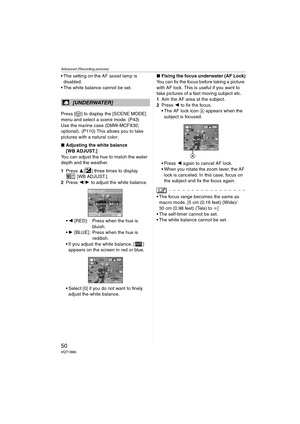

Advanced (Recording pictures)
50VQT1B86
 The setting on the AF assist lamp is
disabled.
 The white balance cannot be set.
Press [ ] to display the [SCENE MODE]
menu and select a scene mode. (P43)
Use the marine case (DMW-MCFX30;
optional). (P110) This allows you to take
pictures with a natural color.
∫Adjusting the white balance
[WB ADJUST.]
You can adjust the hue to match the water
depth and the weather.
1Press 3[ ] three times to display
[WB ADJUST.].
2Press 2/1 to adjust the white balance.
2...
