Connecting to other equipment
91VQT1J59
Connecting to other equipment

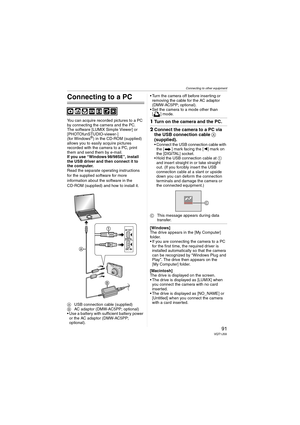

Connecting to a PC
You can acquire recorded pictures to a PC
by connecting the camera and the PC.
The software [LUMIX Simple Viewer] or
[PHOTOfunSTUDIO-viewer-]
(for Windows
®) in the CD-ROM (supplied)
allows you to easily acquire pictures
recorded with the camera to a PC, print
them and send them by e-mail.
If you use “Windows
 98/98SE”, install
the USB driver and then connect it to
the computer.
Read the separate operating...

Connecting to other equipment
92VQT1J59

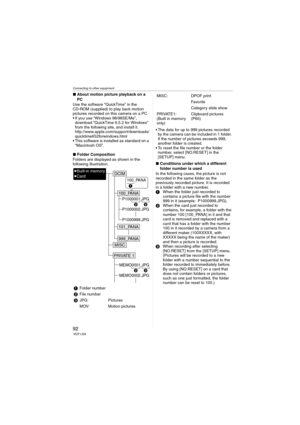

∫About motion picture playback on a
PC
Use the software “QuickTime” in the
CD-ROM (supplied) to play back motion
pictures recorded on this camera on a PC.
 If you use “Windows 98/98SE/Me”,
download “QuickTime 6.5.2 for Windows”
from the following site, and install it.
http://www.apple.com/support/downloads/
quicktime652forwindows.html
 This software is installed as standard on a
“Macintosh OS”.
∫Folder Composition
Folders are displayed as shown in the...

Connecting to other equipment
93VQT1J59

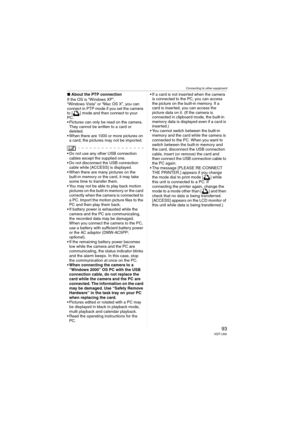

∫About the PTP connection
If the OS is “Windows XP”,
“Windows Vista” or “Mac OS X”, you can
connect in PTP mode if you set the camera
to [ ] mode and then connect to your
PC.
 Pictures can only be read on the camera.
They cannot be written to a card or
deleted.
 When there are 1000 or more pictures on
a card, the pictures may not be imported.
 Do not use any other USB connection
cables except the supplied one.
 Do not disconnect the USB connection
cable...

Connecting to other equipment
94VQT1J59

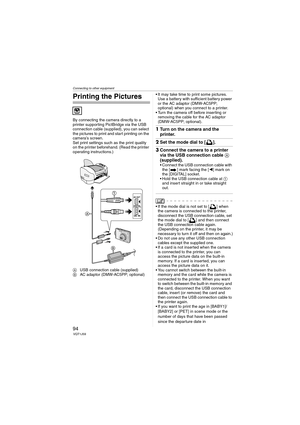

Printing the Pictures
By connecting the camera directly to a
printer supporting PictBridge via the USB
connection cable (supplied), you can select
the pictures to print and start printing on the
camera’s screen.
Set print settings such as the print quality
on the printer beforehand. (Read the printer
operating instructions.)
AUSB connection cable (supplied)
BAC adaptor (DMW-AC5PP; optional) It may take time to print some pictures.
Use a battery with...

Connecting to other equipment
95VQT1J59

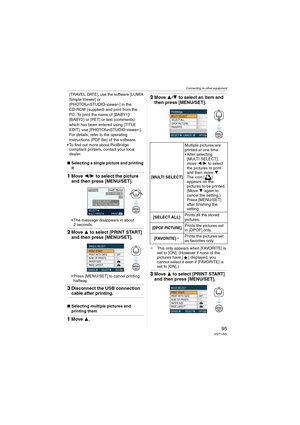

[TRAVEL DATE], use the software [LUMIX
Simple Viewer] or
[PHOTOfunSTUDIO-viewer-] in the
CD-ROM (supplied) and print from the
PC. To print the name of [BABY1]/
[BABY2] or [PET] or text (comments)
which has been entered using [TITLE
EDIT], use [PHOTOfunSTUDIO-viewer-].
For details, refer to the operating
instructions (PDF file) of the software.
 To find out more about PictBridge
compliant printers, contact your local
dealer.
∫Selecting a single picture and...

Connecting to other equipment
96VQT1J59

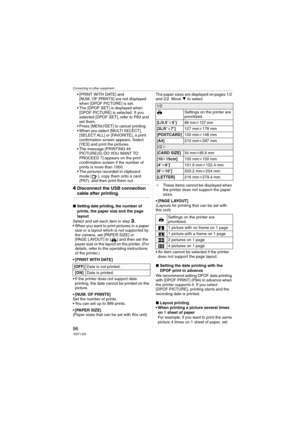

 [PRINT WITH DATE] and
[NUM. OF PRINTS] are not displayed
when [DPOF PICTURE] is set.
 The [DPOF SET] is displayed when
[DPOF PICTURE] is selected. If you
selected [DPOF SET], refer to P83 and
set them.
 Press [MENU/SET] to cancel printing.
 When you select [MULTI SELECT],
[SELECT ALL] or [FAVORITE], a print
confirmation screen appears. Select
[YES] and print the pictures.
 The message [PRINTING ##
PICTURE(S) DO YOU WANT TO
PROCEED ?] appears on the print...

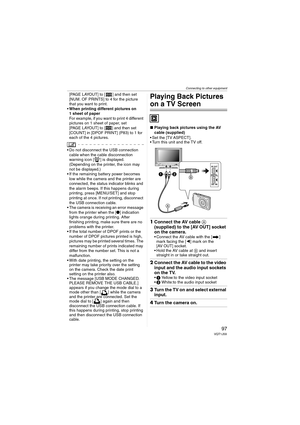

Connecting to other equipment
97VQT1J59
[PAGE LAYOUT] to [ ] and then set
[NUM. OF PRINTS] to 4 for the picture
that you want to print.
When printing different pictures on
1 sheet of paper
For example, if you want to print 4 different
pictures on 1 sheet of paper, set
[PAGE LAYOUT] to [ ] and then set
[COUNT] in [DPOF PRINT] (P83) to 1 for
each of the 4 pictures.
 Do not disconnect the USB connection
cable when the cable disconnection
warning icon [ ] is displayed.
(Depending on the printer,...

Connecting to other equipment
98VQT1J59

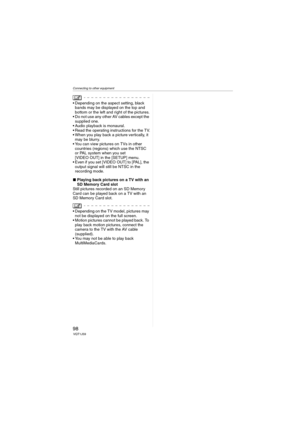

 Depending on the aspect setting, black
bands may be displayed on the top and
bottom or the left and right of the pictures.
 Do not use any other AV cables except the
supplied one.
 Audio playback is monaural.
 Read the operating instructions for the TV.
 When you play back a picture vertically, it
may be blurry.
 You can view pictures on TVs in other
countries (regions) which use the NTSC
or PAL system when you set
[VIDEO OUT] in the [SETUP] menu.
 Even if...

Others
99VQT1J59
Others
Screen Display
In recording
Recording in normal picture mode [ ]
(Initial setting)
1 Recording mode
2 Flash mode (P34)
3 AF area (P22)
4 Focus (P22)
5 Picture size (P59)
6 Quality (P59)
: Jitter alert (P24)
7 Battery indication (P20)
8 Number of recordable pictures (P111)
9 Built-in memory (P13)
: Card (P13)
10 Recording state
11 Shutter speed (P22)
12 Aperture value (P22)
13 Optical image stabilizer (P62)In recording (after settings)
14 Burst (P63)
: Audio recording (P50, 60)
15...

Others
100VQT1J59

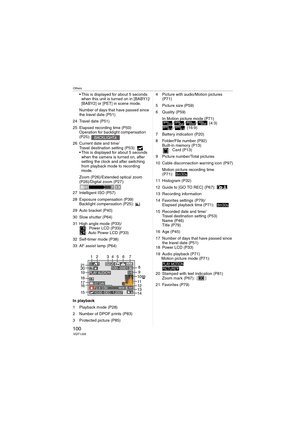

• This is displayed for about 5 seconds when this unit is turned on in [BABY1]/
[BABY2] or [PET] in scene mode.
Number of days that have passed since
the travel date (P51)
24 Travel date (P51)
25 Elapsed recording time (P50) Operation for backlight compensation
(P25):
26 Current date and time/ Travel destination setting (P53):
 This is displayed for about 5 seconds when the camera is turned on, after
setting the clock and after switching
from playback mode to recording
mode....
