Panasonic Dmc Fx55 Operating Instructions Manual

Advanced (Recording pictures)
31VQT1J59
Advanced (Recording pictures)

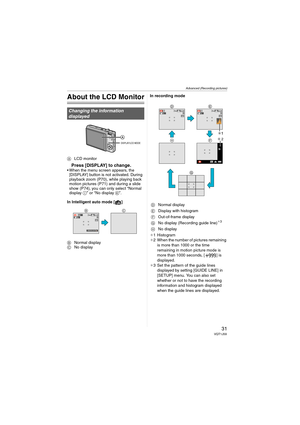

About the LCD Monitor
ALCD monitor
Press [DISPLAY] to change. When the menu screen appears, the
[DISPLAY] button is not activated. During
playback zoom (P70), while playing back
motion pictures (P71) and during a slide
show (P74), you can only select “Normal
display I” or “No display K”.
In Intelligent auto mode [ ]
BNormal display
CNo displayIn recording mode
¢1 Histogram
¢2 When the number of pictures remaining
is more than...

Advanced (Recording pictures)
32VQT1J59

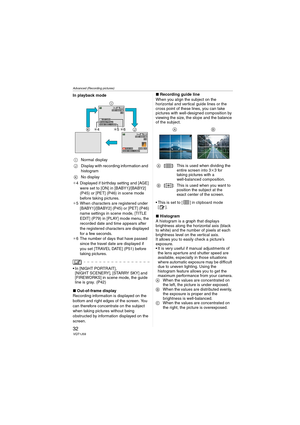

In playback mode
¢4 Displayed if birthday setting and [AGE]
were set to [ON] in [BABY1]/[BABY2]
(P45) or [PET] (P46) in scene mode
before taking pictures.
¢5 When characters are registered under
[BABY1]/[BABY2] (P45) or [PET] (P46)
name settings in scene mode, [TITLE
EDIT] (P79) in [PLAY] mode menu, the
recorded date and time appears after
the registered characters are displayed
for a few seconds.
¢6 The number of days that have passed
since the travel...

Advanced (Recording pictures)
33VQT1J59

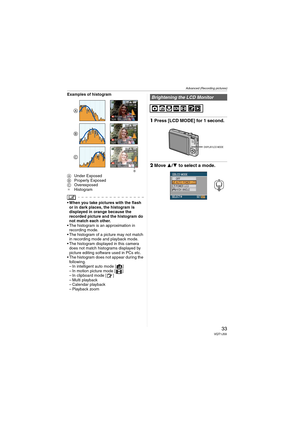

Examples of histogram
AUnder Exposed
BProperly Exposed
COverexposed
¢Histogram
When you take pictures with the flash
or in dark places, the histogram is
displayed in orange because the
recorded picture and the histogram do
not match each other.
 The histogram is an approximation in
recording mode.
 The histogram of a picture may not match
in recording mode and playback mode.
 The histogram displayed in this camera
does not match histograms displayed by...

Advanced (Recording pictures)

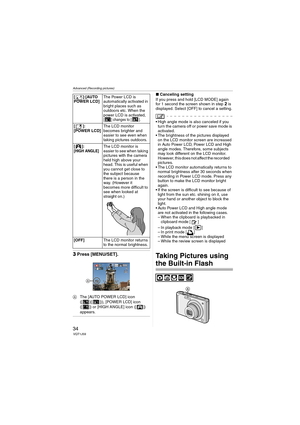

34VQT1J59
3Press [MENU/SET].
AThe [AUTO POWER LCD] icon
([ ]([ ])), [POWER LCD] icon
([ ]) or [HIGH ANGLE] icon ([ ])
appears.
∫Canceling setting
If you press and hold [LCD MODE] again
for 1 second the screen shown in step
2 is
displayed. Select [OFF] to cancel a setting.
 High angle mode is also canceled if you
turn the camera off or power save mode is
activated.
 The brightness of the pictures displayed
on the LCD monitor screen are increased
in Auto Power LCD,...

Advanced (Recording pictures)
35VQT1J59

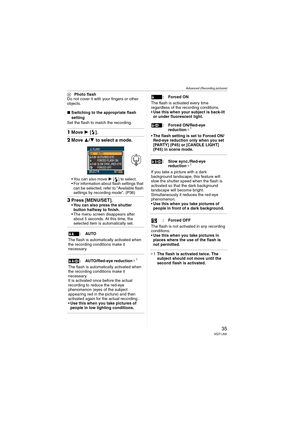

APhoto flash
Do not cover it with your fingers or other
objects.
∫Switching to the appropriate flash
setting
Set the flash to match the recording.
1Move 1 [].
2Move 3/4 to select a mode.
 You can also move 1 [ ] to select.
 For information about flash settings that
can be selected, refer to “Available flash
settings by recording mode”. (P36)
3Press [MENU/SET].You can also press the shutter
button halfway to finish.
 The menu screen disappears after
about 5...

Advanced (Recording pictures)
36VQT1J59

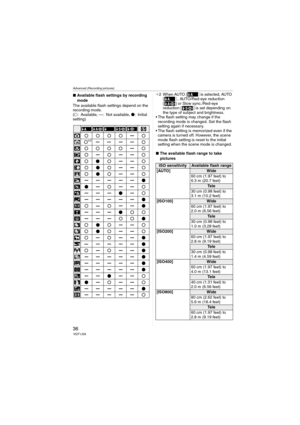

∫Available flash settings by recording
mode
The available flash settings depend on the
recording mode.
(±: Available, —: Not available, ¥: Initial
setting)¢2 When AUTO []is selected, AUTO
[], AUTO/Red-eye reduction
[ ] or Slow sync./Red-eye
reduction [ ] is set depending on
the type of subject and brightness.
 The flash setting may change if the
recording mode is changed. Set the flash
setting again if necessary.
 The flash setting is memorized even if the...

Advanced (Recording pictures)
37VQT1J59

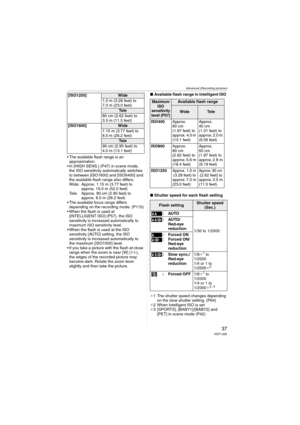

 The available flash range is an
approximation.
 In [HIGH SENS.] (P47) in scene mode,
the ISO sensitivity automatically switches
to between [ISO1600] and [ISO6400] and
the available flash range also differs.
Wide: Approx. 1.15 m (3.77 feet) to
approx. 16.0 m (52.5 feet)
Tele: Approx. 90 cm (2.95 feet) to
approx. 8.0 m (26.2 feet)
 The available focus range differs
depending on the recording mode. (P115)
 When the flash is used at
[INTELLIGENT ISO] (P57),...

Advanced (Recording pictures)

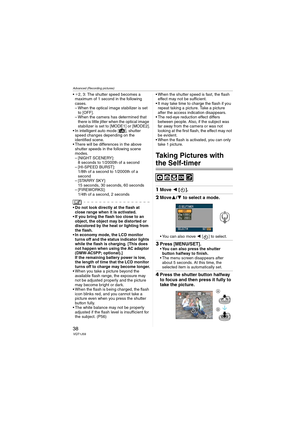

38VQT1J59
¢2, 3: The shutter speed becomes a
maximum of 1 second in the following
cases.
– When the optical image stabilizer is set
to [OFF].
– When the camera has determined that
there is little jitter when the optical image
stabilizer is set to [MODE1] or [MODE2].
 In intelligent auto mode [ ], shutter
speed changes depending on the
identified scene.
 There will be differences in the above
shutter speeds in the following scene
modes.
– [NIGHT SCENERY]:
8 seconds...

Advanced (Recording pictures)
39VQT1J59

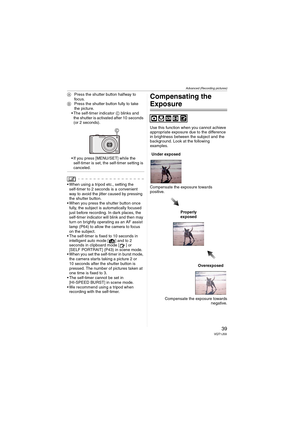

APress the shutter button halfway to
focu s.
BPress the shutter button fully to take
the picture.
 The self-timer indicator C blinks and
the shutter is activated after 10 seconds
(or 2 seconds).
 If you press [MENU/SET] while the
self-timer is set, the self-timer setting is
canceled.
 When using a tripod etc., setting the
self-timer to 2 seconds is a convenient
way to avoid the jitter caused by pressing
the shutter button.
 When you press the shutter...

Advanced (Recording pictures)
40VQT1J59

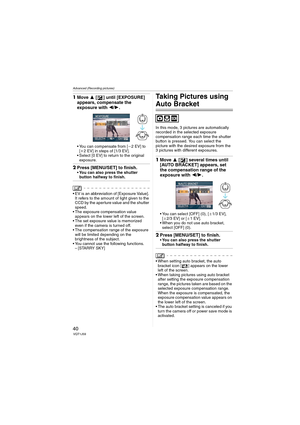

1Move 3 [ ] until [EXPOSURE]
appears, compensate the
exposure with 2/1.
 You can compensate from [j2EV] to
[i2 EV] in steps of [1/3 EV].
 Select [0 EV] to return to the original
exposure.
2Press [MENU/SET] to finish.You can also press the shutter
button halfway to finish.
 EV is an abbreviation of [Exposure Value].
It refers to the amount of light given to the
CCD by the aperture value and the shutter
speed.
 The exposure compensation value
appears on the...
