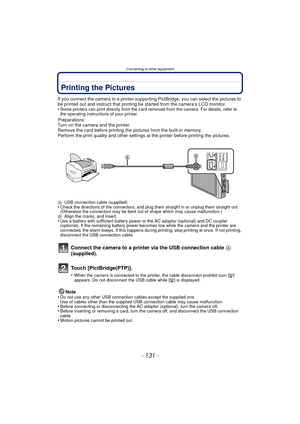

- 131 -
Connecting to other equipment
Printing the Pictures
If you connect the camera to a printer supporting PictBridge, you can select the pictures to
be printed out and instruct that printing be started from the camera’s LCD monitor.
•
Some printers can print directly from the card removed from the camera. For details, refer to
the operating instructions of your printer.
Preparations:
Turn on the camera and the printer.
Remove the card before printing the pictures from the built-in memory.
Perform...

Connecting to other equipment

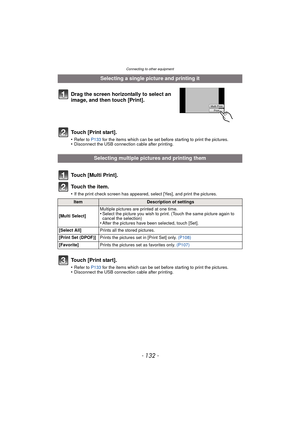

- 132 -
Selecting a single picture and printing it
Drag the screen horizontally to select an
image, and then touch [Print].
Touch [Print start].
•Refer to  P133 for the items which can be set before starting to print the pictures.•Disconnect the USB connecti on cable after printing.
Selecting multiple pictures and printing them
Touch [Multi Print].
To u c h  t h e  i t e m .
•If the print check screen has appeared, select [Yes], and print the pictures.
ItemDescription of...

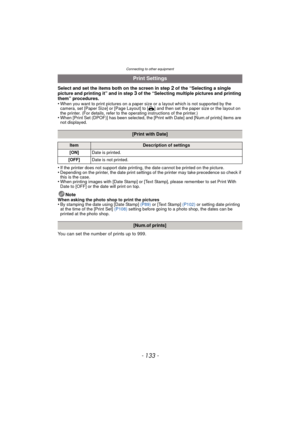

- 133 -
Connecting to other equipment
Select and set the items both on the screen in step 2 of the “Selecting a single
picture and printing it” and in step 3 of the “Selecting multiple pictures and printing
them” procedures.
•
When you want to print pictures on a paper size or a layout which is not supported by the
camera, set [Paper Size] or [Page Layout] to [ {] and then set the paper size or the layout on
the printer. (For details, refer to the operating instructions of the printer.)
•When [Print...

Connecting to other equipment

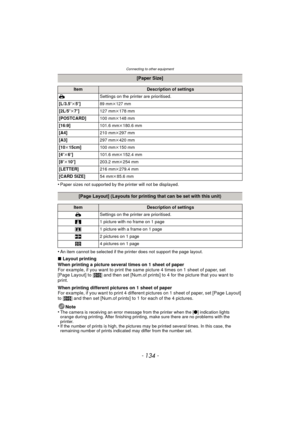

- 134 -
•Paper sizes not supported by the printer will not be displayed.
•An item cannot be selected if the printer does not support the page layout.
∫Layout printing
When printing a picture several times on 1 sheet of paper
For example, if you want to print the same picture 4 times on 1 sheet of paper, set
[Page Layout] to [ ä] and then set [Num.of prints] to 4 for the picture that you want to
print.
When printing different pictures on 1 sheet of paper
For example, if you...

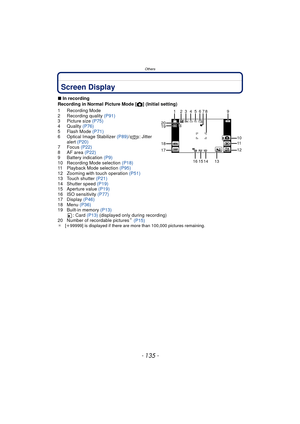

- 135 -
Others
OthersScreen Display
∫In recording
Recording in Normal Picture Mode [ !] (Initial setting)
1 Recording Mode
2 Recording quality  (P91)
3 Picture size  (P75)
4 Quality  (P76)
5 Flash Mode  (P71)
6 Optical Image Stabilizer (P89) / : Jitter
alert  (P20)
7 Focus  (P22)
8 AF area  (P22)
9 Battery indication  (P9)
10 Recording Mode selection  (P18)
11 Playback Mode selection  (P95)
12 Zooming with touch operation  (P51)
13 Touch shutter  (P21)
14 Shutter speed  (P19)
15 Aperture value  (P19)
16...

Others

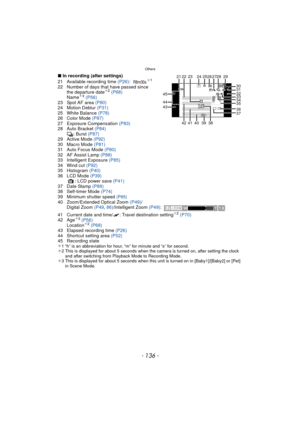

- 136 -
∫In recording (after settings)
21 Available recording time  (P26):¢1
22 Number of days that have passed since
the departure date¢2 (P68)
Name¢3  (P56)
23 Spot AF area  (P80)
24 Motion Deblur  (P31)
25 White Balance  (P78)
26 Color Mode  (P87)
27 Exposure Compensation  (P83)
28 Auto Bracket  (P84)
˜ : Burst  (P87)
29 Active Mode  (P92)
30 Macro Mode  (P81)
31 Auto Focus Mode  (P80)
32 AF Assist Lamp  (P88)
33 Intelligent Exposure  (P85)
34 Wind cut  (P92)
35 Histogram  (P40)
36 LCD Mode...

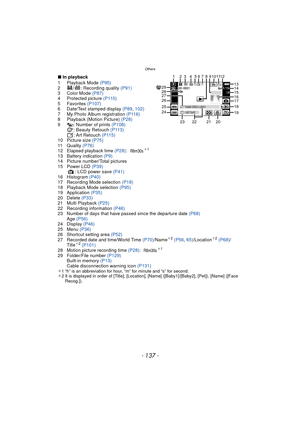

- 137 -
Others
∫In playback
1 Playback Mode  (P95)
2 / : Recording quality  (P91)
3 Color Mode  (P87)
4 Protected picture  (P110)
5 Favorites  (P107)
6 Date/Text stamped display  (P89, 102)
7 My Photo Album registration  (P116)
8 Playback (Motion Picture) (P28)
9 : Number of prints  (P108)
: Beauty Retouch  (P113)
: Art Retouch (P115)
10 Picture size  (P75)
11 Quality  (P76)
12 Elapsed playback time  (P28):
¢1
13 Battery indication  (P9)
14 Picture number/Total pictures
15 Power LCD  (P39)
: LCD power...

Others

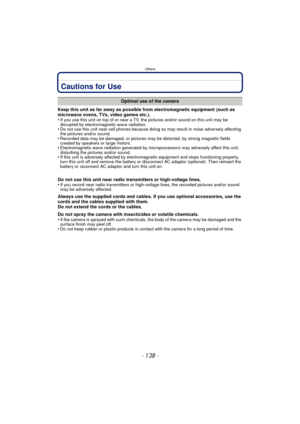

- 138 -
Cautions for Use
Keep this unit as far away as possible from electromagnetic equipment (such as
microwave ovens, TVs, video games etc.).
•
If you use this unit on top of or near a TV, the pictures and/or sound on this unit may be
disrupted by electromagnetic wave radiation.
•Do not use this unit near cell phones because doing so may result in noise adversely affecting
the pictures and/or sound.
•Recorded data may be damaged, or pictures may be distorted, by strong magnetic fields...

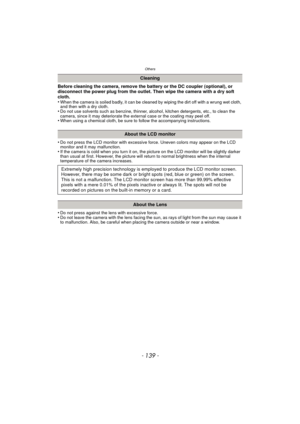

- 139 -
Others
Before cleaning the camera, remove the battery or the DC coupler (optional), or
disconnect the power plug from the outlet. Then wipe the camera with a dry soft
cloth.
•
When the camera is soiled badly, it can be cleaned by wiping the dirt off with a wrung wet cloth,
and then with a dry cloth.
•Do not use solvents such as benzine, thinner, alcohol, kitchen detergents, etc., to clean the
camera, since it may deteriorate the external case or the coating may peel off.
•When using a...

Others

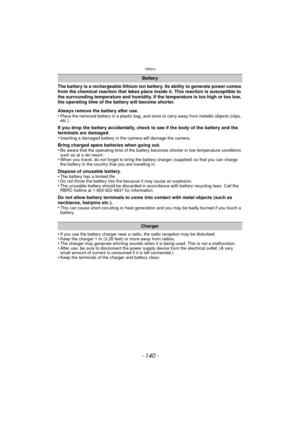

- 140 -
The battery is a rechargeable lithium ion battery. Its ability to generate power comes
from the chemical reaction that takes place inside it. This reaction is susceptible to
the surrounding temperature and humidity. If the temperature is too high or too low,
the operating time of the battery will become shorter.
Always remove the battery after use.
•
Place the removed battery in a plastic bag, and store or carry away from metallic objects (clips,
etc.).
If you drop the battery...
