Connecting to other equipment

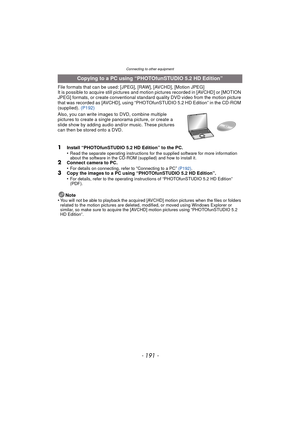

- 191 -
File formats that can be used: [JPEG], [RAW], [AVCHD], [Motion JPEG]
It is possible to acquire still pictures and motion pictures recorded in [AVCHD] or [MOTION
JPEG] formats, or create conventional standard quality DVD video from the motion picture
that was recorded as [AVCHD], using “PHOTOfunSTUDIO 5.2 HD Edition” in the CD-ROM
(supplied).  (P192)
Also, you can write images to DVD, combine multiple
pictures to create a single  panorama picture, or create a...

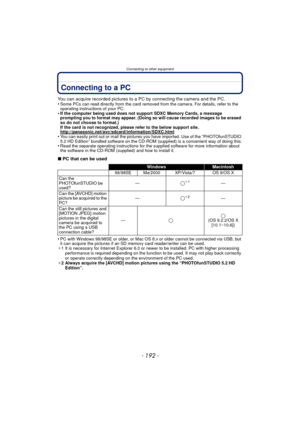

- 192 -
Connecting to other equipment
Connecting to a PC
You can acquire recorded pictures to a PC by connecting the camera and the PC.
•Some PCs can read directly from the card removed from the camera. For details, refer to the
operating instructions of your PC.
•If the computer being used does not support SDXC Memory Cards, a message
prompting you to format may appear. (Doing so will cause recorded images to be erased
so do not choose to format.)
If the card is not recognized, please refer to the...

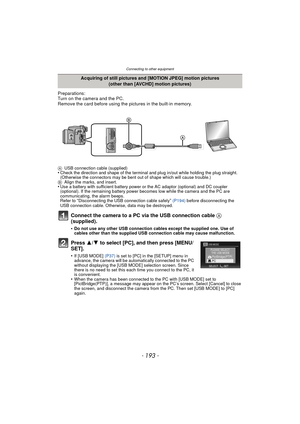

Connecting to other equipment
- 193 -
Preparations:
Turn on the camera and the PC.
Remove the card before using the pictures in the built-in memory.
Connect the camera to a PC via the USB connection cable A
(supplied).
•Do not use any other USB connection cables except the supplied one. Use of
cables other than the supplied USB connection cable may cause malfunction.
Press  3/4 to select [PC], and then press [MENU/
SET].
•If [USB MODE]  (P37) is set to [PC] in the [SETUP] menu in
advance, the camera...

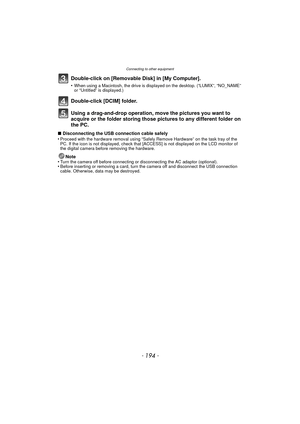

- 194 -
Connecting to other equipment
Double-click on [Removable Disk] in [My Computer].
•When using a Macintosh, the drive is displayed on the desktop. (“LUMIX”, “NO_NAME”
or “Untitled” is displayed.)
Double-click [DCIM] folder.
Using a drag-and-drop operation, move the pictures you want to
acquire or the folder storing those pi ctures to any different folder on
the PC.
∫ Disconnecting the USB connection cable safely
•Proceed with the hardware removal using “Safely Remove Hardware” on the task tray...

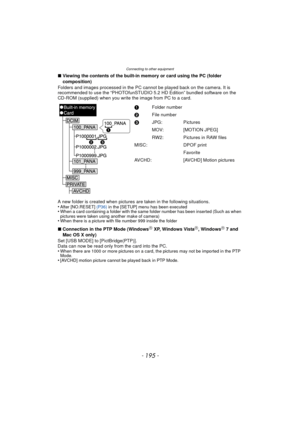

Connecting to other equipment
- 195 -
∫Viewing the contents of the built-in memory or card using the PC (folder
composition)
Folders and images processed in the PC  cannot be played back on the camera. It is
recommended to use the “PHOTOfunSTUDIO 5.2 HD Edition” bundled software on the
CD-ROM (supplied) when you write the image from PC to a card.
A new folder is created when pictures are taken in the following situations.
•
After [NO.RESET]  (P36) in the [SETUP] menu has been executed•When a card...

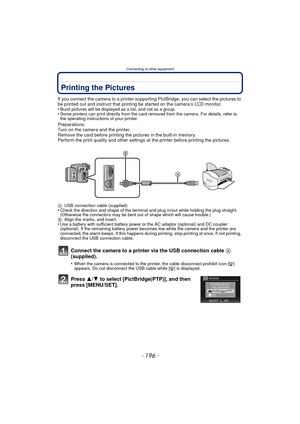

- 196 -
Connecting to other equipment
Printing the Pictures
If you connect the camera to a printer supporting PictBridge, you can select the pictures to
be printed out and instruct that printing be started on the camera’s LCD monitor.
•
Burst pictures will be displayed as a list, and not as a group.•Some printers can print directly from the card removed from the camera. For details, refer to
the operating instructions of your printer.
Preparations:
Turn on the camera and the printer.
Remove the card...

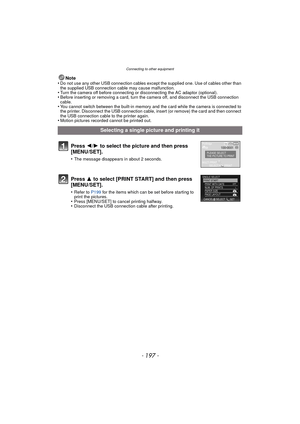

Connecting to other equipment
- 197 -
Note
•Do not use any other USB connection cables except the supplied one. Use of cables other than
the supplied USB connection cable may cause malfunction.
•Turn the camera off before connecting or disconnecting the AC adaptor (optional).•Before inserting or removing a card, turn the camera off, and disconnect the USB connection
cable.
•You cannot switch between the built-in memory and the card while the camera is connected to
the printer. Disconnect the USB...

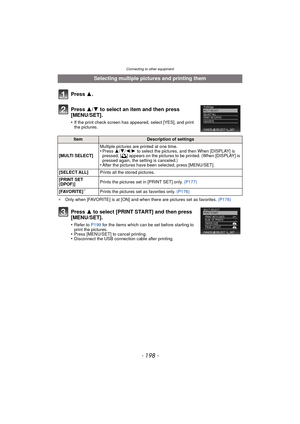

- 198 -
Connecting to other equipment
¢Only when [FAVORITE] is at [ON] and when there are pictures set as favorites.  (P176)
Selecting multiple pictures and printing them
Press  3.
Press  3/4 to select an item and then press
[MENU/SET].
•If the print check screen has appeared, select [YES], and print
the pictures.
ItemDescription of settings
[MULTI SELECT] Multiple pictures are printed at one time.
•Press
3/4/ 2/1 to select the pictures, and then When [DISPLAY] is
pressed, [ é] appears on the...

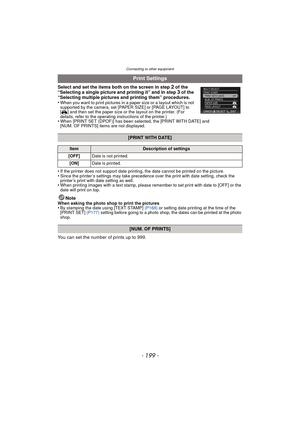

Connecting to other equipment
- 199 -
Select and set the items both on the screen in step 2 of the
“Selecting a single picture and printing it” and in step 3 of the
“Selecting multiple pictures and printing them” procedures.
•
When you want to print pictures in a paper size or a layout which is not
supported by the camera, set [PAPER SIZE] or [PAGE LAYOUT] to
[ { ] and then set the paper size or the layout on the printer. (For
details, refer to the operating instructions of the printer.)
•When...

- 200 -
Connecting to other equipment
•Paper sizes not supported by the printer will not be displayed.
[PAPER SIZE]
ItemDescription of settings
{ Settings on the printer are prioritized.
[L/3.5 qk5q]
89 mmk127 mm
[2L/5 qk7q] 127 mmk178 mm
[POSTCARD] 100 mmk148 mm
[16:9] 101.6 mmk180.6 mm
[A4] 210 mmk297 mm
[A3] 297 mmk420 mm
[10 k15cm] 100 mmk150 mm
[4 qk6 q] 101.6 mmk152.4 mm
[8 qk10 q] 203.2 mmk254 mm
[LETTER] 216 mmk279.4 mm
[CARD SIZE] 54 mmk85.6 mm
