Others
101
Others

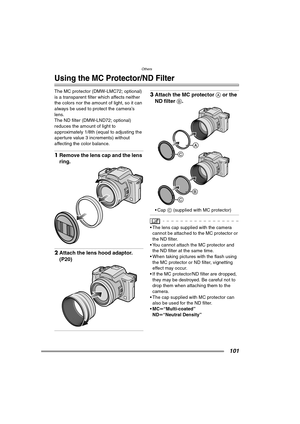

Using the MC Protector/ND Filter
The MC protector (DMW-LMC72; optional)
is a transparent filter which affects neither
the colors nor the amount of light, so it can
always be used to protect the camera’s
lens.
The ND filter (DMW-LND72; optional)
reduces the amount of light to
approximately 1/8th (equal to adjusting the
aperture value 3 increments) without
affecting the color balance.
1Remove the lens cap and the lens
ring.
2Attach the lens hood adaptor.
(P20)
3Attach the MC...

Others
102

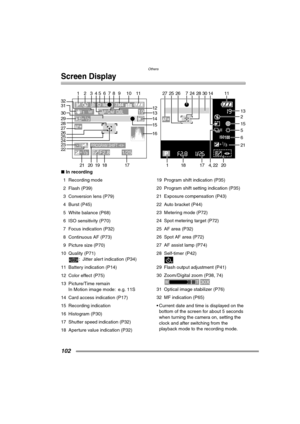

Screen Display
∫In recording
1 Recording mode
2 Flash (P39)
3 Conversion lens (P79)
4 Burst (P45)
5 White balance (P68)
6 ISO sensitivity (P70)
7 Focus indication (P32)
8 Continuous AF (P73)
9 Picture size (P70)
10 Quality (P71)
: Jitter alert indication (P34)
11 Battery indication (P14)
12 Color effect (P75)
13 Picture/Time remain
In Motion image mode: e.g. 11S
14 Card access indication (P17)
15 Recording indication
16 Histogram (P30)
17 Shutter speed indication (P32)
18 Aperture value...

Others
103

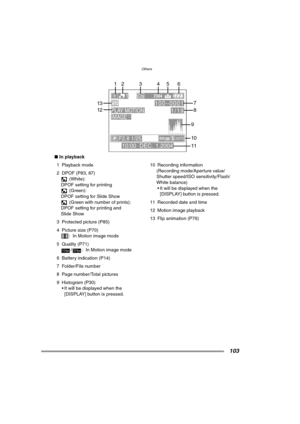

∫In playback
1 Playback mode
2 DPOF (P83, 87)
 (White):
DPOF setting for printing
 (Green):
DPOF setting for Slide Show
 (Green with number of prints):
DPOF setting for printing and
Slide Show
3 Protected picture (P85)
4 Picture size (P70)
: In Motion image mode
5 Quality (P71)
/ : In Motion image mode
6 Battery indication (P14)
7 Folder/File number
8 Page number/Total pictures
9 Histogram (P30)
 It will be displayed when the
[DISPLAY] button is pressed.10 Recording information
(Recording...

Others
104

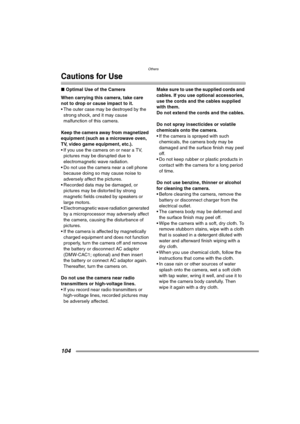

Cautions for Use
∫Optimal Use of the Camera
When carrying this camera, take care
not to drop or cause impact to it.
 The outer case may be destroyed by the
strong shock, and it may cause
malfunction of this camera.
Keep the camera away from magnetized
equipment (such as a microwave oven,
TV, video game equipment, etc.).
 If you use the camera on or near a TV,
pictures may be disrupted due to
electromagnetic wave radiation.
 Do not use the camera near a cell phone
because doing so...

Others
105

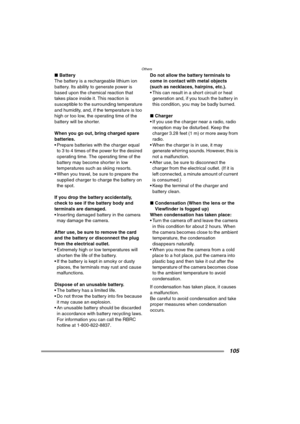

∫Battery
The battery is a rechargeable lithium ion
battery. Its ability to generate power is
based upon the chemical reaction that
takes place inside it. This reaction is
susceptible to the surrounding temperature
and humidity, and, if the temperature is too
high or too low, the operating time of the
battery will be shorter.
When you go out, bring charged spare
batteries.
 Prepare batteries with the charger equal
to 3 to 4 times of the power for the desired
operating time. The...

Others
106

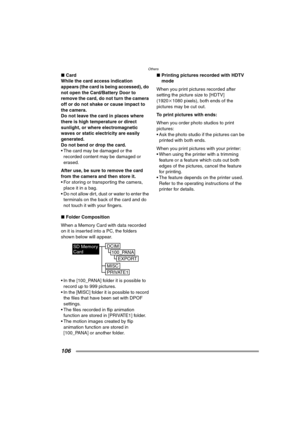

∫Card
While the card access indication
appears (the card is being accessed), do
not open the Card/Battery Door to
remove the card, do not turn the camera
off or do not shake or cause impact to
the camera.
Do not leave the card in places where
there is high temperature or direct
sunlight, or where electromagnetic
waves or static electricity are easily
generated.
Do not bend or drop the card.
 The card may be damaged or the
recorded content may be damaged or
erased.
After use, be...

Others
107

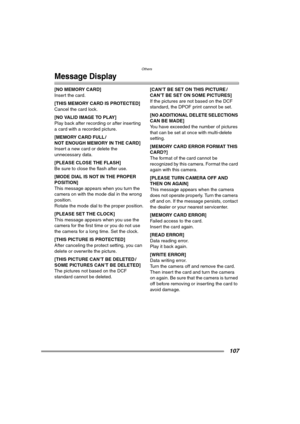

Message Display
[NO MEMORY CARD]
Insert the card.
[THIS MEMORY CARD IS PROTECTED]
Cancel the card lock.
[NO VALID IMAGE TO PLAY]
Play back after recording or after inserting
a card with a recorded picture.
[MEMORY CARD FULL /
NOT ENOUGH MEMORY IN THE CARD]
Insert a new card or delete the
unnecessary data.
[PLEASE CLOSE THE FLASH]
Be sure to close the flash after use.
[MODE DIAL IS NOT IN THE PROPER
POSITION]
This message appears when you turn the
camera on with the mode dial in the wrong...

Others
108

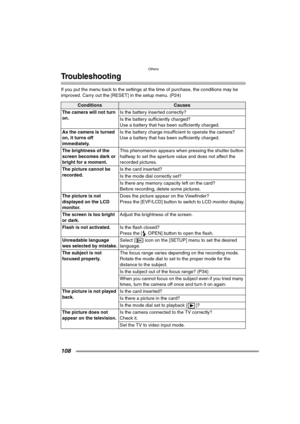

Troubleshooting
If you put the menu back to the settings at the time of purchase, the conditions may be
improved. Carry out the [RESET] in the setup menu. (P24)
ConditionsCauses
The camera will not turn
on.Is the battery inserted correctly?
Is the battery sufficiently charged?
Use a battery that has been sufficiently charged.
As the camera is turned
on, it turns off
immediately.Is the battery charge insufficient to operate the camera?
Use a battery that has been sufficiently charged.
The...

Others
109

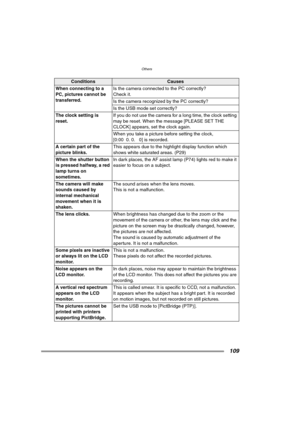

ConditionsCauses
When connecting to a
PC, pictures cannot be
transferred.Is the camera connected to the PC correctly?
Check it.
Is the camera recognized by the PC correctly?
Is the USB mode set correctly?
The clock setting is
reset.If you do not use the camera for a long time, the clock setting
may be reset. When the message [PLEASE SET THE
CLOCK] appears, set the clock again.
When you take a picture before setting the clock,
[0:00 0. 0. 0] is recorded.
A certain part of the
picture...

Others
110

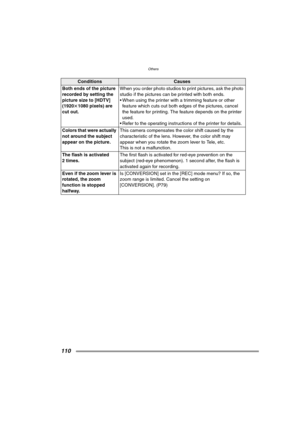

ConditionsCauses
Both ends of the picture
recorded by setting the
picture size to [HDTV]
(1920k1080 pixels) are
cut out.When you order photo studios to print pictures, ask the photo
studio if the pictures can be printed with both ends.
 When using the printer with a trimming feature or other
feature which cuts out both edges of the pictures, cancel
the feature for printing. The feature depends on the printer
used.
 Refer to the operating instructions of the printer for details....
