Recording pictures (advanced)
81

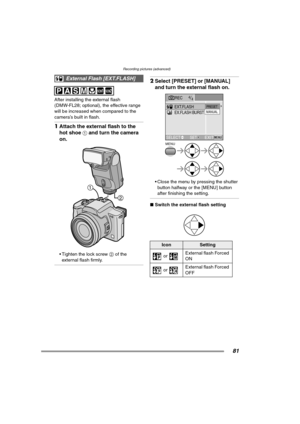

After installing the external flash
(DMW-FL28; optional), the effective range
will be increased when compared to the
camera’s built in flash.
1Attach the external flash to the
hot shoe
1 and turn the camera
on.
 Tighten the lock screw 2 of the
external flash firmly.
2Select [PRESET] or [MANUAL]
and turn the external flash on.
 Close the menu by pressing the shutter
button halfway or the [MENU] button
after finishing the setting.
∫Switch the external flash...

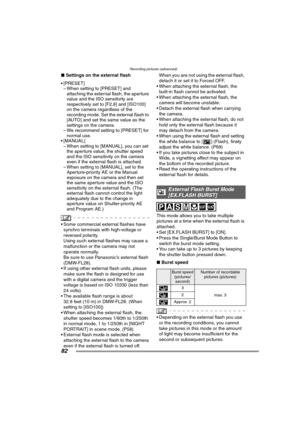

Recording pictures (advanced)
82
∫Settings on the external flash
 [PRESET]
– When setting to [PRESET] and
attaching the external flash, the aperture
value and the ISO sensitivity are
respectively set to [F2.8] and [ISO100]
on the camera regardless of the
recording mode. Set the external flash to
[AUTO] and set the same value as the
settings on the camera.
– We recommend setting to [PRESET] for
normal use.
[MANUAL]
– When setting to [MANUAL], you can set
the aperture value, the shutter speed...

Playback (advanced)
83
Playback (advanced)

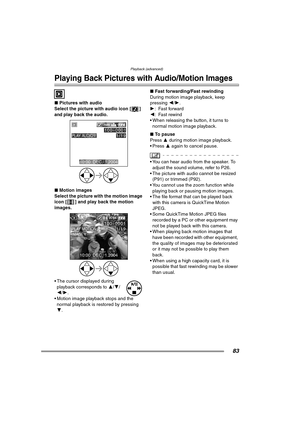

Playing Back Pictures with Audio/Motion Images
∫Pictures with audio
Select the picture with audio icon [ ]
and
play back the audio.
∫ Motion images
Select the picture with the motion image
icon [ ] and play back the motion
images.
 The cursor displayed during  playback corresponds to  3/4/
2 /1 .
 Motion image playback stops and the  normal playback is restored by pressing
4 . ∫
Fast forwarding/Fast rewinding
During motion image playback, keep
pressing...

Playback (advanced)
84

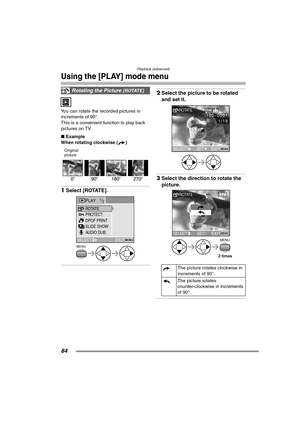

Using the [PLAY] mode menu
You can rotate the recorded pictures in
increments of 90°.
This is a convenient function to play back
pictures on TV.
∫Example
When rotating clockwise ( )
Original
1Select [ROTATE].
2Select the picture to be rotated
and set it.
3Select the direction to rotate the
picture.
Rotating the Picture [ROTATE]
PLAY1/2
PROTECT
SLIDE SHOW
AUDIO DUB. ROTATE
DPOF PRINT
EXITMENUSELECT
MENU
The picture rotates clockwise in
increments of 90°.
The picture...

Playback (advanced)
85

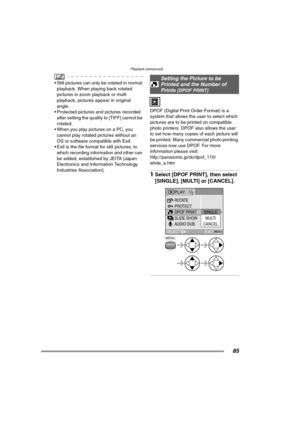

 Still pictures can only be rotated in normal
playback. When playing back rotated
pictures in zoom playback or multi
playback, pictures appear in original
angle.
 Protected pictures and pictures recorded
after setting the quality to [TIFF] cannot be
rotated.
 When you play pictures on a PC, you
cannot play rotated pictures without an
OS or software compatible with Exif.
 Exif is the file format for still pictures, to
which recording information and other can
be added,...

Playback (advanced)
86

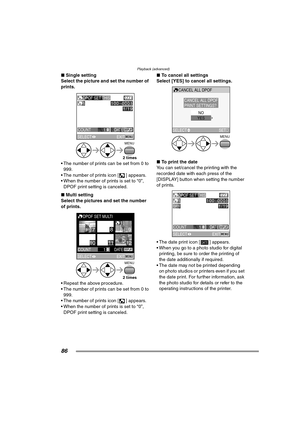

∫Single setting
Select the picture and set the number of
prints.
 The number of prints can be set from 0 to
999.
 The number of prints icon [ ] appears.
 When the number of prints is set to “0”,
DPOF print setting is canceled.
∫ Multi setting
Select the pictures and set the number
of prints.
 Repeat the above procedure.
 The number of prints can be set from 0 to  999.
 The number of prints icon [ ] appears.
 When the number of prints is set to “0”,  DPOF print setting...

Playback (advanced)
87

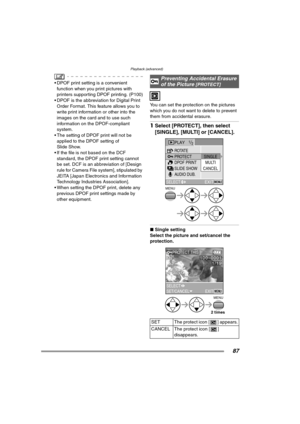

 DPOF print setting is a convenient
function when you print pictures with
printers supporting DPOF printing. (P100)
 DPOF is the abbreviation for Digital Print
Order Format. This feature allows you to
write print information or other into the
images on the card and to use such
information on the DPOF-compliant
system.
 The setting of DPOF print will not be
applied to the DPOF setting of
Slide Show.
 If the file is not based on the DCF
standard, the DPOF print setting...

Playback (advanced)
88

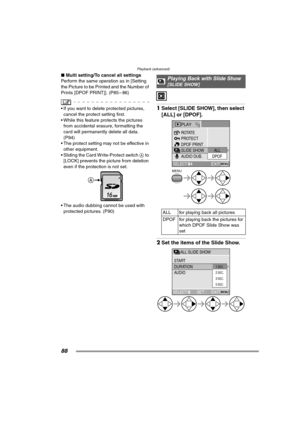

∫Multi setting/To cancel all settings
Perform the same operation as in [Setting
the Picture to be Printed and the Number of
Prints [DPOF PRINT]]. (P85 – 86)
 If you want to delete protected pictures,
cancel the protect setting first.
 While this feature protects the pictures
from accidental erasure, formatting the
card will permanently delete all data.
(P94)
 The protect setting may not be effective in
other equipment.
 Sliding the Card Write-Protect switch A to
[LOCK]...

Playback (advanced)
89

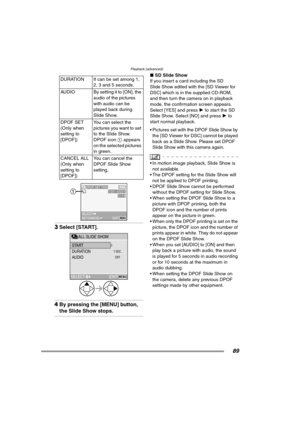

3Select [START].
4By pressing the [MENU] button,
the Slide Show stops.
∫SD Slide Show
If you insert a card including the SD
Slide Show edited with the [SD Viewer for
DSC] which is in the supplied CD-ROM,
and then turn the camera on in playback
mode, the confirmation screen appears.
Select [YES] and press 1 to start the SD
Slide Show. Select [NO] and press 1 to
start normal playback.
 Pictures set with the DPOF Slide Show by
the [SD Viewer for DSC] cannot be played
back...

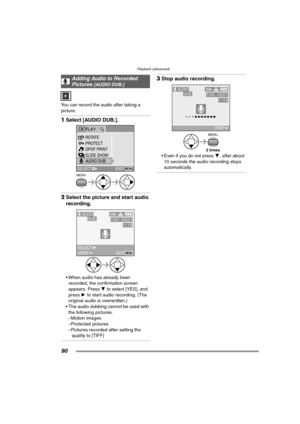

Playback (advanced)
90
You can record the audio after taking a
picture.
1Select [AUDIO DUB.].
2Select the picture and start audio
recording.
 When audio has already been
recorded, the confirmation screen
appears. Press 4 to select [YES], and
press 1 to start audio recording. (The
original audio is overwritten.)
 The audio dubbing cannot be used with
the following pictures.
–Motion images
–Protected pictures
–Pictures recorded after setting the
quality to [TIFF]
3Stop audio recording.
 Even...
