Panasonic Dmc Fz70 Owners Manual

VQT5B76
M0713KZ0
Owner’s Manual
for advanced features
Digital Camera
Model No.DMC-FZ70
Please read these instructions carefully before using this product, and
save this manual for future use.
Register online at
www.panasonic.com/register
(U.S. customers only)

Contents
VQT5B76- 2 -
Preparations
Before use .............................................. 7
Standard  Accessories
 ........................... 9
Names and Functions of Main Parts ... 10Viewfinder ................................................... 13
Cursor button / [MENU/SET] button  ............ 14
Rear Dial ..................................................... 14
Attaching the Lens Cap/
Shoulder Strap ..................................... 15Attaching the Lens Cap ..................................

ContentsVQT5B76
- 3 -
Using the [Setup] menu ...................... 61[Clock Set] ................................................... 61
[W orld Time]  ................................................ 61
[T
ravel Date]
................................................ 61
[Beep]


.......................................................... 61
[Speaker V

olume]
........................................ 61
[Cust.Set Mem.] .......................................... 62
[AF/AE LOCK / Fn1]...

ContentsVQT5B76
- 4 -
Taking pictures by setting the
shutter speed
[Shutter-Priority] Mode
..................... 109
T

aking pictures by setting the
aperture value and shutter speed
[Manual Exposure] Mode
 .................. 1

10
Taking pictures with different
picture effects
[Creative Control] mode

.................... 1
 12
[Expressive] ............................................... 114
[Retro]  ....................................................... 1 14
[Old Days]...

ContentsVQT5B76

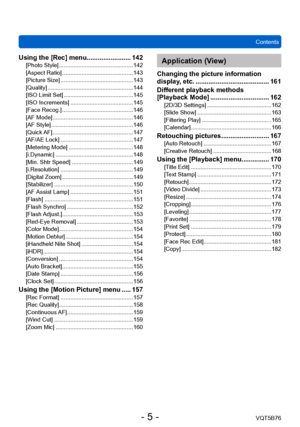

- 5 -
Using the [Rec] menu ........................ 142[Photo Style] .............................................. 142
[Aspect Ratio]  ............................................ 143
[Picture Size]

............................................. 143
[Quality]


..................................................... 144
[ISO Limit Set] ........................................... 145
[ISO Increments] ....................................... 145
[Face Recog.]...

ContentsVQT5B76

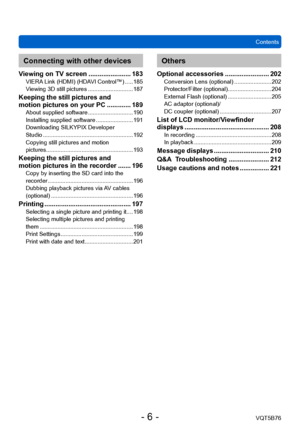

- 6 -
Connecting with other devices
Viewing on TV screen ....................... 183VIERA Link (HDMI) (HDAVI Control™) ..... 185
V iewing 3D still pictures ............................ 187
Keeping the still pictures and
motion pictures on your PC ............. 189About supplied software ............................ 190
Installing supplied software ....................... 191
Downloading SILKYPIX Developer
Studio

........................................................ 192
Copying...

Preparations

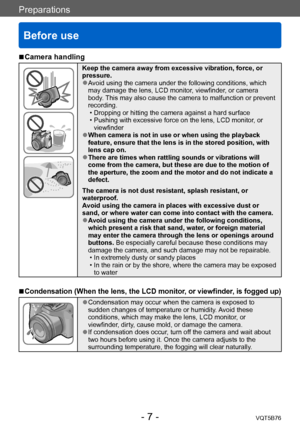

Before use
VQT5B76- 7 -
 ■Camera handling
Keep the camera away from excessive vibration, force, or
pressure.
 ●Avoid using the camera under the following conditions, which
may damage the lens, LCD monitor, viewfinder, or camera
body. This may also cause the camera to malfunction or prevent
recording.
 • Dropping or hitting the camera against a hard surface • Pushing with excessive force on the lens, LCD monitor
, or
viewfinder
 ●When camera is not in use or when using the playback...

Preparations
Before useVQT5B76
- 8 -

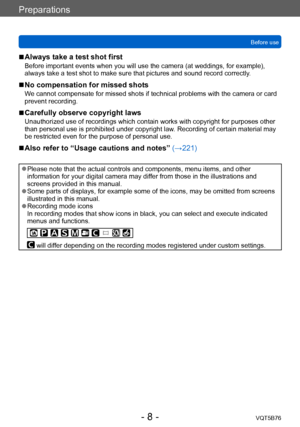

 ■Always take a test shot first
Before important events when you will use the camera (at weddings, for example),
always take a test shot to make sure that pictures and sound record correctly .
 ■No compensation for missed shots
We cannot compensate for missed shots if technical problems with the camera or card
prevent recording.
 ■Carefully observe copyright laws
Unauthorized use of recordings which contain works with copyright for purposes other
than personal use...

Preparations

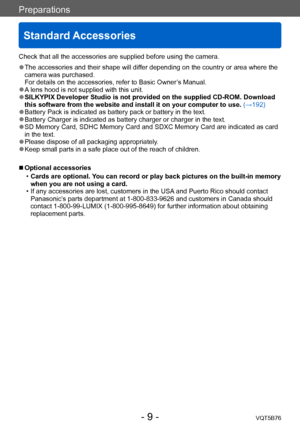

Standard Accessories
VQT5B76- 9 -
Check that all the accessories are supplied before using the camera.
 ●The accessories and their shape will differ depending on the country or area where the
camera was purchased.
For details on the accessories, refer to Basic Owner’s Manual.
 ●A lens hood is not supplied with this unit. ●SILKYPIX Developer Studio is not provided on the supplied CD-ROM. Download
this software from the website and install it on your computer to use. (→192)
 ●Battery Pack...

Preparations

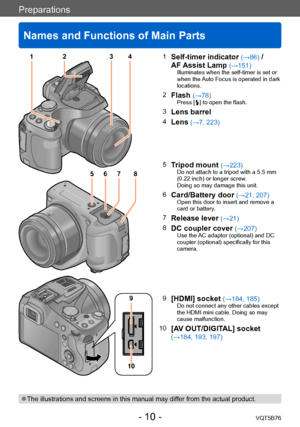

Names and Functions of Main Parts
VQT5B76- 10 -
 ●The illustrations and screens in this manual may differ from the actual product.1
Self-timer indicator (→86) /
AF Assist Lamp (→151)Illuminates when the self-timer is set or
when the Auto Focus is operated in dark
locations.
2Flash (→78)Press [  ] to open the flash.
3Lens barrel
4Lens (→7, 223)
1 2
3 4
5
Tripod mount (→223)Do not attach to a tripod with a 5.5 mm
(0.22 inch) or longer screw.
Doing so may damage this unit.
6Card/Battery...
