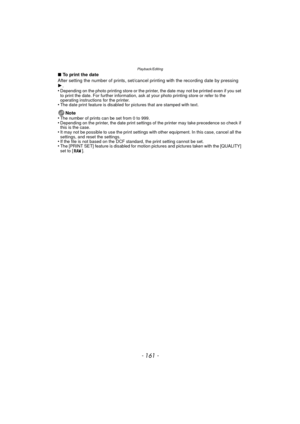

- 161 -
Playback/Editing
∫To print the date
After setting the number of prints, set/cancel  printing with the recording date by pressing
1 .
•
Depending on the photo printing store or the printer, the date may not be printed even if you set
to print the date. For further information, ask at your photo printing store or refer to the
operating instructions for the printer.
•The date print feature is disabled for pictures that are stamped with text.
Note
•The number of prints can be set from 0 to...

Playback/Editing

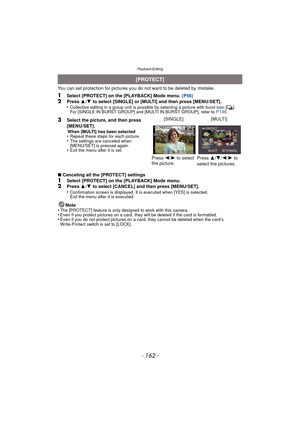

- 162 -
You can set protection for pictures you do not want to be deleted by mistake.
1Select [PROTECT] on the [PLAYBACK] Mode menu.  (P56)2Press 3/4  to select [SINGLE] or [MULTI] and then press [MENU/SET].
•Collective editing in a group unit is possible by selecting a picture with burst icon [˜ ].
For [SINGLE IN BURST GROUP] and [MULTI IN BURST GROUP], refer to P146.
∫ Canceling all the [PROTECT] settings
1Select [PROTECT] on the [PLAYBACK] Mode menu.2Press  3/4  to select [CANCEL] and...

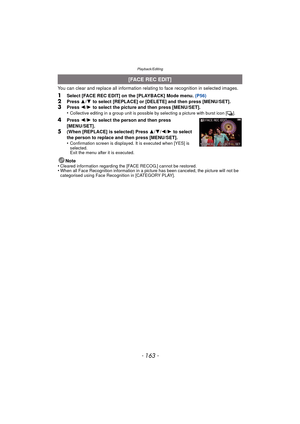

- 163 -
Playback/Editing
You can clear and replace all information relating to face recognition in selected images.
1Select [FACE REC EDIT] on the [PLAYBACK] Mode menu. (P56)2Press 3/4  to select [REPLACE] or [DELETE] and then press [MENU/SET].3Press  2/1  to select the picture and then press [MENU/SET].
•Collective editing in a group unit is possible by selecting a picture with burst icon [˜ ].
4Press 2/1  to select the person and then press
[MENU/SET].
5(When [REPLACE] is selected) Press  3/4 /2 /1...

Connecting to other equipment

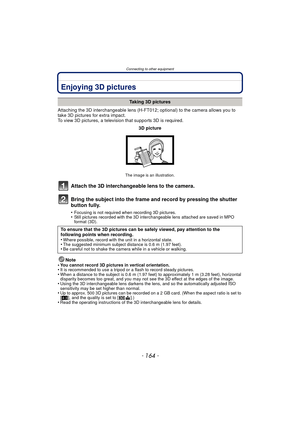

- 164 -
Connecting to other equipmentEnjoying 3D pictures
Attaching the 3D interchangeable lens (H-FT012; optional) to the camera allows you to
take 3D pictures for extra impact.
To view 3D pictures, a television that supports 3D is required.
Attach the 3D interchangeable lens to the camera.
Bring the subject into the frame and record by pressing the shutter
button fully.
•Focusing is not required when recording 3D pictures.•Still pictures recorded with the 3D...

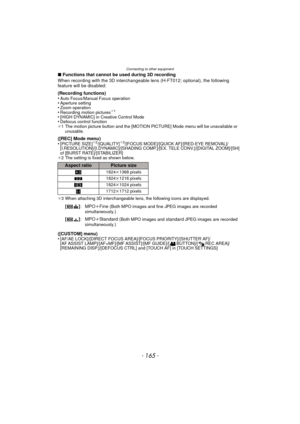

- 165 -
Connecting to other equipment
∫Functions that cannot be used during 3D recording
When recording with the 3D interchangeable lens (H-FT012; optional), the following
feature will be disabled:
(Recording functions)
•
Auto Focus/Manual Focus operation•Aperture setting•Zoom operation•Recording motion pictures¢ 1
•[HIGH DYNAMIC] in Creative Control Mode•Defocus control function
¢ 1 The motion picture button and the [MOTION PICTURE] Mode menu will be unavailable or
unusable.
([REC] Mode menu)...

Connecting to other equipment

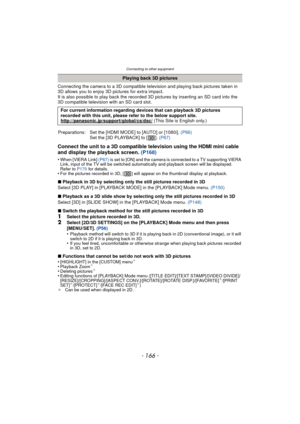

- 166 -
Connecting the camera to a 3D compatible television and playing back pictures taken in
3D allows you to enjoy 3D pictures for extra impact.
It is also possible to play back the recorded 3D pictures by inserting an SD card into the
3D compatible television with an SD card slot.
Connect the unit to a 3D compatible television using the HDMI mini cable
and display the playback screen. (P168)
•When [VIERA Link] (P67) is set to [ON] and the camera is connected to a TV...

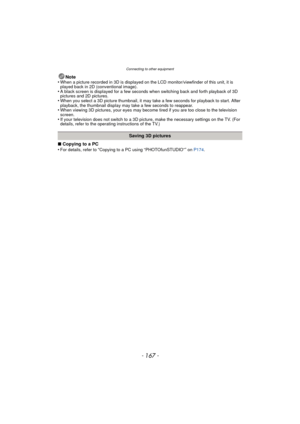

- 167 -
Connecting to other equipment
Note
•When a picture recorded in 3D is displayed on the LCD monitor/viewfinder of this unit, it is
played back in 2D (conventional image).
•A black screen is displayed for a few seconds when switching back and forth playback of 3D
pictures and 2D pictures.
•When you select a 3D picture thumbnail, it may take a few seconds for playback to start. After
playback, the thumbnail display may take a few seconds to reappear.
•When viewing 3D pictures, your eyes may become...

Connecting to other equipment

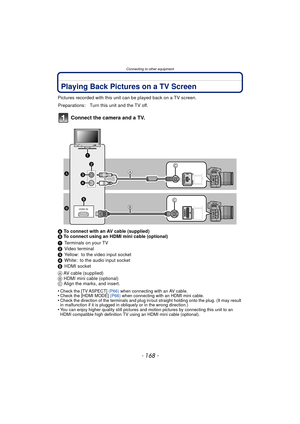

- 168 -
Playing Back Pictures on a TV Screen
Pictures recorded with this unit can be played back on a TV screen.
Connect the camera and a TV.
A To connect with an AV cable (supplied)
B  To connect using an HDMI mini cable (optional)
1 Terminals on your TV
2 Video terminal
3 Yellow: to the video input socket
4 White: to the audio input socket
5 HDMI socket
A  AV cable (supplied)
B  HDMI mini cable (optional)
C  Align the marks, and insert.
•
Check the [TV ASPECT]  (P66) when...

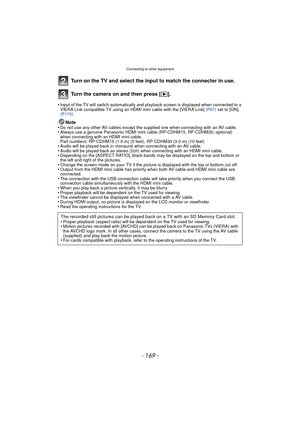

- 169 -
Connecting to other equipment
Turn on the TV and select the input to match the connecter in use.
Turn the camera on and then press [(].
•Input of the TV will switch automatically and pl ayback screen is displayed when connected to a
VIERA Link compatible TV using an  HDMI mini cable with the [VIERA Link]  (P67) set to [ON].
(P170)
Note
•Do not use any other AV cables except the supplied one when connecting with an AV cable.•Always use a genuine Panasonic HDMI mini cable (RP-CDHM15, RP-CDHM30;...

Connecting to other equipment

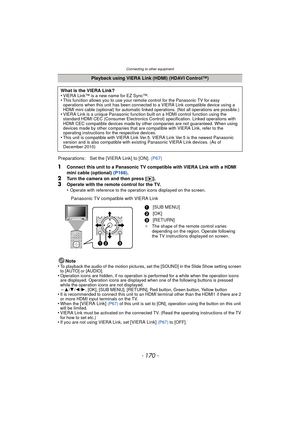

- 170 -
1Connect this unit to a Panasonic TV compatible with VIERA Link with a HDMI
mini cable (optional) (P168).
2Turn the camera on and then press [ (].
3Operate with the remote control for the TV.
•Operate with reference to the operation icons displayed on the screen.
Panasonic TV compatible with VIERA Link
Note
•
To playback the audio of the motion pictures, set the [SOUND] in the Slide Show setting screen
to [AUTO] or [AUDIO].
•Operation icons are hidden, if no...
