Panasonic Dmp Bd30 Operating Instructions

11
RQT9037
(ENG)

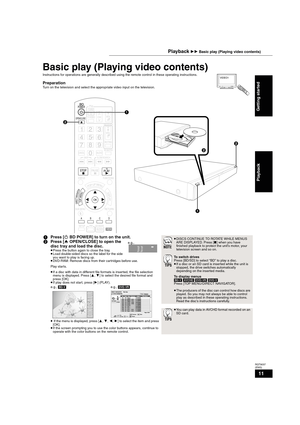

Basic play (Playing video contents)
Instructions for operations are generally described using the remote control in these operating instructions.
PreparationTurn on the television and select the appropriate video input on the television.
VIDEO1
VOL
RE-MASTER
SKIPSLOW/SEARCH
STATUSFUNCTIONS
ABCD
RETURNSUB MENU
 AUDIOMUTING
POP-UP MENU
PLAYPA U S ESTOP
S
CANCEL
PIPSECONDARY AUD I O
BD/SDSETUP
DIRECT NAVIGATOR
OK
RECEIVER
CHVOL
POWERPOWER
TV/VIDEOOPEN/CLOSE
      TOP MENU DISPLAY


...

12
RQT9037
(ENG)

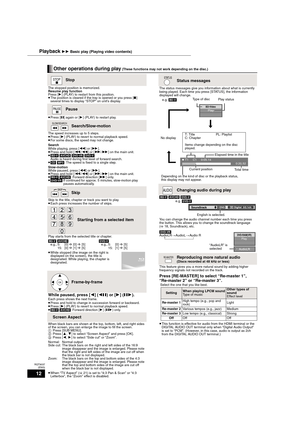

Other operations during play (These functions may not work depending on the disc.)
Stop
The stopped position is memorized.
Resume play function
Press [1] (PLAY) to restart from this position.
≥The position is cleared if the tray is opened or you press [∫]
several times to display “STOP” on unit’s display.
Pause
≥Press [;] again or [1] (PLAY) to restart play.
Search/Slow-motion
The speed increases up to 5 steps.
≥Press [1] (PLAY) to revert to normal playback speed.
≥For some discs, the...

13
RQT9037
(ENG)

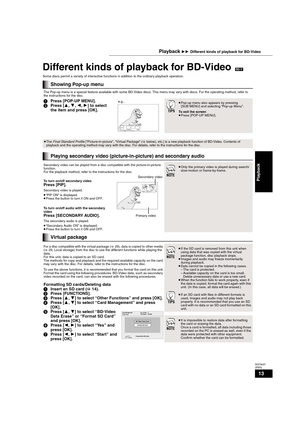

Different kinds of playback for BD-Video[BD-V]
Some discs permit a variety of interactive functions in addition to the ordinary playback operation.
Showing Pop-up menu
The Pop-up menu is a special feature available with some BD-Video discs. This menu may vary with discs. For the operating method, refer to
the instructions for the disc.
1Press [POP-UP MENU].
2Press [3,4,2,1] to select
the item and press [OK].≥Pop-up menu also appears by pressing
[SUB MENU] and selecting “Pop-up Menu”....

14
RQT9037
(ENG)

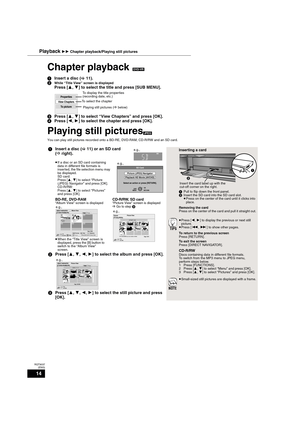

Chapter playback[DVD-VR]
1Insert a disc (>11).
2
While “Title View” screen is displayed
Press [3,4] to select the title and press [SUB MENU].
3Press [3,4] to select “View Chapters” and press [OK].
4Press [2,1] to select the chapter and press [OK].
Playing still pictures[JPEG]
You can play still pictures recorded onto a BD-RE, DVD-RAM, CD-R/RW and an SD card.
Properties
View Chapters
To picture
To display the title properties
(recording date, etc.)
 Playing still pictures (Bbelow) To...

15
RQT9037
(ENG)

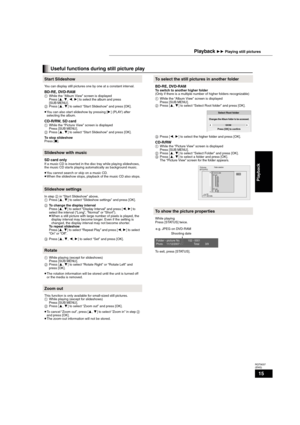

Useful functions during still picture play
Start Slideshow
You can display still pictures one by one at a constant interval.
BD-RE, DVD-RAM1While the “Album View” screen is displayed
Press [3,4,2,1] to select the album and press
[SUB MENU].
2Press [3,4] to select “Start Slideshow” and press [OK].
≥You can also start slideshow by pressing [1] (PLAY) after
selecting the album.
CD-R/RW, SD card1While the “Picture View” screen is displayed
Press [SUB MENU].
2Press [3,4] to select “Start...

16
RQT9037
(ENG)

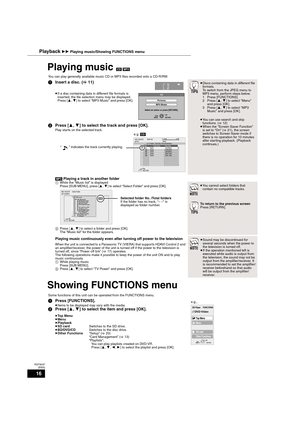

Playing music [CD] [MP3]
Showing FUNCTIONS menu
You can play generally available music CD or MP3 files recorded onto a CD-R/RW.
1Insert a disc. (>11)
≥If a disc containing data in different file formats is
inserted, the file selection menu may be displayed.
Press [3,4] to select “MP3 Music” and press [OK].
2Press [3,4] to select the track and press [OK].
Play starts on the selected track.
≥Discs containing data in different file
for mats.
To switch from the JPEG menu to
MP3 menu,...

17
RQT9037
(ENG)
Linked operations with the TV
(EZ SyncTM “HDAVI ControlTM”)
If you connect this unit to a TV that has “HDAVI Control 2” function
with an HDMI cable, you can operate this unit using the following
buttons on the TV remote control.
[3,4,2,1], [OK], [RETURN], [SUB MENU] and colored buttons
Use the remote control for this unit to operate any other buttons
(numbered buttons, etc.) that are not listed above.
≥Refer to the TV operating instructions for operating TV.
Using the FUNCTIONS menu...

18
RQT9037
(ENG)

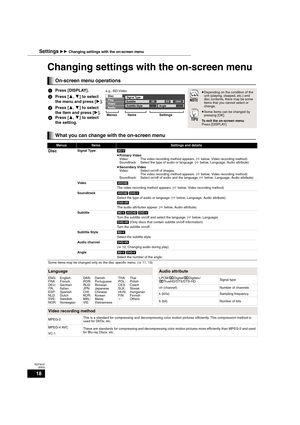

Changing settings with the on-screen menu
On-screen menu operations
1Press [DISPLAY].
2Press [3,4] to select
the menu and press [1].
3Press [3,4] to select
the item and press [1].
4Press [3,4] to select
the setting.≥Depending on the condition of the
unit (playing, stopped, etc.) and
disc contents, there may be some
items that you cannot select or
change.
≥Some items can be changed by
pressing [OK].
To exit the on-screen menu
Press [DISPLAY].
What you can change with the...

19
RQT9037
(ENG)

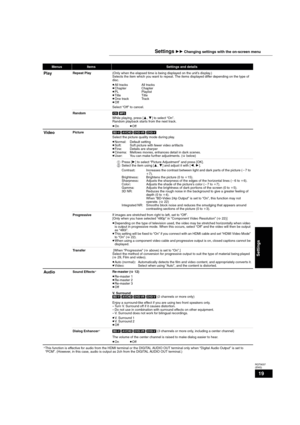

MenusItemsSettings and details
PlayRepeat Play(Only when the elapsed time is being displayed on the unit’s display.)
Selects the item which you want to repeat. The items displayed differ depending on the type of
disc.
≥All tracks All tracks
≥Chapter Chapter
≥PL Playlist
≥Title Title
≥One track Track
≥Off
Select “Off” to cancel.
Random[CD] [MP3]
While playing, press [3,4] to select “On”.
Random playback starts from the next track.
≥On≥Off
VideoPicture[BD-V] [AVCHD] [DVD-VR] [DVD-V]...

20
RQT9037
(ENG)

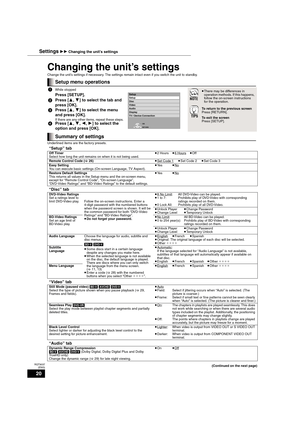

Changing the unit’s settings
Change the unit’s settings if necessary. The settings remain intact even if you switch the unit to standby.
Underlined items are the factory presets.
(Continued on the next page)
Setup menu operations
1While stopped
Press [SETUP].
2Press [3,4] to select the tab and
press [OK].
3Press [3,4] to select the menu
and press [OK].
If there are any other items, repeat these steps.4Press [3,4,2,1] to select the
option and press [OK].
≥There may be differences in...
