Panasonic Dvd Burner Vw-bn2pp Operating Instructions

11LSQT1571(ENG)

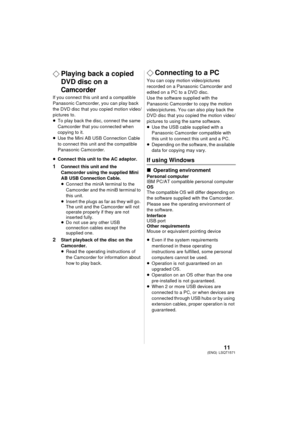

¬Playing back a copied
DVD disc on a
Camcorder
If you connect this unit and a compatible
Panasonic Camcorder, you can play back
the DVD disc that you copied motion video/
pictures to.
≥To play back the disc, connect the same
Camcorder that you connected when
copying to it.
≥ Use the Mini AB USB Connection Cable
to connect this unit and the compatible
Panasonic Camcorder.
≥ Connect this unit to the AC adaptor.
1 Connect this unit and the
Camcorder using the supplied Mini
AB USB...

12LSQT1571(ENG)

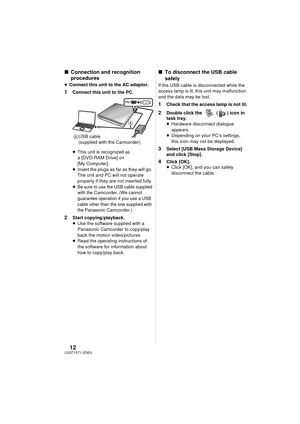

∫Connection and recognition
procedures
≥Connect this unit to the AC adaptor.
1 Connect this unit to the PC.
≥ This unit is recognized as
a [DVD-RAM Drive] on
[My Computer].
≥ Insert the plugs as far as they will go.
The unit and PC will not operate
properly if they are not inserted fully.
≥
Be sure to use the USB cable supplied
with the Camcorder. (We cannot
guarantee operation if you use a USB
cable other than the one supplied with
the Panasonic
Camcorder.)
2 Start...

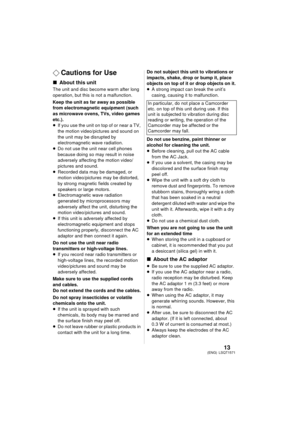

13LSQT1571(ENG)
¬Cautions for Use
∫ About this unit
The unit and disc become warm after long
operation, but this is not a malfunction.
Keep the unit as far away as possible
from electromagnetic equipment (such
as microwave ovens, TVs, video games
etc.).
≥If you use the unit on top of or near a TV,
the motion video/pictures and sound on
the unit may be disrupted by
electromagnetic wave radiation.
≥ Do not use the unit near cell phones
because doing so may result in noise
adversely affecting the...

14LSQT1571(ENG)

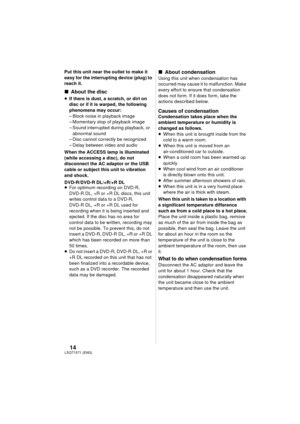

Put this unit near the outlet to make it
easy for the interrupting device (plug) to
reach it.
∫About the disc
≥If there is dust, a scratch, or dirt on
disc or if it is warped, the following
phenomena may occur:
– Block noise in playback image
– Momentary stop of playback image
– Sound interrupted during playback, or
abnormal sound
– Disc cannot correctly be recognized
– Delay between video and audio
When the ACCESS lamp is illuminated
(while accessing a disc), do not
disconnect the...

15LSQT1571
(ENG)

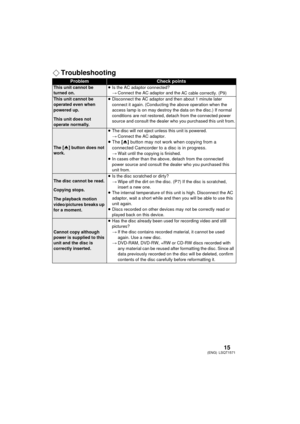

¬ Troubleshooting
ProblemCheck points
This unit cannot be
turned on. ≥
Is the AC adaptor connected?
> Connect the AC adaptor and the AC cable correctly. (P9)
This unit cannot be
operated even when
powered up.
This unit does not
operate normally. ≥
Disconnect the AC adaptor and then about 1 minute later
connect it again. (Conducting the above operation when the
access lamp is on may destroy the data on the disc.) If normal
conditions are not restored, detach from the connected...

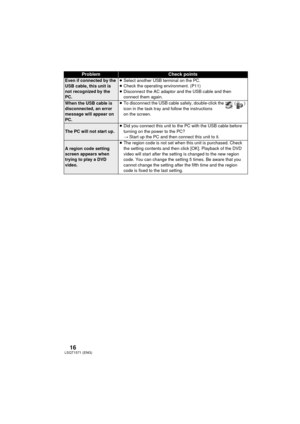

16LSQT1571 (ENG)
ProblemCheck points
Even if connected by the
USB cable, this unit is
not recognized by the
PC. ≥
Select another USB terminal on the PC.
≥ Check the operating environment. (P11)
≥ Disconnect the AC adaptor and the USB cable and then
connect them again.
When the USB cable is
disconnected, an error
message will appear on
PC. ≥
To disconnect the USB cable safely, double-click the  ()
icon in the task tray and follow the instructions
on the screen.
The PC will not start up. ≥
Did you...

17LSQT1571
(ENG)

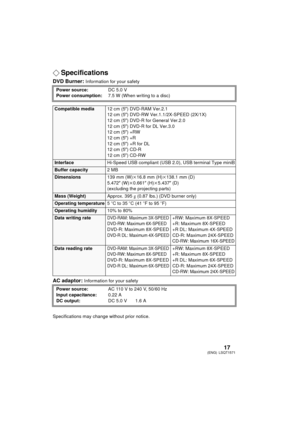

¬ Specifications
DVD Burner: Information for your safety
AC adaptor: Information for your safety
Specifications may c hange without prior notice.
Power source:
DC 5.0 V
Power consumption: 7.5 W (When writing to a disc)
Compatible media 12 cm (5z) DVD-RAM Ver.2.1
12 cm (5 z) DVD-RW Ver.1.1/2X-SPEED (2X/1X)
12 cm (5 z) DVD-R for General Ver.2.0
12 cm (5 z) DVD-R for DL Ver.3.0
12 cm (5 z) +RW
12 cm (5 z) +R
12 cm (5 z) +R for DL
12 cm (5 z) CD-R
12 cm (5 z) CD-RW
Interface Hi-Speed USB...

18LSQT1571 (ENG)

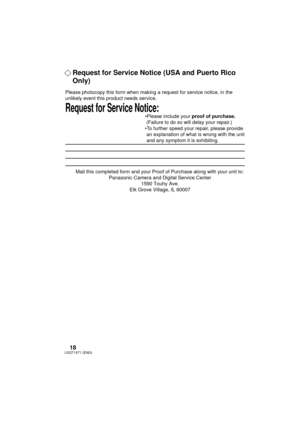

¬Request for Service Notice (USA and Puerto Rico
Only)
Request for Service Notice:
Please photocopy this form when making a request for service notice, in \
the
unlikely event this product needs service.
•Please include your proof of purchase.
  (Failure to do so will delay your repair.)
To further speed your repair, please provide
 an explanation of what is wrong with the unit
 and any symptom it is exhibiting.
Mail this completed form and your Proof of Purchase along with your...

19LSQT1571
(ENG)

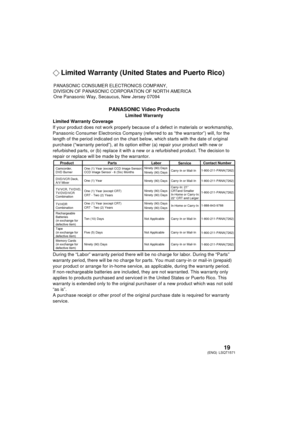

¬ Limited Warranty (United States and Puerto Rico)
PANASONIC Video Products
Limited Warranty
Limited Warranty Coverage
If your product does not work  properly because of a defect in  materials or workmanship,
Panasonic Consumer Electronics Company (ref erred to as “the warrantor”) will, for the
length of the period indicated on the chart below, which starts with the date of original
purchase (“warranty period”), at its option ei ther (a) repair your product with new or
refurbished...

20LSQT1571 (ENG)

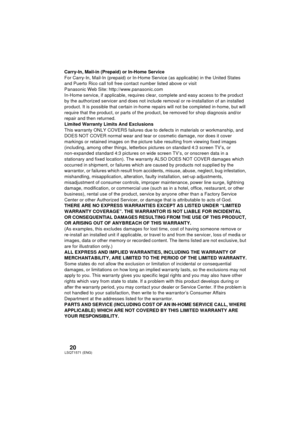

Carry-In, Mail-in (Prepaid) or In-Home Service
For Carry-In, Mail-In (prepaid) or In-Home Service (as applicable) in the United States
and Puerto Rico call toll free contact number listed above or visit
Panasonic Web Site: http://www.panasonic.com
In-Home service, if applicable, requires clear, complete and easy access to the product
by the authorized servicer and does not include removal or re-installation of an installed
product. It is possible that certain in-home  repairs will not...
