Panasonic Dvd Home Theater Sound System Sc Ht740 Operating Instructions

RQT8582
21

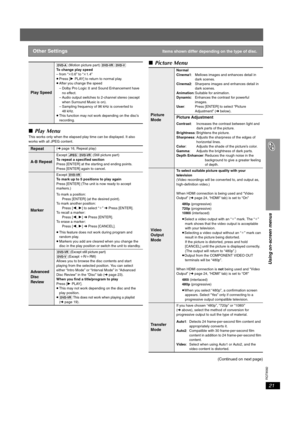

Using on-screen menus
∫Play Menu
This works only when the elapsed play time can be displayed. It also
works with all JPEG content.
∫ Picture Menu
(Continued on next page)
Other SettingsItems shown differ depending on the type of disc.
Play Speed
[DVD-A]  (Motion picture part)  [DVD-VR] [DVD-V]
To change play speed
– from “ k0.6” to “ k1.4”
≥ Press [ 1PLAY] to return to normal play.
≥ After you change the speed
– Dolby Pro Logic II and Sound Enhancement have
no effect.
– Audio output...

RQT8582
22

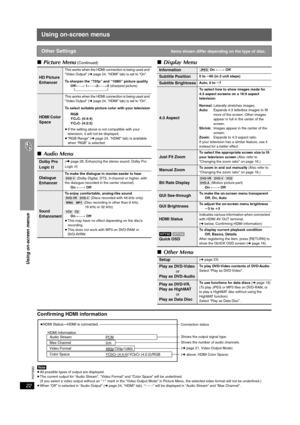

Using on-screen menus
Using on-screen menus
∫Picture Menu (Continued)
∫Audio Menu ∫
Display Menu
∫ Other Menu
Confirming HDMI information
[Note]≥All possible types of output are displayed.
≥ The current output for “Audio Stream”, “Video Format” and “Color Space” will be underlined.
(If you select a video output without an “ ¢” mark in the “Video Output Mode” in Picture Menu, the selected video format will not be underlined.)
≥ When “Off” is selected in “Audio Output” ( ➜page 24, “HDMI” tab),...

RQT8582
23

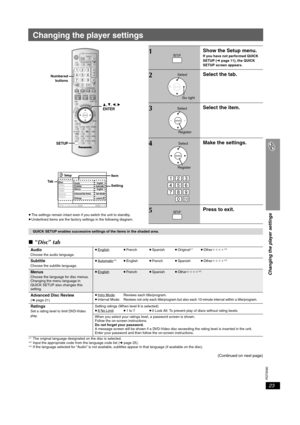

Changing the player settings
Changing the player settings
≥The settings remain intact even if you switch the unit to standby.
≥Underlined items are the factory settings in the following diagram.
∫“Disc” tab
§1The original language designated on the disc is selected.§2Input the appropriate code from the language code list (➜page 25).§3If the language selected for “Audio” is not available, subtitles appear in that language (if available on the disc).
(Continued on next page)...

RQT8582
24

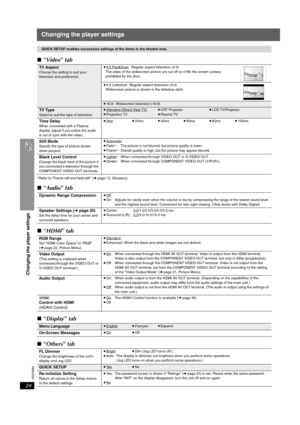

Changing the player settings
Changing the player settings
∫“Video ” tab
§Refer to “Frame still and field still” ( ➜page 13, Glossary).
∫“Audio ” tab
∫ “HDMI ” tab
∫ “Display ” tab
∫ “Others ” tab
QUICK SETUP enables successive settings of the items in the shaded area.
TV AspectChoose the setting to suit your
television and preference. ≥
4:3 Pan&Scan: Regular aspect television (4:3)
The sides of the widescreen picture are cut off so it fills the screen (unless
prohibited by the disc).
≥ 4:3...

RQT8582
25

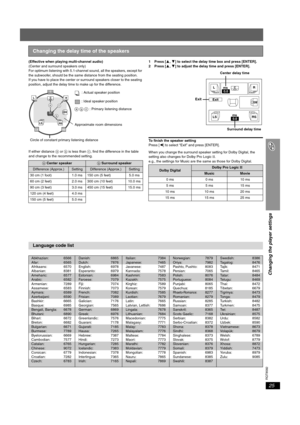

Changing the player settings
(Effective when playing multi-channel audio)
(Center and surround speakers only)
For optimum listening with 5.1-channel sound, all the speakers, except for
the subwoofer, should be the same distance from the seating position.
If you have to place the center or surround speakers closer to the seating
position, adjust the delay time to make up for the difference.
If either distance a or b is less than c, find the difference in the table
and change to the...

RQT8582
26

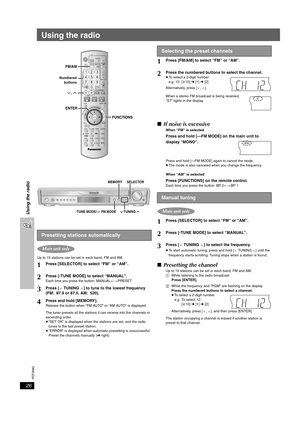

Using the radio
Using the radio
Up to 15 stations can be set in each band, FM and AM.When a stereo FM broadcast is being received,
“ST” lights in the display.
∫If noise is excessive
When “FM” is selected
Press and hold [—FM MODE] on the main unit to
display “MONO”.
Press and hold [—FM MODE] again to cancel the mode.
≥The mode is also canceled when you change the frequency.
When “AM” is selected
Press [FUNCTIONS] on the remote control.Each time you press the button: BP 2()BP 1
∫Presetting the...

RQT8582
27

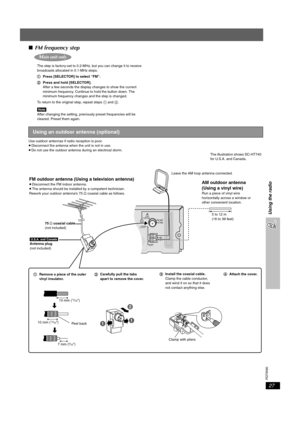

Using the radio
∫FM frequency step
The step is factory-set to 0.2-MHz, but you can change it to receive
broadcasts allocated in 0.1-MHz steps.
1Press [SELECTOR] to select “FM”.
2Press and hold [SELECTOR].
After a few seconds the display changes to show the current
minimum frequency. Continue to hold the button down. The
minimum frequency changes and the step is changed.
To return to the original step, repeat steps 1 and 2.
[Note]After changing the setting, previously preset frequencies will...

RQT8582
28

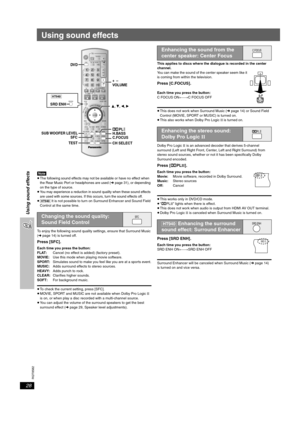

Using sound effects
Using sound effects
[Note]≥The following sound effects may not be available or have no effect when
the Rear Music Port or headphones are used (➜page 31), or depending
on the type of source.
≥You may experience a reduction in sound quality when these sound effects
are used with some sources. If this occurs, turn the sound effects off.
≥ [HT940]  It is not possible to turn on Surround Enhancer and Sound Field
Control at the same time.
To enjoy the following sound quality...

RQT8582
29

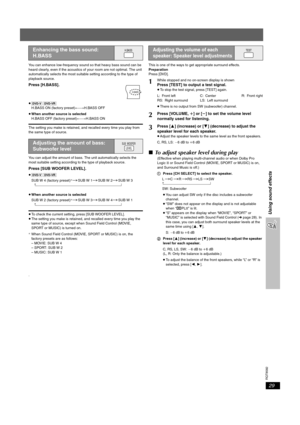

Using sound effects
You can enhance low-frequency sound so that heavy bass sound can be
heard clearly, even if the acoustics of your room are not optimal. The unit
automatically selects the most suitable setting according to the type of
playback source.
Press [H.BASS].
≥[DVD-V]  [DVD-VR]
H.BASS ON (factory preset) ,------.H.BASS OFF
≥ When another source is selected
H.BASS OFF (factory preset) ,------.H.BASS ON
The setting you make is retained, and recalled every time you play from
the...

RQT8582
30

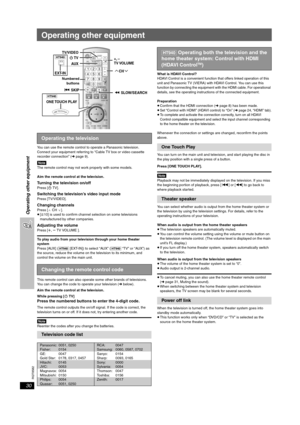

Operating other equipment
Operating other equipment
You can use the remote control to operate a Panasonic television.
Connect your equipment referring to “Cable TV box or video cassette
recorder connection” (➜page 9).
[Note]The remote control may not work properly with some models.
Aim the remote control at the television.
Turning the television on/offPress [ ÍTV].
Switching the television’s video input modePress [TV/VIDEO].
Changing channelsPress [ WCH X].
≥ [S 10] is used to confirm...
