Panasonic Dvd S97 Operating Instructions Manual

RQT7584
11

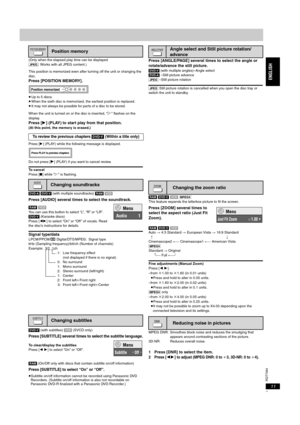

(Only when the elapsed play time can be displayed
[JPEG]: Works with all JPEG content.)
This position is memorized even after turning off the unit or changing the
disc.
Press [POSITION MEMORY].
≥Up to 5 discs.
≥When the sixth disc is memorized, the earliest position is replaced.
≥It may not always be possible for parts of a disc to be stored.
When the unit is turned on or the disc is inserted, “
!” flashes on the
display.
Press [1] (PLAY) to start play from that position.(At this point, the...

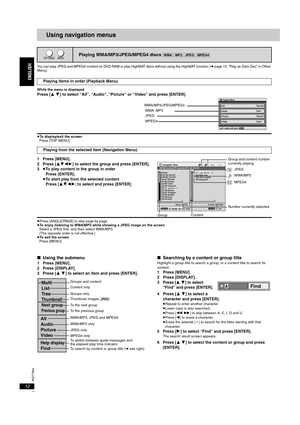

RQT7584
12
Using navigation menus
You can play JPEG and MPEG4 content on DVD-RAM or play HighMAT discs without using the HighMAT function (➜ page 15, “Play as Data Disc” in Other
Menu).
While the menu is displayed
Press [3 4] to select “All”, “Audio”, “Picture” or “Video” and press [ENTER].
≥To display/exit the screen
Press [TOP MENU].
1 Press [MENU].
2 Press [3421] to select the group and press [ENTER].
3≥To play content in the group in order
Press [ENTER].
≥To start play from the selected content...

RQT7584
13

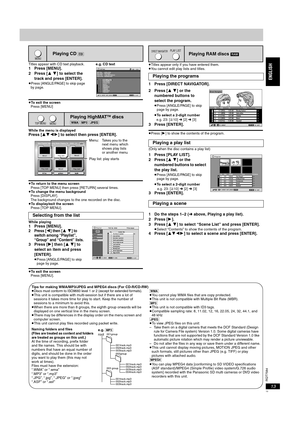

Titles appear with CD text playback.e.g. CD text1 Press [MENU].
2 Press [3 4] to select the
track and press [ENTER].
≥Press [ANGLE/PAGE] to skip page
by page.
≥To exit the screen
Press [MENU]
While the menu is displayed
Press [3421] to select then press [ENTER].
≥To return to the menu screen
Press [TOP MENU] then press [RETURN] several times.
≥To change the menu background
Press [DISPLAY].
The background changes to the one recorded on the disc.
≥To display/exit the screen
Press [TOP...

RQT7584
14

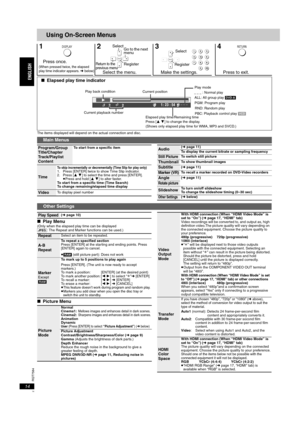

Using On-Screen Menus
The items displayed will depend on the actual connection and disc.
∫Play Menu(Only when the elapsed play time can be displayed
[JPEG]: The Repeat and Marker functions can be used.)
∫Picture Menu
123 4
Select the menu. Make the settings. Press to exit.
∫Elapsed play time indicator
Main Menus
DISPLAY
ENTER
Select
Go to the next
menu
Register
Return to the
previous menu
123
456
789
0
10
ENTER
RegisterSelect
RETURN
Play back condition
Current playback number
Elapsed play...

RQT7584
15

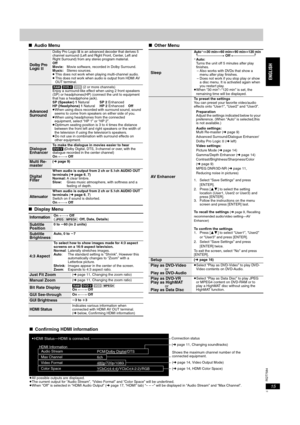

∫Audio Menu
∫Display Menu∫Other Menu
Dolby Pro
Logic II
Dolby Pro Logic II is an advanced decoder that derives 5
channel surround (Left and Right Front, Center, Left and
Right Surround) from any stereo program material.
Off
Movie:Movie software, recorded in Dolby Surround.
Music:Stereo sources.
≥This does not work when playing multi-channel audio.
≥This does not work when audio is output from HDMI AV
OUT terminal.
Advanced
Surround
[RAM] [DVD-V] [VCD] (2 or more channels)
Enjoy a...

RQT7584
16

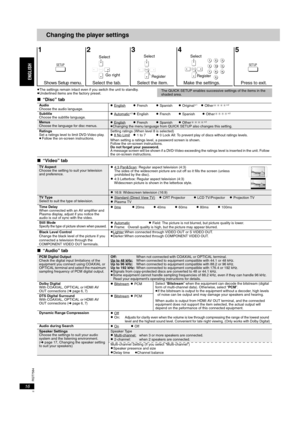

Changing the player settings
≥The settings remain intact even if you switch the unit to standby.
≥Underlined items are the factory preset.
∫“Disc” tab
∫“Video” tab
∫“Audio” tab
1234 5
Shows Setup menu. Select the tab. Select the item. Make the settings. Press to exit.
SETUPENTER
Select
Go right
ENTER
Select
Register
ENTER
123
456
789
0
Register
Select
SETUP
The QUICK SETUP enables successive settings of the items in the
shaded area.
Audio
Choose the audio language.
≥ English≥ French≥...

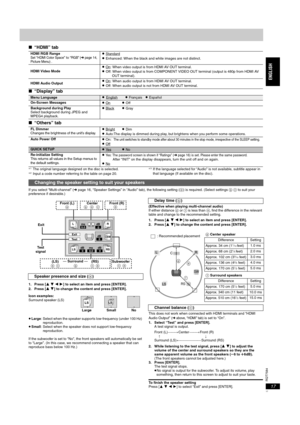

RQT7584
17
∫“HDMI” tab
∫“Display” tab
∫“Others” tab
§1The original language designed on the disc is selected.§2Input a code number referring to the table on page 20.
§3If the language selected for “Audio” is not available, subtitle appear in
that language (If available on the disc).
If you select “Multi-channel” (➜page 16, “Speaker Settings” in “Audio” tab), the following setting (a) is required. (Select settings b c to suit your
preference if desirable.)
1. Press [3 4 2 1] to select an item and...

RQT7584
18

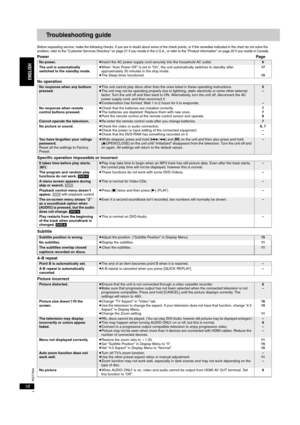

Troubleshooting guide
Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the
problem, refer to the “Customer Services Directory” on page 21 if you reside in the U.S.A., or refer to the “Product information” on page 20 if you reside in Canada.
PowerPag e
No operation
Specific operation impossible or incorrect
Subtitle
A-B repeat
Picture incorrect
No power.≥Insert the AC power supply...

RQT7584
19

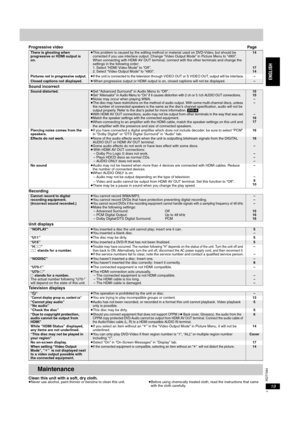

Progressive videoPage
Sound incorrect
Recording
Unit displays
Television displays
Clean this unit with a soft, dry cloth.
≥Never use alcohol, paint thinner or benzine to clean this unit.≥Before using chemically treated cloth, read the instructions that came
with the cloth carefully.
There is ghosting when
progressive or HDMI output is
on.≥This problem is caused by the editing method or material used on DVD-Video, but should be
corrected if you use interlace output. Change “Video Output...

RQT7584
20

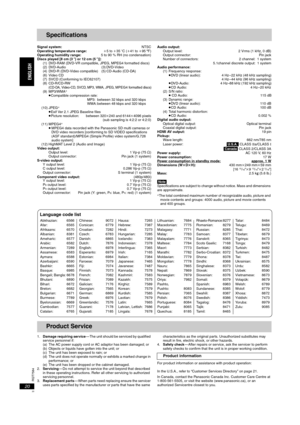

Specifications
Signal system:NTSC
Operating temperature range:i5 to i35 oC (i41 to i95 xF)
Operating humidity range:5 to 90 % RH (no condensation)
Discs played [8 cm (3 z) or 12 cm (5 z)]:
(1) DVD-RAM (DVD-VR compatible, JPEG, MPEG4 formatted discs)
(2) DVD-Audio (3) DVD-Video
(4) DVD-R (DVD-Video compatible) (5) CD-Audio (CD-DA)
(6) Video CD
(7) SVCD (Conforming to IEC62107)
(8) CD-R/CD-RW
(CD-DA, Video-CD, SVCD, MP3, WMA, JPEG, MPEG4 formatted discs)(9) MP3/WMA§
≥Compatible compression...
