HD3D Sound ViVAPanasonic Consumer Electronics Company, Division of Panasonic Corporation of North America One Panasonic Way, Secaucus New Jersey 07094 U.S.A.Panasonic Puerto Rico, Inc. Ave. 65 de Infanteria, Km. 9.5 San Gabriel Industrial Park Carolina, Puerto Rico 00985Panasonic Canada Inc. 5770 Ambler Drive Mississauga, Ontario L4W 2T3 CANADA © 2007 Panasonic Corporation of North America. All Rights Reserved. © 2007 Panasonic Corporation of North America. Todos los Derechos Reservados.Printed in...
Page 2
23 Viewing Advanced FAQs, etc. Quick Start Guide Contents SDHC Logo is a trademark.GalleryPlayer and the GalleryPlayer Logo are trademarks of GalleryPlayer, Inc. HD3D Sound ViVA Manufactured under license from BBE Sound, Inc. Licensed by BBE Sound, Inc. under one or more of the following US patents: 5510752, 5736897. BBE and BBE symbol are registered trademarks of BBE Sound, Inc. EZ Sync™ EZ Sync™ is a trademark of Matsushita Electric Industrial Co., Ltd. HDMI, the HDMI logo and High-Definition...
Page 3
23 Viewing Advanced FAQs, etc. Quick Start Guide Contents SDHC Logo is a trademark.GalleryPlayer and the GalleryPlayer Logo are trademarks of GalleryPlayer, Inc. HD3D Sound ViVA Manufactured under license from BBE Sound, Inc. Licensed by BBE Sound, Inc. under one or more of the following US patents: 5510752, 5736897. BBE and BBE symbol are registered trademarks of BBE Sound, Inc. EZ Sync™ EZ Sync™ is a trademark of Matsushita Electric Industrial Co., Ltd. HDMI, the HDMI logo and High-Definition...
Page 4
45 WARNING: To reduce the risk of electric shock, do not remove cover or back. No user-serviceable parts inside. Refer servicing to qualified service personnel. 4 : 3 12 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Safety Precautions 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer’s...
Page 5
45 WARNING: To reduce the risk of electric shock, do not remove cover or back. No user-serviceable parts inside. Refer servicing to qualified service personnel. 4 : 3 12 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Safety Precautions 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer’s...
Page 6

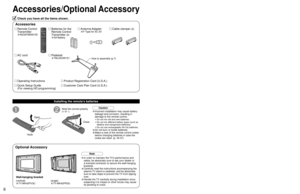

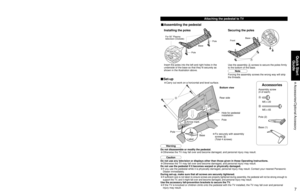

67 Quick Start Guide Accessories/Optional Accessory B A Accessories/Optional Accessory 1 Open Hook 2Note the correct polarity (+ or -). CloseCaution Wall-hanging bracket Accessories (angle) • TY-WK42PR3U Check you have all the items shown. Remote Control Transmitter •N2QAYB000100 Cable clamper (2)Batteries for the Remote Control Transmitter (2) •AA Battery AC cordAntenna Adapter •F-Type for 5C-2V Pedestal •TBL2AX00151 Note • In order to maintain the TV’s performance and safety, be absolutely sure to...
Page 7
67 Quick Start Guide Accessories/Optional Accessory B A Accessories/Optional Accessory 1 Open Hook 2Note the correct polarity (+ or -). CloseCaution Wall-hanging bracket Accessories (angle) • TY-WK42PR3U Check you have all the items shown. Remote Control Transmitter •N2QAYB000100 Cable clamper (2)Batteries for the Remote Control Transmitter (2) •AA Battery AC cordAntenna Adapter •F-Type for 5C-2V Pedestal •TBL2AX00151 Note • In order to maintain the TV’s performance and safety, be absolutely sure to...
Page 8

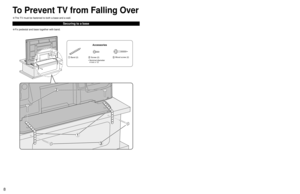

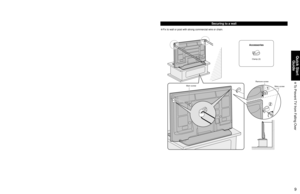

89 Quick Start Guide To Prevent TV from Falling Over • Fix pedestal and base together with band.• Fix to wall or post with strong commercial wire or chain. Securing to a base To Prevent TV from Falling Over Securing to a wall • The TV must be fastened to both a base and a wall. Main screwRemove screw Clamp (2) Accessories Band (2) Screw (2) Wood screw (2) Accessories • Nominal diameter 4 mm x 12 Main screw
Page 9
89 Quick Start Guide To Prevent TV from Falling Over • Fix pedestal and base together with band.• Fix to wall or post with strong commercial wire or chain. Securing to a base To Prevent TV from Falling Over Securing to a wall • The TV must be fastened to both a base and a wall. Main screwRemove screw Clamp (2) Accessories Band (2) Screw (2) Wood screw (2) Accessories • Nominal diameter 4 mm x 12 Main screw
Page 10

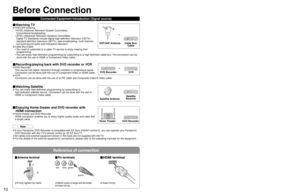

1011 Quick Start Guide Basic Connection (Antenna + TV) Before Connection To connect antenna terminals Reference of connectionANT OUTANT IN 2 1AV IN ANTENNACable In Before Connection ■Antenna terminal■Pin terminals■HDMI terminal • Firmly tighten by hand.• Match colors of plugs and terminals. • Insert firmly.• Insert firmly. Connected Equipment Introduction (Signal source) Basic Connection Connecting Antenna (To watch TV)Example 1 VHF/UHF Antenna Cable Box/ Cable or (If no Cable Box) ■...
