Panasonic Hd Plasma Television Th 58pe75 Operating Instructions

41
Advanced
 Recommended AV Connections
ANTENNACable InTO
AUDIO
AMP
INPUT
INPUT  1
INPUT  2AUDIO VIDEO
S VIDEOPROGOUT
PRPBYR
R
R L
L
L
R LHDMI 2AUDIO INAV IN  1AV IN  2
RLHDMI 1AUDIO INDIGITALAUDIO OUT
• Individual HDMI equipment may require additional menu settings specific \
to each model. Please refer to their
respective operating instruction manuals.
• When audio from other equipment connected to this unit via HDMI is outpu\
t using “DIGITAL AUDIO OUT” of this
unit, the system switches to 2CH...

42
NRNO RATING (NOT RATED) AND NA (NOT APPLICABLE) PROGRAMS. Movie has not been rated or
rating does not apply.
GGENERAL AUDIENCES. All ages admitted.
PGPARENTAL GUIDANCE SUGGESTED. Some material may not be suitable for children.
PG-13PARENTS STRONGLY CAUTIONED. Some material may be inappropriate for children under 13.
RRESTRICTED. Under 17 requires accompanying parent or adult guardian.
NC-17NO ONE 17 AND UNDER ADMITTED.
XADULTS ONLY.
Age-based
GroupAge-based
RatingsPossible Content...

43
FAQs, etc.
 Technical Information Ratings List for Lock
Technical Information
Closed Caption (CC)

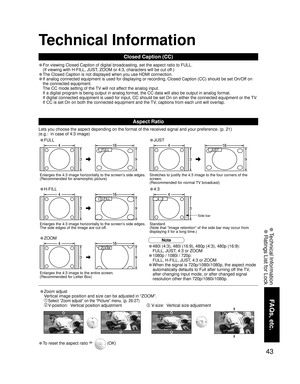

Aspect Ratio
Lets you choose the aspect depending on the format of the received signal and your preference. (p. 21)
(e.g.:  in case of 4:3 image)
• For viewing Closed Caption of digital broadcasting, set the aspect ratio to FULL.
(If viewing with H-FILL, JUST, ZOOM or 4:3, characters will be cut off.)
• The Closed Caption is not displayed when you use HDMI connection.
• If analog connected equipment is...

44

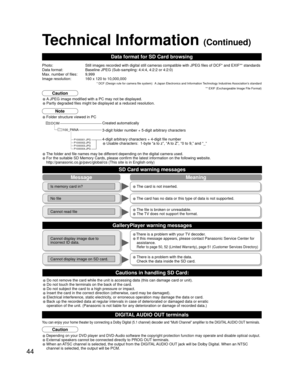

DCIM
100_PANA
DIGITAL AUDIO OUT terminals
You can enjoy your home theater by connecting a Dolby Digital (5.1 channel) decoder and “Multi Channel” amplifier to the DIGITAL AUDIO OUT terminals.
Caution
• Depending on your DVD player and DVD-Audio software the copyright protection function may operate and disable optical output.
• External speakers cannot be connected directly to PROG OUT terminals.
• When an ATSC channel is selected, the output from...

45
FAQs, etc.
 Technical Information

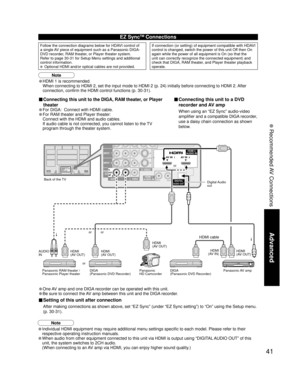

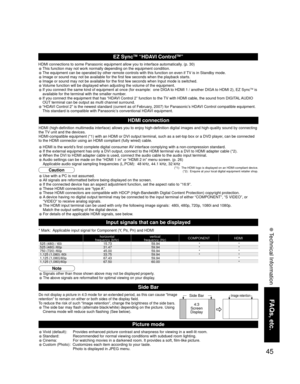

EZ SyncTM “HDAVI ControlTM”
HDMI connections to some Panasonic equipment allow you to interface automatically. (p. 30)
• This function may not work normally depending on the equipment condition.
• The equipment can be operated by other remote controls with this function on even if TV is in Standby mode.
• Image or sound may not be available for the first few seconds when the playback starts.
• Image or sound may not be available for the first few seconds when Input...

46

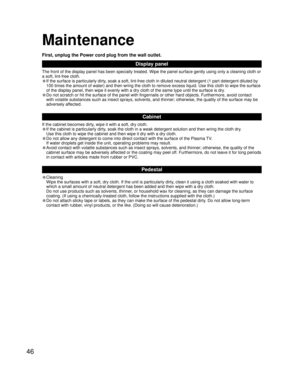

Maintenance
Display panel
The front of the display panel has been specially treated. Wipe the panel surface gently using only a cleaning cloth or
a soft, lint-free cloth.
• If the surface is particularly dirty, soak a soft, lint-free cloth in diluted neutral detergent (1 part detergent diluted by
100 times the amount of water) and then wring the cloth to remove excess liquid. Use this cloth to wipe the surface
of the display panel, then wipe it evenly with a dry cloth of the same type until the...

47
FAQs, etc.

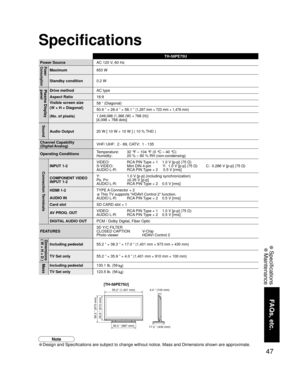

 Specifications Maintenance
TH-58PE75U
Power SourceAC 120 V, 60 HzPower
Consumption
Maximum653 W
Standby condition0.2 W
Plasma Display
panelDrive methodAC type
Aspect Ratio16:9
Visible screen size
(W × H × Diagonal)
(No. of pixels) 58 ” (Diagonal)
50.6 ” × 28.4 ” × 58.1 ”
(1,287 mm × 723 mm × 1,476 mm)
1,049,088 (1,366 (W) × 768 (H))[4,098 × 768 dots]Sound
Audio Output20 W [ 10 W + 10 W ] ( 10 % THD )
Channel Capability
(Digital/Analog)VHF/ UHF:  2 - 69, CATV:  1 - 135
Operating...

48

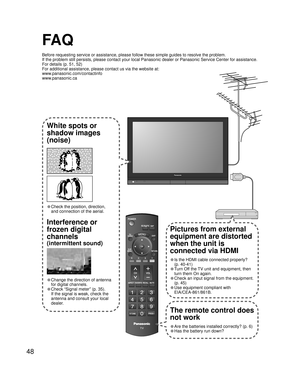

FA Q
Before requesting service or assistance, please follow these simple guides to resolve the problem.
If the problem still persists, please contact your local Panasonic dealer or Panasonic Service Center for assistance.
For details (p. 51, 52)
For additional assistance, please contact us via the website at:
www.panasonic.com/contactinfo
www.panasonic.ca
-
SUBSUBMENUMENU
-
White spots or
shadow images
(noise)
• Check the position, direction,
and connection of the aerial.
Interference or
frozen...

49
FAQs, etc.

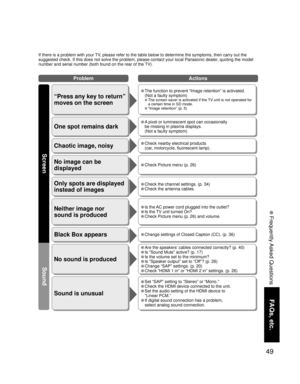

 Frequently Asked Questions
No sound is produced
Sound is unusual
• Are the speakers’ cables connected correctly? (p. 40)
• Is “Sound Mute” active? (p. 17)
• Is the volume set to the minimum?
• Is “Speaker output” set to “Off”? (p. 26)
• Change “SAP” settings. (p. 20)
• Check “HDMI 1 in” or “HDMI 2 in” settings. (p. 26)
• Set “SAP” setting to “Stereo” or “Mono.”
• Check the HDMI device connected to the unit.
• Set the audio setting of the HDMI device to
“Linear PCM.”
• If digital sound...

50

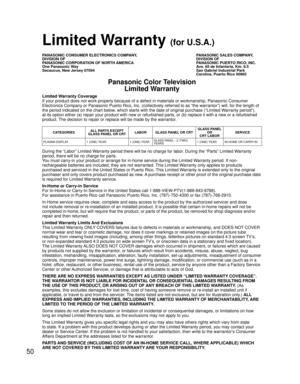

Limited Warranty Coverage
If your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer
Electronics Company or Panasonic Puerto Rico, Inc. (collectively referred to as “the warrantor”) will, for the length of
the period indicated on the chart below, which starts with the date of original purchase (“Limited Warranty period”),
at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished
product....
