7.

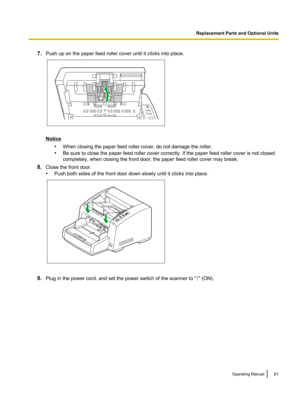

Push up on the paper feed roller cover until it clicks into place. Notice
•When closing the paper feed roller cover, do not damage the roller.
• Be sure to close the paper feed roller cover correctly. If the paper feed roller cover is not closed
completely, when closing the front door, the paper feed roller cover may break.
8. Close the front door.
•Push both sides of the front door down slowly until it clicks into place. 9.
Plug in the power cord, and set the power switch of the scanner to "...

Replacing the Double Feed Prevention Roller
Before replacing the double feed prevention roller, make sure that the hopper is in the "Low" position. The
double feed prevention roller cover cannot be opened if the hopper is not in the "Low" position.
For details on adjusting the hopper’s height, see "Changing the Hopper Position" (page 23).

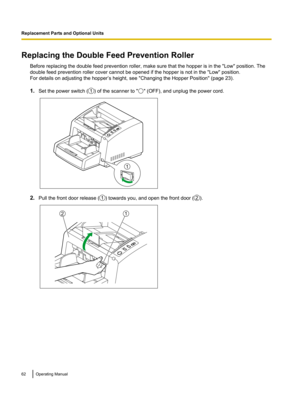

1.Set the power switch ( ) of the scanner to " " (OFF), and unplug the power cord.
2.
Pull the front door release ( ) towards you, and...

3.

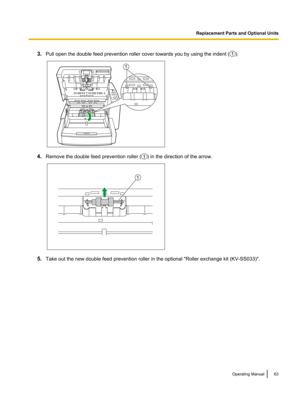

Pull open the double feed prevention roller cover towards you by using the indent ( ).
4.
Remove the double feed prevention roller ( ) in the direction of the arrow.
5.
Take out the new double feed prevention roller in the optional "Roller exchange kit (KV-SS033)". Operating Manual 63Replacement Parts and Optional Units1 1 1 1

6.

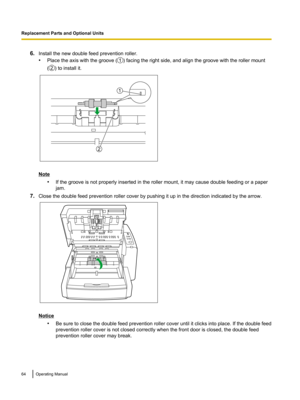

Install the new double feed prevention roller.
•Place the axis with the groove ( ) facing the right side, and align the groove with the roller mount
( ) to install it.
Note
•If the groove is not properly inserted in the roller mount, it may cause double feeding or a paper
jam.
7. Close the double feed prevention roller cover by pushing it up in the direction indicated by the arrow. Notice
•Be sure to
 close the double feed prevention roller cover until it clicks into place. If the double feed...

8.

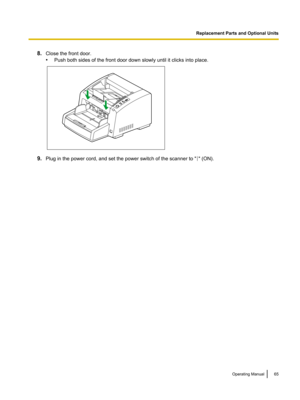

Close the front door.
•Push both sides of the front door down slowly until it clicks into place. 9.
Plug in the power cord, and set the power switch of the scanner to " " (ON).
Operating Manual 65Replacement Parts and Optional Units

10.

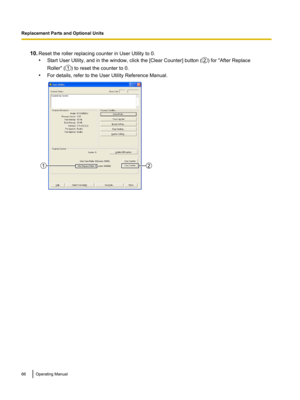

Reset the roller replacing counter in User Utility to 0.
•Start User Utility, and in the window, click the [Clear Counter] button ( ) for "After Replace
Roller" ( ) to reset the counter to 0.
• For details, refer to the User Utility Reference Manual. 66 Operating Manual
Replacement Parts and Optional Units2 1 12

Installing Optional Units
Installing the Imprinter Unit
You can use the imprinter as a pre-imprinter or post-imprinter, depending on your intended use.
The pre-imprinter prints
 on the face of the document before scanning. The printed material will also be scanned.
The post-imprinter prints on the rear of the document after scanning. The printed material will not be scanned.

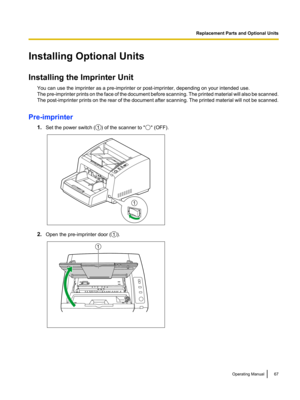

Pre-imprinter 1.Set the power switch ( ) of the scanner to " " (OFF).
2.
Open the pre-imprinter door ( ).
Operating Manual...

3.

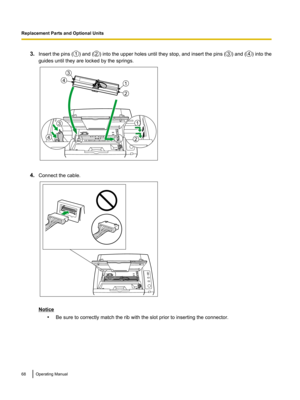

Insert the pins ( ) and ( ) into the upper holes until they stop, and insert the pins ( ) and ( ) into the
guides until they are locked by the springs. 4.
Connect the cable. Notice
•Be sure to correctly match the rib with the slot prior to inserting the connector. 68 Operating Manual
Replacement Parts and Optional Units1 2 3 4 1
2
3
4
3
4
1
2

5.

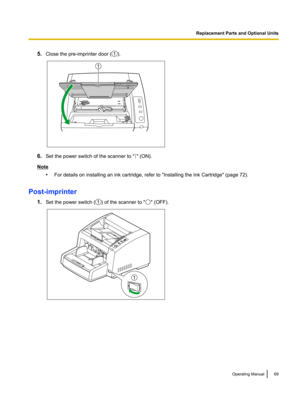

Close the pre-imprinter door ( ).
6.
Set the power switch of the scanner to " " (ON).
Note
•For details on installing an ink cartridge, refer to "Installing the Ink Cartridge" (page 72).
Post-imprinter 1.Set the power switch ( ) of the scanner to " " (OFF).
Operating Manual 69Replacement Parts and Optional Units1 1  1  1

2.

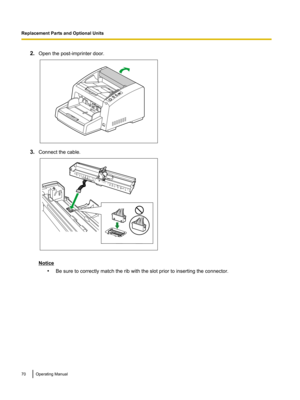

Open the post-imprinter door. 3.
Connect the cable. Notice
•Be sure to correctly match the rib with the slot prior to inserting the connector. 70 Operating Manual
