Panasonic High Speed Color Scanner Kvs5055c Operating Manual

3.Remove dirt on the sensors ( A, B , C , D , G ) and reflectors ( J) with the included blower, then wipe the
scanning glass ( E, I ) and reference plates ( F, H ) with the roller cleaning paper (page 51).
Location of SensorsAWaiting sensorBDouble feed detectorCSlip detect sensorDStarting sensorEScanning glass (F)FReference plate (B)GPaper sensorHReference plate (F)IScanning glass (B)
Notice •After cleaning, make sure that the
 mark on the outside of the reference plate and the  mark
on the reference...

Location of ReflectorsJReflectors62Operating ManualCare and Maintenance10 10

4.Close the ADF door.
• Push both sides of the ADF door down slowly until it clicks into place.
5.Set the power switch of the scanner to "" (ON).
Operating Manual63Care and Maintenance

Replacement Parts and Optional UnitsPart NamePart NumberNotes
Replacement
Parts
Roller exchange kit
• Paper feed roller
module
• Double feed prevention
roller
KV-SS039–
Roller cleaning paperKV-SS03See "About the roller cleaning
paper" (page 51).
Ink cartridgeKV-SS021
For optional imprinter unit.
For instructions on installation and
removal, see "Installing the Ink
Cartridge" (page 77).
Optional UnitsImprinter unitKV-SS014
Prints text and numbers on
documents. Includes 1 ink
cartridge.
For...

Replacing PartsIf double feeding or paper jam occurs frequently even after cleaning the roller (page  56), please call your dealer
to order a "Roller exchange kit (KV-SS039)", and replace the paper feed roller module and double feed
prevention roller.
Replacing the Paper Feed Roller Module 1.Set the power switch ( A) of the scanner to "
" (OFF), and unplug the power cord.
2. Pull the ADF door release ( A) towards you, and open the ADF door ( B).
Operating Manual65Replacement Parts and...

3.Move the lever ( A) of the paper feed roller module in the order indicated by the arrow ( A, B ), and then
pull out the module towards you.
4. Take out the new paper feed roller module in the optional "Roller exchange kit (KV-SS039)".
66Operating ManualReplacement Parts and Optional Units12
1

5.Install the new paper feed roller module.
• With the lever ( A) of the paper feed roller module lowered, insert both protrusions ( B) into the grooves
( C ), and then slowly raise the lever in the direction indicated by the arrow until it clicks into place.
Notice
•Make sure that the paper feed roller module's lever is firmly set. If the lever is not firmly set, the
lever or the paper feed roller module might become damaged or might not function correctly.
Operating Manual67Replacement Parts and...

6.Close the ADF door.
• Push both sides of the ADF door down slowly until it clicks into place.
7.Plug in the power cord, and set the power switch of the scanner to "" (ON).
68Operating ManualReplacement Parts and Optional Units

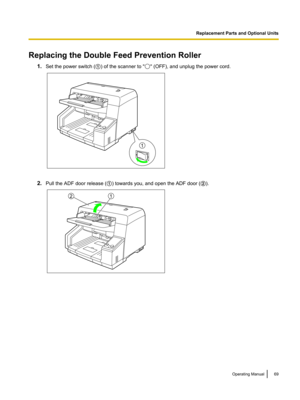

Replacing the Double Feed Prevention Roller1.Set the power switch ( A) of the scanner to "
" (OFF), and unplug the power cord.
2. Pull the ADF door release ( A) towards you, and open the ADF door ( B).
Operating Manual69Replacement Parts and Optional Units 1 12

3.Pull towards you and remove the double feed prevention roller cover by using the indent ( A).
4. While pulling the tab ( A) in the direction indicated by the arrow, lift the double feed prevention roller ( B)
in the direction of the arrow. Then, pull out the right shaft (when facing it) from the notch in the roller mount.
5. Take out the new double feed prevention roller in the optional "Roller exchange kit (KV-SS039)".
70Operating ManualReplacement Parts and Optional Units1 1
2
