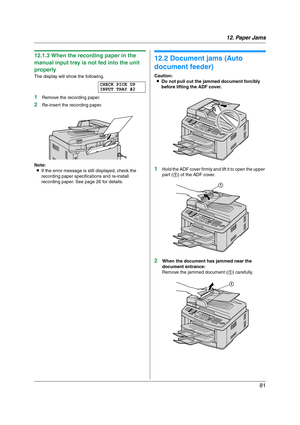

12. Paper Jams
81
12.1.3 When the recording paper in the
manual input tray is not fed into the unit
properly
The display will show the following.
CHECK PICK UP
INPUT TRAY #2
1Remove the recording paper.
2Re-insert the recording paper.
Note:
LIf the error message is still displayed, check the
recording paper specifications and re-install
recording paper. See page 26 for details.
12.2 Document jams (Auto
document feeder)
Caution:
LDo not pull out the jammed document forcibly
before lifting the ADF...

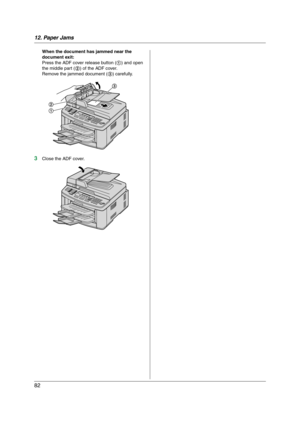

12. Paper Jams
82
When the document has jammed near the
document exit:
Press the ADF cover release button (1) and open
the middle part (2) of the ADF cover.
Remove the jammed document (3) carefully.
3Close the ADF cover.
1
3
2
FLB881-PFQX2732ZA-OI-en.book  Page 82  Wednesday, July 18, 2007  11:22 PM

13. Cleaning
83
13 Clean in g Cleaning

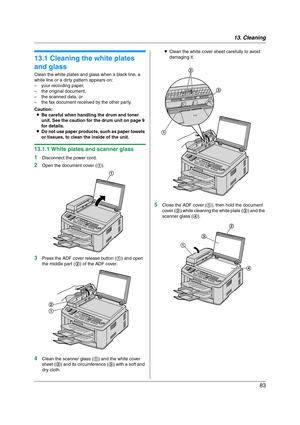

13.1 Cleaning the white plates
and glass
Clean the white plates and glass when a black line, a
white line or a dirty pattern appears on:
– your recording paper,
– the original document,
– the scanned data, or
– the fax document received by the other party.
Caution:
LBe careful when handling the drum and toner
unit. See the caution for the drum unit on page 9
for details.
LDo not use paper products, such as paper towels
or tissues, to clean the inside of the...

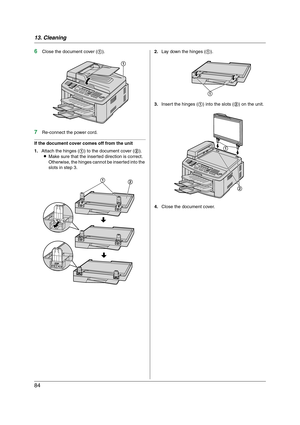

13. Cleaning
84
6Close the document cover (1).
7Re-connect the power cord.
If the document cover comes off from the unit
1.Attach the hinges (1) to the document cover (2).
LMake sure that the inserted direction is correct.
Otherwise, the hinges cannot be inserted into the
slots in step 3.2.Lay down the hinges (1).
3.Insert the hinges (1) into the slots (2) on the unit.
4.Close the document cover.
1
12
1
1
2
FLB881-PFQX2732ZA-OI-en.book  Page 84  Wednesday, July 18, 2007  11:22 PM

13. Cleaning
85

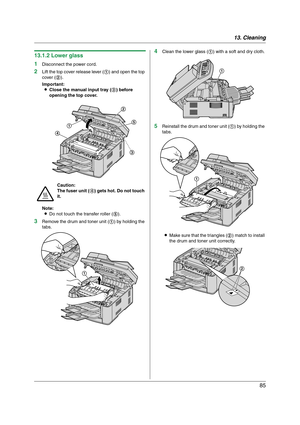

13.1.2 Lower glass
1
Disconnect the power cord.
2Lift the top cover release lever (1) and open the top
cover (2).
Important:
LClose the manual input tray (3) before
opening the top cover.
Note:
LDo not touch the transfer roller (5).
3Remove the drum and toner unit (1) by holding the
tabs.
4Clean the lower glass (1) with a soft and dry cloth.
5Reinstall the drum and toner unit (1) by holding the
tabs.
LMake sure that the triangles (2) match to install
the drum and toner unit...

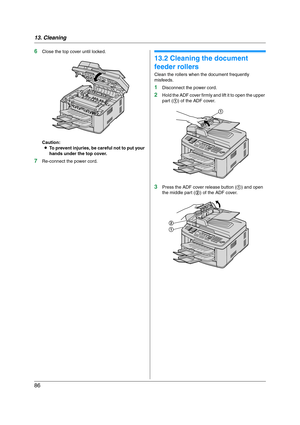

13. Cleaning
86
6Close the top cover until locked.
Caution:
LTo prevent injuries, be careful not to put your
hands under the top cover.
7Re-connect the power cord.
13.2 Cleaning the document
feeder rollers
Clean the rollers when the document frequently
misfeeds.
1Disconnect the power cord.
2Hold the ADF cover firmly and lift it to open the upper
part (1) of the ADF cover.
3Press the ADF cover release button (1) and open
the middle part (2) of the ADF cover.
1
1
2
FLB881-PFQX2732ZA-OI-en.book  Page...

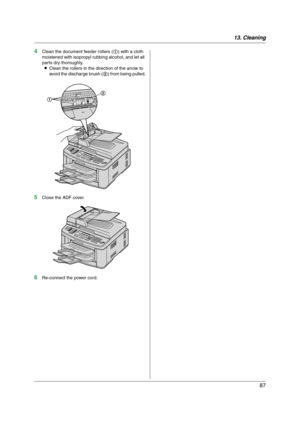

13. Cleaning
87
4Clean the document feeder rollers (1) with a cloth
moistened with isopropyl rubbing alcohol, and let all
parts dry thoroughly.
LClean the rollers in the direction of the arrow to
avoid the discharge brush (2) from being pulled.
5Close the ADF cover.
6Re-connect the power cord.
2
1
FLB881-PFQX2732ZA-OI-en.book  Page 87  Wednesday, July 18, 2007  11:22 PM

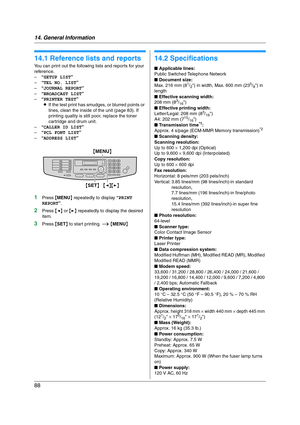

14. General Information
88
14 G en era l In for m at i on Printe d Repor ts
14.1 Reference lists and reports
You can print out the following lists and reports for your
reference.
–“SETUP LIST”
–“TEL NO. LIST”
–“JOURNAL REPORT”
–“BROADCAST LIST”
–“PRINTER TEST”
LIf the test print has smudges, or blurred points or
lines, clean the inside of the unit (page 83). If
printing quality is still poor, replace the toner
cartridge and drum unit.
–“CALLER ID LIST”
–“PCL FONT LIST”
–“ADDRESS LIST”
1Press {MENU}...

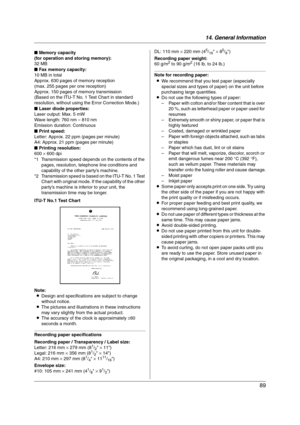

14. General Information
89
ITU-T No.1 Test Chart
Note:
LDesign and specifications are subject to change
without notice.
LThe pictures and illustrations in these instructions
may vary slightly from the actual product.
LThe accuracy of the clock is approximately ±60
seconds a month.
Recording paper specifications
Recording paper / Transparency / Label size:
Letter: 216 mm × 279 mm (8
1/2 × 11)
Legal: 216 mm × 356 mm (81/2 × 14)
A4: 210 mm × 297 mm (81/4 × 1111/16)
Envelope size:
#10: 105 mm × 241 mm (4...

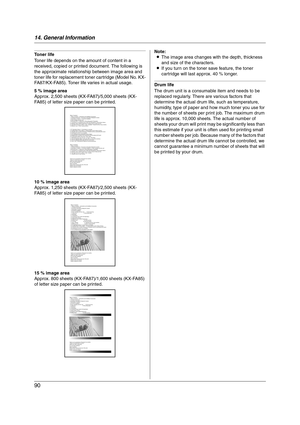

14. General Information
90
Toner life
Toner life depends on the amount of content in a
received, copied or printed document. The following is
the approximate relationship between image area and
toner life for replacement toner cartridge (Model No. KX-
FA87/KX-FA85). Toner life varies in actual usage.Note:
LThe image area changes with the depth, thickness
and size of the characters.
LIf you turn on the toner save feature, the toner
cartridge will last approx. 40 % longer.
Drum life
The drum unit is...
