Panasonic Kx-T2310 Integrated Telephone System Operating Instructions

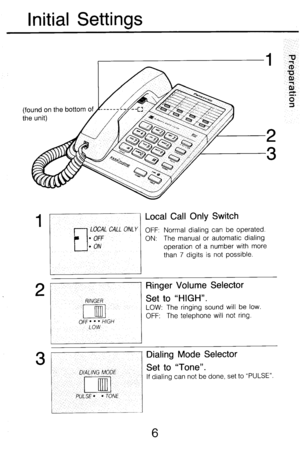

Initial Settings
(found on the bottom
Only Switch
Normal dialing can be operated.
The manual or automatic dialing
operation of a number with more
than 7 digits is not possible.
Ringer Volume Selector
Set to “HIGH”.
LOW: The ringing sound will be low.
OFF: The telephone will not ring.
DlALlNG MODE
PULSE
l l TONE
Dialing Mode Selector
Set to “Tone”.
If dialing can not be done, set to “PULSE”.
6

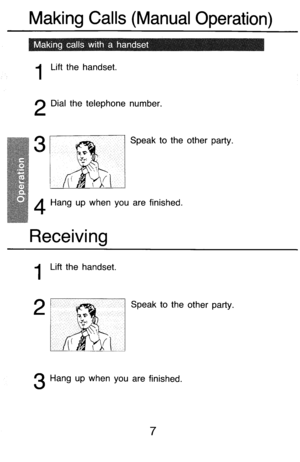

Making Calls (Manual Operation)
1
Lift the handset.
2
Dial the telephone number.
3 Speak to the other party.
4
Hang up when you are finished.
Receiving
1
Lift the handset.
Speak to the other party.
3
Hang up when you are finished.
7

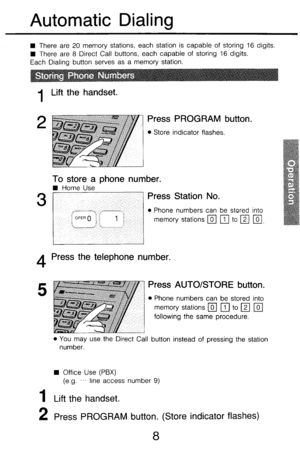

Automatic Dialing
n There are 20 memory stations, each station is capable of storing 16 digits.
W There are 8 Direct Call buttons, each capable of storing 16 digits.
Each Dialing button serves as a memory station.
1
2
3
4
5
1
2 Lift the handset.
Press PROGRAM button.
0 Store indicator flashes,
To store a phone number.
n Home Use
Press Station No.
l Phone numbers can be stored into
memory stations m /7-] to vj /-S-j,
Press the telephone number.
Press AUTO/STORE button.
0 Phone numbers...

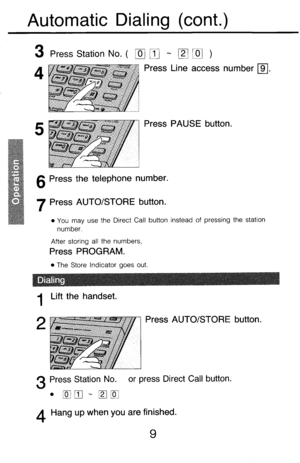

Automatic Dialing (cont.)
3
Press Station No. ( 101 111 - 121 101 )
4
Press Line access number q .
Press PAUSE button.
6 Press the telephone number.
7 Press AUTO/STORE button.
l You may use the Direct Call button instead of pressing the station
number.
After storing all the numbers,
Press PROGRAM.
l The Store Indicator goes out.
1 Lift the handset.
Press AUTO/STORE button.
3 Press Station No. or press Direct Call button.
l pJ m - pi fc
4 Hang up when you are finished.
9

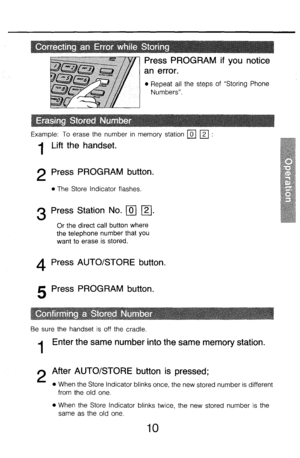

Press PROGRAM if you notice
an error.
l Repeat all the steps of “Storing Phone
Numbers”.
Example: To erase the number in memory station m m :
1 Lift the handset.
2 Press PROGRAM button.
l The Store Indicator flashes.
3 Press Station No. q q .
Or the direct call button where
the telephone number that you
want to erase is stored.
4 Press AUTO/STORE button.
5 Press PROGRAM button.
Be sure the handset is off the cradle.
1
Enter the same number into the same memory station.
2
After...

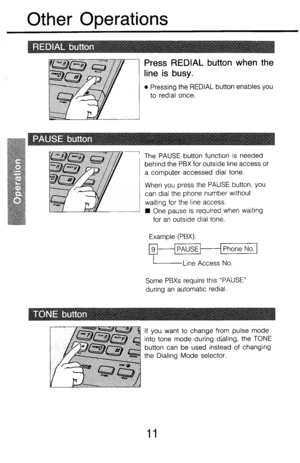

Other Operations
Press REDIAL button when the
line is busy.
l Pressing the REDIAL button enables you
to redial once.
The PAUSE button function is needed
behind the PBX for outside line access or
a computer accessed dial tone.
When you press the PAUSE button, you
can dial the phone number without
waiting for the line access.
n One pause is required when waiting
for an outside dial tone.
Example (PBX):
Phone No.
Line Access No.
Some PBXs require this “PAUSE”
during an automatic redial.
If...

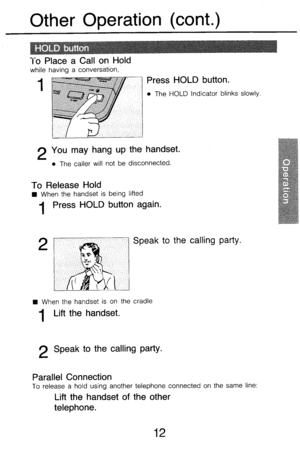

Other Operation (cont.)
7-o Place a Call on Hold
while having a conversation,
1
2 You may hang up the handset.
l The caller will not be disconnected.
Press HOLD button.
l The HOLD Indicator blinks slowly.
To Release Hold
n When the handset is being lifted
1 Press HOLD button again.
Speak to the calling party.
n When the handset is on the cradle
1 Lift the handset.
2 Speak to the calling party.
Parallel Connection
To release a hold using another telephone connected on the same line:
Lift...

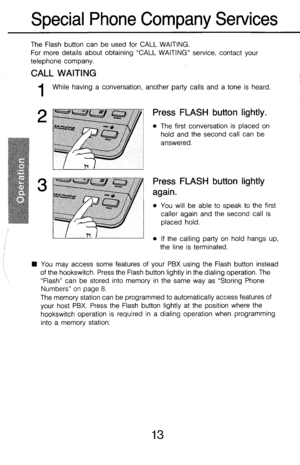

Special Phone Company Services
The Flash button can be used for CALL WAITING.
For more details about obtaining “CALL WAITING” service, contact your
telephone company.
CALL WAITING
1 While having a conversation, another party calls and a tone is heard.
2
e-&g@“r
P
1 Press FLASH button lightly.
I l The first conversation is placed on
hold and the second call can be
~~~~~
answered.
Press FLASH button lightly
again.
l You will be able to speak to the first
caller again and the second call is...

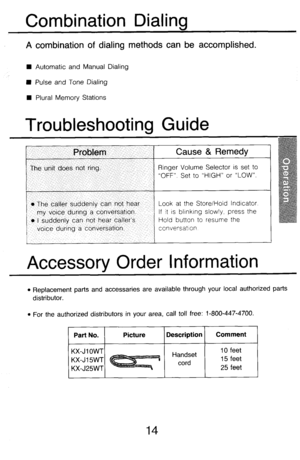

Combination Dialing
A combination of dialing methods can be accomplished.
E Automatic and Manual Dialing
H Pulse and Tone Dialing
W Plural Memory Stations
Troubleshooting Guide
Cause & Remedy
Ringer Volume Selector is set to
“OFF”. Set to “HIGH” or “LOW”.
y can not hear
conversation.
hear caller’s
wersation. Look at the Store/Hold Indicator.
If it IS bllnklng slowly, press the
Hold button to resume the
conversation
!
Accessorv Order Information
l Replacement parts and accessaries are...

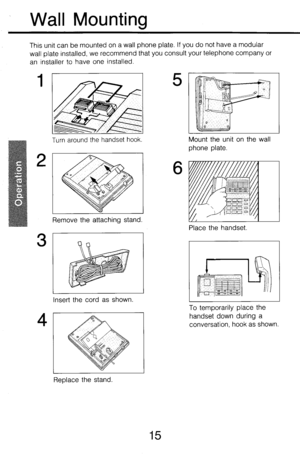

Wall Mounting
This unit can be mounted on a wall phone plate. If you do not have a modular
wall plate installed, we recommend that you consult your telephone company or
an installer to have one installed
I
Turn around the handset hook.
2
3
Remove the attaching stand.
Insert the cord as shown.
5
Mount the unit on the wall
phone plate.
6
Place the handset
To temporarily place the
handset down during a
conversation, hook as shown.
Replace the stand.
15
