Panasonic Kx Tg2970 Operating Instructions Manual

Answering System
61For assistance, please call: 1-800-ADT-ASAP

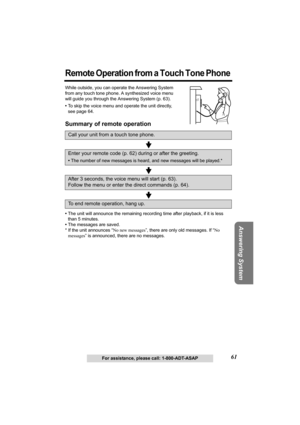

Remote Operation from a Touch Tone Phone
While outside, you can operate the Answering System
from any touch tone phone. A synthesized voice menu
will guide you through the Answering System (p. 63).
•To skip the voice menu and operate the unit directly,
see page 64.
Summary of remote operation
•The unit will announce the remaining recording time after playback, if it is less
than 5 minutes.
•The messages are saved.
* If the unit announces...

Remote Operation from a Touch Tone Phone
62

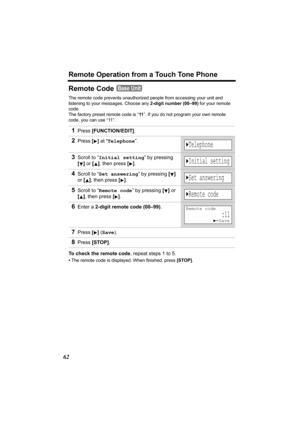

Remote Code
The remote code prevents unauthorized people from accessing your unit and
listening to your messages. Choose any 2-digit number (00–99) for your remote
code.
The factory preset remote code is “11”. If you do not program your own remote
code, you can use “11”.
To check the remote code, repeat steps 1 to 5.
•The remote code is displayed. When finished, press [STOP].
1Press [FUNCTION/EDIT].
2Press [] at “Telephone”.
3Scroll to “Initial setting” by...

63
Remote Operation from a Touch Tone Phone
Answering System
For assistance, please call: 1-800-ADT-ASAP
Press [1].
Press [1].
Press [1].
Press [1]. Press [2].
Press [2].
Press [2].
Press [2].
Voice Menu
The shaded parts are voice prompts.
•3 seconds after playback, the voice menu will start again from the beginning.
•The unit will announce the remaining recording time after playback if it is less than
5 minutes.
•If you hear “Memory full” after playback, erase unnecessary messages (p. 64).
•If you do...

Remote Operation from a Touch Tone Phone
64

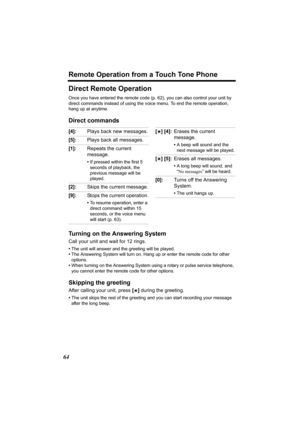

Direct Remote Operation
Once you have entered the remote code (p. 62), you can also control your unit by
direct commands instead of using the voice menu. To end the remote operation,
hang up at anytime.
Direct commands
Turning on the Answering System
Call your unit and wait for 12 rings.
•The unit will answer and the greeting will be played.
•The Answering System will turn on. Hang up or enter the remote code for other
options.
•When turning on the Answering...

65
Useful Information
For assistance, please call: 1-800-ADT-ASAP

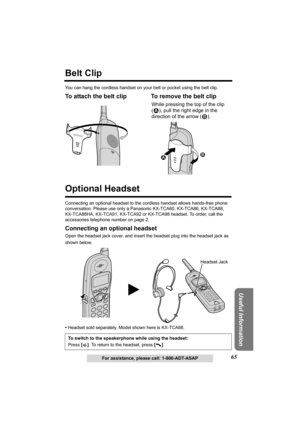

Belt Clip
You can hang the cordless handset on your belt or pocket using the belt clip.
To attach the belt clip To remove the belt clip
Optional Headset
Connecting an optional headset to the cordless handset allows hands-free phone
conversation. Please use only a Panasonic KX-TCA60, KX-TCA86, KX-TCA88,
KX-TCA88HA, KX-TCA91, KX-TCA92 or KX-TCA98 headset. To order, call the
accessories telephone number on page 2.
Connecting an optional...

66

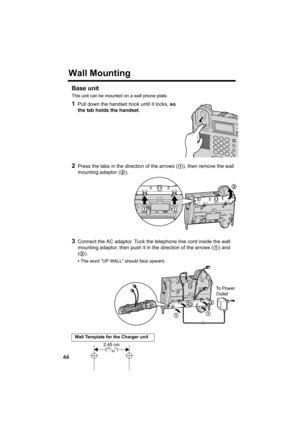

Wall Mounting
Base unit
This unit can be mounted on a wall phone plate.
1Pull down the handset hook until it locks, so
the tab holds the handset.
2Press the tabs in the direction of the arrows (1), then remove the wall
mounting adaptor (
2).
3Connect the AC adaptor. Tuck the telephone line cord inside the wall
mounting adaptor, then push it in the direction of the arrows (
1) and
(
2).
•The word “UP WALL” should face upward.
Wall Template for the Charger unit
11
2
To Power
Outlet
1
22
1
2.45...

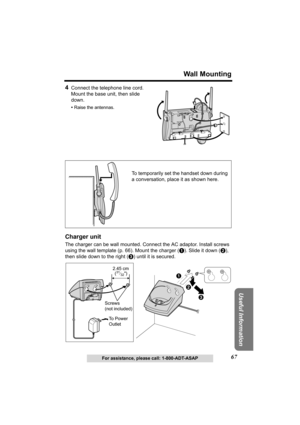

67
Wall Mounting
Useful Information
For assistance, please call: 1-800-ADT-ASAP
4Connect the telephone line cord.
Mount the base unit, then slide
down.
•Raise the antennas.
Charger unit
The charger can be wall mounted. Connect the AC adaptor. Install screws
using the wall template (p. 66). Mount the charger (
A). Slide it down (B),
then slide down to the right (
C) until it is secured.
To temporarily set the handset down during
a conversation, place it as shown here.
To Power
Outlet Screws
(not...

68
Canceling Registration/Re-registration

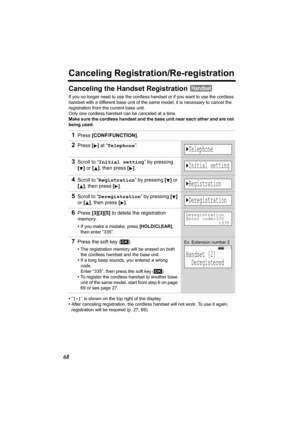

Canceling the Handset Registration
If you no longer need to use the cordless handset or if you want to use the cordless
handset with a different base unit of the same model, it is necessary to cancel the
registration from the current base unit.
Only one cordless handset can be canceled at a time.
Make sure the cordless handset and the base unit near each other and are not
being used.
•“[-]” is shown on the top right of the display.
•After canceling...

69
Canceling Registration/Re-registration
Useful Information
For assistance, please call: 1-800-ADT-ASAP

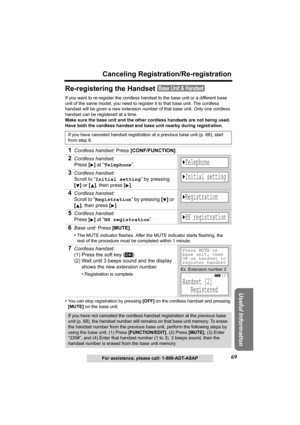

Re-registering the Handset
If you want to re-register the cordless handset to the base unit or a different base
unit of the same model, you need to register it to that base unit. The cordless
handset will be given a new extension number of that base unit. Only one cordless
handset can be registered at a time.
Make sure the base unit and the other cordless handsets are not being used.
Have both...

70

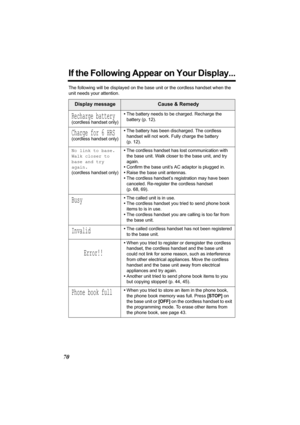

If the Following Appear on Your Display...
The following will be displayed on the base unit or the cordless handset when the
unit needs your attention.
Display messageCause & Remedy
Recharge battery
(cordless handset only)•The battery needs to be charged. Recharge the
battery (p. 12).
Charge for 6 HRS
(cordless handset only)•The battery has been discharged. The cordless
handset will not work. Fully charge the battery
(p. 12).
No link to base.
Walk closer to
base and try
again.
(cordless handset...
