Camera monitoring
using a handset
With a color display handset (KX-
TGA571), you can monitor the image and
sound of the room where the cordless
camera is located. The monitored camera
does not ring, allowing you to easily
monitor a baby’s room, for example, from
different areas of the house.
Important:
LBefore you start monitoring, confirm that
the camera lens of the cordless camera
has been adjusted to the correct...

Camera Monitoring
12For assistance, please visit http://www.panasonic.com/help
Handset display item for camera
monitoring
Paging the handsets from the
cordless camera
The cordless camera can page color
display handsets (KX-TGA571) when it
detects sound or by pressing its {Call
button}. Then the answering handset
user can monitor live images from the
cordless camera.
Important:
LOnly registered color display handsets
(KX-TGA571) can be paged from the
cordless camera. The base unit and
monochrome...

Camera Monitoring
For assistance, please visit http://www.panasonic.com/help13
Paging using the cordless camera call
button

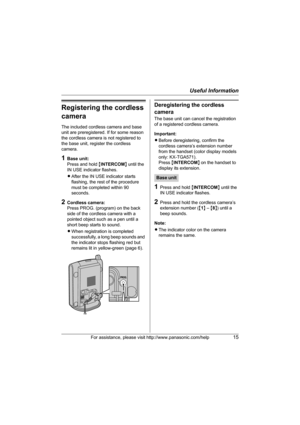

1Cordless camera:
Press {Call button}.
LThe cordless camera produces a
camera tone and pages the handsets
for 1 minute.
2Handset:
Press {s} to answer the page.
LYou can monitor the room where the
cordless camera is located.
3Cordless camera:
When the handset user answers, speak
clearly into the MIC.
4Handset:
When you finish monitoring, press
{OFF} or place the handset on the...

Camera Monitoring
14For assistance, please visit http://www.panasonic.com/help
Setting the audio detection sensitivity
The cordless camera features a sensor
that detects human voices such as a baby
cry. Sounds other than human voices may
be difficult to detect. To use this feature,
confirm that the cordless camera is located
in a place where it can easily detect
voices. Once the sensor has detected
sound, the cordless camera pages the
handset.
To use the audio detection feature of the
cordless...

Useful Information
For assistance, please visit http://www.panasonic.com/help15
Registering the cordless
camera
The included cordless camera and base
unit are preregistered. If for some reason
the cordless camera is not registered to
the base unit, register the cordless
camera.
1Base unit:
Press and hold {INTERCOM} until the
IN USE indicator flashes.
LAfter the IN USE indicator starts
flashing, the rest of the procedure
must be completed within 90
seconds.
2Cordless camera:
Press PROG. (program)...

Useful Information
16For assistance, please visit http://www.panasonic.com/help
Wall mounting
The cordless camera can be mounted by the standard mounting or upside down
mounting.
CAUTION:
LMount the cordless camera on the stable location where the unit can be adequately
supported when installing.
LThe AC adaptor should be connected to a vertically oriented or floor-mounted AC outlet.
Do not connect the AC adaptor to a ceiling-mounted AC outlet, as the weight of the
adaptor may cause it to become...

Useful Information
For assistance, please visit http://www.panasonic.com/help17
Mounting the cordless camera on the wall
Standard mounting
Upside down mounting
LThe image may be seen upside down when mounting upside down. To compensate for
this, change the cordless camera setting to display images upside down (page 9).
1Drive the screws (not included) into the
wall at a recommended height of 1.8 m
(5.9 feet) or below using the wall
mount template as a guide (page 18).2Mount the cordless camera (A),...

Useful Information
18For assistance, please visit http://www.panasonic.com/help

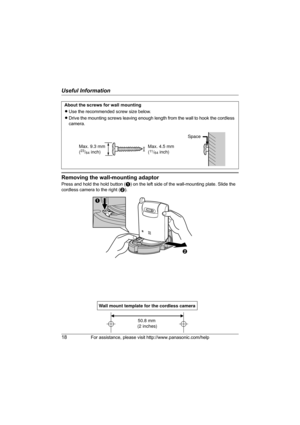

Removing the wall-mounting adaptor
Press and hold the hold button (A) on the left side of the wall-mounting plate. Slide the
cordless camera to the right (B). About the screws for wall mounting
LUse the recommended screw size below.
LDrive the mounting screws leaving enough length from the wall to hook the cordless
camera.
Max. 9.3 mm
(23/64 inch)Space
Max. 4.5 mm
(11/64 inch)
B
A
Wall mount template for the cordless...

Useful Information
For assistance, please visit http://www.panasonic.com/help19
Troubleshooting
ProblemCause & solution
The cordless camera
does not work.LCheck the connections (page 7).
LThe cordless camera is not registered to the base unit.
Register the cordless camera to the base unit (page
15).
The cordless camera’s
indicator is flashing red.LThe cordless camera is not registered to the base unit.
Register the cordless camera to the base unit (page
15).
LThe cordless camera is out of range....

Useful Information
20For assistance, please visit http://www.panasonic.com/help
I pressed {Call button}
but the cordless camera
does not page the
handsets.LWhile the image of the cordless camera is being
monitored by a handset, {Call button} will not have
response.
The handset speaker
and/or the cordless
camera emit a howling
noise while monitoring.LMove the handset away from the cordless camera.
When using the handset
speakerphone to have an
intercom call with the
cordless camera, sound
cuts...
