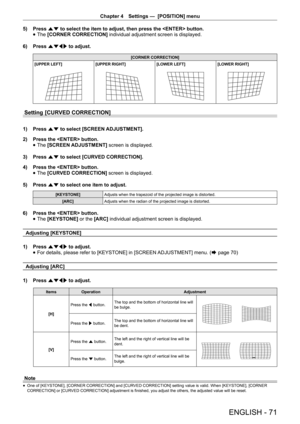

Chapter 4 Settings — [POSITION] menu
ENGLISH - 71
5)
Press as to select the item to adjust, then press the button.
f The
[CORNER CORRECTION] individual adjustment screen is displayed.
6) Press asqw to adjust.
[CORNER CORRECTION]
[UPPER LEFT]
[UPPER RIGHT][LOWER LEFT][LOWER RIGHT]
Setting [CURVED CORRECTION]
1) Press as to select [SCREEN ADJUSTMENT].
2) Press the button.
f The
[SCREEN ADJUSTMENT] screen is displayed.
3) Press as to select [CURVED CORRECTION].
4) Press the button.
f The...](http://img.usermanuals.tech/thumb/58/75789/w300_pt-fz570_en_om_d-70.png "Page 71
Chapter 4 Settings — [POSITION] menu
ENGLISH - 71
5)
Press as to select the item to adjust, then press the button.
f The
[CORNER CORRECTION] individual adjustment screen is displayed.
6) Press asqw to adjust.
[CORNER CORRECTION]
[UPPER LEFT]
[UPPER RIGHT][LOWER LEFT][LOWER RIGHT]
Setting [CURVED CORRECTION]
1) Press as to select [SCREEN ADJUSTMENT].
2) Press the button.
f The
[SCREEN ADJUSTMENT] screen is displayed.
3) Press as to select [CURVED CORRECTION].
4) Press the button.
f The...")
Chapter 4 Settings — [POSITION] menu ENGLISH - 71 5) Press as to select the item to adjust, then press the button. f The [CORNER CORRECTION] individual adjustment screen is displayed. 6) Press asqw to adjust. [CORNER CORRECTION] [UPPER LEFT] [UPPER RIGHT][LOWER LEFT][LOWER RIGHT] Setting [CURVED CORRECTION] 1) Press as to select [SCREEN ADJUSTMENT]. 2) Press the button. f The [SCREEN ADJUSTMENT] screen is displayed. 3) Press as to select [CURVED CORRECTION]. 4) Press the button. f The...
Page 72
![Page 72
Chapter 4 Settings — [POSITION] menu
72 - ENGLISH

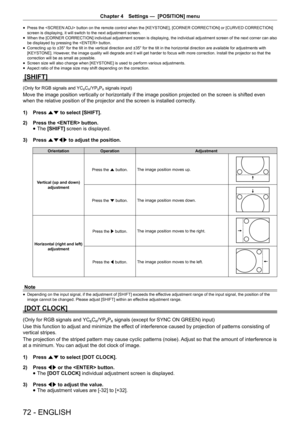

f Press the button on the remote control when the [KEYSTONE], [CORNER CORRECTION] or [CURVED CORRECTION]
screen is displaying, it will switch to the next adjustment screen.
f When the [CORNER CORRECTION] individual adjustment screen is displaying, the individual adjustment screen of the next corner can also
be displayed by pressing the button.
f Correcting up to ±35° for the tilt in the vertical direction and ±35° for the tilt in the horizontal...](http://img.usermanuals.tech/thumb/58/75789/w300_pt-fz570_en_om_d-71.png "Page 72
Chapter 4 Settings — [POSITION] menu
72 - ENGLISH
f Press the button on the remote control when the [KEYSTONE], [CORNER CORRECTION] or [CURVED CORRECTION]
screen is displaying, it will switch to the next adjustment screen.
f When the [CORNER CORRECTION] individual adjustment screen is displaying, the individual adjustment screen of the next corner can also
be displayed by pressing the button.
f Correcting up to ±35° for the tilt in the vertical direction and ±35° for the tilt in the horizontal...")
Chapter 4 Settings — [POSITION] menu 72 - ENGLISH f Press the button on the remote control when the [KEYSTONE], [CORNER CORRECTION] or [CURVED CORRECTION] screen is displaying, it will switch to the next adjustment screen. f When the [CORNER CORRECTION] individual adjustment screen is displaying, the individual adjustment screen of the next corner can also be displayed by pressing the button. f Correcting up to ±35° for the tilt in the vertical direction and ±35° for the tilt in the horizontal...
Page 73
![Page 73

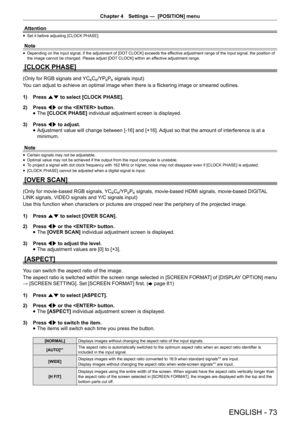

Chapter 4 Settings — [POSITION] menu
ENGLISH - 73
Attention
f Set it before adjusting [CLOCK PHASE].
Note
f Depending on the input signal, if the adjustment of [DOT CLOCK] exceeds the effective adjustment range of the input signal, the position of
the image cannot be changed. Please adjust [DOT CLOCK] within an effective adjustment range.
[CLOCK PHASE]
(Only for RGB signals and YCBCR/YPBPR signals input)
You can adjust to achieve an optimal image when there is a flickering image or smeared...](http://img.usermanuals.tech/thumb/58/75789/w300_pt-fz570_en_om_d-72.png "Page 73
Chapter 4 Settings — [POSITION] menu
ENGLISH - 73
Attention
f Set it before adjusting [CLOCK PHASE].
Note
f Depending on the input signal, if the adjustment of [DOT CLOCK] exceeds the effective adjustment range of the input signal, the position of
the image cannot be changed. Please adjust [DOT CLOCK] within an effective adjustment range.
[CLOCK PHASE]
(Only for RGB signals and YCBCR/YPBPR signals input)
You can adjust to achieve an optimal image when there is a flickering image or smeared...")
Chapter 4 Settings — [POSITION] menu ENGLISH - 73 Attention f Set it before adjusting [CLOCK PHASE]. Note f Depending on the input signal, if the adjustment of [DOT CLOCK] exceeds the effective adjustment range of the input signal, the position of the image cannot be changed. Please adjust [DOT CLOCK] within an effective adjustment range. [CLOCK PHASE] (Only for RGB signals and YCBCR/YPBPR signals input) You can adjust to achieve an optimal image when there is a flickering image or smeared...
Page 74
![Page 74
Chapter 4 Settings — [POSITION] menu
74 - ENGLISH

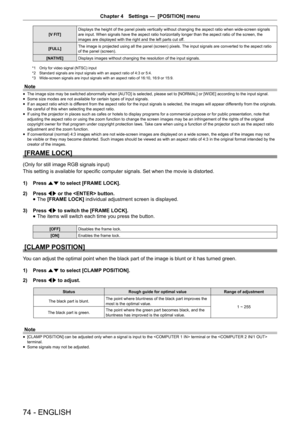

[V FIT] Displays the height of the panel pixels vertically without changing the aspect ratio when wide-screen signals
are input. When signals have the aspect ratio horizontally longer than the aspect ratio of the screen, the
images are displayed with the right and the left parts cut off.
[FULL] The image is projected using all the panel (screen) pixels. The input signals are converted to the aspect ratio
of the panel (screen).
[NATIVE] Displays images...](http://img.usermanuals.tech/thumb/58/75789/w300_pt-fz570_en_om_d-73.png "Page 74
Chapter 4 Settings — [POSITION] menu
74 - ENGLISH
[V FIT] Displays the height of the panel pixels vertically without changing the aspect ratio when wide-screen signals
are input. When signals have the aspect ratio horizontally longer than the aspect ratio of the screen, the
images are displayed with the right and the left parts cut off.
[FULL] The image is projected using all the panel (screen) pixels. The input signals are converted to the aspect ratio
of the panel (screen).
[NATIVE] Displays images...")
Chapter 4 Settings — [POSITION] menu 74 - ENGLISH [V FIT] Displays the height of the panel pixels vertically without changing the aspect ratio when wide-screen signals are input. When signals have the aspect ratio horizontally longer than the aspect ratio of the screen, the images are displayed with the right and the left parts cut off. [FULL] The image is projected using all the panel (screen) pixels. The input signals are converted to the aspect ratio of the panel (screen). [NATIVE] Displays images...
Page 75
![Page 75

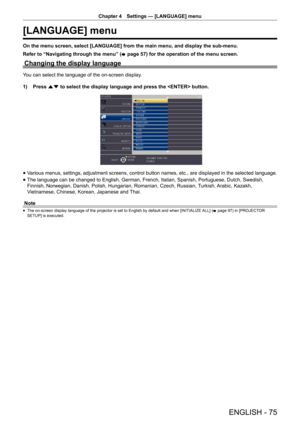

Chapter 4 Settings — [LANGUAGE] menu
ENGLISH - 75
[LANGUAGE] menu
On the menu screen, select [LANGUAGE] from the main menu, and display th\
e sub-menu.
Refer to “Navigating through the menu” (
x page 57) for the operation of the menu screen.
Changing the display language
You can select the language of the on-screen display.
1)
Press as to select the display language and press the button.
f Various menus, settings, adjustment screens, control button names, etc., are displayed in the selected...](http://img.usermanuals.tech/thumb/58/75789/w300_pt-fz570_en_om_d-74.png "Page 75
Chapter 4 Settings — [LANGUAGE] menu
ENGLISH - 75
[LANGUAGE] menu
On the menu screen, select [LANGUAGE] from the main menu, and display th\
e sub-menu.
Refer to “Navigating through the menu” (
x page 57) for the operation of the menu screen.
Changing the display language
You can select the language of the on-screen display.
1)
Press as to select the display language and press the button.
f Various menus, settings, adjustment screens, control button names, etc., are displayed in the selected...")
Chapter 4 Settings — [LANGUAGE] menu ENGLISH - 75 [LANGUAGE] menu On the menu screen, select [LANGUAGE] from the main menu, and display th\ e sub-menu. Refer to “Navigating through the menu” ( x page 57) for the operation of the menu screen. Changing the display language You can select the language of the on-screen display. 1) Press as to select the display language and press the button. f Various menus, settings, adjustment screens, control button names, etc., are displayed in the selected...
Page 76
![Page 76
Chapter 4 Settings — [DISPLAY OPTION] menu
76 - ENGLISH
[DISPLAY OPTION] menu
On the menu screen, select [DISPLAY OPTION] from the main menu, and select an item from the sub-
menu.
Refer to “Navigating through the menu” (
x page 57) for the operation of the menu screen.
[ON-SCREEN DISPLAY]
Set the on-screen display.
Setting [INPUT GUIDE]
You can set the display method of the name of the input terminal displayed on the top right of the projection
screen.
1)
Press as to select [ON-SCREEN DISPLAY].
2)...](http://img.usermanuals.tech/thumb/58/75789/w300_pt-fz570_en_om_d-75.png "Page 76
Chapter 4 Settings — [DISPLAY OPTION] menu
76 - ENGLISH
[DISPLAY OPTION] menu
On the menu screen, select [DISPLAY OPTION] from the main menu, and select an item from the sub-
menu.
Refer to “Navigating through the menu” (
x page 57) for the operation of the menu screen.
[ON-SCREEN DISPLAY]
Set the on-screen display.
Setting [INPUT GUIDE]
You can set the display method of the name of the input terminal displayed on the top right of the projection
screen.
1)
Press as to select [ON-SCREEN DISPLAY].
2)...")
Chapter 4 Settings — [DISPLAY OPTION] menu 76 - ENGLISH [DISPLAY OPTION] menu On the menu screen, select [DISPLAY OPTION] from the main menu, and select an item from the sub- menu. Refer to “Navigating through the menu” ( x page 57) for the operation of the menu screen. [ON-SCREEN DISPLAY] Set the on-screen display. Setting [INPUT GUIDE] You can set the display method of the name of the input terminal displayed on the top right of the projection screen. 1) Press as to select [ON-SCREEN DISPLAY]. 2)...
Page 77
![Page 77

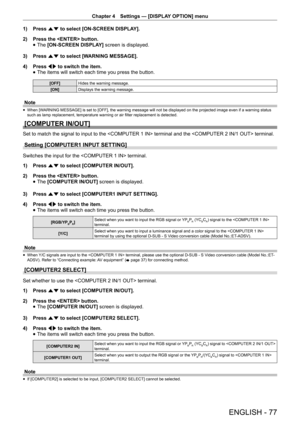

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 77
1)
Press as to select [ON-SCREEN DISPLAY].
2) Press the button.
f The
[ON-SCREEN DISPLAY] screen is displayed.
3) Press as to select [WARNING MESSAGE].
4) Press qw to switch the item.
f The items will switch each time you press the button.
[OFF]
Hides the warning message.
[ON] Displays the warning message.
Note
f When [WARNING MESSAGE] is set to [OFF], the warning message will not be displayed on the projected image even if a warning...](http://img.usermanuals.tech/thumb/58/75789/w300_pt-fz570_en_om_d-76.png "Page 77
Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 77
1)
Press as to select [ON-SCREEN DISPLAY].
2) Press the button.
f The
[ON-SCREEN DISPLAY] screen is displayed.
3) Press as to select [WARNING MESSAGE].
4) Press qw to switch the item.
f The items will switch each time you press the button.
[OFF]
Hides the warning message.
[ON] Displays the warning message.
Note
f When [WARNING MESSAGE] is set to [OFF], the warning message will not be displayed on the projected image even if a warning...")
Chapter 4 Settings — [DISPLAY OPTION] menu ENGLISH - 77 1) Press as to select [ON-SCREEN DISPLAY]. 2) Press the button. f The [ON-SCREEN DISPLAY] screen is displayed. 3) Press as to select [WARNING MESSAGE]. 4) Press qw to switch the item. f The items will switch each time you press the button. [OFF] Hides the warning message. [ON] Displays the warning message. Note f When [WARNING MESSAGE] is set to [OFF], the warning message will not be displayed on the projected image even if a warning...
Page 78
![Page 78
Chapter 4 Settings — [DISPLAY OPTION] menu
78 - ENGLISH

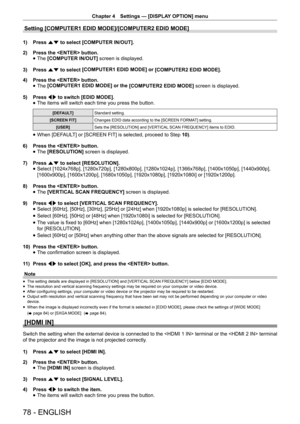

Setting [COMPUTER1 EDID MODE]/[COMPUTER2 EDID MODE]
1)
Press as to select [COMPUTER IN/OUT].
2) Press the button.
f The
[COMPUTER IN/OUT] screen is displayed.
3) Press as to select [COMPUTER1 EDID MODE] or
[COMPUTER2 EDID MODE].
4) Press the button.
f The
[COMPUTER1 EDID MODE] or the
[COMPUTER2 EDID MODE] screen is displayed.
5) Press qw to switch [EDID MODE].
f The items will switch each time you press the button.
[DEFAULT]...](http://img.usermanuals.tech/thumb/58/75789/w300_pt-fz570_en_om_d-77.png "Page 78
Chapter 4 Settings — [DISPLAY OPTION] menu
78 - ENGLISH
Setting [COMPUTER1 EDID MODE]/[COMPUTER2 EDID MODE]
1)
Press as to select [COMPUTER IN/OUT].
2) Press the button.
f The
[COMPUTER IN/OUT] screen is displayed.
3) Press as to select [COMPUTER1 EDID MODE] or
[COMPUTER2 EDID MODE].
4) Press the button.
f The
[COMPUTER1 EDID MODE] or the
[COMPUTER2 EDID MODE] screen is displayed.
5) Press qw to switch [EDID MODE].
f The items will switch each time you press the button.
[DEFAULT]...")
Chapter 4 Settings — [DISPLAY OPTION] menu 78 - ENGLISH Setting [COMPUTER1 EDID MODE]/[COMPUTER2 EDID MODE] 1) Press as to select [COMPUTER IN/OUT]. 2) Press the button. f The [COMPUTER IN/OUT] screen is displayed. 3) Press as to select [COMPUTER1 EDID MODE] or [COMPUTER2 EDID MODE]. 4) Press the button. f The [COMPUTER1 EDID MODE] or the [COMPUTER2 EDID MODE] screen is displayed. 5) Press qw to switch [EDID MODE]. f The items will switch each time you press the button. [DEFAULT]...
Page 79
![Page 79
Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 79

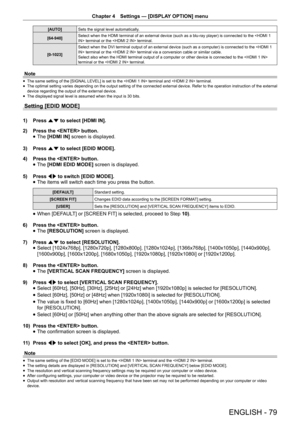

[AUTO]
Sets the signal level automatically.
[64-940] Select when the HDMI terminal of an external device (such as a blu-ray player) is connected to the terminal or the terminal.
[0-1023] Select when the DVI terminal output of an external device (such as a computer) is connected to the terminal or the terminal via a conversion cable or similar cable.
Select also when the HDMI terminal output of a computer or other device is connected to the...](http://img.usermanuals.tech/thumb/58/75789/w300_pt-fz570_en_om_d-78.png "Page 79
Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 79
[AUTO]
Sets the signal level automatically.
[64-940] Select when the HDMI terminal of an external device (such as a blu-ray player) is connected to the terminal or the terminal.
[0-1023] Select when the DVI terminal output of an external device (such as a computer) is connected to the terminal or the terminal via a conversion cable or similar cable.
Select also when the HDMI terminal output of a computer or other device is connected to the...")
Chapter 4 Settings — [DISPLAY OPTION] menu ENGLISH - 79 [AUTO] Sets the signal level automatically. [64-940] Select when the HDMI terminal of an external device (such as a blu-ray player) is connected to the terminal or the terminal. [0-1023] Select when the DVI terminal output of an external device (such as a computer) is connected to the terminal or the terminal via a conversion cable or similar cable. Select also when the HDMI terminal output of a computer or other device is connected to the...
Page 80
![Page 80
Chapter 4 Settings — [DISPLAY OPTION] menu
80 - ENGLISH

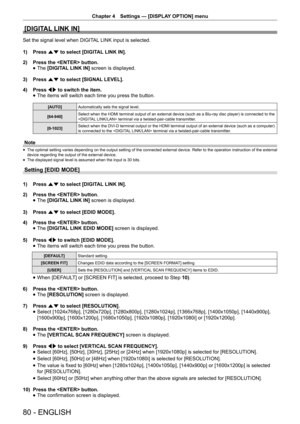

[DIGITAL LINK IN]
