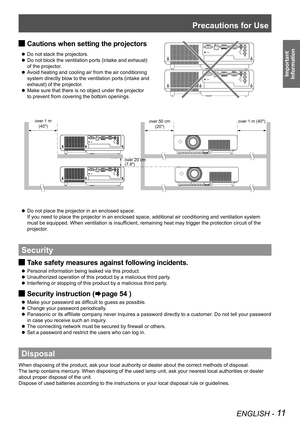

Panasonic LCD Projector PT-LX26HE Operating Instructions

Precautions for Use
ENGLISH - 11
Important

Information
Cautions when setting the projectors J
 zDo not stack the projectors.
Do not block the ventilation ports (intake and exhaust)  z
of the projector.
Avoid heating and cooling air from the air conditioning  z
system directly blow to the ventilation ports (intake and
exhaust) of the projector.
Make sure that there is no object under the projector  z
to prevent from covering the bottom openings.
SERIAL INLANCOMPUTER 2 INCOMPUTER 1 IN /COMPONENT...

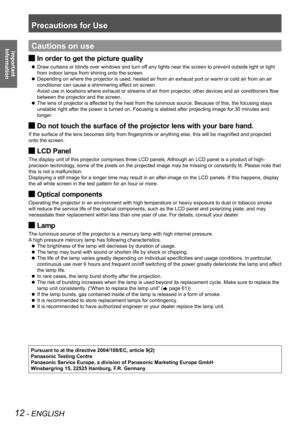

Precautions for Use
12 - ENGLISH
Important

InformationCautions on use
In order to get the picture quality J
Draw curtains or blinds over windows and turn off any lights near the screen to prevent outside light or light  z
from indoor lamps from shining onto the screen.
Depending on where the projector is used, heated air from an exhaust port or warm or cold air from an air  z
conditioner can cause a shimmering effect on screen.
Avoid use in locations where exhaust or streams of air from projector,...

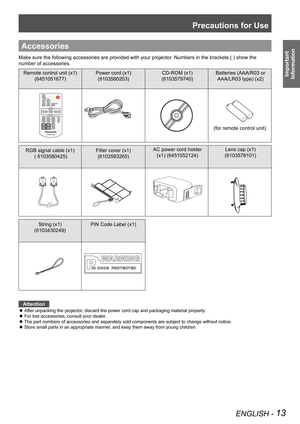

Precautions for Use
ENGLISH - 13
Important

Information
Accessories
Make sure the following accessories are provided with your projector. Numbers in the brackets ( ) show the
number of accessories.
Remote control unit (x1)
(6451051677)
Power cord (x1)
(6103580203)
CD-ROM (x1)
(6103579740)
Batteries (AAA/R03 or
AAA/LR03 type) (x2)
(for remote control unit)
RGB signal cable (x1)
 ( 6103580425)
Filter cover (x1)
(6103593265)
AC power cord holder
(x1) (6451052124)
Lens cap (x1)
(6103578101)
String...

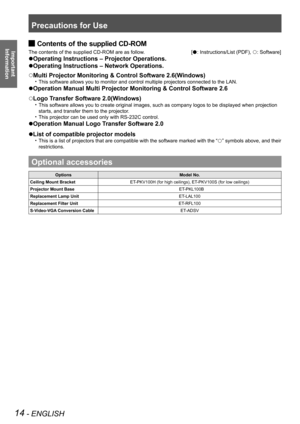

Precautions for Use
14 - ENGLISH
Important

InformationContents of the supplied  JCD-ROM
The contents of the supplied CD-ROM are as follow. [: Instructions/List (PDF), : Software]
Operating Instructions – Projector Operations.
Operating Instructions – Network Operations.

Multi Projector Monitoring & Control Software 2.6(Windows)
This software allows you to monitor and control multiple projectors connected to the LAN.•

Operation Manual Multi Projector Monitoring & Control Software 2.6
Logo...

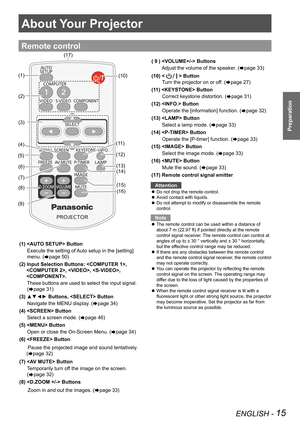

ENGLISH - 15
Preparation
About Your Projector
Remote control
(1)  Button
  Execute the setting of Auto setup in the [setting]
  menu. (Æpage 50)
(2) Input Selection Buttons: ,
, , ,
.
  These buttons are used to select the input signal.
  (Æpage 31)
(3) ▲▼◄► Buttons,  Button
  Navigate the MENU display. (Æpage 34)
(4)  Button
  Select a screen mode. (Æpage 46)
(5)  Button
  Open or close the On-Screen Menu. (Æpage 34)
(6)  Button
      Pause the projected image and sound tentatively.
(Æpage 32)
(7)...

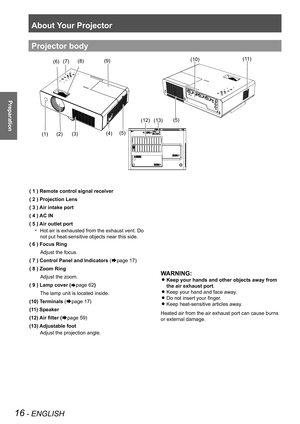

About Your Projector
16 - ENGLISH
Preparation
( 1 ) Remote control signal receiver
( 2 ) Projection Lens
( 3 ) Air intake port
( 4 ) AC IN
( 5 ) Air outlet port
 Hot air is exhausted from the exhaust vent. Do •
 not put heat-sensitive objects near this side.
( 6 ) Focus Ring
        Adjust the focus.
( 7 ) Control Panel and Indicators (Æpage 17)
( 8 ) Zoom Ring
        Adjust the zoom.
( 9 ) Lamp cover (Æpage 62)
       The lamp unit is located inside.
(10) Terminals (Æpage 17)
(11) Speaker
(12) Air...

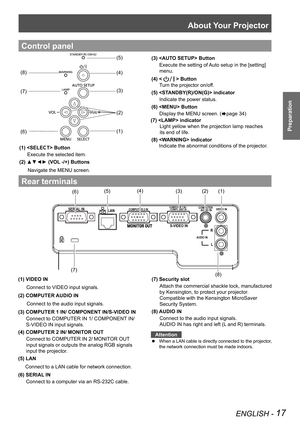

About Your Projector
ENGLISH - 17
Preparation
Rear terminals
(1) VIDEO IN
      Connect to VIDEO input signals.
(2) COMPUTER AUDIO IN
      Connect to the audio input signals.
(3) COMPUTER 1 IN/ COMPONENT IN/S-VIDEO IN
Connect to COMPUTER IN 1/ COMPONENT IN/
S-VIDEO IN input signals.
(4) COMPUTER 2 IN/ MONITOR OUT
Connect to COMPUTER IN 2/ MONITOR OUT
input signals or outputs the analog RGB signals
input the projector.
(5) LAN
     Connect to a LAN cable for network connection.
(6) SERIAL IN
Connect to...

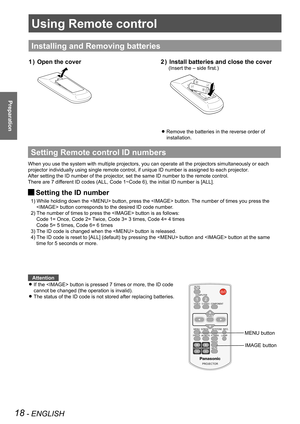

Using Remote control
18 - ENGLISH
Preparation
Using Remote control
Installing and Removing batteries
Open the cover1 ) Install batteries and close the cover2 )
(Insert the – side first.)
Remove the batteries in the reverse order of  z
installation.
Setting Remote control ID numbers
When you use the system with multiple projectors, you can operate all the projectors simultaneously or each
projector individually using single remote control, if unique ID number is assigned to each projector.
After...

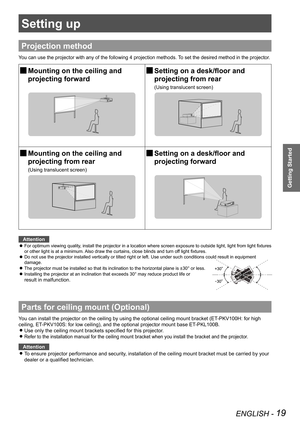

ENGLISH - 19
Getting Started
Setting up
Projection method
You can use the projector with any of the following 4 projection methods. To set the desired method in the projector.
 JMounting on the ceiling and
projecting forward
 JSetting on a desk/floor and
projecting from rear
(Using translucent screen)
 JMounting on the ceiling and
projecting from rear
(Using translucent screen)
 JSetting on a desk/floor and
projecting forward
Attention
For optimum viewing quality, install the projector in a...

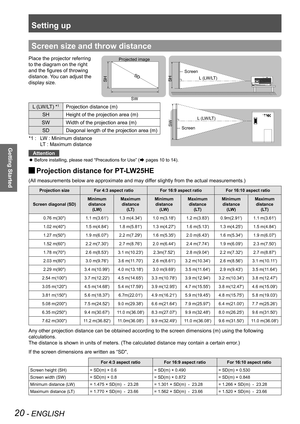

Setting up
20 - ENGLISH
Getting Started
Screen size and throw distance
Place the projector referring
to the diagram on the right
and the figures of throwing
distance. You can adjust the
display size.
L (LW/LT)
Screen
L (LW/LT)
SW
Screen
SH
SW
SD
Projected image
SH
L (LW/LT) *1Projection distance (m)
SHHeight of the projection area (m)
SWWidth of the projection area (m)
SDDiagonal length of the projection area (m)
LW : Minimum distance *1 :
LT : Maximum distance
Attention
Before installing, please...
