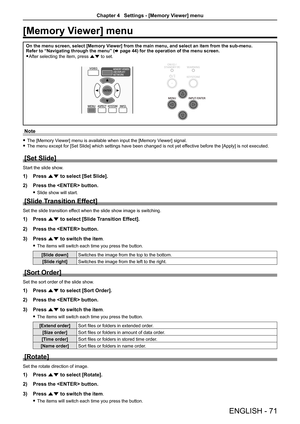

Page 71
![Page 71
ENGLISH - 71
[Memory Viewer] menu
On the menu screen, select [Memory Viewer] from the main menu, and select an item from the sub-menu.
Refer to “Navigating through the menu” (x page 44) for the operation of the menu screen.
f After selecting the item, press as to set.
Note
f The [Memory Viewer] menu is available when input the [Memory Viewer] signal.
f The menu except for [Set Slide] which settings have been changed is not yet ef fective before the [Apply] is not executed.
[Set Slide]
Start the...](http://img.usermanuals.tech/thumb/58/75998/w300_pt-tw342_en_om_d-70.png "Page 71
ENGLISH - 71
[Memory Viewer] menu
On the menu screen, select [Memory Viewer] from the main menu, and select an item from the sub-menu.
Refer to “Navigating through the menu” (x page 44) for the operation of the menu screen.
f After selecting the item, press as to set.
Note
f The [Memory Viewer] menu is available when input the [Memory Viewer] signal.
f The menu except for [Set Slide] which settings have been changed is not yet ef fective before the [Apply] is not executed.
[Set Slide]
Start the...")
ENGLISH - 71 [Memory Viewer] menu On the menu screen, select [Memory Viewer] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 44) for the operation of the menu screen. f After selecting the item, press as to set. Note f The [Memory Viewer] menu is available when input the [Memory Viewer] signal. f The menu except for [Set Slide] which settings have been changed is not yet ef fective before the [Apply] is not executed. [Set Slide] Start the...
Page 72

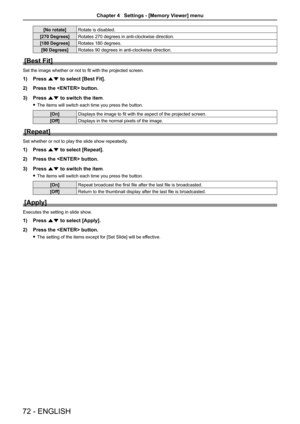

![Page 72
72 - ENGLISH
[No rotate]Rotate is disabled.
[270 Degrees] Rotates 270 degrees in anti-clockwise direction.
[180 Degrees] Rotates 180 degrees.
[90 Degrees] Rotates 90 degrees in anti-clockwise direction.
[Best Fit]
Set the image whether or not to fit with the projected screen.
1) Press as to select [Best Fit].
2) Press the button.
3) Press as to switch the item
.
f The items will switch each time you press the button.
[On] Displays the image to fit with the aspect of the projected screen.
[Off]...](http://img.usermanuals.tech/thumb/58/75998/w300_pt-tw342_en_om_d-71.png "Page 72
72 - ENGLISH
[No rotate]Rotate is disabled.
[270 Degrees] Rotates 270 degrees in anti-clockwise direction.
[180 Degrees] Rotates 180 degrees.
[90 Degrees] Rotates 90 degrees in anti-clockwise direction.
[Best Fit]
Set the image whether or not to fit with the projected screen.
1) Press as to select [Best Fit].
2) Press the button.
3) Press as to switch the item
.
f The items will switch each time you press the button.
[On] Displays the image to fit with the aspect of the projected screen.
[Off]...")
72 - ENGLISH [No rotate]Rotate is disabled. [270 Degrees] Rotates 270 degrees in anti-clockwise direction. [180 Degrees] Rotates 180 degrees. [90 Degrees] Rotates 90 degrees in anti-clockwise direction. [Best Fit] Set the image whether or not to fit with the projected screen. 1) Press as to select [Best Fit]. 2) Press the button. 3) Press as to switch the item . f The items will switch each time you press the button. [On] Displays the image to fit with the aspect of the projected screen. [Off]...
Page 73

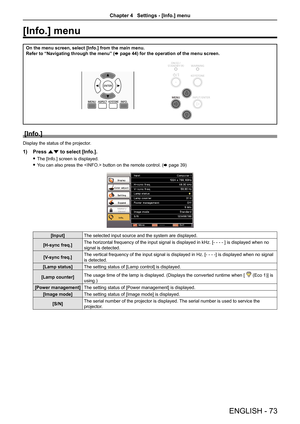

![Page 73
ENGLISH - 73
[Info.] menu
On the menu screen, select [Info.] from the main menu.
Refer to “Navigating through the menu” (x page 44) for the operation of the menu screen.
[Info.]
Display the status of the projector.
1) Press as to select [Info.].
f The [Info.] screen is displayed.
f You can also press the button on the remote control. (x page 39)
[Input] The selected input source and the system are displayed.
[H-sync freq.] The horizontal frequency of the input signal is displayed in kHz. [- - - - ]...](http://img.usermanuals.tech/thumb/58/75998/w300_pt-tw342_en_om_d-72.png "Page 73
ENGLISH - 73
[Info.] menu
On the menu screen, select [Info.] from the main menu.
Refer to “Navigating through the menu” (x page 44) for the operation of the menu screen.
[Info.]
Display the status of the projector.
1) Press as to select [Info.].
f The [Info.] screen is displayed.
f You can also press the button on the remote control. (x page 39)
[Input] The selected input source and the system are displayed.
[H-sync freq.] The horizontal frequency of the input signal is displayed in kHz. [- - - - ]...")
ENGLISH - 73 [Info.] menu On the menu screen, select [Info.] from the main menu. Refer to “Navigating through the menu” (x page 44) for the operation of the menu screen. [Info.] Display the status of the projector. 1) Press as to select [Info.]. f The [Info.] screen is displayed. f You can also press the button on the remote control. (x page 39) [Input] The selected input source and the system are displayed. [H-sync freq.] The horizontal frequency of the input signal is displayed in kHz. [- - - - ]...
Page 74

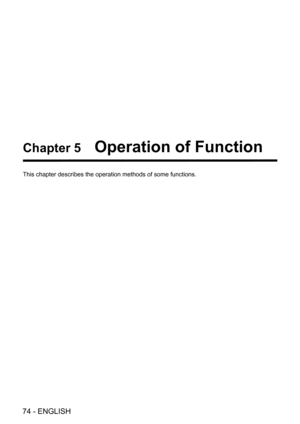

74 - ENGLISH Chapter 5 Operation of Function This chapter describes the operation methods of some functions.
Page 75

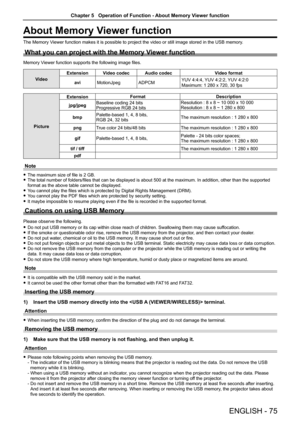

![Page 75
ENGLISH - 75
About Memory Viewer function
The Memory Viewer function makes it is possible to project the video or still image \
stored in the USB memory.
What you can project with the Memory Viewer function
Memory Viewer function supports the following image files.
VideoExtension
Video codec Audio codec Video format
avi MotionJpeg ADPCM YUV 4:4:4, YUV 4:2:2, YUV 4:2:0
Maximum: 1 280 x 720, 30 fps
PictureExtension
Format
Description
jpg/jpeg Baseline coding 24 bits
Progressive RGB 24 bits Resolution : 8 x...](http://img.usermanuals.tech/thumb/58/75998/w300_pt-tw342_en_om_d-74.png "Page 75
ENGLISH - 75
About Memory Viewer function
The Memory Viewer function makes it is possible to project the video or still image \
stored in the USB memory.
What you can project with the Memory Viewer function
Memory Viewer function supports the following image files.
VideoExtension
Video codec Audio codec Video format
avi MotionJpeg ADPCM YUV 4:4:4, YUV 4:2:2, YUV 4:2:0
Maximum: 1 280 x 720, 30 fps
PictureExtension
Format
Description
jpg/jpeg Baseline coding 24 bits
Progressive RGB 24 bits Resolution : 8 x...")
ENGLISH - 75 About Memory Viewer function The Memory Viewer function makes it is possible to project the video or still image \ stored in the USB memory. What you can project with the Memory Viewer function Memory Viewer function supports the following image files. VideoExtension Video codec Audio codec Video format avi MotionJpeg ADPCM YUV 4:4:4, YUV 4:2:2, YUV 4:2:0 Maximum: 1 280 x 720, 30 fps PictureExtension Format Description jpg/jpeg Baseline coding 24 bits Progressive RGB 24 bits Resolution : 8 x...
Page 76

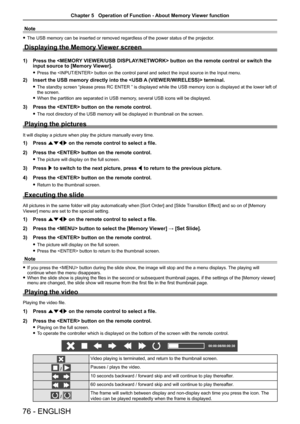

![Page 76
76 - ENGLISH
Note
f The USB memory can be inserted or removed regardless of the power status\
of the projector.
Displaying the Memory Viewer screen
1) Press the button on the remote control or switch the
input source to [Memory Viewer].
f Press the button on the control panel and select the input\
source in the Input menu.
2) Insert the USB memory directly into the terminal.
f The standby screen “please press RC ENTER ” is displayed while the USB memory icon is displayed at the lower left...](http://img.usermanuals.tech/thumb/58/75998/w300_pt-tw342_en_om_d-75.png "Page 76
76 - ENGLISH
Note
f The USB memory can be inserted or removed regardless of the power status\
of the projector.
Displaying the Memory Viewer screen
1) Press the button on the remote control or switch the
input source to [Memory Viewer].
f Press the button on the control panel and select the input\
source in the Input menu.
2) Insert the USB memory directly into the terminal.
f The standby screen “please press RC ENTER ” is displayed while the USB memory icon is displayed at the lower left...")
76 - ENGLISH Note f The USB memory can be inserted or removed regardless of the power status\ of the projector. Displaying the Memory Viewer screen 1) Press the button on the remote control or switch the input source to [Memory Viewer]. f Press the button on the control panel and select the input\ source in the Input menu. 2) Insert the USB memory directly into the terminal. f The standby screen “please press RC ENTER ” is displayed while the USB memory icon is displayed at the lower left...
Page 77

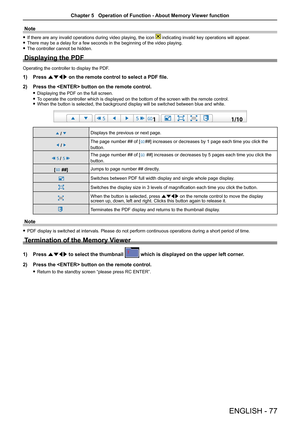

![Page 77
ENGLISH - 77
Note
f If there are any invalid operations during video playing, the icon indicating invalid key operations will appear.
f There may be a delay for a few seconds in the beginning of the video pla\
ying.
f The controller cannot be hidden.
Displaying the PDF
Operating the controller to display the PDF.
1) Press asqw on the remote control to select a PDF file.
2) Press the button on the remote control.
f Displaying the PDF on the full screen.
f To operate the controller which is...](http://img.usermanuals.tech/thumb/58/75998/w300_pt-tw342_en_om_d-76.png "Page 77
ENGLISH - 77
Note
f If there are any invalid operations during video playing, the icon indicating invalid key operations will appear.
f There may be a delay for a few seconds in the beginning of the video pla\
ying.
f The controller cannot be hidden.
Displaying the PDF
Operating the controller to display the PDF.
1) Press asqw on the remote control to select a PDF file.
2) Press the button on the remote control.
f Displaying the PDF on the full screen.
f To operate the controller which is...")
ENGLISH - 77 Note f If there are any invalid operations during video playing, the icon indicating invalid key operations will appear. f There may be a delay for a few seconds in the beginning of the video pla\ ying. f The controller cannot be hidden. Displaying the PDF Operating the controller to display the PDF. 1) Press asqw on the remote control to select a PDF file. 2) Press the button on the remote control. f Displaying the PDF on the full screen. f To operate the controller which is...
Page 78

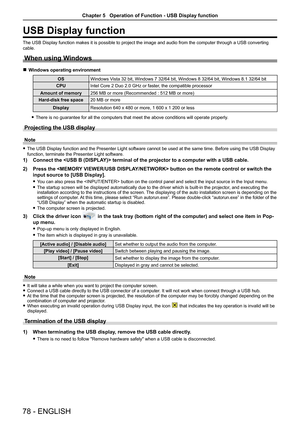

![Page 78
78 - ENGLISH
USB Display function
The USB Display function makes it is possible to project the image and a\
udio from the computer through a USB converting
cable.
When using Windows
r Windows operating environment
OS Windows Vista 32 bit, Windows 7 32/64 bit, Windows 8 32/64 bit, Windows 8.1 32/64 bit
CPU Intel Core 2 Duo 2.0 GHz or faster, the compatible processor
Amount of memory 256 MB or more (Recommended : 512 MB or more)
Hard-disk free space 20 MB or more
Display Resolution 640 x 480 or more, 1...](http://img.usermanuals.tech/thumb/58/75998/w300_pt-tw342_en_om_d-77.png "Page 78
78 - ENGLISH
USB Display function
The USB Display function makes it is possible to project the image and a\
udio from the computer through a USB converting
cable.
When using Windows
r Windows operating environment
OS Windows Vista 32 bit, Windows 7 32/64 bit, Windows 8 32/64 bit, Windows 8.1 32/64 bit
CPU Intel Core 2 Duo 2.0 GHz or faster, the compatible processor
Amount of memory 256 MB or more (Recommended : 512 MB or more)
Hard-disk free space 20 MB or more
Display Resolution 640 x 480 or more, 1...")
78 - ENGLISH USB Display function The USB Display function makes it is possible to project the image and a\ udio from the computer through a USB converting cable. When using Windows r Windows operating environment OS Windows Vista 32 bit, Windows 7 32/64 bit, Windows 8 32/64 bit, Windows 8.1 32/64 bit CPU Intel Core 2 Duo 2.0 GHz or faster, the compatible processor Amount of memory 256 MB or more (Recommended : 512 MB or more) Hard-disk free space 20 MB or more Display Resolution 640 x 480 or more, 1...
Page 79

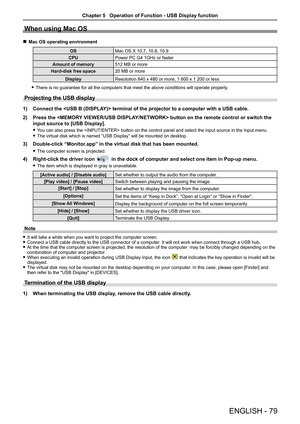

![Page 79
ENGLISH - 79
When using Mac OS
r Mac OS operating environment
OS Mac OS X 10.7, 10.8, 10.9
CPU Power PC G4 1GHz or faster
Amount of memory 512 MB or more
Hard-disk free space 20 MB or more
Display Resolution 640 x 480 or more, 1 600 x 1 200 or less
f There is no guarantee for all the computers that meet the above conditio\
ns will operate properly.
Projecting the USB display
1) Connect the terminal of the projector to a computer with a USB cable.
2) Press the button on the remote control or...](http://img.usermanuals.tech/thumb/58/75998/w300_pt-tw342_en_om_d-78.png "Page 79
ENGLISH - 79
When using Mac OS
r Mac OS operating environment
OS Mac OS X 10.7, 10.8, 10.9
CPU Power PC G4 1GHz or faster
Amount of memory 512 MB or more
Hard-disk free space 20 MB or more
Display Resolution 640 x 480 or more, 1 600 x 1 200 or less
f There is no guarantee for all the computers that meet the above conditio\
ns will operate properly.
Projecting the USB display
1) Connect the terminal of the projector to a computer with a USB cable.
2) Press the button on the remote control or...")
ENGLISH - 79 When using Mac OS r Mac OS operating environment OS Mac OS X 10.7, 10.8, 10.9 CPU Power PC G4 1GHz or faster Amount of memory 512 MB or more Hard-disk free space 20 MB or more Display Resolution 640 x 480 or more, 1 600 x 1 200 or less f There is no guarantee for all the computers that meet the above conditio\ ns will operate properly. Projecting the USB display 1) Connect the terminal of the projector to a computer with a USB cable. 2) Press the button on the remote control or...
Page 80

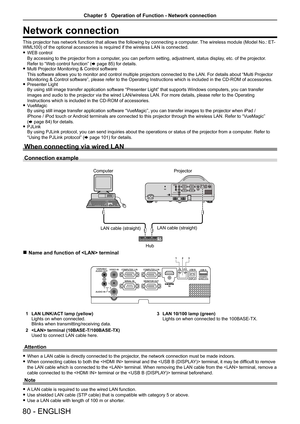

80 - ENGLISH Network connection This projector has network function that allows the following by connecting a computer. The wireless module (Model No.: ET- WML100) of the optional accessories is required if the wireless LAN is connected. f WEB control By accessing to the projector from a computer, you can perform setting, adjustment, status display, etc. of the projector. Refer to “Web control function” ( x page 85) for details. f Multi Projector Monitoring & Control software This software allows...
