Chapter 1   Preparation
This chapter describes things you need to know or check before using the\
 projector.
ENGLISH - 13

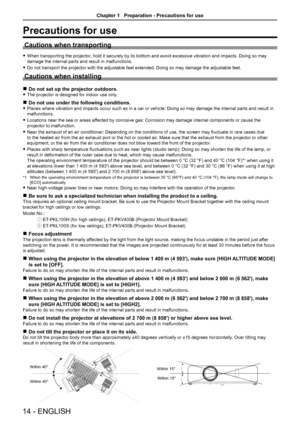

Precautions for use
Cautions when transporting

f When transporting the projector, hold it securely by its bottom and avoid excessive vibration and impacts. Doing so may
damage the internal parts and result in malfunctions.

f Do not transport the projector with the adjustable feet extended. Doing so may damage the adjustable feet.
Cautions when installing

r Do not set up the projector outdoors.

f The projector is designed for indoor use only.

r Do not use under the following conditions.

f...


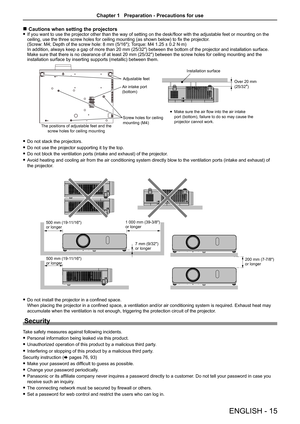

r Cautions when setting the projectors
f If you want to use the projector other than the way of setting on the desk/floor with the adjustable feet or mounting on the
ceiling, use the three screw holes for ceiling mounting (as shown below) to fix the projector .
(Screw: M4; Depth of the screw hole: 8 mm (5/16″); Torque: M4 1.25 ± 0.2 N·m)
In addition, always keep a gap of more than 20 mm (25/32″) between the bottom of the projector and installation surface.
Make sure that there is no clearance of...

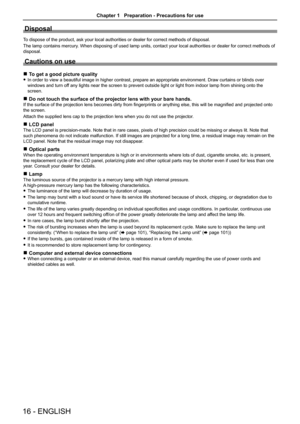

Disposal
To dispose of the product, ask your local authorities or dealer for corre\
ct methods of disposal.
The lamp contains mercury. When disposing of used lamp units, contact your local authorities or dealer for correct methods of
disposal.
Cautions on use

r To get a good picture quality

f In order to view a beautiful image in higher contrast, prepare an approp\
riate environment. Draw curtains or blinds over
windows and turn off any lights near the screen to prevent outside light or light from...

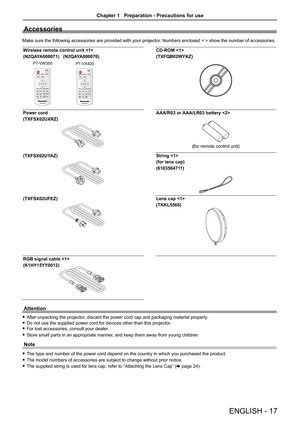

Accessories
Make sure the following accessories are provided with your projector. Numbers enclosed < > show the number of accessories.
Wireless remote control unit
(N2QAYA000071)   (N2QAYA000070)CD-ROM
(TXFQB02WYKZ)
Power cord
(TXFSX02UXRZ)AAA/R03 or AAA/LR03 battery
(TXFSX02UYAZ)String
(for lens cap)
(6103504711)
(TXFSX02UFEZ)Lens cap
(TKKL5568)
RGB signal cable
(K1HY15YY0012)
Attention

f After unpacking the projector, discard the power cord cap and packaging material properly.

f Do not use...

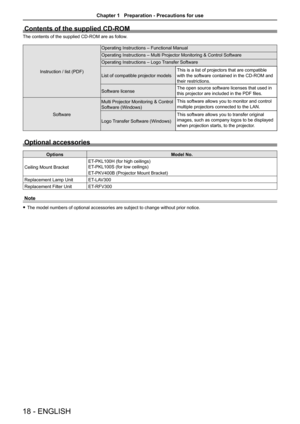

Contents of the supplied CD-ROM
The contents of the supplied CD-ROM are as follow.
Instruction / list (PDF) Operating Instructions – Functional Manual
Operating Instructions – Multi Projector Monitoring & Control Software
Operating Instructions – Logo Transfer Software
List of compatible projector models
This is a list of projectors that are compatible
with the software contained in the CD-ROM and
their restrictions.
Software license The open source software licenses that used in
this projector are...

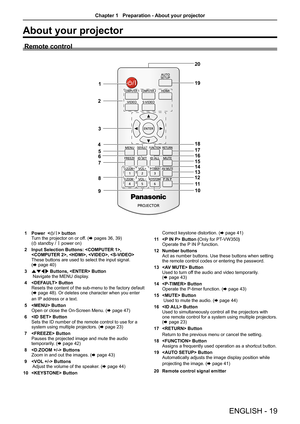

About your projector
Remote control
1 Power   button
Turn the projector on or off. (x pages 36, 39)
(v standby / b power on)
2  Input Selection Buttons:  ,
, , ,
  These buttons are used to select the input signal.
(x page 40)
3  asqw  Buttons,   Button
 Navigate the MENU display.
4   Button
Resets the content of the sub-menu to the factory default
(x page 48). Or deletes one character when you enter
an IP address or a text.
5  Button
Open or close the On-Screen Menu. ( x page 47)
6   Button
Sets...

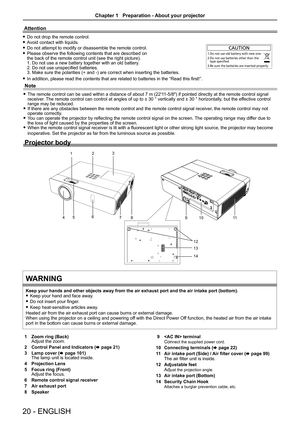

1 Zoom ring (Back)
Adjust the zoom.
2  Control Panel and Indicators ( x page 21)
3  Lamp cover (x page 101)
The lamp unit is located inside.
4  Projection Lens
5  Focus ring (Front)
Adjust the focus.
6  Remote control signal receiver
7  Air exhaust port
8  Speaker 9
 terminal
Connect the supplied power cord.
10  Connecting terminals ( x page 22)
11  Air intake port (Side) / Air filter cover (x page 99)
The air filter unit is inside.
12  Adjustable feet
Ad
just the projection angle.
13 Air intake port...
