Page 11

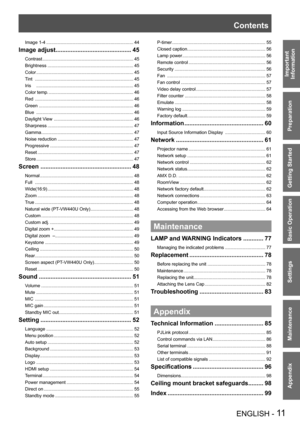

ENGLISH - 11 Important Information Preparation Getting Started Basic Operation Settings Maintenance Appendix Contents Image 1-4 .....................................................................44 Image adjust.............................................45 Contrast ........................................................................45 Brightness ....................................................................45 Color...
Page 12
![Page 12
12 - ENGLISH
Important
Information
Precautions for Use
Cautions when transporting
When transporting the projector, hold it securely by its bottom and avoid excessive vibration and impac\
ts. z
Doing so may damage the internal parts and result in malfunctions.
Do not transport the projector with the adjustable feet extended. Doing \
so may damage the adjustable feet. z
Cautions when installing
Do not set up the projector outdoors. J
The projector is designed for indoor use only. z
Do not use under...](http://img.usermanuals.tech/thumb/58/76016/w300_pt-vw440_en_om_d-11.png "Page 12
12 - ENGLISH
Important
Information
Precautions for Use
Cautions when transporting
When transporting the projector, hold it securely by its bottom and avoid excessive vibration and impac\
ts. z
Doing so may damage the internal parts and result in malfunctions.
Do not transport the projector with the adjustable feet extended. Doing \
so may damage the adjustable feet. z
Cautions when installing
Do not set up the projector outdoors. J
The projector is designed for indoor use only. z
Do not use under...")

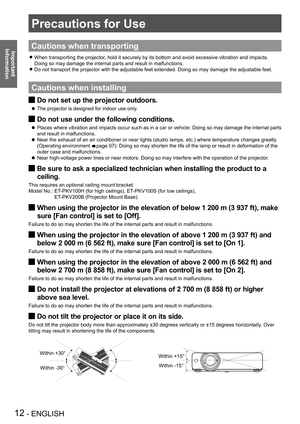

12 - ENGLISH Important Information Precautions for Use Cautions when transporting When transporting the projector, hold it securely by its bottom and avoid excessive vibration and impac\ ts. z Doing so may damage the internal parts and result in malfunctions. Do not transport the projector with the adjustable feet extended. Doing \ so may damage the adjustable feet. z Cautions when installing Do not set up the projector outdoors. J The projector is designed for indoor use only. z Do not use under...
Page 13
![Page 13
Precautions for Use

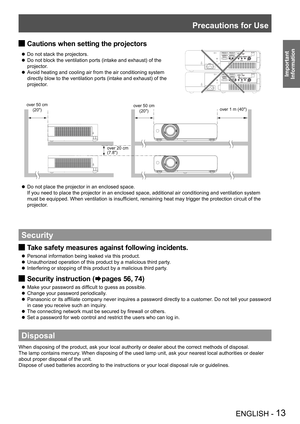

ENGLISH - 13
Important
Information
Cautions when setting the projectors J
zDo not stack the projectors.
Do not block the ventilation ports (intake and exhaust) of the z
projector.
Avoid heating and cooling air from the air conditioning system z
directly blow to the ventilation ports (intake and exhaust) of the
projector.
Do not place the projector in an enclosed space. z
If you need to place the projector in an enclosed space, additional air \
conditioning and ventilation...](http://img.usermanuals.tech/thumb/58/76016/w300_pt-vw440_en_om_d-12.png "Page 13
Precautions for Use
ENGLISH - 13
Important
Information
Cautions when setting the projectors J
zDo not stack the projectors.
Do not block the ventilation ports (intake and exhaust) of the z
projector.
Avoid heating and cooling air from the air conditioning system z
directly blow to the ventilation ports (intake and exhaust) of the
projector.
Do not place the projector in an enclosed space. z
If you need to place the projector in an enclosed space, additional air \
conditioning and ventilation...")
Precautions for Use ENGLISH - 13 Important Information Cautions when setting the projectors J zDo not stack the projectors. Do not block the ventilation ports (intake and exhaust) of the z projector. Avoid heating and cooling air from the air conditioning system z directly blow to the ventilation ports (intake and exhaust) of the projector. Do not place the projector in an enclosed space. z If you need to place the projector in an enclosed space, additional air \ conditioning and ventilation...
Page 14
![Page 14

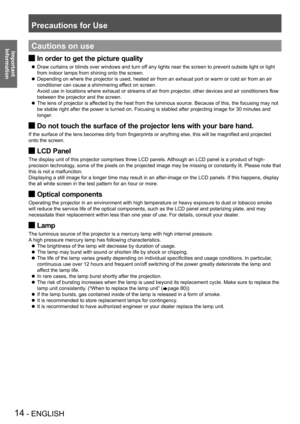

Precautions for Use
14 - ENGLISH
Important
InformationCautions on use
In order to get the picture quality J
Draw curtains or blinds over windows and turn off any lights near the screen to prevent outside light or light z
from indoor lamps from shining onto the screen.
Depending on where the projector is used, heated air from an exhaust por\
t or warm or cold air from an air z
conditioner can cause a shimmering effect on screen.
Avoid use in locations where exhaust or streams of air from projector,...](http://img.usermanuals.tech/thumb/58/76016/w300_pt-vw440_en_om_d-13.png "Page 14
Precautions for Use
14 - ENGLISH
Important
InformationCautions on use
In order to get the picture quality J
Draw curtains or blinds over windows and turn off any lights near the screen to prevent outside light or light z
from indoor lamps from shining onto the screen.
Depending on where the projector is used, heated air from an exhaust por\
t or warm or cold air from an air z
conditioner can cause a shimmering effect on screen.
Avoid use in locations where exhaust or streams of air from projector,...")
Precautions for Use 14 - ENGLISH Important InformationCautions on use In order to get the picture quality J Draw curtains or blinds over windows and turn off any lights near the screen to prevent outside light or light z from indoor lamps from shining onto the screen. Depending on where the projector is used, heated air from an exhaust por\ t or warm or cold air from an air z conditioner can cause a shimmering effect on screen. Avoid use in locations where exhaust or streams of air from projector,...
Page 15

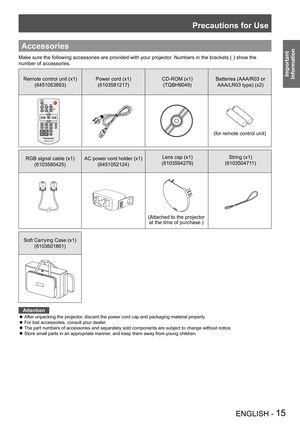

Precautions for Use ENGLISH - 15 Important Information Accessories Make sure the following accessories are provided with your projector. Numbers in the brackets ( ) show the number of accessories. Remote control unit (x1) (6451053893) Power cord (x1) (6103581217) CD-ROM (x1) (TQBH9049) Batteries (AAA/R03 or AAA/LR03 type) (x2) (for remote control unit) RGB signal cable (x1) (6103580425) AC power cord holder (x1) (6451052124) Lens cap (x1) (6103594279) String (x1) (6103504711) Soft Carrying Case...
Page 16

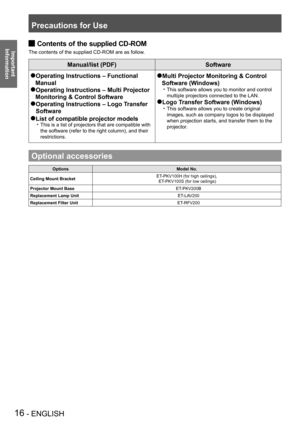

Precautions for Use 16 - ENGLISH Important InformationContents of the supplied JCD-ROM The contents of the supplied CD-ROM are as follow. Manual/list (PDF)Software Optional accessories OptionsModel No. Ceiling Mount BracketET-PKV100H (for high ceilings), ET-PKV100S (for low ceilings) Projector Mount Base ET-PKV200B Replacement Lamp Unit ET-LAV200 Replacement Filter Unit ET-RFV200 Operating Instructions – Functional Manual Operating Instructions – Multi Projector Monitoring &...
Page 17
ENGLISH - 17

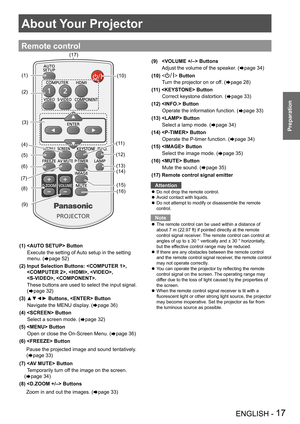

Preparation
About Your Projector
Remote control
(1) Button
Execute the setting of Auto setup in the setting
menu. (Æpage 52)
(2) Input Selection Buttons: ,
, , ,
, .
These buttons are used to select the input signal.
(Æpage 32)
(3) ▲▼◄► Buttons, Button
Navigate the MENU display. (Æpage 36)
(4) Button
Select a screen mode. (Æpage 32)
(5) Button
Open or close the On-Screen Menu. (Æpage 36)
(6) Button
Pause the projected image and sound tentatively.
(Æpage 33)...
Page 18

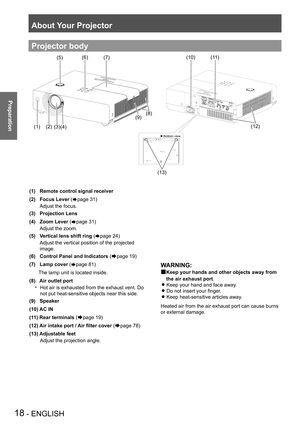

About Your Projector
18 - ENGLISH
Preparation
(1) Remote control signal receiver
(2) Focus Lever (Æpage 31)
Adjust the focus.
(3) Projection Lens
(4) Zoom Lever (Æpage 31)
Adjust the zoom.
(5) Vertical lens shift ring (Æpage 24)
Adjust the vertical position of the projected
image.
(6) Control Panel and Indicators (Æpage 19)
(7) Lamp cover (Æpage 81)
The lamp unit is located inside.
(8) Air outlet port
Hot air is exhausted from the exhaust vent. Do •
not put...
Page 19

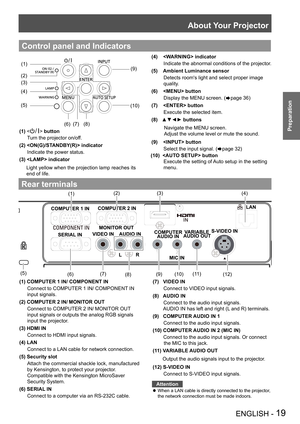

About Your Projector ENGLISH - 19 Preparation Control panel and Indicators (1) COMPUTER 1 IN/ COMPONENT IN Connect to COMPUTER 1 IN/ COMPONENT IN input signals. (2) COMPUTER 2 IN/ MONITOR OUT Connect to COMPUTER 2 IN/ MONITOR OUT input signals or outputs the analog RGB signals input the projector. (3) HDMI IN Connect to HDMI input signals. (4) LAN Connect to a LAN cable for network connection. (5) Security slot Attach the commercial shackle lock, manufactured by Kensington, to protect your projector....
Page 20
![Page 20

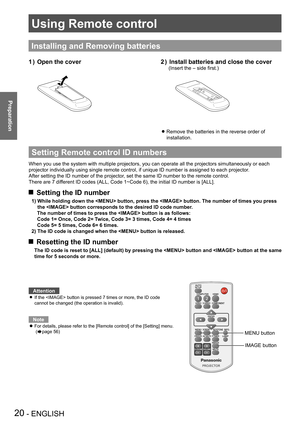

20 - ENGLISH
Preparation
Using Remote control
Installing and Removing batteries
Open the cover1 ) Install batteries and close the cover2 )
(Insert the – side first.)
Remove the batteries in the reverse order of z
installation.
Setting Remote control ID numbers
When you use the system with multiple projectors, you can operate all th\
e projectors simultaneously or each
projector individually using single remote control, if unique ID number is assigned to each projector.
After setting the ID number of...](http://img.usermanuals.tech/thumb/58/76016/w300_pt-vw440_en_om_d-19.png "Page 20
20 - ENGLISH
Preparation
Using Remote control
Installing and Removing batteries
Open the cover1 ) Install batteries and close the cover2 )
(Insert the – side first.)
Remove the batteries in the reverse order of z
installation.
Setting Remote control ID numbers
When you use the system with multiple projectors, you can operate all th\
e projectors simultaneously or each
projector individually using single remote control, if unique ID number is assigned to each projector.
After setting the ID number of...")
20 - ENGLISH Preparation Using Remote control Installing and Removing batteries Open the cover1 ) Install batteries and close the cover2 ) (Insert the – side first.) Remove the batteries in the reverse order of z installation. Setting Remote control ID numbers When you use the system with multiple projectors, you can operate all th\ e projectors simultaneously or each projector individually using single remote control, if unique ID number is assigned to each projector. After setting the ID number of...
