Panasonic LCD Projector Pt Vx42 Operating Instructions

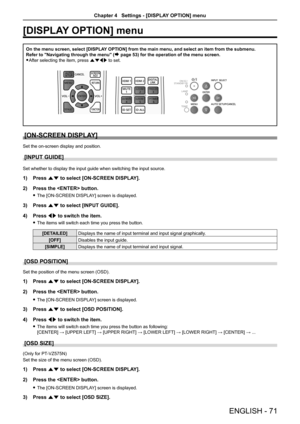

[DISPLAY OPTION] menu
On the menu screen, select [DISPLAY OPTION] from the main menu, and select an item from the submenu.
Refer to "Navigating through the menu" (Æ page 53) for the operation of the menu screen.
 fAfter selecting the item, press asqw to set.
[ON-SCREEN DISPLAY]
Set the on-screen display and position.
[INPUT GUIDE]
Set whether to display the input guide when switching the input source.
1) Press as to select [ON-SCREEN DISPLAY].
2) Press the  button.
 fThe [ON-SCREEN DISPLAY]...

4) Press qw to switch the item.
[NORMAL]Use this setting normally.
[DOUBLE]Double angle size (height and width will become two times) of [NORMAL].

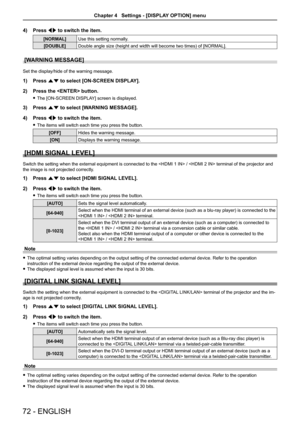

[WARNING MESSAGE]
Set the display/hide of the warning message.
1) Press as to select [ON-SCREEN DISPLAY].
2) Press the  button.
 fThe [ON-SCREEN DISPLAY] screen is displayed.
3) Press as to select [WARNING MESSAGE].
4) Press qw to switch the item.
 fThe items will switch each time you press the button.
[OFF]Hides the warning message.
[ON]Displays the warning...

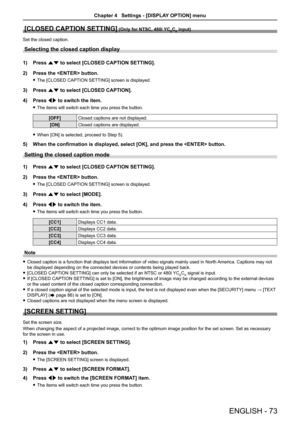

[CLOSED CAPTION SETTING] (Only for NTSC, 480i YCBCR input)
Set the closed caption.
Selecting the closed caption display
1) Press as to select [CLOSED CAPTION SETTING].
2) Press the  button.
 fThe [CLOSED CAPTION SETTING] screen is displayed.
3) Press as to select [CLOSED CAPTION].
4) Press qw to switch the item.
 fThe items will switch each time you press the button.
[OFF]Closed captions are not displayed.
[ON]Closed captions are displayed.
 fWhen [ON] is selected, proceed to Step 5).
5) When the...

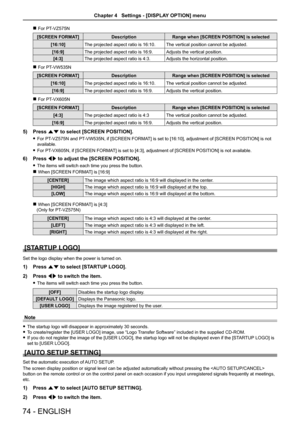

r For PT-VZ575N
[SCREEN FORMAT]DescriptionRange when [SCREEN POSITION] is selected
[16:10]The projected aspect ratio is 16:10.The vertical position cannot be adjusted.
[16:9]The projected aspect ratio is 16:9.Adjusts the vertical position.
[4:3]The projected aspect ratio is 4:3.Adjusts the horizontal position.
r For PT-VW535N
[SCREEN FORMAT]DescriptionRange when [SCREEN POSITION] is selected
[16:10]The projected aspect ratio is 16:10.The vertical position cannot be adjusted.
[16:9]The projected aspect...

 fThe items will switch each time you press the button.
[AUTO]Enables the auto setup function when switching signals.
[BUTTON]Enables the auto setup function only when the  button is pressed.

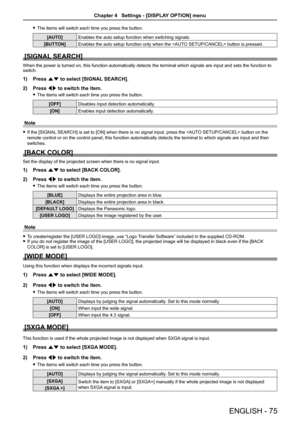

[SIGNAL SEARCH]
When the power is turned on, this function automatically detects the terminal which signals are input and sets the function to switch.
1) Press as to select [SIGNAL SEARCH].
2) Press qw to switch the item.
 fThe items will switch each time you press the button.
[OFF]Disables input detection...

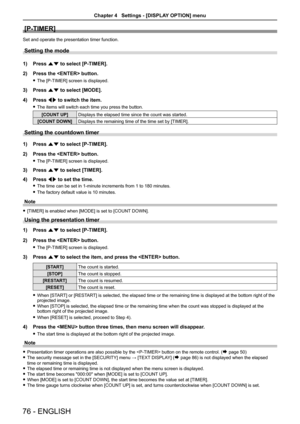

[P-TIMER]
Set and operate the presentation timer function.
Setting the mode
1) Press as to select [P-TIMER].
2) Press the  button.
 fThe [P-TIMER] screen is displayed.
3) Press as to select [MODE].
4) Press qw to switch the item.
 fThe items will switch each time you press the button.
[COUNT UP]Displays the elapsed time since the count was started.
[COUNT DOWN]Displays the remaining time of the time set by [TIMER].
Setting the countdown timer
1) Press as to select [P-TIMER].
2) Press the  button.
 fThe...

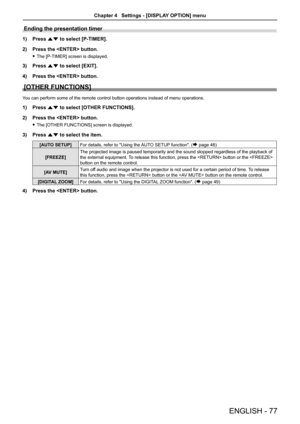

Ending the presentation timer
1) Press as to select [P-TIMER].
2) Press the  button.
 fThe [P-TIMER] screen is displayed.
3) Press as to select [EXIT].
4) Press the  button.
[OTHER FUNCTIONS]
You can perform some of the remote control button operations instead of m\
enu operations.
1) Press as to select [OTHER FUNCTIONS].
2) Press the  button.
 fThe [OTHER FUNCTIONS] screen is displayed.
3) Press as to select the item.
[AUTO SETUP]For details, refer to "Using the AUTO SETUP function". (Æ page 46)...

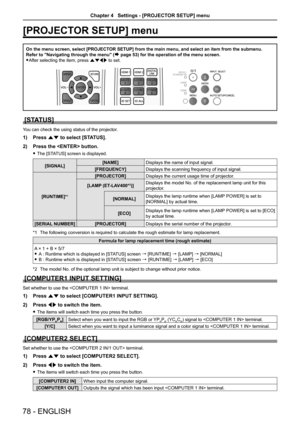

[PROJECTOR SETUP] menu
On the menu screen, select [PROJECTOR SETUP] from the main menu, and select an item from the submenu.
Refer to "Navigating through the menu" (Æ page 53) for the operation of the menu screen.
 fAfter selecting the item, press asqw to set.
[STATUS]
You can check the using status of the projector.
1) Press as to select [STATUS].
2) Press the  button.
 fThe [STATUS] screen is displayed.
[SIGNAL][NAME]Displays the name of input signal.
[FREQUENCY]Displays the scanning frequency...

Note
 fThe [COMPUTER2 SELECT] will be unavailable when [COMPUTER2] is selected as input source.

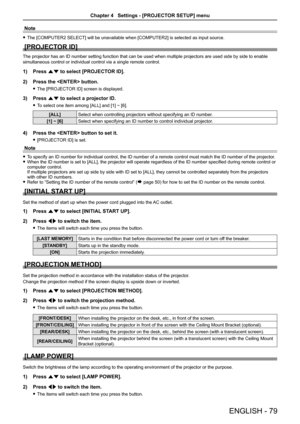

[PROJECTOR ID]
The projector has an ID number setting function that can be used when mu\
ltiple projectors are used side by side to enable
simultaneous control or individual control via a single remote control.
1) Press as to select [PROJECTOR ID].
2) Press the  button.
 fThe [PROJECTOR ID] screen is displayed.
3) Press as to select a projector ID.
 fTo select one item among [ALL] and [1] ~ [6].
[ALL]Select...

[NORMAL]Select when high luminance is required.
[ECO]Select when high luminance is not required.
Note
 fSet it to [ECO] rather than [NORMAL] when you want to reduce power consumption, extend the life of lamp and reduce
operation noise.
[ECO MANAGEMENT]
This function optimizes lamp power according to the operating status to reduce power consumption.
1) Press as to select [ECO MANAGEMENT].
2) Press the  button.
 fThe [ECO MANAGEMENT] screen is displayed.
3) Press as to select the item.
Setting [AUTO POWER...
