Panasonic Lcd Television Tc 26lx50 Operating Instructions

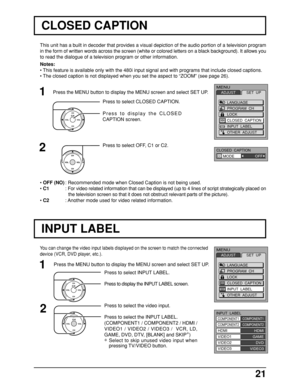

21
This unit has a built in decoder that provides a visual depiction of the audio portion of a television program
in the form of written words across the screen (white or colored letters on a black background). It allows you
to read the dialogue of a television program or other information.
Press to select CLOSED CAPTION.
Press to display the CLOSED
CAPTION screen.
1
2
Press to select OFF, C1 or C2.
MENU
ADJUSTSET  UP
LANGUAGE
PROGRAM  CH
LOCK
CLOSED  CAPTION
INPUT  LABEL
OTHER  ADJUST
Notes:
• This...

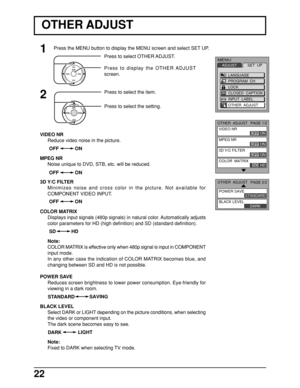

22
Press to select OTHER ADJUST.
Press to display the OTHER ADJUST
screen.
1
CH
CH VOL
VOLO K
Press to select the item.2
CH
CH VOL VOLOKPress to select the setting.
OTHER ADJUST
VIDEO NR
Reduce video noise in the picture.
MPEG NR
Noise unique to DVD, STB, etc. will be reduced.
3D Y/C FILTER
Minimizes noise and cross color in the picture. Not available for
COMPONENT VIDEO INPUT.
COLOR MATRIX
Displays input signals (480p signals) in natural color. Automatically adjusts
color parameters for HD (high...

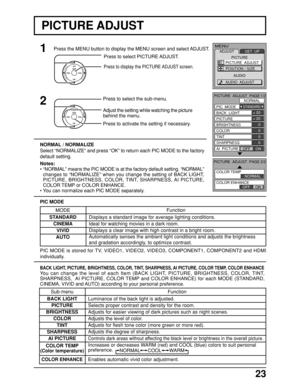

23
1
2
Press to select PICTURE ADJUST.
Press to select the sub-menu.
Adjust the setting while watching the picture
behind the menu.
Press to activate the setting if necessary.
PIC MODE
Press to display the PICTURE ADJUST screen.
CH
CH VOL VOLO K
MENU
ADJUST
AUDIOSET  UP
PICTURE  ADJUST
POSITION / SIZE
AUDIO  ADJUST
OFF          ONCOOL
COOL
OFF          ONCOOL
COOL
NORMAL
PIC  MODE
BACK  LIGHT
BRIGHTNESS
COLOR
TINT
SHARPNESS
AI  PICTURE+ 20
+ 20
0
0
0
0
STANDARD
PICTURE  ADJUST  PAGE 1/2...

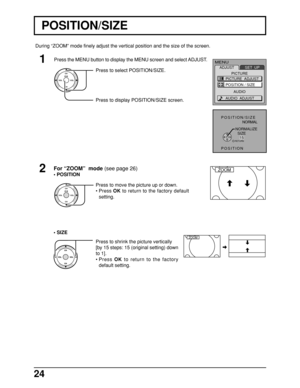

24
For “ZOOM”  mode (see page 26)
•POSITION
Press to move the picture up or down.
•Press OK to return to the factory default
setting. Press to select POSITION/SIZE.
Press to display POSITION/SIZE screen.
POSITION/SIZE
NORMAL
POSITIONNORMALIZE
  SIZE
    15
RETURN
ZOOM
CH
CH VOL
VOLO K
MENU
ADJUST
AUDIOSET  UP
PICTURE  ADJUST
POSITION / SIZE
AUDIO  ADJUST
CH
CH VOL VOLO K
•SIZE
Press to shrink the picture vertically
[by 15 steps: 15 (original setting) down
to 1].
•Press OK to return to the...

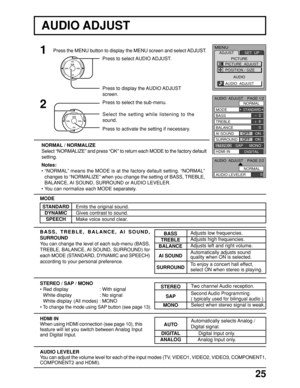

25
1
2
Press to select AUDIO ADJUST.
Press to display the AUDIO ADJUST
screen.
Press to select the sub-menu.
Select the setting while listening to the
sound.
Press to activate the setting if necessary.
MODE
• Red display : With signal
White display : No signal
White display (All modes) : MONO
•
To change the mode using SAP button (see page 13).
STEREO / SAP / MONO
BASS
TREBLE
BALANCE
AI SOUND
SURROUND
BASS, TREBLE, BALANCE, AI SOUND,
SURROUND
You can change the level of each sub-menu (BASS,
TREBLE,...

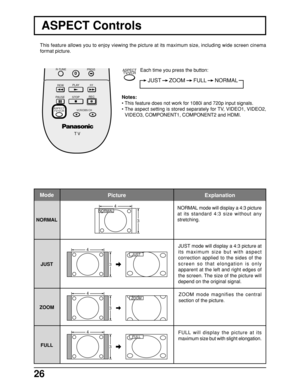

26
Each time you press the button:
NORMAL mode will display a 4:3 picture
at its standard 4:3 size without any
stretching.
ZOOM mode magnifies the central
section of the picture.
FULL will display the picture at its
maximum size but with slight elongation. JUST mode will display a 4:3 picture at
its maximum size but with aspect
correction applied to the sides of the
screen so that elongation is only
apparent at the left and right edges of
the screen. The size of the picture will
depend on the original...

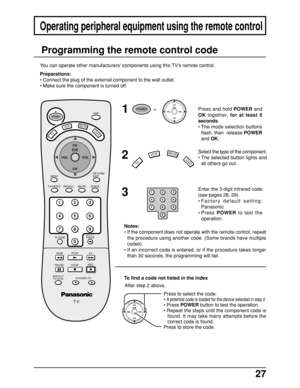

27
Press to select the code.
•
A potential code is loaded for the device selected in step 2.
• Press POWER button to test the operation.
• Repeat the steps until the component code is
found. It may take many attempts before the
correct code is found.
Press to store the code.
Operating peripheral equipment using the remote control
1
2
3
Enter the 3-digit infrared code
(see pages 28, 29).
•Factory default setting:
Panasonic
•Press POWER to test the
operation. Press and hold POWER and
OK together, for at...

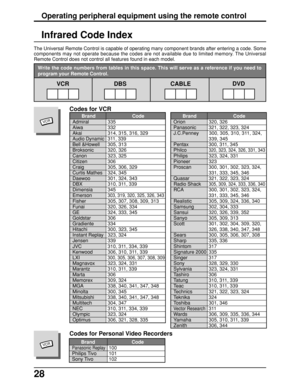

28
Infrared Code Index
The Universal Remote Control is capable of operating many component brands after entering a code. Some
components may not operate because the codes are not available due to limited memory. The Universal
Remote Control does not control all features found in each model.
Write the code numbers from tables in this space. This will serve as a reference if you need to
program your Remote Control.
VCR DBS
Operating peripheral equipment using the remote control
Codes for VCR
Brand Code...

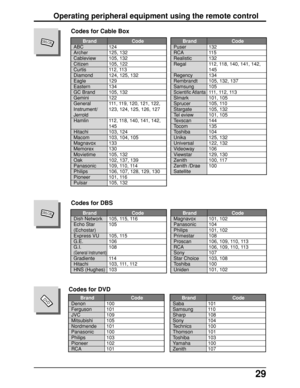

29
         Brand Code
ABC 124
Archer 125, 132
Cableview 105, 132
Citizen 105, 122
Curtis 112, 113
Diamond 124, 125, 132
Eagle 129
Eastern 134
GC Brand 105, 132
Gemini 122
General 111, 119, 120, 121, 122,
Instrument/ 123, 124, 125, 126, 127
Jerrold
Hamlin 112, 118, 140, 141, 142,
145
Hitachi 103, 124
Macom 103, 104, 105
Magnavox 133
Memorex 130
Movietime 105, 132
Oak 102, 137, 139
Panasonic 109, 110, 114
Philips 106, 107, 128, 129, 130
Pioneer 101, 116
Pulsar 105, 132
Codes for Cable Box
         Brand...

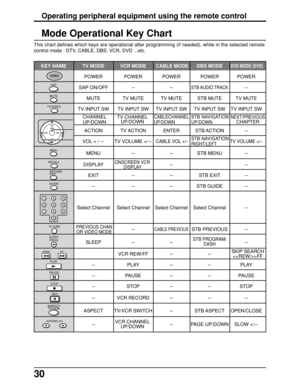

30
Operating peripheral equipment using the remote control
Mode Operational Key Chart
This chart defines which keys are operational after programming (if needed), while in the selected remote
control mode : DTV, CABLE, DBS, VCR, DVD ...etc.
   KEY NAME TV MODE VCR MODE  CABLE MODE DBS MODE DVD MODE (DVD)
POWER POWER POWER POWER POWER
SAP ON/OFF--STB AUDIO TRACK-
MUTE TV MUTE TV MUTE STB MUTE TV MUTE
TV INPUT SW TV INPUT SW TV INPUT SW TV INPUT SW TV INPUT SW
ACTION TV ACTION ENTER STB ACTION-
VOL + / -TV...
