Panasonic Lcd Tv Tc 20la2 Operating Instructions

11

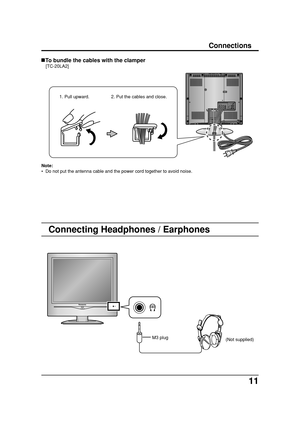

Connections
M3 plug
(Not supplied)
Connecting Headphones / Earphones
To bundle the cables with the clamper
AUDIOVIDEO S-VIDEOR RL
LY
PBPR1
2AUDIOCOMPORNENT VIDEO INPUTINPUTVIDEOVHF     UHF
Note:
•  Do not put the antenna cable and the power cord together to avoid noise.1. Pull upward. 2. Put the cables and close. [TC-20LA2]

12

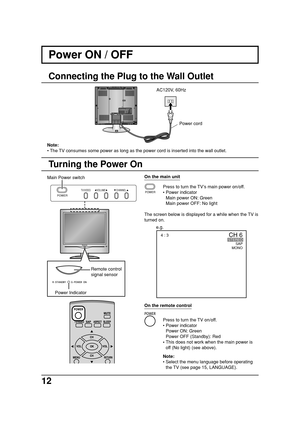

POWER
TV/VIDEO VOLUME CHANNEL
Power ON / OFF
Connecting the Plug to the Wall Outlet
1
2VHF  /  UHFAUDIOVIDEO S-VIDEOR RL
LY
PBPR1
2AUDIOCOMPORNENT VIDEO INPUTINPUTVIDEO
Note:
• The TV consumes some power as long as the power cord is inserted into the wall outlet.
Turning the Power On
Press to turn the TV’s main power on/off.
• Power indicator
Main power ON: Green
Main power OFF: No light
The screen below is displayed for a while when the TV is
turned on.
Press to turn the TV on/off.
• Power indicator...

13
POWER
TV/VIDEO VOLUME CHANNEL
STEREO SAP MONO

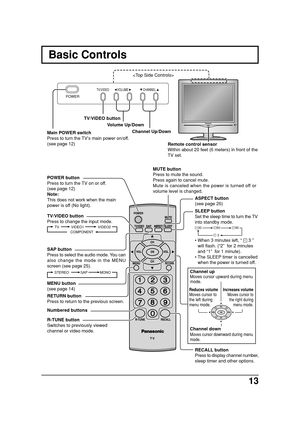

Basic Controls
POWER button
Press to turn the TV on or off.
(see page 12)
Note:
This does not work when the main
power is off (No light).
Numbered buttons TV/VIDEO button
Press to change the input mode.
R-TUNE button
Switches to previously viewed
channel or video mode.MUTE button
Press to mute the sound.
Press again to cancel mute.
Mute is canceled when the power is turned off or
volume level is changed.
ASPECT button
(see page 26)
MENU button
(see page...

14

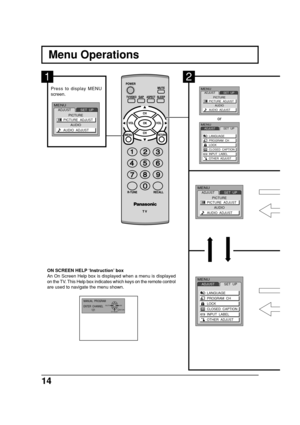

Menu Operations
MENUADJUSTSET  UP
LANGUAGE
PROGRAM  CH
LOCK
CLOSED  CAPTION
INPUT  LABEL
OTHER  ADJUST
MENUADJUST
AUDIOSET  UP
PICTURE  ADJUST
AUDIO  ADJUST
MENUADJUSTSET  UP
LANGUAGE
PROGRAM  CH
LOCK
CLOSED  CAPTION
INPUT  LABEL
OTHER  ADJUST
MENUADJUST
AUDIOSET  UP
PICTURE  ADJUST
AUDIO  ADJUST
or
Press to display MENU
screen.
1
MENUADJUST
AUDIOSET  UP
PICTURE  ADJUST
AUDIO  ADJUST
ON SCREEN HELP ‘Instruction’ box
An On Screen Help box is displayed when a menu is displayed
on...

15

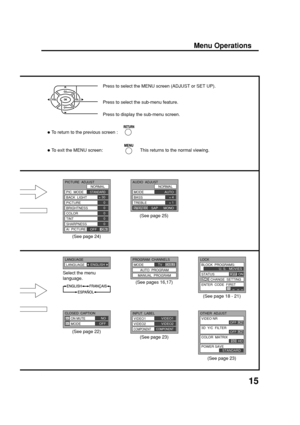

Menu Operations
CLOSED  CAPTION
MODEOFF
ON MUTENO
(See page 22)
LANGUAGE
ENGLISHLANGUAGE
Select the menu
language.
OFF          ONCOOLCOOL
PICTURE  ADJUST
NORMAL
PIC  MODE
BACK  LIGHT
BRIGHTNESS
COLOR
TINT
SHARPNESS
AI  PICTURE
+ 30
0
0
0
0
0
OFF     ON
STANDARD
(See page 24)
• To return to the previous screen :
• To exit the MENU screen:This returns to the normal viewing.
Press to select the MENU screen (ADJUST or SET UP).
Press to select the sub-menu feature.
Press to display the sub-menu...

16

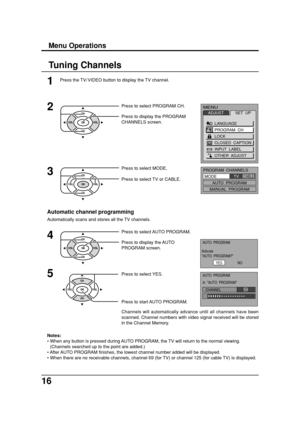

Tuning Channels
Automatically scans and stores all the TV channels.
Notes:
• When any button is pressed during AUTO PROGRAM, the TV will return to the normal viewing.
(Channels searched up to the point are added.)
• After AUTO PROGRAM finishes, the lowest channel number added will be displayed.
• When there are no receivable channels, channel 69 (for TV) or channel 125 (for cable TV) is displayed.Press to select PROGRAM CH.
Press to display the PROGRAM
CHANNELS screen.
2
3
Press to select MODE.
Press...

17
PROGRAM  CHANNELS
MODE
AUTO  PROGRAM
MANUAL  PROGRAM     TV    CABLE
MANUAL  PROGRAM
ENTER  CHANNEL
121
Press to select MANUAL PROGRAM.
Press to display the MANUAL
PROGRAM screen.4
Press to select the channel.
•You can also use the numbered
buttons.5
6
Press to add the channel to the Channel
Memory (the channel number turns blue).
Press to delete the channel from the
Channel Memory (the channel number turns
yellow).
• Repeat steps 5 and 6 for other channels.

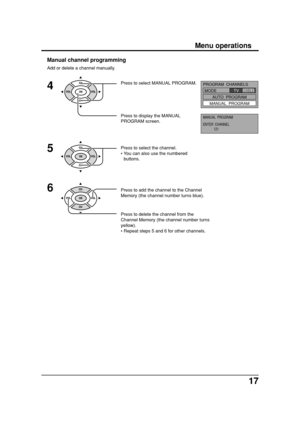

Manual channel programming
Add or delete a...

18

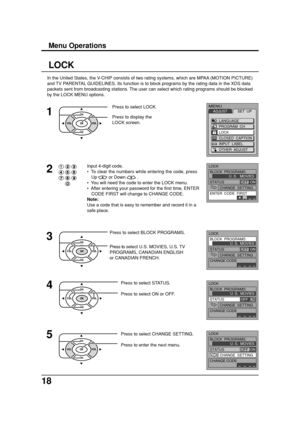

In the United States, the V-CHIP consists of two rating systems, which are MPAA (MOTION PICTURE)
and TV PARENTAL GUIDELINES. Its function is to block programs by the rating data in the XDS data
packets sent from broadcasting stations. The user can select which rating programs should be blocked
by the LOCK MENU options.
MENU
ADJUSTSET  UP
LANGUAGE
PROGRAM  CH
LOCK
CLOSED  CAPTION
INPUT  LABEL
OTHER  ADJUST
LOCK
BLOCK  PROGRAMS:
STATUSU. S.   MOVIES
CHANGE  SETTING
ENTER  CODE  FIRST
OFF  ON
Input...

19

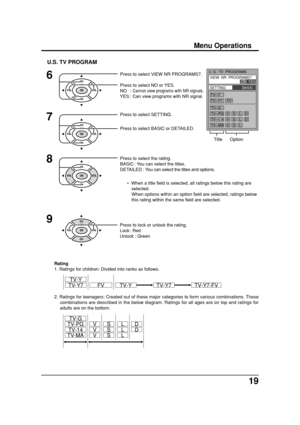

Press to select VIEW NR PROGRAMS?.
Press to select NO or YES.
NO :
Cannot view programs with NR signals.
YES : Can view programs with NR signal.
U.S. TV PROGRAM
VIEW  NR  PROGRAMS? U. S.  TV  PROGRAMS
TV
—G
TV
—PG
TV
—1 4
TV
—MA
V
V
VD
DL
L
LS
S
S TV
—Y
TV
—Y7FV
SETTINGBASIC
NO  YES6
8
Press to select SETTING.
Press to select BASIC or DETAILED.7
Press to select the rating.
BASIC : You can select the titles.
DETAILED : You can select the titles and options.
Press to lock or unlock the rating.
Lock :...

20
Menu Operations

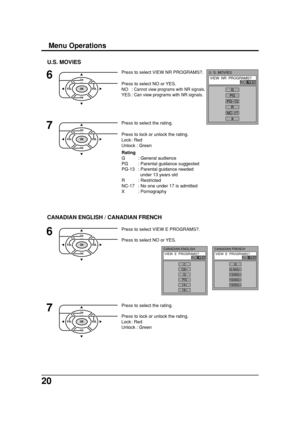

U.S. MOVIES
6
7
Press to select the rating.
U. S. MOVIES
VIEW  NR  PROGRAMS?NO  YES
CANADIAN ENGLISH / CANADIAN FRENCH
6Press to select VIEW E PROGRAMS?.
Press to select NO or YES.
CANADIAN FRENCHVIEW  E  PROGRAMS?NO  YES
G
8 ANS+
13ANS+
16ANS+
18ANS+
CANADIAN ENGLISHVIEW  E  PROGRAMS?NO  YES
C
C8+
G
PG
14+
18+
Press to select VIEW NR PROGRAMS?.
Press to select NO or YES.
NO :
Cannot view programs with NR signals.
YES : Can view programs with NR signals.
7Press to select the rating....
