Panasonic Lcd Tv Tc 22lh30 Operating Instructions

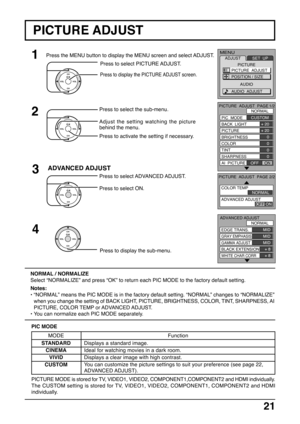

21
1
2
Press to select PICTURE ADJUST.
Press to select the sub-menu.
Adjust the setting watching the picture
behind the menu.
Press to activate the setting if necessary.
PIC MODE
Press to display the PICTURE ADJUST screen.
CH
CH VOL VOLO K
MENUADJUST
AUDIOSET  UP
PICTURE  ADJUST
POSITION / SIZE
AUDIO  ADJUST
PICTURE  ADJUST  PAGE 2/2
NORMAL
PIC  MODE
BACK  LIGHT
BRIGHTNESS
COLOR
TINT
SHARPNESS
AI  PICTURE+ 20
+ 20
0
0
0
0
OFF     ON
CUSTOM
PICTURE  ADJUST  PAGE 1/2
COLOR TEMP
NORMAL...

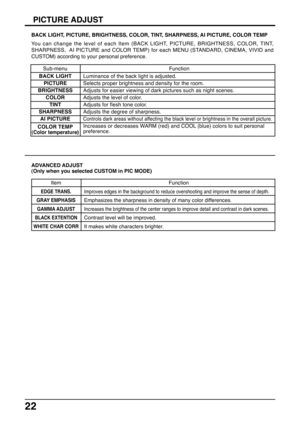

22
Item
EDGE TRANS.
GRAY EMPHASIS
GAMMA ADJUST
BLACK EXTENTION
WHITE CHAR CORR
 Function
Improves edges in the background to reduce overshooting and improve the sense of depth.
Emphasizes the sharpness in density of many color differences.
Increases the brightness of the center ranges to improve detail and contrast in dark scenes.
Contrast level will be improved.
It makes white characters brighter.
ADVANCED ADJUST
PICTURE ADJUST
 Function
Luminance of the back light is adjusted.
Selects proper brightness...

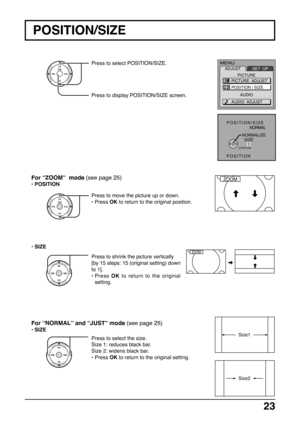

23
For “ZOOM”  mode (see page 25)
•POSITION
Press to move the picture up or down.
•Press OK to return to the original position.
For “NORMAL” and “JUST” mode (see page 25)
•SIZE
Press to select the size.
Size 1: reduces black bar.
Size 2: widens black bar.
•Press OK to return to the original setting. Press to select POSITION/SIZE.
Press to display POSITION/SIZE screen.
POSITION/SIZE
NORMAL
POSITIONNORMALIZE
  SIZE
     1
RETURN
ZOOM
Size1
Size2
CH
CH VOL
VOLO K
MENUADJUST
AUDIOSET  UP
PICTURE...

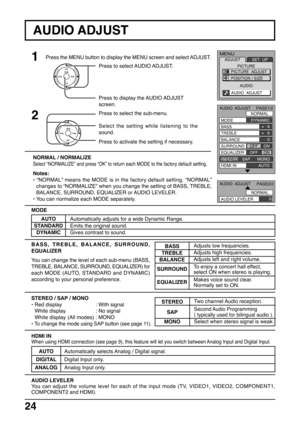

24
1
2
Press to select AUDIO ADJUST.
Press to display the AUDIO ADJUST
screen.
Press to select the sub-menu.
Select the setting while listening to the
sound.
Press to activate the setting if necessary.
MODE
• Red display : With signal
White display : No signal
White display (All modes) : MONO
•
To change the mode using SAP button (see page 11).
STEREO / SAP / MONO
BASS
TREBLE
BALANCE
SURROUND
EQUALIZER
BASS, TREBLE, BALANCE, SURROUND,
EQUALIZER
You can change the level of each sub-menu (BASS,
TREBLE,...

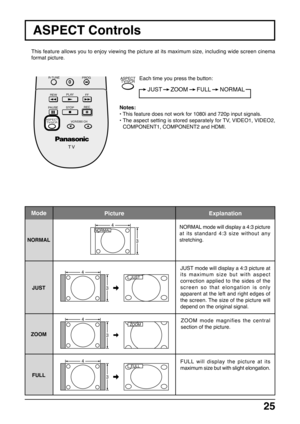

25
Each time you press the button:
NORMAL mode will display a 4:3 picture
at its standard 4:3 size without any
stretching.
ZOOM mode magnifies the central
section of the picture.
FULL will display the picture at its
maximum size but with slight elongation. JUST mode will display a 4:3 picture at
its maximum size but with aspect
correction applied to the sides of the
screen so that elongation is only
apparent at the left and right edges of
the screen. The size of the picture will
depend on the original...

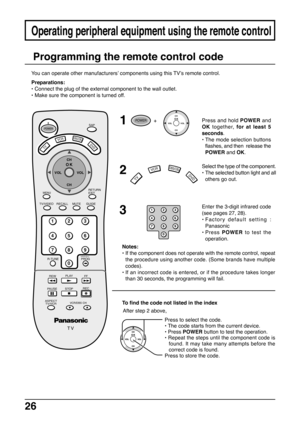

26
Press to select the code.
• The code starts from the current device.
• Press POWER button to test the operation.
• Repeat the steps until the component code is
found. It may take many attempts before the
correct code is found.
Press to store the code.
Operating peripheral equipment using the remote control
1
2
3
Enter the 3-digit infrared code
(see pages 27, 28).
•Factory default setting :
Panasonic
•Press POWER to test the
operation. Press and hold POWER and
OK together, for at least 5
seconds.
•The...

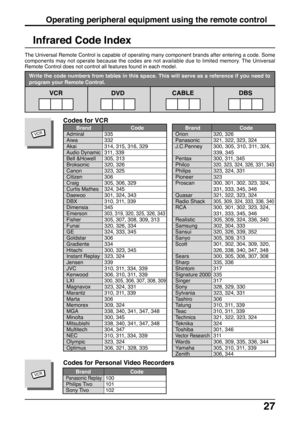

27
Infrared Code Index
The Universal Remote Control is capable of operating many component brands after entering a code. Some
components may not operate because the codes are not available due to limited memory. The Universal
Remote Control does not control all features found in each model.
Write the code numbers from tables in this space. This will serve as a reference if you need to
program your Remote Control.
VCR
DVD
Operating peripheral equipment using the remote control
Codes for VCR
Brand Code...

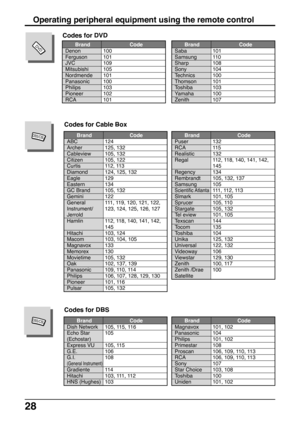

28
         Brand Code
ABC 124
Archer 125, 132
Cableview 105, 132
Citizen 105, 122
Curtis 112, 113
Diamond 124, 125, 132
Eagle 129
Eastern 134
GC Brand 105, 132
Gemini 122
General 111, 119, 120, 121, 122,
Instrument/ 123, 124, 125, 126, 127
Jerrold
Hamlin 112, 118, 140, 141, 142,
145
Hitachi 103, 124
Macom 103, 104, 105
Magnavox 133
Memorex 130
Movietime 105, 132
Oak 102, 137, 139
Panasonic 109, 110, 114
Philips 106, 107, 128, 129, 130
Pioneer 101, 116
Pulsar 105, 132
Codes for Cable Box
         Brand...

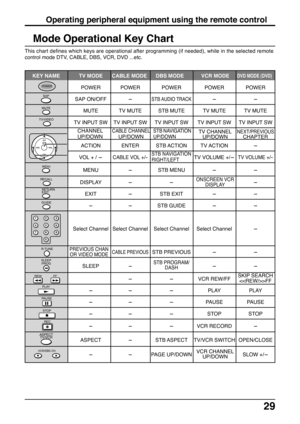

29
Operating peripheral equipment using the remote control
Mode Operational Key Chart
This chart defines which keys are operational after programming (if needed), while in the selected remote
control mode DTV, CABLE, DBS, VCR, DVD ...etc.
   KEY NAME TV MODE  CABLE MODE DBS MODE VCR MODE DVD MODE (DVD)
POWER POWER POWER POWER POWER
SAP ON/OFF-STB AUDIO TRACK--
MUTE TV MUTE STB MUTE TV MUTE TV MUTE
TV INPUT SW TV INPUT SW TV INPUT SW TV INPUT SW TV INPUT SW
ACTION ENTER STB ACTION TV ACTION-
VOL + /...

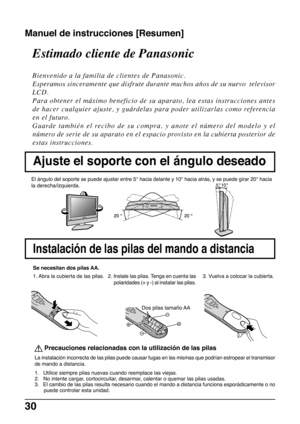

30
Estimado cliente de Panasonic
Bienvenido a la familia de clientes de Panasonic.
Esperamos sinceramente que disfrute durante muchos años de su nuevo  televisor
LCD.
Para obtener el máximo beneficio de su aparato, lea estas instrucciones antes
de hacer cualquier ajuste, y guárdelas para poder utilizarlas como referencia
en el futuro.
Guarde también el recibo de su compra, y anote el número del modelo y el
número de serie de su aparato en el espacio provisto en la cubierta posterior de
estas...
