Page 11

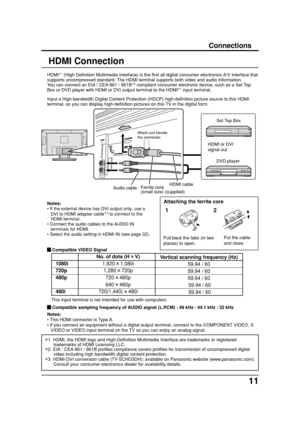

11 AV IN AUDIO IN PET TBMU392 VIDEO HDMI∗1 (High Definition Multimedia Interface) is the first all digital consumer electronics A/V interface that supports uncompressed standard. The HDMI terminal supports both video and audio information. You can connect an EIA / CEA-861 / 861B∗ 2 compliant consumer electronic device, such as a Set Top Box or DVD player with HDMI or DVI output terminal to the HDMI∗1 input terminal. Input a High-bandwidth Digital Content Protection (HDCP) high-definition picture source...
Page 12

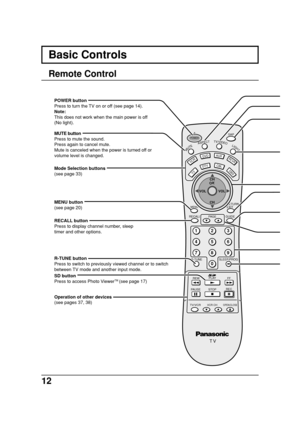

12 123 456 78 09 DTV AUXDVD VCR DBS RCVR RETURN EXITMENU PLAY R-TUNE SLEEP/PROGGUIDESAP PAGE RECALL STOP PAUSERECFF REW TV/VCR VCR CHOPEN/CLOSE MUTEASPECTTV/VIDEOLIGHT POWER CBL CH CH VOL VOLOK TV T V Mode Selection buttons (see page 33) Basic Controls Operation of other devices (see pages 37, 38) MUTE button Press to mute the sound. Press again to cancel mute. Mute is canceled when the power is turned off or volume level is changed. R-TUNE button Press to switch to previously viewed channel or to...
Page 13

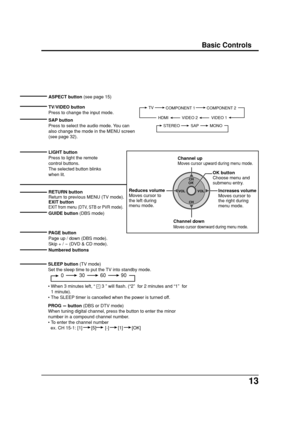

13 STEREO SAP MONO Basic Controls COMPONENT 2 TV COMPONENT 1 HDMI VIDEO 1VIDEO 2 Numbered buttons ASPECT button (see page 15) GUIDE button (DBS mode) SAP button Press to select the audio mode. You can also change the mode in the MENU screen (see page 32). TV/VIDEO button Press to change the input mode. LIGHT button Press to light the remote control buttons. The selected button blinks when lit. RETURN button Return to previous MENU (TV mode). EXIT button EXIT from menu (DTV, STB or PVR mode). SLEEP button...
Page 14
14 R STANDBY G - POWER ON POWERTV/VIDEO VOLUMECHANNEL Notes: • The TV consumes some power as long as the power cord is inserted into the wall outlet. • Do not remove or slide the ferrite core for the safety purpose. On the main unit Main POWER switch On the remote control Power ON / OFF Press to turn the TV on / off. • Power indicator Power ON: Green Power OFF (Standby): Red • This does not work when the main power is off (No light) (see above). Note: • The screen below is displayed for a few...
Page 15

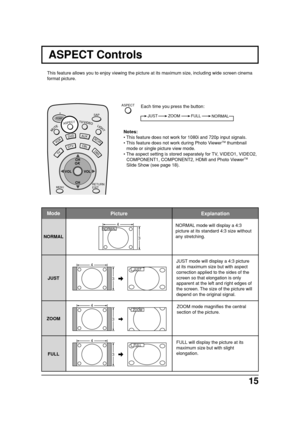

15 Each time you press the button:ASPECT NORMAL mode will display a 4:3 picture at its standard 4:3 size without any stretching. ZOOM mode magnifies the central section of the picture. FULL will display the picture at its maximum size but with slight elongation. JUST mode will display a 4:3 picture at its maximum size but with aspect correction applied to the sides of the screen so that elongation is only apparent at the left and right edges of the screen. The size of the picture will depend on the...
Page 16

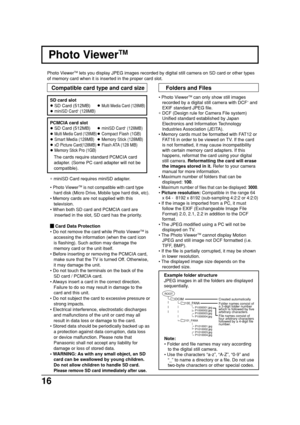

16 Photo ViewerTM Photo ViewerTM lets you display JPEG images recorded by digital still camera on SD card or other types of memory card when it is inserted in the proper card slot. Compatible card type and card sizeFolders and Files Example folder structure JPEG images in all the folders are displayed sequentially. ROOT DCIM P1000001.jpg P1000002.jpg P1000003.jpg P1000004.jpg P1010001.jpg P1010002.jpg P1010003.jpg P1010004.jpg 100_PANA 101_PANA Created automatically Folder names consist of a 3-digit...
Page 17

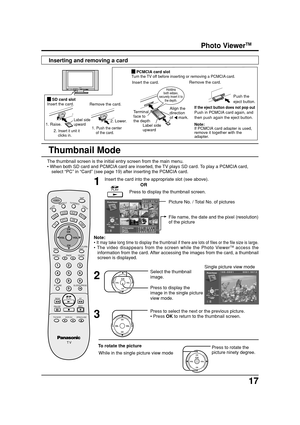

17 SD CARDSD CARD PC CARD EJECTPC Inserting and removing a card SD card slot Insert the card. PCMCIA card slotTurn the TV off before inserting or removing a PCMCIA card. 1. Raise.Label sideupward 2. Insert it unit itclicks in. 2. Lower. 1. Push the center of the card. Holdingboth edges,securely insert it tothe depth.Remove the card.Remove the card.Align thedirectionof mark.Terminalface tothe depthLabel sideupward If the eject button does not pop outPush in PCMCIA card again, andthen push...
Page 18

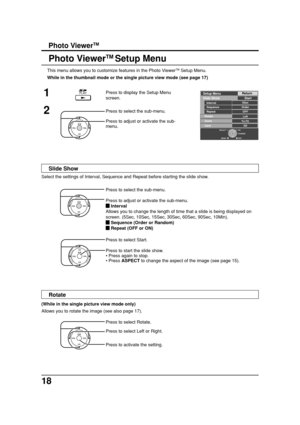

18 CH CH VOL VOLO K CH CH VOL VOLO K PLAYSetup MenuReturn Interval5Sec Sequence OrderSlide Show Start Repeat OFF Rotate ZoomLeft To Fit Card SD EXIT SELECT CHANGE MENUOK Photo ViewerTM Setup Menu This menu allows you to customize features in the Photo ViewerTM Setup Menu. While in the thumbnail mode or the single picture view mode (see page 17) 1 2 Press to select the sub-menu. Press to adjust or activate the sub- menu. Press to display the Setup Menu screen. Press to select the sub-menu. Press to adjust...
Page 19

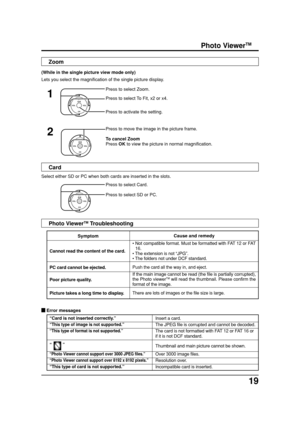

19 (While in the single picture view mode only) Lets you select the magnification of the single picture display. Press to select Zoom. Press to select To Fit, x2 or x4. Press to activate the setting. Press to move the image in the picture frame. To cancel Zoom Press OK to view the picture in normal magnification. Select either SD or PC when both cards are inserted in the slots. Press to select Card. Press to select SD or PC. Zoom Card CH CH VOL VOLO K CH CH VOL VOLO K Photo ViewerTM CH CH VOL VOLO K1 2...
Page 20

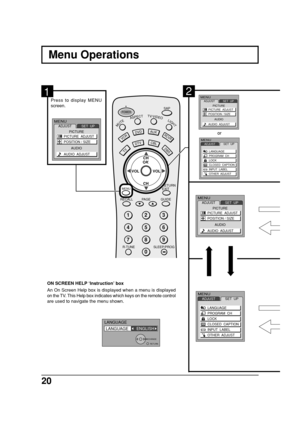

20 123 456 78 09 DTV AUXDVD VCR DBS RCVR RETURN EXITMENU R-TUNE SLEEP/PROGGUIDESAP PAGE RECALL MUTEASPECTTV/VIDEOLIGHT POWER CBL CH CH VOL VOLOK TV CH VOL VOLOK CHMENU Menu Operations MENUADJUSTSET UP LANGUAGE PROGRAM CH LOCK CLOSED CAPTION INPUT LABEL OTHER ADJUST 2 MENUADJUSTSET UP LANGUAGE PROGRAM CH LOCK CLOSED CAPTION INPUT LABEL OTHER ADJUST or Press to display MENU screen. MENUADJUST PICTURE AUDIOSET UP PICTURE ADJUST POSITION / SIZE AUDIO ADJUST MENUADJUST PICTURE AUDIOSET UP...
