Home > Panasonic > Television > Panasonic Lifi Hdtv Pt 50lcz70 Operating Instructions

Panasonic Lifi Hdtv Pt 50lcz70 Operating Instructions

Here you can view all the pages of manual Panasonic Lifi Hdtv Pt 50lcz70 Operating Instructions. The Panasonic manuals for Television are available online for free. You can easily download all the documents as PDF.

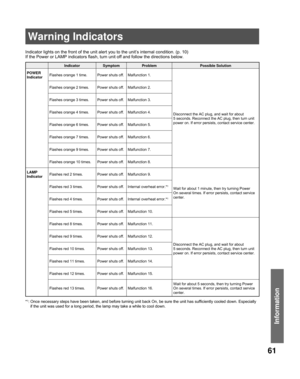

Page 61

61
Information
Indicator lights on the front of the unit alert you to the unit’s int\
ernal condition. (p. 10)
If the Power or LAMP indicators flash, turn unit off and follow the dire\
ctions below.
IndicatorSymptom Problem Possible Solution
 POWER
Indicator Flashes orange 1 time. Power shuts off. Malfunction 1.
Disconnect the AC plug, and wait for about
5 seconds. Reconnect the AC plug, then turn unit
power on. If error persists, contact service center.
Flashes orange 2 times. Power shuts off....

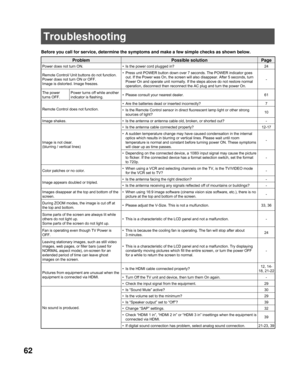

Page 62

62
Before you call for service, determine the symptoms and make a few simpl\
e checks as shown below.
ProblemPossible solutionPage
Power does not turn ON. Is the power cord plugged in?
• 24
Remote Control/ Unit buttons do not function.
Power does not turn ON or OFF.
Image is distorted. Image freezes. Press unit POWER button down over 7 seconds. The POWER indicator goes
out. If the Power was On, the screen will also disappear. After 5 second\
s, turn
Power On and operate unit normally. If the steps...

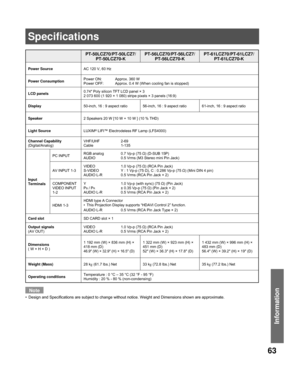

Page 63

63
Information
PT-50LCZ70/PT-50LCZ7/PT-50LCZ70-K PT-56LCZ70/PT-56LCZ7/
PT-56LCZ70-K PT-61LCZ70/PT-61LCZ7/
PT-61LCZ70-K
Power Source AC 120 V, 60 Hz
Power Consumption Power ON:  Approx. 360 W
Power OFF:  Approx. 0.4 W (When cooling fan is stopped)
LCD panels 0.74″ Poly silicon TFT LCD panel × 3
2 073 600 (1 920 × 1 080) stripe pixels × 3 panels (16:9)
Display 50-inch, 16 : 9 aspect ratio 56-inch, 16 : 9 aspect ratio 61-inch, 16 : 9 aspect ratio
Speaker 2 Speakers 20 W [10 W + 10 W ] (10 % THD)
Light...

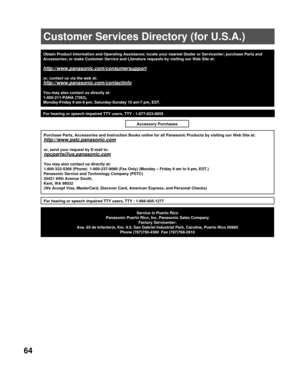

Page 64

64
Obtain Product Information and Operating Assistance; locate your nearest\
 Dealer or Servicenter; purchase Parts and
Accessories; or make Customer Service and Literature requests by visitin\
g our Web Site at:
http://www.panasonic.com/consumersupport
or, contact us via the web at:
http://www.panasonic.com/contactinfo
You may also contact us directly at:
1-800-211-PANA (7262),
Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pm, EST.
Service in Puerto Rico
Panasonic Puerto Rico, Inc. Panasonic Sales...

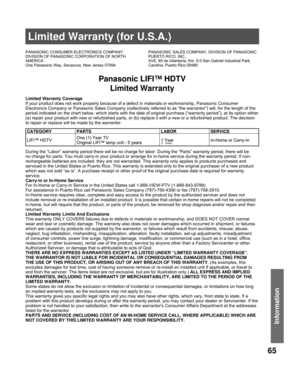

Page 65

65
Information
PANASONIC CONSUMER ELECTRONICS COMPANY,
DIVISION OF PANASONIC CORPORATION OF NORTH
AMERICA
One Panasonic Way, Secaucus, New Jersey 07094PANASONIC SALES COMPANY, DIVISION OF PANASONIC
PUERTO RICO, INC.,
AVE. 65 de Infantería, Km. 9.5 San Gabriel Industrial Park,
Carolina, Puerto Rico 00985
Panasonic LIFI™ HDTV
Limited Warranty
Limited Warranty Coverage
If your product does not work properly because of a defect in materials \
or workmanship, Panasonic Consumer
Electronics Company or...

Page 66

66
Limited Warranty (for Canada)
Panasonic Canada Inc.
PANASONIC PRODUCT – LIMITED WARRANTY
Panasonic Canada Inc. warrants this product to be free from defects in m\
aterials and workmanship and agrees to
remedy any such defect for a period as stated below from the date of ori\
ginal purchase.LCD Rear Projection TV In home Service Parts Labour
TV - One (1) year
Original LIFI™ lamp unit - 5 years
1 Year
In-home Service will be carried out only to locations accessible by road\
s and within 50 km of an...

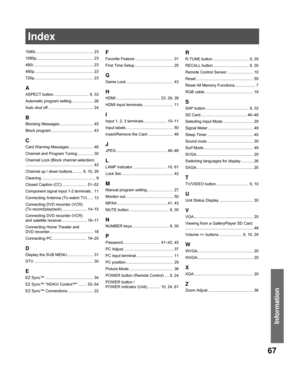

Page 67

67
Information
1080i ..................................................... 23
1080p.................................................... 23
480i ....................................................... 23
480p...................................................... 23
720p...................................................... 23
A
ASPECT button ................................ 9, 33
Automatic program setting.................... 26
Auto shut off ......................................... 24
B
Blocking...

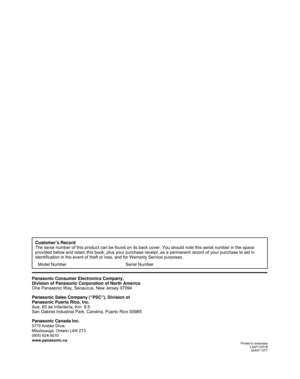

Page 68

Printed in IndonesiaLSQT1225 BS0407-1077
Customer’s Record
The serial number of this product can be found on its back cover. You sh\
ould note this serial number in the space
provided below and retain this book, plus your purchase receipt, as a pe\
rmanent record of your purchase to aid in
identification in the event of theft or loss, and for Warranty Service p\
urposes.
Model Number  Serial Number
Panasonic Consumer Electronics Company,
Division of Panasonic Corporation of North America
One Panasonic...

Page 69




Page 70
