Panasonic Lumix DMC LS86 User Manual
Here you can view all the pages of manual Panasonic Lumix DMC LS86 User Manual. The Panasonic manuals for Digital Camera are available online for free. You can easily download all the documents as PDF.

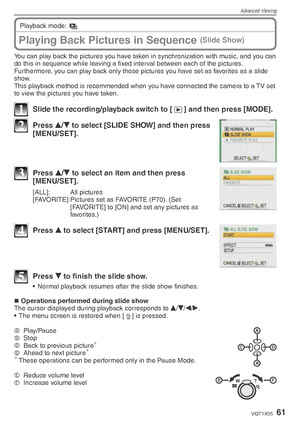

Page 61
![Page 61
Advanced-Viewing
61VQT1X05
You can play back the pictures you have taken in synchronization with music, and you can
do this in sequence while leaving a fi xed interval between each of the pictures.
Furthermore, you can play back only those pictures you have set as favorites as a slide
show.
This playback method is recommended when you have connected the camera to a TV set
to view the pictures you have taken.
1 Slide the recording/playback switch to [ 5] and then press [MODE].
2 Press
e/
r to select...](http://img.usermanuals.tech/thumb/58/38342/w300_Panasonic_Lumix_DMC-LS86-60.png "Page 61
Advanced-Viewing
61VQT1X05
You can play back the pictures you have taken in synchronization with music, and you can
do this in sequence while leaving a fi xed interval between each of the pictures.
Furthermore, you can play back only those pictures you have set as favorites as a slide
show.
This playback method is recommended when you have connected the camera to a TV set
to view the pictures you have taken.
1 Slide the recording/playback switch to [ 5] and then press [MODE].
2 Press
e/
r to select...")
Advanced-Viewing 61VQT1X05 You can play back the pictures you have taken in synchronization with music, and you can do this in sequence while leaving a fi xed interval between each of the pictures. Furthermore, you can play back only those pictures you have set as favorites as a slide show. This playback method is recommended when you have connected the camera to a TV set to view the pictures you have taken. 1 Slide the recording/playback switch to [ 5] and then press [MODE]. 2 Press e/ r to select...

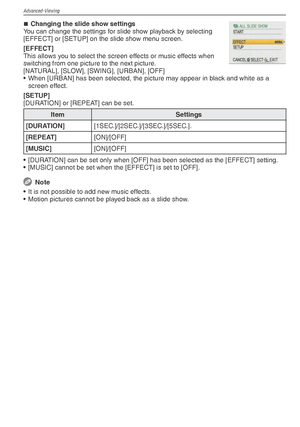

Page 62
![Page 62
Advanced-Viewing
62VQT1X05
Changing the slide show settings
You can change the settings for slide show playback by selecting
[EFFECT] or [SETUP] on the slide show menu screen.
[EFFECT]
This allows you to select the screen effects or music effects when
switching from one picture to the next picture.
[NATURAL], [SLOW], [SWING], [URBAN], [OFF]
• When [URBAN] has been selected, the picture may appear in black and white as a screen effect.
[SETUP]
[DURATION] or [REPEAT] can be set.
Item Settings...](http://img.usermanuals.tech/thumb/58/38342/w300_Panasonic_Lumix_DMC-LS86-61.png "Page 62
Advanced-Viewing
62VQT1X05
Changing the slide show settings
You can change the settings for slide show playback by selecting
[EFFECT] or [SETUP] on the slide show menu screen.
[EFFECT]
This allows you to select the screen effects or music effects when
switching from one picture to the next picture.
[NATURAL], [SLOW], [SWING], [URBAN], [OFF]
• When [URBAN] has been selected, the picture may appear in black and white as a screen effect.
[SETUP]
[DURATION] or [REPEAT] can be set.
Item Settings...")
Advanced-Viewing 62VQT1X05 Changing the slide show settings You can change the settings for slide show playback by selecting [EFFECT] or [SETUP] on the slide show menu screen. [EFFECT] This allows you to select the screen effects or music effects when switching from one picture to the next picture. [NATURAL], [SLOW], [SWING], [URBAN], [OFF] • When [URBAN] has been selected, the picture may appear in black and white as a screen effect. [SETUP] [DURATION] or [REPEAT] can be set. Item Settings...

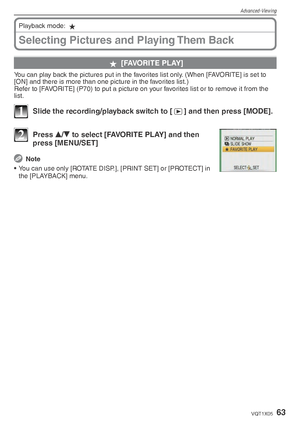

Page 63
![Page 63
Advanced-Viewing
63VQT1X05
Selecting Pictures and Playing Them Back
Playback mode: z
z [FAVORITE PLAY]
You can play back the pictures put in the favorites list only. (When [FAVORITE] is set to
[ON] and there is more than one picture in the favorites list.)
Refer to [FAVORITE] (P70) to put a picture on your favorites list or to remove it from the
list.
1 Slide the recording/playback switch to [
5] and then press [MODE].
2 Press
e/
r to select [FAVORITE PLAY] and then
press [MENU/SET]
Note
• You...](http://img.usermanuals.tech/thumb/58/38342/w300_Panasonic_Lumix_DMC-LS86-62.png "Page 63
Advanced-Viewing
63VQT1X05
Selecting Pictures and Playing Them Back
Playback mode: z
z [FAVORITE PLAY]
You can play back the pictures put in the favorites list only. (When [FAVORITE] is set to
[ON] and there is more than one picture in the favorites list.)
Refer to [FAVORITE] (P70) to put a picture on your favorites list or to remove it from the
list.
1 Slide the recording/playback switch to [
5] and then press [MODE].
2 Press
e/
r to select [FAVORITE PLAY] and then
press [MENU/SET]
Note
• You...")
Advanced-Viewing 63VQT1X05 Selecting Pictures and Playing Them Back Playback mode: z z [FAVORITE PLAY] You can play back the pictures put in the favorites list only. (When [FAVORITE] is set to [ON] and there is more than one picture in the favorites list.) Refer to [FAVORITE] (P70) to put a picture on your favorites list or to remove it from the list. 1 Slide the recording/playback switch to [ 5] and then press [MODE]. 2 Press e/ r to select [FAVORITE PLAY] and then press [MENU/SET] Note • You...

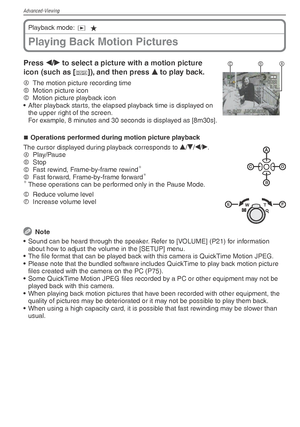

Page 64
![Page 64
Advanced-Viewing
64VQT1X05
Playing Back Motion Pictures
Playback mode: 9
z
CBAPress w/
q to select a picture with a motion picture
icon (such as [ -]), and then press
e to play back.
A
The motion picture recording time
B Motion picture icon
C Motion picture playback icon
• After playback starts, the elapsed playback time is displayed on the upper right of the screen.
For example, 8 minutes and 30 seconds is displayed as [8m30s].
Operations performed during motion picture playback
The cursor...](http://img.usermanuals.tech/thumb/58/38342/w300_Panasonic_Lumix_DMC-LS86-63.png "Page 64
Advanced-Viewing
64VQT1X05
Playing Back Motion Pictures
Playback mode: 9
z
CBAPress w/
q to select a picture with a motion picture
icon (such as [ -]), and then press
e to play back.
A
The motion picture recording time
B Motion picture icon
C Motion picture playback icon
• After playback starts, the elapsed playback time is displayed on the upper right of the screen.
For example, 8 minutes and 30 seconds is displayed as [8m30s].
Operations performed during motion picture playback
The cursor...")
Advanced-Viewing 64VQT1X05 Playing Back Motion Pictures Playback mode: 9 z CBAPress w/ q to select a picture with a motion picture icon (such as [ -]), and then press e to play back. A The motion picture recording time B Motion picture icon C Motion picture playback icon • After playback starts, the elapsed playback time is displayed on the upper right of the screen. For example, 8 minutes and 30 seconds is displayed as [8m30s]. Operations performed during motion picture playback The cursor...

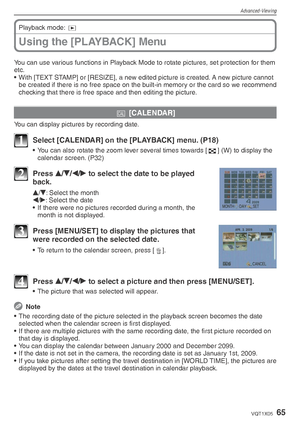

Page 65
![Page 65
Advanced-Viewing
65VQT1X05
Using the [PLAYBACK] Menu
Playback mode: 9
You can use various functions in Playback Mode to rotate pictures, set protection for them
etc.
• With [TEXT STAMP] or [RESIZE], a new edited picture is created. A new picture cannot be created if there is no free space on the built-in memory or the card so we recommend
checking that there is free space and then editing the picture.
t [CALENDAR]
You can display pictures by recording date.
1 Select [CALENDAR] on the [PLAYBACK]...](http://img.usermanuals.tech/thumb/58/38342/w300_Panasonic_Lumix_DMC-LS86-64.png "Page 65
Advanced-Viewing
65VQT1X05
Using the [PLAYBACK] Menu
Playback mode: 9
You can use various functions in Playback Mode to rotate pictures, set protection for them
etc.
• With [TEXT STAMP] or [RESIZE], a new edited picture is created. A new picture cannot be created if there is no free space on the built-in memory or the card so we recommend
checking that there is free space and then editing the picture.
t [CALENDAR]
You can display pictures by recording date.
1 Select [CALENDAR] on the [PLAYBACK]...")
Advanced-Viewing 65VQT1X05 Using the [PLAYBACK] Menu Playback mode: 9 You can use various functions in Playback Mode to rotate pictures, set protection for them etc. • With [TEXT STAMP] or [RESIZE], a new edited picture is created. A new picture cannot be created if there is no free space on the built-in memory or the card so we recommend checking that there is free space and then editing the picture. t [CALENDAR] You can display pictures by recording date. 1 Select [CALENDAR] on the [PLAYBACK]...

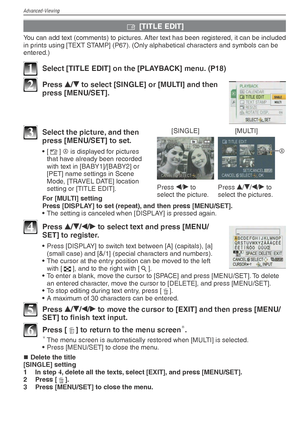

Page 66
![Page 66
Advanced-Viewing
66VQT1X05
y [TITLE EDIT]
You can add text (comments) to pictures. After text has been registered, it can be included
in prints using [TEXT STAMP] (P67). (Only alphabetical characters and symbols can be
entered.)
1 Select [TITLE EDIT] on the [PLAYBACK] menu. (P18)
2 Press
e/
r to select [SINGLE] or [MULTI] and then
press [MENU/SET].
[SINGLE] [MULTI]
Press w/
q to
select the picture. Press
e/
r /
w /
q to
select the pictures.
A
3 Select the picture, and then press [MENU/SET]...](http://img.usermanuals.tech/thumb/58/38342/w300_Panasonic_Lumix_DMC-LS86-65.png "Page 66
Advanced-Viewing
66VQT1X05
y [TITLE EDIT]
You can add text (comments) to pictures. After text has been registered, it can be included
in prints using [TEXT STAMP] (P67). (Only alphabetical characters and symbols can be
entered.)
1 Select [TITLE EDIT] on the [PLAYBACK] menu. (P18)
2 Press
e/
r to select [SINGLE] or [MULTI] and then
press [MENU/SET].
[SINGLE] [MULTI]
Press w/
q to
select the picture. Press
e/
r /
w /
q to
select the pictures.
A
3 Select the picture, and then press [MENU/SET]...")
Advanced-Viewing 66VQT1X05 y [TITLE EDIT] You can add text (comments) to pictures. After text has been registered, it can be included in prints using [TEXT STAMP] (P67). (Only alphabetical characters and symbols can be entered.) 1 Select [TITLE EDIT] on the [PLAYBACK] menu. (P18) 2 Press e/ r to select [SINGLE] or [MULTI] and then press [MENU/SET]. [SINGLE] [MULTI] Press w/ q to select the picture. Press e/ r / w / q to select the pictures. A 3 Select the picture, and then press [MENU/SET]...

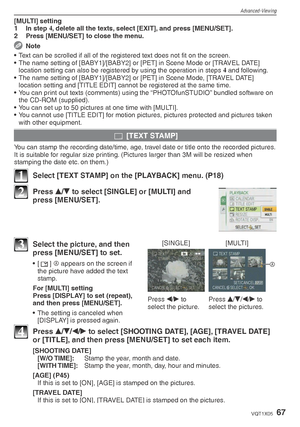

Page 67
![Page 67
Advanced-Viewing
67VQT1X05
[MULTI] setting
1 In step 4
, delete all the texts, select [EXIT], and press [MENU/SET].
2 Press [MENU/SET] to close the menu.
Note
• Text can be scrolled if all of the registered text does not fi t on the screen.
• The name setting of [BABY1]/[BABY2] or [PET] in Scene Mode or [TRAVEL DATE] location setting can also be registered by using the operation in steps 4
and following.
• The name setting of [BABY1]/[BABY2] or [PET] in Scene Mode, [TRAVEL DATE] location setting...](http://img.usermanuals.tech/thumb/58/38342/w300_Panasonic_Lumix_DMC-LS86-66.png "Page 67
Advanced-Viewing
67VQT1X05
[MULTI] setting
1 In step 4
, delete all the texts, select [EXIT], and press [MENU/SET].
2 Press [MENU/SET] to close the menu.
Note
• Text can be scrolled if all of the registered text does not fi t on the screen.
• The name setting of [BABY1]/[BABY2] or [PET] in Scene Mode or [TRAVEL DATE] location setting can also be registered by using the operation in steps 4
and following.
• The name setting of [BABY1]/[BABY2] or [PET] in Scene Mode, [TRAVEL DATE] location setting...")
Advanced-Viewing 67VQT1X05 [MULTI] setting 1 In step 4 , delete all the texts, select [EXIT], and press [MENU/SET]. 2 Press [MENU/SET] to close the menu. Note • Text can be scrolled if all of the registered text does not fi t on the screen. • The name setting of [BABY1]/[BABY2] or [PET] in Scene Mode or [TRAVEL DATE] location setting can also be registered by using the operation in steps 4 and following. • The name setting of [BABY1]/[BABY2] or [PET] in Scene Mode, [TRAVEL DATE] location setting...

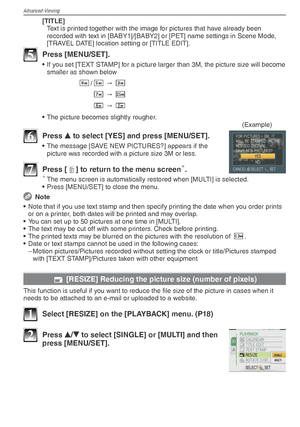

Page 68
![Page 68
Advanced-Viewing
68VQT1X05
[TITLE]Text is printed together with the image for pictures that have already been
recorded with text in [BABY1]/[BABY2] or [PET] name settings in Scene Mode,
[TRAVEL DATE] location setting or [TITLE EDIT].
5 Press [MENU/SET].
• If you set [TEXT STAMP] for a picture larger than 3M, the picture size will become smaller as shown below
R/T
C
Z M
X U
• The picture becomes slightly rougher. (Example)
6 Press e to select [YES] and press [MENU/SET].
• The message...](http://img.usermanuals.tech/thumb/58/38342/w300_Panasonic_Lumix_DMC-LS86-67.png "Page 68
Advanced-Viewing
68VQT1X05
[TITLE]Text is printed together with the image for pictures that have already been
recorded with text in [BABY1]/[BABY2] or [PET] name settings in Scene Mode,
[TRAVEL DATE] location setting or [TITLE EDIT].
5 Press [MENU/SET].
• If you set [TEXT STAMP] for a picture larger than 3M, the picture size will become smaller as shown below
R/T
C
Z M
X U
• The picture becomes slightly rougher. (Example)
6 Press e to select [YES] and press [MENU/SET].
• The message...")
Advanced-Viewing 68VQT1X05 [TITLE]Text is printed together with the image for pictures that have already been recorded with text in [BABY1]/[BABY2] or [PET] name settings in Scene Mode, [TRAVEL DATE] location setting or [TITLE EDIT]. 5 Press [MENU/SET]. • If you set [TEXT STAMP] for a picture larger than 3M, the picture size will become smaller as shown below R/T C Z M X U • The picture becomes slightly rougher. (Example) 6 Press e to select [YES] and press [MENU/SET]. • The message...

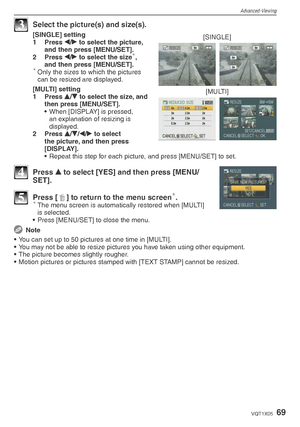

Page 69
![Page 69
Advanced-Viewing
69VQT1X05
3 Select the picture(s) and size(s).
[SINGLE][SINGLE] setting
1 Press w/
q to select the picture,
and then press [MENU/SET].
2 Press w/
q to select the size](http://img.usermanuals.tech/thumb/58/38342/w300_Panasonic_Lumix_DMC-LS86-68.png "Page 69
Advanced-Viewing
69VQT1X05
3 Select the picture(s) and size(s).
[SINGLE][SINGLE] setting
1 Press w/
q to select the picture,
and then press [MENU/SET].
2 Press w/
q to select the size")
Advanced-Viewing 69VQT1X05 3 Select the picture(s) and size(s). [SINGLE][SINGLE] setting 1 Press w/ q to select the picture, and then press [MENU/SET]. 2 Press w/ q to select the size

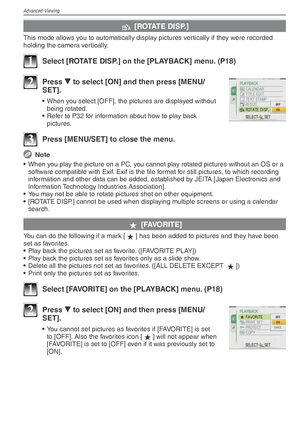

Page 70
![Page 70
Advanced-Viewing
70VQT1X05
k [ROTATE DISP.]
This mode allows you to automatically display pictures vertically if they were recorded
holding the camera vertically.
1 Select [ROTATE DISP.] on the [PLAYBACK] menu. (P18)
2 Press
r to select [ON] and then press [MENU/
SET].
• When you select [OFF], the pictures are displayed without
being rotated.
• Refer to P32 for information about how to play back pictures.
3 Press [MENU/SET] to close the menu.
Note
• When you play the picture on a PC, you cannot...](http://img.usermanuals.tech/thumb/58/38342/w300_Panasonic_Lumix_DMC-LS86-69.png "Page 70
Advanced-Viewing
70VQT1X05
k [ROTATE DISP.]
This mode allows you to automatically display pictures vertically if they were recorded
holding the camera vertically.
1 Select [ROTATE DISP.] on the [PLAYBACK] menu. (P18)
2 Press
r to select [ON] and then press [MENU/
SET].
• When you select [OFF], the pictures are displayed without
being rotated.
• Refer to P32 for information about how to play back pictures.
3 Press [MENU/SET] to close the menu.
Note
• When you play the picture on a PC, you cannot...")
Advanced-Viewing 70VQT1X05 k [ROTATE DISP.] This mode allows you to automatically display pictures vertically if they were recorded holding the camera vertically. 1 Select [ROTATE DISP.] on the [PLAYBACK] menu. (P18) 2 Press r to select [ON] and then press [MENU/ SET]. • When you select [OFF], the pictures are displayed without being rotated. • Refer to P32 for information about how to play back pictures. 3 Press [MENU/SET] to close the menu. Note • When you play the picture on a PC, you cannot...
