Basic
31VQT0Y44

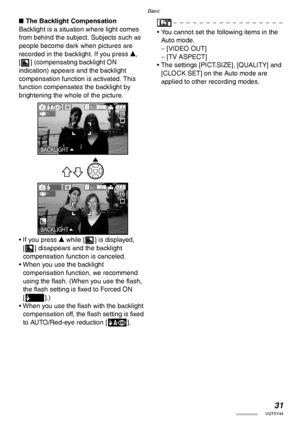

nThe Backlight Compensation
Backlight is a situation where light comes
from behind the subject. Subjects such as
people become dark when pictures are
recorded in the backlight. If you press e,
[ ] (compensating backlight ON
indication) appears and the backlight
compensation function is activated. This
function compensates the backlight by
brightening the whole of the picture.
• If you press e while [ ] is displayed,
[ ] disappears and the backlight
compensation function is...

Basic
32VQT0Y44

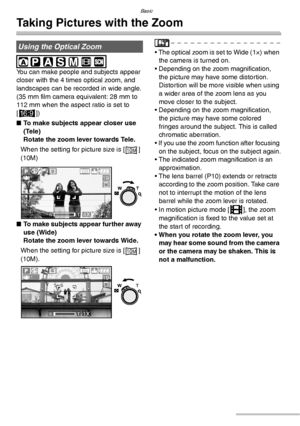

Taking Pictures with the Zoom

You can make people and subjects appear
closer with the 4 times optical zoom, and
landscapes can be recorded in wide angle.
(35 mm film camera equivalent: 28 mm to
112 mm when the aspect ratio is set to
[j])
nTo make subjects appear closer use
(Tele)
Rotate the zoom lever towards Tele.
When the setting for picture size is [ ]
(10M)
nTo make subjects appear further away
use (Wide)
Rotate the zoom lever towards Wide.
When the setting for picture size...

Basic
33VQT0Y44

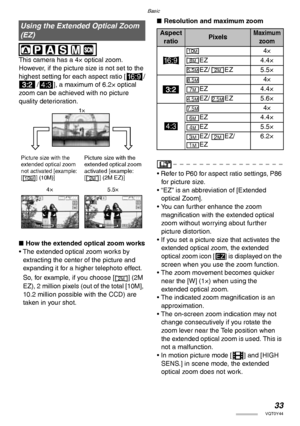

This camera has a 4× optical zoom.
However, if the picture size is not set to the
highest setting for each aspect ratio [j/
 /h], a maximum of 6.2× optical
zoom can be achieved with no picture
quality deterioration.
nHow the extended optical zoom works
• The extended optical zoom works by
extracting the center of the picture and
expanding it for a higher telephoto effect.
So, for example, if you choose [ ] (2M
EZ), 2 million pixels (out of the total [10M],
10.2 million possible...

Basic
34VQT0Y44

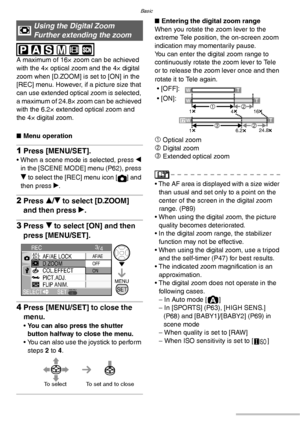

A maximum of 16× zoom can be achieved
with the 4× optical zoom and the 4× digital
zoom when [D.ZOOM] is set to [ON] in the
[REC] menu. However, if a picture size that
can use extended optical zoom is selected,
a maximum of 24.8× zoom can be achieved
with the 6.2× extended optical zoom and
the 4× digital zoom.
nMenu operation
1Press [MENU/SET].
• When a scene mode is selected, press w
in the [SCENE MODE] menu (P62), press
r to select the [REC] menu icon [ ] and
then press q....

Basic
35VQT0Y44

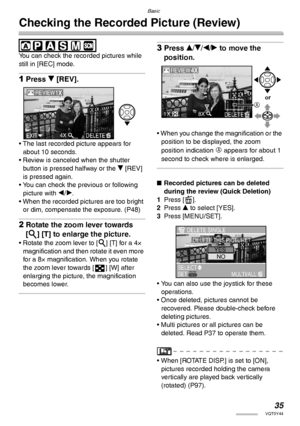

Checking the Recorded Picture (Review)

You can check the recorded pictures while
still in [REC] mode.
1Press r [REV].
• The last recorded picture appears for
about 10 seconds.
• Review is canceled when the shutter
button is pressed halfway or the r [REV]
is pressed again.
• You can check the previous or following
picture with w/q.
• When the recorded pictures are too bright
or dim, compensate the exposure. (P48)
2Rotate the zoom lever towards
[3] [T] to enlarge the picture.
•...

Basic
36VQT0Y44

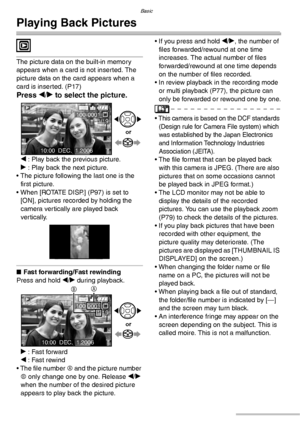

Playing Back Pictures

The picture data on the built-in memory
appears when a card is not inserted. The
picture data on the card appears when a
card is inserted. (P17)
Press w/q to select the picture.
w : Play back the previous picture.
q : Play back the next picture.
• The picture following the last one is the
first picture.
• When [ROTATE DISP.] (P97) is set to
[ON], pictures recorded by holding the
camera vertically are played back
vertically.
nFast forwarding/Fast rewinding...

Basic
37VQT0Y44

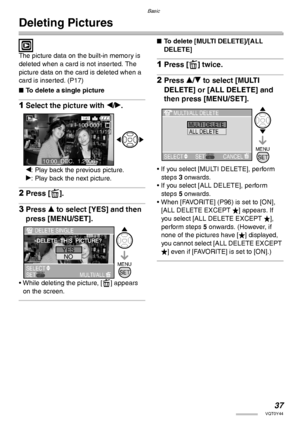

Deleting Pictures

The picture data on the built-in memory is
deleted when a card is not inserted. The
picture data on the card is deleted when a
card is inserted. (P17)
nTo delete a single picture
1Select the picture with w/q.
w: Play back the previous picture.
q: Play back the next picture.
2Press [A].
3Press e to select [YES] and then
press [MENU/SET].
• While deleting the picture, [A] appears
on the screen.
nTo delete [MULTI DELETE]/[ALL
DELETE]
1Press [A] twice.
2Press e/r to...

Basic
38VQT0Y44

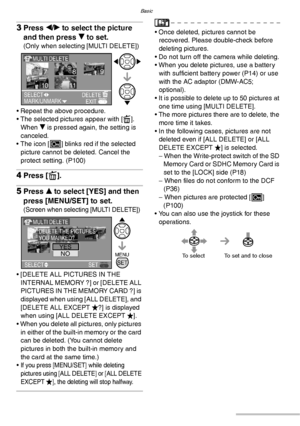

3Press w/q to select the picture
and then press r to set.
(Only when selecting [MULTI DELETE])
• Repeat the above procedure.
• The selected pictures appear with [A].
When r is pressed again, the setting is
canceled.
• The icon [c] blinks red if the selected
picture cannot be deleted. Cancel the
protect setting. (P100)
4Press [A].
5Press e to select [YES] and then
press [MENU/SET] to set.
(Screen when selecting [MULTI DELETE])
• [DELETE ALL PICTURES IN THE
INTERNAL MEMORY ?] or...

39VQT0Y44
Advanced

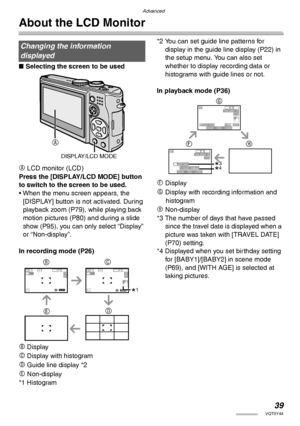

About the LCD Monitor
nSelecting the screen to be used
A LCD monitor (LCD)
Press the [DISPLAY/LCD MODE] button
to switch to the screen to be used.
• When the menu screen appears, the
[DISPLAY] button is not activated. During
playback zoom (P79), while playing back
motion pictures (P80) and during a slide
show (P95), you can only select “Display”
or “Non-display”.
In recording mode (P26)
B Display
C Display with histogram
D Guide line display *2
E Non-display
*1 Histogram*2 You...

Advanced
40VQT0Y44

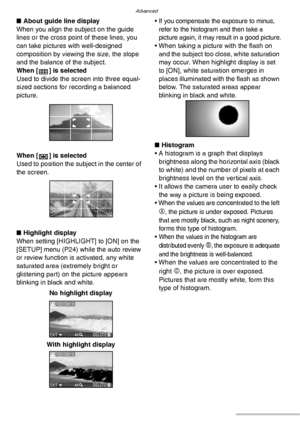

nAbout guide line display
When you align the subject on the guide
lines or the cross point of these lines, you
can take pictures with well-designed
composition by viewing the size, the slope
and the balance of the subject.
When [ ] is selected
Used to divide the screen into three equal-
sized sections for recording a balanced
picture.
When [ ] is selected
Used to position the subject in the center of
the screen.
nHighlight display
When setting [HIGHLIGHT] to [ON] on the
[SETUP]...
