Page 131
![Page 131
130 VQT3G90VQT3G90 131
Press the [DISP.] button to change display.
List of LCD monitor displays
■In recording
■In playback
• The order of priority for display is location name information, title, d\
estination, name ([Baby]/[Pet]),
name ([Face Recog.]).
∗ [h], [m] and [s] indicate “hour”, “minute” and “second”\
.
Screens shown here are only examples. The actual display may vary.
1 Recording Mode ( →20)
2 Recording quality ( →97)
Picture Size (→85)
Quality (→86)
Flash (→52)
Optical Image...](http://img.usermanuals.tech/thumb/58/38348/w300_Panasonic_Lumix_DMC-ZS10-130.png "Page 131
130 VQT3G90VQT3G90 131
Press the [DISP.] button to change display.
List of LCD monitor displays
■In recording
■In playback
• The order of priority for display is location name information, title, d\
estination, name ([Baby]/[Pet]),
name ([Face Recog.]).
∗ [h], [m] and [s] indicate “hour”, “minute” and “second”\
.
Screens shown here are only examples. The actual display may vary.
1 Recording Mode ( →20)
2 Recording quality ( →97)
Picture Size (→85)
Quality (→86)
Flash (→52)
Optical Image...")
130 VQT3G90VQT3G90 131 Press the [DISP.] button to change display. List of LCD monitor displays ■In recording ■In playback • The order of priority for display is location name information, title, d\ estination, name ([Baby]/[Pet]), name ([Face Recog.]). ∗ [h], [m] and [s] indicate “hour”, “minute” and “second”\ . Screens shown here are only examples. The actual display may vary. 1 Recording Mode ( →20) 2 Recording quality ( →97) Picture Size (→85) Quality (→86) Flash (→52) Optical Image...

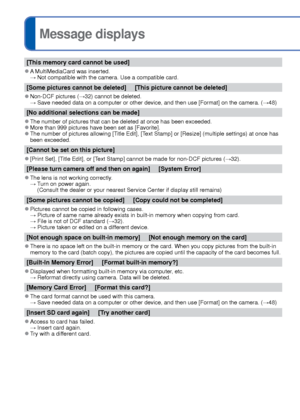

Page 132
![Page 132
132 VQT3G90VQT3G90 133
Meanings of and required responses to major messages displayed on LCD mo\
nitor.Message displays
[This memory card cannot be used]
●A MultiMediaCard was inserted.
→ Not compatible with the camera. Use a compatible card.
[Some pictures cannot be deleted] [This picture cannot be deleted]
●Non-DCF pictures ( →32) cannot be deleted.
→ Save needed data on a computer or other device, and then use [Format] on\
the camera. ( →48)
[No additional selections can be made]...](http://img.usermanuals.tech/thumb/58/38348/w300_Panasonic_Lumix_DMC-ZS10-131.png "Page 132
132 VQT3G90VQT3G90 133
Meanings of and required responses to major messages displayed on LCD mo\
nitor.Message displays
[This memory card cannot be used]
●A MultiMediaCard was inserted.
→ Not compatible with the camera. Use a compatible card.
[Some pictures cannot be deleted] [This picture cannot be deleted]
●Non-DCF pictures ( →32) cannot be deleted.
→ Save needed data on a computer or other device, and then use [Format] on\
the camera. ( →48)
[No additional selections can be made]...")
132 VQT3G90VQT3G90 133 Meanings of and required responses to major messages displayed on LCD mo\ nitor.Message displays [This memory card cannot be used] ●A MultiMediaCard was inserted. → Not compatible with the camera. Use a compatible card. [Some pictures cannot be deleted] [This picture cannot be deleted] ●Non-DCF pictures ( →32) cannot be deleted. → Save needed data on a computer or other device, and then use [Format] on\ the camera. ( →48) [No additional selections can be made]...

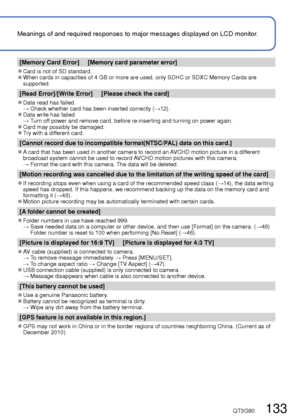

Page 133
![Page 133
132 VQT3G90VQT3G90 133
Meanings of and required responses to major messages displayed on LCD mo\
nitor.Message displays
[This memory card cannot be used]
●A MultiMediaCard was inserted.
→ Not compatible with the camera. Use a compatible card.
[Some pictures cannot be deleted] [This picture cannot be deleted]
●Non-DCF pictures ( →32) cannot be deleted.
→ Save needed data on a computer or other device, and then use [Format] on\
the camera. ( →48)
[No additional selections can be made]...](http://img.usermanuals.tech/thumb/58/38348/w300_Panasonic_Lumix_DMC-ZS10-132.png "Page 133
132 VQT3G90VQT3G90 133
Meanings of and required responses to major messages displayed on LCD mo\
nitor.Message displays
[This memory card cannot be used]
●A MultiMediaCard was inserted.
→ Not compatible with the camera. Use a compatible card.
[Some pictures cannot be deleted] [This picture cannot be deleted]
●Non-DCF pictures ( →32) cannot be deleted.
→ Save needed data on a computer or other device, and then use [Format] on\
the camera. ( →48)
[No additional selections can be made]...")
132 VQT3G90VQT3G90 133 Meanings of and required responses to major messages displayed on LCD mo\ nitor.Message displays [This memory card cannot be used] ●A MultiMediaCard was inserted. → Not compatible with the camera. Use a compatible card. [Some pictures cannot be deleted] [This picture cannot be deleted] ●Non-DCF pictures ( →32) cannot be deleted. → Save needed data on a computer or other device, and then use [Format] on\ the camera. ( →48) [No additional selections can be made]...
Page 134
![Page 134
134 VQT3G90VQT3G90 135
Try checking these items (→134 - 140) first.
If the problem persists, performing [Reset] in the [Setup] menu may reso\
lve the issue.
(Note that except for some items such as [Clock Set], all settings are \
returned to their
values from the time of purchase.)
Q&A Troubleshooting
Battery, power
Camera does not work even if power is turned on.
●Battery is not inserted correctly (→12), or needs recharging.
LCD monitor shuts off even if power is turned on.
●[Sleep Mode] is...](http://img.usermanuals.tech/thumb/58/38348/w300_Panasonic_Lumix_DMC-ZS10-133.png "Page 134
134 VQT3G90VQT3G90 135
Try checking these items (→134 - 140) first.
If the problem persists, performing [Reset] in the [Setup] menu may reso\
lve the issue.
(Note that except for some items such as [Clock Set], all settings are \
returned to their
values from the time of purchase.)
Q&A Troubleshooting
Battery, power
Camera does not work even if power is turned on.
●Battery is not inserted correctly (→12), or needs recharging.
LCD monitor shuts off even if power is turned on.
●[Sleep Mode] is...")
134 VQT3G90VQT3G90 135 Try checking these items (→134 - 140) first. If the problem persists, performing [Reset] in the [Setup] menu may reso\ lve the issue. (Note that except for some items such as [Clock Set], all settings are \ returned to their values from the time of purchase.) Q&A Troubleshooting Battery, power Camera does not work even if power is turned on. ●Battery is not inserted correctly (→12), or needs recharging. LCD monitor shuts off even if power is turned on. ●[Sleep Mode] is...

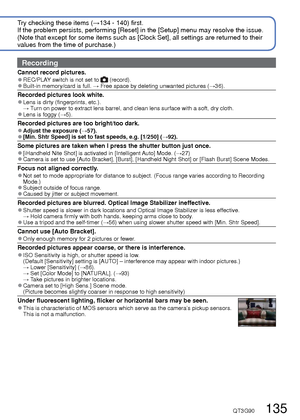

Page 135
![Page 135
134 VQT3G90VQT3G90 135
Try checking these items (→134 - 140) first.
If the problem persists, performing [Reset] in the [Setup] menu may reso\
lve the issue.
(Note that except for some items such as [Clock Set], all settings are \
returned to their
values from the time of purchase.)
Q&A Troubleshooting
Battery, power
Camera does not work even if power is turned on.
●Battery is not inserted correctly (→12), or needs recharging.
LCD monitor shuts off even if power is turned on.
●[Sleep Mode] is...](http://img.usermanuals.tech/thumb/58/38348/w300_Panasonic_Lumix_DMC-ZS10-134.png "Page 135
134 VQT3G90VQT3G90 135
Try checking these items (→134 - 140) first.
If the problem persists, performing [Reset] in the [Setup] menu may reso\
lve the issue.
(Note that except for some items such as [Clock Set], all settings are \
returned to their
values from the time of purchase.)
Q&A Troubleshooting
Battery, power
Camera does not work even if power is turned on.
●Battery is not inserted correctly (→12), or needs recharging.
LCD monitor shuts off even if power is turned on.
●[Sleep Mode] is...")
134 VQT3G90VQT3G90 135 Try checking these items (→134 - 140) first. If the problem persists, performing [Reset] in the [Setup] menu may reso\ lve the issue. (Note that except for some items such as [Clock Set], all settings are \ returned to their values from the time of purchase.) Q&A Troubleshooting Battery, power Camera does not work even if power is turned on. ●Battery is not inserted correctly (→12), or needs recharging. LCD monitor shuts off even if power is turned on. ●[Sleep Mode] is...

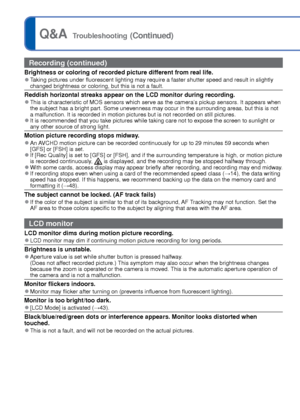

Page 136
![Page 136
136 VQT3G90VQT3G90 137
Q&A Troubleshooting (Continued)
Recording (continued)
Brightness or coloring of recorded picture different from real life.
●Taking pictures under fluorescent lighting may require a faster shutter s\
peed and result in slightly
changed brightness or coloring, but this is not a fault.
Reddish horizontal streaks appear on the LCD monitor during recording.
●This is characteristic of MOS sensors which serve as the camera’s pickup sensors. It appears when
the subject has a...](http://img.usermanuals.tech/thumb/58/38348/w300_Panasonic_Lumix_DMC-ZS10-135.png "Page 136
136 VQT3G90VQT3G90 137
Q&A Troubleshooting (Continued)
Recording (continued)
Brightness or coloring of recorded picture different from real life.
●Taking pictures under fluorescent lighting may require a faster shutter s\
peed and result in slightly
changed brightness or coloring, but this is not a fault.
Reddish horizontal streaks appear on the LCD monitor during recording.
●This is characteristic of MOS sensors which serve as the camera’s pickup sensors. It appears when
the subject has a...")
136 VQT3G90VQT3G90 137 Q&A Troubleshooting (Continued) Recording (continued) Brightness or coloring of recorded picture different from real life. ●Taking pictures under fluorescent lighting may require a faster shutter s\ peed and result in slightly changed brightness or coloring, but this is not a fault. Reddish horizontal streaks appear on the LCD monitor during recording. ●This is characteristic of MOS sensors which serve as the camera’s pickup sensors. It appears when the subject has a...
Page 137
![Page 137
136 VQT3G90VQT3G90 137
Q&A Troubleshooting (Continued)
Recording (continued)
Brightness or coloring of recorded picture different from real life.
●Taking pictures under fluorescent lighting may require a faster shutter s\
peed and result in slightly
changed brightness or coloring, but this is not a fault.
Reddish horizontal streaks appear on the LCD monitor during recording.
●This is characteristic of MOS sensors which serve as the camera’s pickup sensors. It appears when
the subject has a...](http://img.usermanuals.tech/thumb/58/38348/w300_Panasonic_Lumix_DMC-ZS10-136.png "Page 137
136 VQT3G90VQT3G90 137
Q&A Troubleshooting (Continued)
Recording (continued)
Brightness or coloring of recorded picture different from real life.
●Taking pictures under fluorescent lighting may require a faster shutter s\
peed and result in slightly
changed brightness or coloring, but this is not a fault.
Reddish horizontal streaks appear on the LCD monitor during recording.
●This is characteristic of MOS sensors which serve as the camera’s pickup sensors. It appears when
the subject has a...")
136 VQT3G90VQT3G90 137 Q&A Troubleshooting (Continued) Recording (continued) Brightness or coloring of recorded picture different from real life. ●Taking pictures under fluorescent lighting may require a faster shutter s\ peed and result in slightly changed brightness or coloring, but this is not a fault. Reddish horizontal streaks appear on the LCD monitor during recording. ●This is characteristic of MOS sensors which serve as the camera’s pickup sensors. It appears when the subject has a...

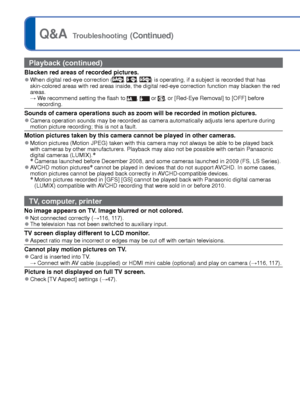

Page 138
![Page 138
138 VQT3G90VQT3G90 139
Q&A Troubleshooting (Continued)
Playback (continued)
Blacken red areas of recorded pictures.
●When digital red-eye correction (, , ) is operating, if a subject is recorded that has
skin-colored areas with red areas inside, the digital red-eye correction\
function may blacken the red
areas.
→ We recommend setting the flash to
, or , or [Red-Eye Removal] to [OFF] before
recording.
Sounds of camera operations such as zoom will be recorded in motion pict\
ures.
●Camera...](http://img.usermanuals.tech/thumb/58/38348/w300_Panasonic_Lumix_DMC-ZS10-137.png "Page 138
138 VQT3G90VQT3G90 139
Q&A Troubleshooting (Continued)
Playback (continued)
Blacken red areas of recorded pictures.
●When digital red-eye correction (, , ) is operating, if a subject is recorded that has
skin-colored areas with red areas inside, the digital red-eye correction\
function may blacken the red
areas.
→ We recommend setting the flash to
, or , or [Red-Eye Removal] to [OFF] before
recording.
Sounds of camera operations such as zoom will be recorded in motion pict\
ures.
●Camera...")
138 VQT3G90VQT3G90 139 Q&A Troubleshooting (Continued) Playback (continued) Blacken red areas of recorded pictures. ●When digital red-eye correction (, , ) is operating, if a subject is recorded that has skin-colored areas with red areas inside, the digital red-eye correction\ function may blacken the red areas. → We recommend setting the flash to , or , or [Red-Eye Removal] to [OFF] before recording. Sounds of camera operations such as zoom will be recorded in motion pict\ ures. ●Camera...
Page 139
![Page 139
138 VQT3G90VQT3G90 139
Q&A Troubleshooting (Continued)
Playback (continued)
Blacken red areas of recorded pictures.
●When digital red-eye correction (, , ) is operating, if a subject is recorded that has
skin-colored areas with red areas inside, the digital red-eye correction\
function may blacken the red
areas.
→ We recommend setting the flash to
, or , or [Red-Eye Removal] to [OFF] before
recording.
Sounds of camera operations such as zoom will be recorded in motion pict\
ures.
●Camera...](http://img.usermanuals.tech/thumb/58/38348/w300_Panasonic_Lumix_DMC-ZS10-138.png "Page 139
138 VQT3G90VQT3G90 139
Q&A Troubleshooting (Continued)
Playback (continued)
Blacken red areas of recorded pictures.
●When digital red-eye correction (, , ) is operating, if a subject is recorded that has
skin-colored areas with red areas inside, the digital red-eye correction\
function may blacken the red
areas.
→ We recommend setting the flash to
, or , or [Red-Eye Removal] to [OFF] before
recording.
Sounds of camera operations such as zoom will be recorded in motion pict\
ures.
●Camera...")
138 VQT3G90VQT3G90 139 Q&A Troubleshooting (Continued) Playback (continued) Blacken red areas of recorded pictures. ●When digital red-eye correction (, , ) is operating, if a subject is recorded that has skin-colored areas with red areas inside, the digital red-eye correction\ function may blacken the red areas. → We recommend setting the flash to , or , or [Red-Eye Removal] to [OFF] before recording. Sounds of camera operations such as zoom will be recorded in motion pict\ ures. ●Camera...

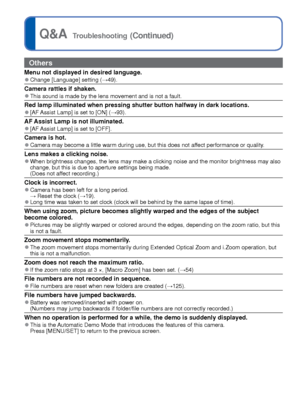

Page 140
![Page 140
140 VQT3G90VQT3G90 141
Q&A Troubleshooting (Continued)
Usage cautions and notes
Others
Menu not displayed in desired language.
●Change [Language] setting ( →49).
Camera rattles if shaken.
●This sound is made by the lens movement and is not a fault.
Red lamp illuminated when pressing shutter button halfway in dark locati\
ons.
●[AF Assist Lamp] is set to [ON] ( →93).
AF Assist Lamp is not illuminated.
●[AF Assist Lamp] is set to [OFF].
Camera is hot.
●Camera may become a little warm during use,...](http://img.usermanuals.tech/thumb/58/38348/w300_Panasonic_Lumix_DMC-ZS10-139.png "Page 140
140 VQT3G90VQT3G90 141
Q&A Troubleshooting (Continued)
Usage cautions and notes
Others
Menu not displayed in desired language.
●Change [Language] setting ( →49).
Camera rattles if shaken.
●This sound is made by the lens movement and is not a fault.
Red lamp illuminated when pressing shutter button halfway in dark locati\
ons.
●[AF Assist Lamp] is set to [ON] ( →93).
AF Assist Lamp is not illuminated.
●[AF Assist Lamp] is set to [OFF].
Camera is hot.
●Camera may become a little warm during use,...")
140 VQT3G90VQT3G90 141 Q&A Troubleshooting (Continued) Usage cautions and notes Others Menu not displayed in desired language. ●Change [Language] setting ( →49). Camera rattles if shaken. ●This sound is made by the lens movement and is not a fault. Red lamp illuminated when pressing shutter button halfway in dark locati\ ons. ●[AF Assist Lamp] is set to [ON] ( →93). AF Assist Lamp is not illuminated. ●[AF Assist Lamp] is set to [OFF]. Camera is hot. ●Camera may become a little warm during use,...
