Panasonic Microwave Oven Nn Sd372s Operating Instructions

9
oven components diagram
qexternal air vent
w internal air vent
e door safety lock system
r exhaust air vent
\f control Panel
y identification Plate
u glass tray
i roller ring
\b heat/vapor barrier film
(do not remove)
aWaveguide cover (do not remove)
sdoor release button
d Warning label
f Pop-out dial
g Menu label
h Power supply cord
j Power supply Plug
\bruyddaqw
\fh
j
f
gesi
e
IP\f898_\fBA70AP_29_120\f02  \42012-\f-2  Jerry 下下 9:24\4  Page 9

10
control Panel
beep sound:
When a button is pressed correctly, a beep will be heard.If a button is pressed and no beep is heard, the unit did not or cannot accept the instruction.
When operating, the oven will beep twice between programmed stages. At the end of anycomplete program, the oven will beep 5 times.
note:
If no operation after cooking program setting, 6 minutes later, the oven will automaticallycancel the cooking program. The display will return to clock or colon display.
Popcorn  Button
(*...

11
setting the clock
1\b• Press timer/clock twice.
 Colon flashes.
\f\b• Set time of day using
Time Select Dial.
 Time appears in
the display window;
colon continues
flashing.
3\b• Press  timer/clock .
 Colon stops flash-
ing; time of day is
entered.
notes:
1. To reset the clock, repeat step 1-3.
2. The clock will retain the time of day as long as the oven is plugged in andelectricity is supplied.
3. Clock is a 12-hour display. 4. Oven will not operate while colon is flashing.
starting to use
your...

1\f
selecting Power& cook time
notes:
1. For more than one stage cooking, repeatsteps 1 and 2 for each stage of cooking
before pressing  startButton. The maxi-
mum number of stages for cooking is 3.
When operating, two beeps will sound
between each stage. Five beeps will
sound at the end of the entire sequence.
2. When selecting P10 (HIGH) power for the first stage, you may begin at step 2.
3. When selecting P10 (HIGH) power, the maximum programmable time is 30 min-
utes. For other power levels, the...

13
notes on PoPcorn feature:
1. Pop one bag at a time.
2. Place bag in oven according to manu-facturers\ directions.
3. Start with popcorn at room tempera- ture.
4. Allow popped corn to sit unopened for a few minutes.
5. Open bag carefully to prevent burns, because steam will escape.
6. Do not reheat unpopped kernels or reuse bag.
note:
If popcorn is of a different weight than list- ed, follow instructions on popcorn pack-age.  never leave the oven unattended\b
If popping slows to 2 to 3 seconds between...

14
This feature allows you to defrost foods such as: meat, poultry and seafood simply by
entering the weight.
Place food on microwave safe dish.
example: to defrost 1\b5 pounds of meat
1\b• Press inverter turbo
defrost.
\f\b• Set weight of the food to 1.5 pounds, using
Time\fWeight Dial.
3\b• Press  start.
Defrosting will start. The
time will count down.
Larger weight foods will
cause a signal midway
through defrosting. If 2
beeps sound, turn over,
rearrange foods or shield
with aluminum foil....

15
defrosting tips & techniques(continued)
defrostafter defrosting
food tiMe at P3 during defrosting mins (per lb) stand time     rinse
fish and seafood
[up to 3 lbs. (1.4 kg)]
Crabmeat 6 Break apart\fRearrange
Fish Steaks 4 to 6 Turn over
5 min. YES
Fish Fillets 4 to 6 Turn over\fRearrange\fShield ends
Sea Scallops 4 to 6
Break apart\fRemove defrosted pieces
Whole fish4 to 6 Turn over
Meat Turn over\fRemove defrosted
Ground Meat 4 to 5 portion\fShield edges 10 min.
Roasts 4 to 8 Turn over\fShield ends...

16
auto reheatfeatureauto cook          feature
notes: For best results, follow these
recommendations:
1. All foods must be previously cooked. 2. Foods should always be covered loose- ly with plastic wrap, wax paper orcasserole lid.
3. All foods should have a covered stand time of 3 to 5 minutes.
4. DO NOT reheat bread and pastry prod- ucts using Auto Reheat. Use manualpower and time instead.
5. DO NOT reheat beverages.
6. Times are based on an approximate serving size of 4 oz.
7. A plate of food is...

17

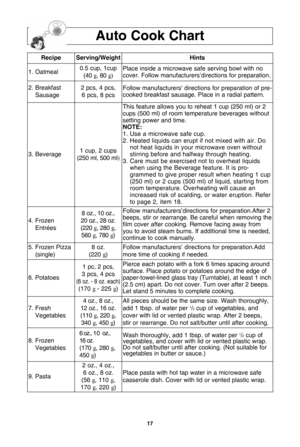

auto cook chart
recipeserving/Weighthints
1. Oatmeal0.5 cup, 1cup(40  g, 80  g)Place inside a microwave safe serving bowl with no
cover. Follow manufacturers\directions for preparation.
2. Breakfast
Sausage2 pcs, 4 pcs, 6 pcs, 8 pcsFollow manufacturers' directions for preparation of pre-
cooked breakfast sausage. Place in a radial pattern.
3. Beverage1 cup, 2 cups
(250 ml, 500 ml )
This feature allows you to reheat 1 cup (250 ml) or 2
cups (500 ml) of room temperature beverages without
setting...

18
timer feature
note:
1. When each stage finishes, a two-beepsignal sounds. At the end of the pro-gram, the oven will beep five times.
2. If the oven door is opened during Stand Time, Kitchen Timer or Delay
Time, the time on the display will con-tinue to count down.
3. Stand time and Delay Start cannot be programmed before any automaticFunction. This is to prevent the starting
temperature of food from rising before
defrosting or cooking begins. A changein starting temperature could causeinaccurate...
