Panasonic Microwave Oven Nn Sd768b Operating Instructions

9

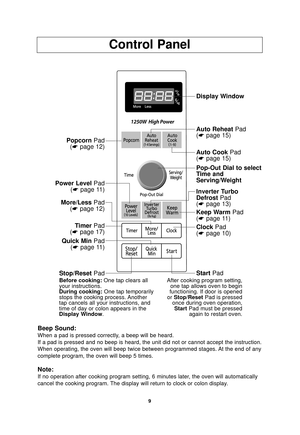

Control Panel
Beep Sound:
When a pad is pressed correctly, a beep will be heard.
If a pad is pressed and no beep is heard, the unit did not or cannot acc\
ept the instruction.
When operating, the oven will beep twice between programmed stages. At the end of any
complete program, the oven will beep 5 times.
Note:
If no operation after cooking program setting, 6 minutes later, the oven will automatically
cancel the cooking program. The display will return to clock or colon display.
Popcorn Pad
(☛ page...

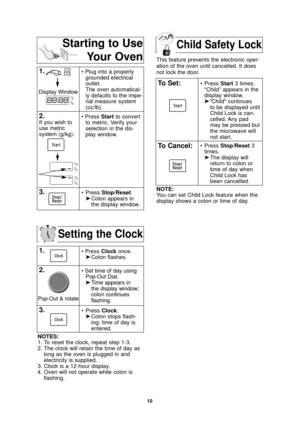

10
Setting the Clock
1.• Press Clockonce.
➤ Colon flashes.
2.• Set time of day using
Pop-Out Dial.
➤ Time appears in
the display window;
colon continues
flashing.
3.• Press  Clock.
➤ Colon stops flash-
ing; time of day is
entered.
NOTES:
1. To reset the clock, repeat step 1-3.
2. The clock will retain the time of day as long as the oven is plugged in and
electricity is supplied.
3. Clock is a 12-hour display.
4. Oven will not operate while colon is flashing.
Starting to Use
Your OvenChild Safety...

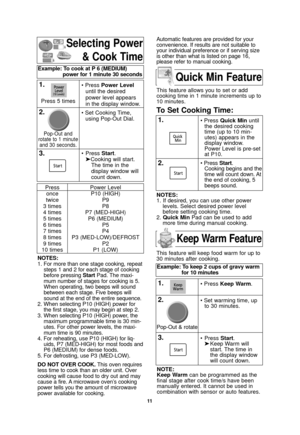

11
Selecting Power& Cook Time
NOTES:
1. For more than one stage cooking, repeatsteps 1 and 2 for each stage of cooking
before pressing Start Pad. The maxi-
mum number of stages for cooking is 5.
When operating, two beeps will sound
between each stage. Five beeps will
sound at the end of the entire sequence.
2. When selecting P10 (HIGH) power for the first stage, you may begin at step 2.
3. When selecting P10 (HIGH) power, the maximum programmable time is 30 min-
utes. For other power levels, the maxi-...

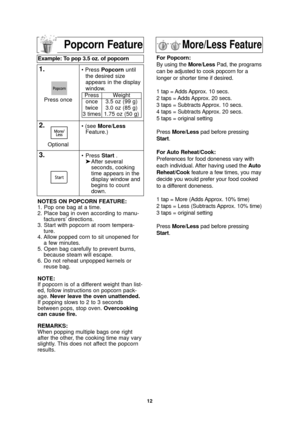

12
NOTES ON POPCORN FEATURE:
1. Pop one bag at a time.
2. Place bag in oven according to manu-facturers’ directions.
3. Start with popcorn at room tempera- ture.
4. Allow popped corn to sit unopened for a few minutes.
5. Open bag carefully to prevent burns, because steam will escape.
6. Do not reheat unpopped kernels or reuse bag.
NOTE:
If popcorn is of a different weight than list-
ed, follow instructions on popcorn pack-
age.  Never leave the oven unattended.
If popping slows to 2 to 3 seconds
between...

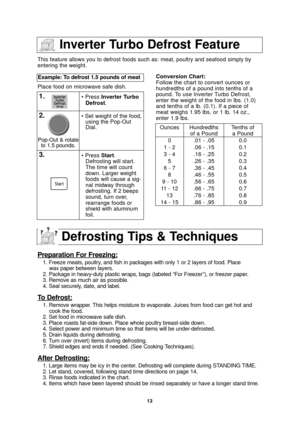

13
This feature allows you to defrost foods such as: meat, poultry and seaf\
ood simply by
entering the weight.
Place food on microwave safe dish.Example: To defrost 1.5 pounds of meat
1.• Press Inverter Turbo
Defrost.
2.• Set weight of the food,using the Pop-Out
Dial.
3.• Press Start.
Defrosting will start.
The time will count
down. Larger weight
foods will cause a sig-
nal midway through
defrosting. If 2 beeps
sound, turn over,
rearrange foods or
shield with aluminum
foil. Conversion Chart:
Follow...

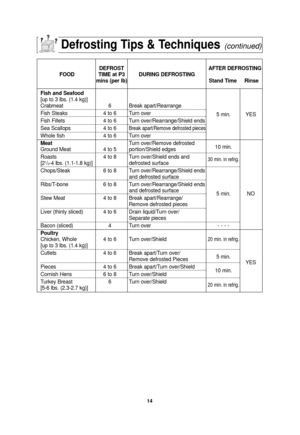

14
Defrosting Tips & Techniques(continued)
DEFROSTAFTER DEFROSTING
FOOD TIME at P3 DURING DEFROSTING mins (per lb) Stand Time     Rinse
Fish and Seafood
[up to 3 lbs. (1.4 kg)]
Crabmeat 6 Break apart/Rearrange
Fish Steaks 4 to 6 Turn over
5 min. YES
Fish Fillets 4 to 6 Turn over/Rearrange/Shield ends
Sea Scallops 4 to 6
Break apart/Remove defrosted pieces
Whole fish4 to 6 Turn over
Meat Turn over/Remove defrosted
Ground Meat 4 to 5 portion/Shield edges 10 min.
Roasts 4 to 8 Turn over/Shield ends and
30...

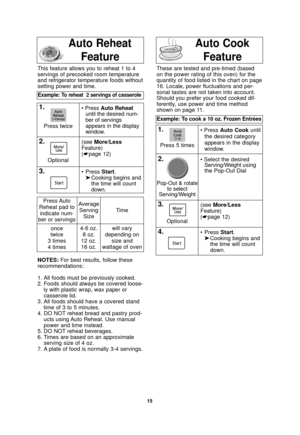

Auto ReheatFeature
15
Auto Cook      Feature
NOTES: For best results, follow these
recommendations:
1. All foods must be previously cooked.
2. Foods should always be covered loose- ly with plastic wrap, wax paper or
casserole lid.
3. All foods should have a covered stand time of 3 to 5 minutes.
4. DO NOT reheat bread and pastry prod- ucts using Auto Reheat. Use manual
power and time instead.
5. DO NOT reheat beverages.
6. Times are based on an approximate serving size of 4 oz.
7. A plate of food is...

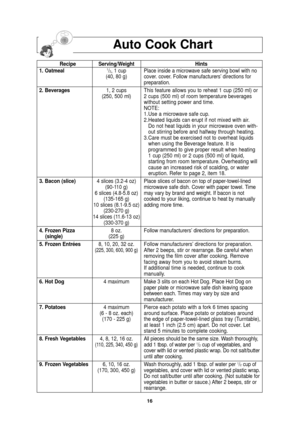

16
Auto Cook Chart
Recipe Serving/WeightHints
1. Oatmeal1/2, 1 cup Place inside a microwave safe serving bowl with no
(40, 80 g) cover. cover. Follow manufacturers’ directions for preparation.
2. Beverages 1, 2 cupsThis feature allows you to reheat 1 cup (250 ml) or
(250, 500 ml) 2  cups (500 ml) of room temperature beverages
without setting power and time.
NOTE:
1.Use a microwave safe cup.
2.Heated liquids can erupt if not mixed with air.  Do not heat liquids in your microwave oven with-
out...

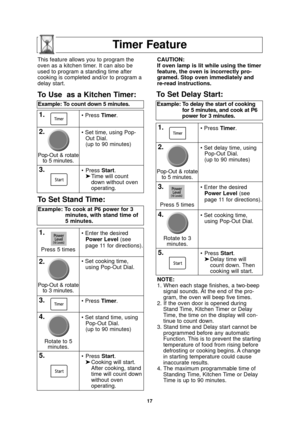

17
Timer Feature
NOTE:
1. When each stage finishes, a two-beepsignal sounds. At the end of the pro-
gram, the oven will beep five times.
2. If the oven door is opened during Stand Time, Kitchen Timer or Delay
Time, the time on the display will con-
tinue to count down.
3. Stand time and Delay start cannot be programmed before any automatic
Function. This is to prevent the starting
temperature of food from rising before
defrosting or cooking begins. A change
in starting temperature could cause
inaccurate...

18

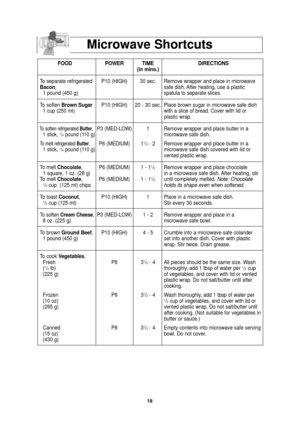

Microwave Shortcuts
FOODPOWER TIME DIRECTIONS
(in mins.)
To separate refrigerated  P10 (HIGH) 30 sec.  Remove wrapper and place in microwave   Bacon, safe dish. After heating, use a plastic
1 pound (450 g) spatula to separate slices.
To soften Brown Sugar P10 (HIGH) 20 - 30 sec. Place brown sugar in microwave safe dish
1 cup (250 ml) with a slice of bread. Cover with lid or
plastic wrap.
To soften refrigerated  Butter,P3 (MED-LOW) 1 Remove wrapper and place butter in a  1 stick, 1/4pound (110...
