Panasonic Multimedia Projection Display Pt 43lc14 Operating Instructions

81
Information

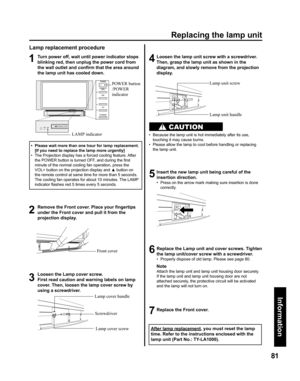

Replacing the lamp unit
Lamp replacement procedure
Turn power off, wait until power indicator stops
blinking red, then unplug the power cord from
the wall outlet and confi
rm that the area around
the lamp unit has cooled down.
LAMP indicatorPOWER button
/POWER
indicator
•   Please wait more than one hour for lamp replacement.
    [If you need to replace the lamp more urgently]
•   The Projection display has a forced cooling feature. After
the POWER button is turned OFF, and during...

82For assistance, please call : 1-888-VIEW PTV(843-9788) or, contact us via the web at: http://www.panasonic.com/contactinfo

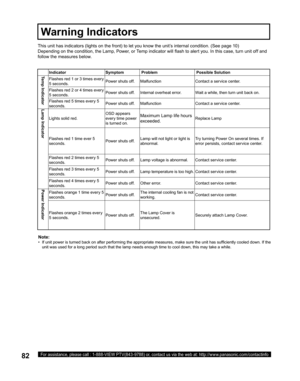

Warning Indicators
This unit has indicators (lights on the front) to let you know the unit’s internal condition. (See page 10)
Depending on the condition, the Lamp, Power, or Temp indicator will fl
ash to alert you. In this case, turn unit off and
follow the measures below.
Indicator Symptom  Problem   Possible Solution Temp IndicatorFlashes red 1 or 3 times every
5 seconds.Power...

83
Information

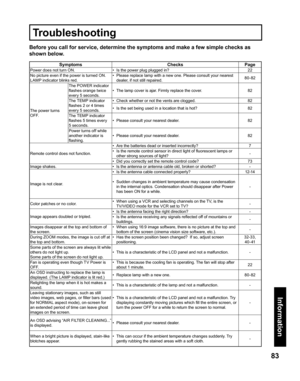

Before you call for service, determine the symptoms and make a few simple checks as
shown below.
Symptoms Checks Page
Power does not turn ON. •   Is the power plug plugged in? 22
No picture even if the power is turned ON.
LAMP indicator blinks red.•   Please replace lamp with a new one. Please consult your nearest
dealer, if not still repaired.80-82
The power turns
OFF.The POWER indicator
fl
ashes orange twice
every 5 seconds.•   The lamp cover is ajar. Firmly replace the cover. 82...

84For assistance, please call : 1-888-VIEW PTV(843-9788) or, contact us via the web at: http://www.panasonic.com/contactinfo

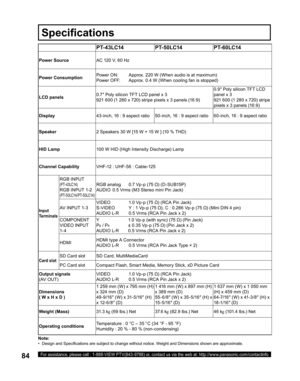

Note:
•   Design and Specifi
cations are subject to change without notice. Weight and Dimensions shown are approximate.
PT- 43LC14 PT-50LC14 PT-60LC14
Power SourceAC 120 V, 60 Hz
Power ConsumptionPower ON:  Approx. 220 W (When audio is at maximum)
Power OFF:  Approx. 0.4 W (When cooling fan is stopped)
LCD panels0.7″ Poly silicon TFT LCD panel x 3
921 600 (1 280 x 720) stripe...

85

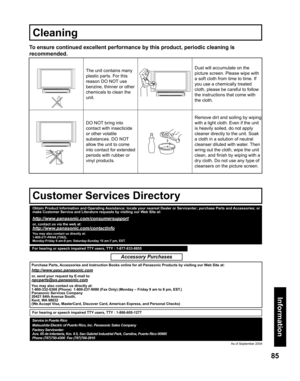

Information
To ensure continued excellent performance by this product, periodic cleaning is
recommended.
The unit contains many
plastic parts. For this
reason DO NOT use
benzine, thinner or other
chemicals to clean the
unit.Dust will accumulate on the
picture screen. Please wipe with
a soft cloth from time to time. If
you use a chemically treated
cloth, please be careful to follow
the instructions that come with
the cloth.
DO NOT bring into
contact with insecticide
or other volatile...

86For assistance, please call : 1-888-VIEW PTV(843-9788) or, contact us via the web at: http://www.panasonic.com/contactinfo
PANASONIC CONSUMER
ELECTRONICS COMPANY, DIVISION
OF PANASONIC CORPORATION
OF NORTH AMERICA
One Panasonic Way
Secaucus, New Jersey 07094PANASONIC SALES COMPANY,
DIVISION OF MATSUSHITA
ELECTRIC OF PUERTO RICO, INC.,
Ave. 65 de Infantería, Km. 9.5
San Gabriel Industrial Park, Carolina,
Puerto Rico 00985
Panasonic Multimedia Projection Display
Limited Warranty
Limited Warranty...

87

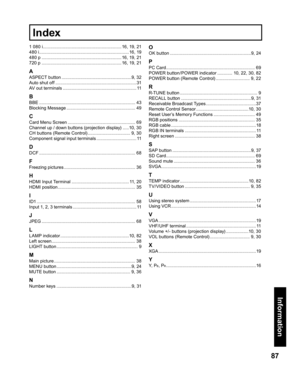

Information
1 080 i............................................................... 16, 19, 21
480 i........................................................................16, 19
480 p ................................................................ 16, 19, 21
720 p ................................................................ 16, 19, 21
A
ASPECT button ........................................................9, 32
Auto shut off .................................................................31
AV...

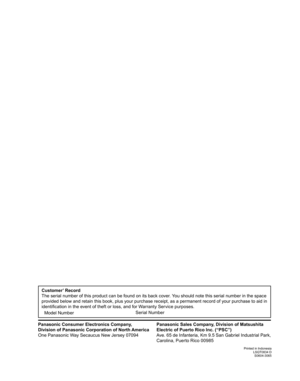

Customer’ Record
The serial number of this product can be found on its back cover. You should note this serial number in the space
provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase to aid in
identifi
cation in the event of theft or loss, and for Warranty Service purposes.
Panasonic Sales Company, Division of Matsushita
Electric of Puerto Rico Inc. (“PSC”)
Ave. 65 de Infanteria, Km 9.5 San Gabriel Industrial Park,
Carolina, Puerto Rico 00985...
