Panasonic Multimedia Projection Hdtv Pt 52lcx66 Operating Instructions

41
Advanced Op er a tion
Notes:
• Sound signals are output from the rear AUDIO OUT and
DIGITAL AUDIO OUT terminal. (p. 17-18)
• When volume is adjusted or the MUTE button is pressed from
the Remote Control, a message will be displayed.
Other Adjust
Press to select “Other adjust”.
Press to display the Other
adjust menu.1
Press to select each item.
Press to adjust each item.2
Item Explanations
AI sound Equalize overall volume levels across all
channels. (AI sound is not available in VIDEO
mode)....

For assistance, please call : 1-888-VIEW PTV(843-9788) or, contact us via the web at: http://www.panasonic.com/contactinfo42
Press to set unit to shut itself off after a preselected
amount of time.
Notes:
• Pressing the RECALL button with sleep timer set displays
remaining time.
• The on-screen display will flash 3, 2 and 1 to indicate the last
three (3) remaining minutes prior to turn off.
Press MENU to display the Main Menu screen.
Press to select “Timer” icon.
Press to display Timer
menu.
  Sleep...

43
Advanced Op er a tion
Enter Secret Code
A 4-digit code must be entered to view a blocked
program or change rating settings.
Press NUMBER keys to enter
your secret code.
Notes:
• Once ratings are set, restricted tapes or programs cannot be
accessed unless the secret code is entered.
• Do not forget your  password. If you have forgotten it,
please contact a service center. This Projection Display incorporates V-CHIP technology
to block the viewing of movies and television programs
according to the...

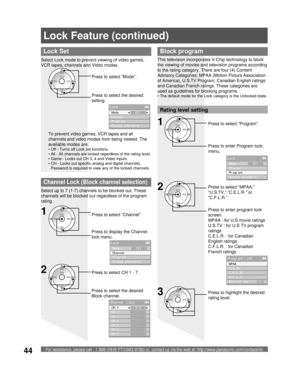

For assistance, please call : 1-888-VIEW PTV(843-9788) or, contact us via the web at: http://www.panasonic.com/contactinfo44
Press to highlight the desired
rating level.
Lock Set
To prevent video games, VCR tapes and all
channels and video modes from being viewed. The
available modes are:
• Off - Turns off Lock set functions.
• All - All channels are locked regardless of the rating level.
• Game - Locks out CH 3, 4 and Video inputs.
• CH - Locks out specific analog and digital channels.
Password is...

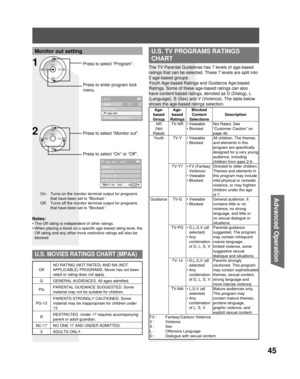

45
Advanced Op er a tion
Press to select “Monitor out”.
Press to select “On” or “Off”.
Notes:
• The Off rating is independent of other ratings.
• When placing a block on a specific age based rating level, the
Off rating and any other more restrictive ratings will also be
blocked.
U.S. MOVIES RATINGS CHART (MPAA)
Off NO RATING (NOT RATED) AND NA (NOT
APPLICABLE) PROGRAMS. Movie has not been
rated or rating does not apply.
G  GENERAL AUDIENCES. All ages admitted.
PG PARENTAL GUIDANCE SUGGESTED. Some...

For assistance, please call : 1-888-VIEW PTV(843-9788) or, contact us via the web at: http://www.panasonic.com/contactinfo46
CANADIAN ENGLISH RATINGS CHART
EExempt - Exempt programming includes: news,
sports, documentaries and other information
programming, talk shows, music videos, and variety
programming.
CProgramming intended for children under age 8. No
offensive language, nudity or sexual content.
C8+Programming generally considered acceptable for
children 8 years and over. No profanity, nudity...

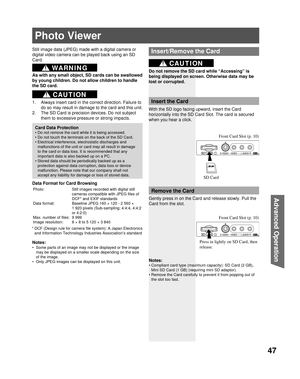

47
Advanced Op er a tion
Front Card Slot (p. 10)
Photo Viewer
Still image data ( JPEG) made with a digital camera or
digital video camera can be played back using an  SD
Card.
Data Format for Card Browsing
Notes:
•  Some parts of an image may not be displayed or the image
may be displayed on a smaller scale depending on the size
of the image.
•  Only JPEG images can be displayed on this unit.
Card Data Protection
• Do not remove the card while it is being accessed.
• Do not touch the terminals on...

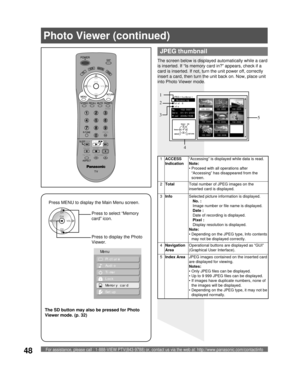

For assistance, please call : 1-888-VIEW PTV(843-9788) or, contact us via the web at: http://www.panasonic.com/contactinfo48
 JPEG thumbnail
   Accessing
 Total 8
 Info
No.   102-0001
Date  01/01/2000
Pixel 2048x1536
MENURETURN
OK Select
Select
102-0002102-0003
102-0005102-0006 102-0004
102-0007 102-0008
102-0001
  JPEG thumbnail
The screen below is displayed automatically while a card
is inserted. If “Is memory card in?” appears, check if a
card is inserted. If not, turn the unit power off, correctly...

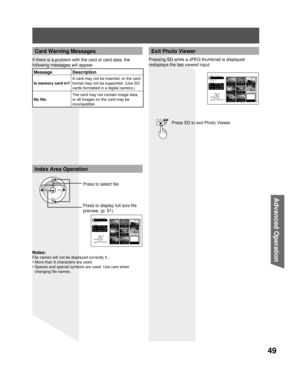

49
Advanced Op er a tion
Notes:
File names will not be displayed correctly if...
• More than 8 characters are used.
• Spaces and special symbols are used. Use care when
changing file names.
Press to display full size file
preview. (p. 51) Press to select file.Press SD to exit Photo Viewer.
Exit Photo Viewer
Index Area Operation
 JPEG thumbnail

 Total 8
 Info
No.   102-0006
Date  01/01/2000
Pixel 2048x1536
102-0002102-0003
102-0005102-0006 102-0004
102-0001
102-0007 102-0008MENURETURN
OK Select...

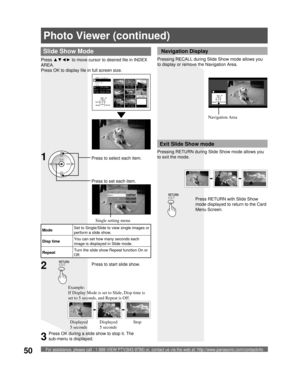

For assistance, please call : 1-888-VIEW PTV(843-9788) or, contact us via the web at: http://www.panasonic.com/contactinfo50
Photo Viewer (continued)
Slide Show Mode
Single setting
Mode          ◄Single►
Disp time        1
Repeat          Off
ModeSet to Single/Slide to view single images or
perform a slide show.
Disp timeYou can set how many seconds each
image is displayed in Slide mode.
RepeatTurn the slide show Repeat function On or
Off.
Press to start slide show.2
Press RETURN with Slide Show
mode...
