Panasonic Na 16vx1 Operating Instructions
Here you can view all the pages of manual Panasonic Na 16vx1 Operating Instructions. The Panasonic manuals for Washing Machine are available online for free. You can easily download all the documents as PDF.
Page 1
Operating Instructions Washing Machine (Household use) Model No.NA-16VX1 NA-16VG1 NA-14VA1 Thank you for buying a Panasonic washing machine. ● These Operating Instructions will help you use it properly and safely. ● In particular, make sure you read the Safety Precautions on pages 4 and 5 before you use your washing machine. ● Complete the guarantee card, including the purchase date and dealer's name, and keep it safely. NA-16VX1_E.indb 12009/08/05 11:33:30
Page 2
![Page 2
2
Consider the environment
Disposing of packaging The packaging we use to protect the washing machine from damage during transportation is all recyclable. For information on recycling, contact \
your local authority.
Disposing of Waste Electrical & Electronic Equipment
Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households)This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed...](http://img.usermanuals.tech/thumb/58/55379/w300_panasonic_na-16vx1-operating-instructions-1.png "Page 2
2
Consider the environment
Disposing of packaging The packaging we use to protect the washing machine from damage during transportation is all recyclable. For information on recycling, contact \
your local authority.
Disposing of Waste Electrical & Electronic Equipment
Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households)This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed...")
2 Consider the environment Disposing of packaging The packaging we use to protect the washing machine from damage during transportation is all recyclable. For information on recycling, contact \ your local authority. Disposing of Waste Electrical & Electronic Equipment Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households)This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed...
Page 3
3 Contents Read before using Consider the environment ....................2 Safety precautions (Please observe these fully.) .............................................................4 Know your washing machine ................ 6 Before you start washing ......................7 Using the buttons..................................8 How to lock or unlock the door .............9 How to add detergent and softener ...10 Selecting the programme ...................12 Power and water consumption...
Page 4
![Page 4
4
Safety precautions (Please observe these fully.)
Please read the following instructions to avoid danger to you or your pr\
operty.
We have split our safety precautions into two degrees of danger.
WARNINGThis describes issues which could cause death or
serious injury.
CAUTIONThis describes issues which could cause injury or damage your belongings.
WARNING
● If you will not be using the washing machine for a while, such as when you go
on holiday, turn off the water supply to the washing...](http://img.usermanuals.tech/thumb/58/55379/w300_panasonic_na-16vx1-operating-instructions-3.png "Page 4
4
Safety precautions (Please observe these fully.)
Please read the following instructions to avoid danger to you or your pr\
operty.
We have split our safety precautions into two degrees of danger.
WARNINGThis describes issues which could cause death or
serious injury.
CAUTIONThis describes issues which could cause injury or damage your belongings.
WARNING
● If you will not be using the washing machine for a while, such as when you go
on holiday, turn off the water supply to the washing...")
4 Safety precautions (Please observe these fully.) Please read the following instructions to avoid danger to you or your pr\ operty. We have split our safety precautions into two degrees of danger. WARNINGThis describes issues which could cause death or serious injury. CAUTIONThis describes issues which could cause injury or damage your belongings. WARNING ● If you will not be using the washing machine for a while, such as when you go on holiday, turn off the water supply to the washing...
Page 5
![Page 5
5
Read before using
Safety precautions
WARNING
●
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety\
.
● Children should be supervised to ensure that they do not play with the appliance.
● Do not touch the laundry inside the washing machine, until the drum...](http://img.usermanuals.tech/thumb/58/55379/w300_panasonic_na-16vx1-operating-instructions-4.png "Page 5
5
Read before using
Safety precautions
WARNING
●
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety\
.
● Children should be supervised to ensure that they do not play with the appliance.
● Do not touch the laundry inside the washing machine, until the drum...")

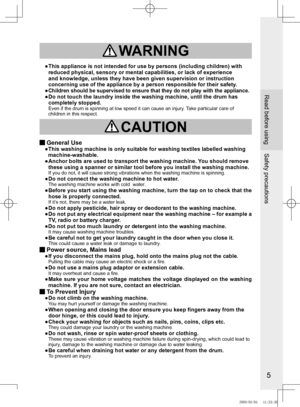

5 Read before using Safety precautions WARNING ● This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety\ . ● Children should be supervised to ensure that they do not play with the appliance. ● Do not touch the laundry inside the washing machine, until the drum...
Page 6

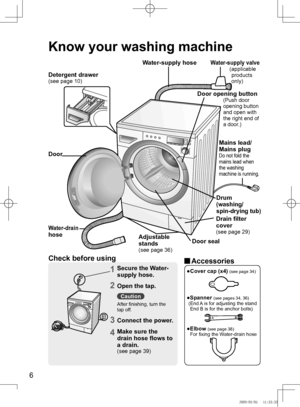

6 Know your washing machine Detergent drawer(see page 10) Door Water-drain hoseAdjustable stands(see page 36) Drum (washing/ spin-drying tub) Door opening button (Push door opening button and open with the right end of a door.) Mains lead/ Mains plugDo not fold the mains lead when the washing machine is running. Water-supply hose Check before using 1Secure the Water- supply hose. 2Open the tap. Caution After finishing, turn the tap off. 3Connect the power. 4Make sure the drain hose...
Page 7
![Page 7
7
Read before usingKnow your washing machine
Before you start washing
Before the first use
Do not put anything into the washing machine.Cotton 40 ºC programme is the default setting. Run the washing machin\
e for the first time without any detergent or clothing to rinse out any residue or\
moisture.
Organizing laundry
●
Read the washing label on each garment to help you sort your washing into different loads.
●
Sort the laundry by colour, type of fabric and by how soiled it is. This will help...](http://img.usermanuals.tech/thumb/58/55379/w300_panasonic_na-16vx1-operating-instructions-6.png "Page 7
7
Read before usingKnow your washing machine
Before you start washing
Before the first use
Do not put anything into the washing machine.Cotton 40 ºC programme is the default setting. Run the washing machin\
e for the first time without any detergent or clothing to rinse out any residue or\
moisture.
Organizing laundry
●
Read the washing label on each garment to help you sort your washing into different loads.
●
Sort the laundry by colour, type of fabric and by how soiled it is. This will help...")

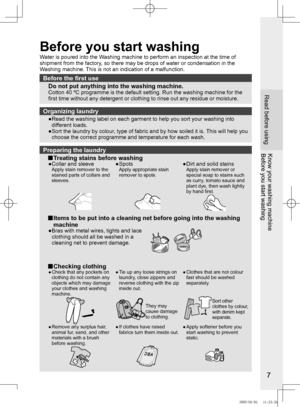

7 Read before usingKnow your washing machine Before you start washing Before the first use Do not put anything into the washing machine.Cotton 40 ºC programme is the default setting. Run the washing machin\ e for the first time without any detergent or clothing to rinse out any residue or\ moisture. Organizing laundry ● Read the washing label on each garment to help you sort your washing into different loads. ● Sort the laundry by colour, type of fabric and by how soiled it is. This will help...
Page 8
8 Example) Display on NA-16VG1Example) Display on NA-14VA1 * Example shows display when fully lit.* Example shows display when fully lit. Using the buttons Optional functions ● You can add functions to each basic programme to suit your laundry needs.● Some functions don’t apply to certain programmes.(see pages 14-15, 25) Progress indicator ● Tells you how far through each cycle your washing is.* on model NA-16VX1 only. Spin speed ● Shows the spin speed (in rpm) for the programme you’ve selected.●...
Page 9

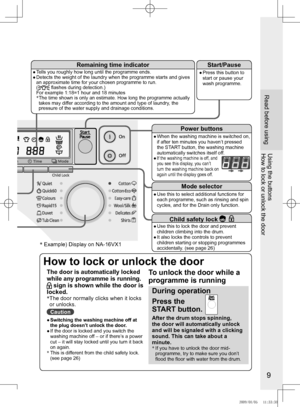

9 Read before using Using the buttonsHow to lock or unlock the door Mode selector ● Use this to select additional functions for each programme, such as rinsing and spin cycles, and for the Drain only function. Start/Pause ● Press this button to start or pause your wash programme. Remaining time indicator ● Tells you roughly how long until the programme ends.● Detects the weight of the laundry when the programme starts and gives an approximate time for your chosen programme to run.( flashes during...
Page 10
10 How to add detergent and softener Pull out the detergent drawer and add detergent or softener to the correct compartment. Only use detergents recommended for fully-automated washing machine. Refer to the instructions on the packaging for appropriate amounts to use for different wash programmes. Liquid detergent Add detergent to the relevant compartment in the drawer: Liquid detergent● Don’t use for Prewash programmes. (see page 25) Liquid mild detergent● Use for Wool wash...
