Panasonic Network Camera Bb Hcm331a Operating Instructions

Operating Instructions
11[For assistance, please call: 1-800-272-7033]
3.12 File Size and Number of Buffered Images ................................. 141
3.13 Number of Images on the SD Memory Card.............................. 142
3.14 Specifications ............................................................................. 143
Index ..................................................................................147

Operating Instructions
12

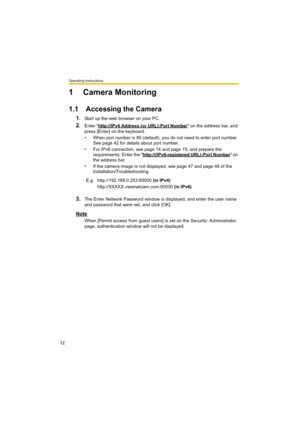

1 Camera Monitoring
1.1 Accessing the Camera
1.Start up the web browser on your PC.
2.Enter "http://IPv4 Address (or URL):Port Number" on the address bar, and
press [Enter] on the keyboard.
• When port number is 80 (default), you do not need to enter port number.
See page 42 for details about port number.
• For IPv6 connection, see page 14 and page 15, and prepare the
requirements. Enter the "http://(IPv6-registered URL):Port Number
" on
the address bar.
• If...

Operating Instructions
13[For assistance, please call: 1-800-272-7033]

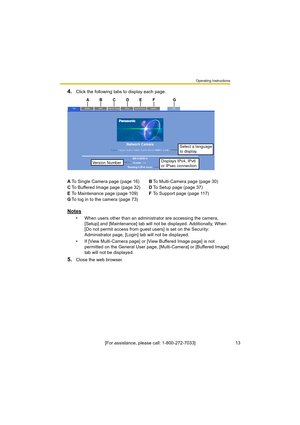

4.Click the following tabs to display each page.
Notes
• When users other than an administrator are accessing the camera,
[Setup] and [Maintenance] tab will not be displayed. Additionally, When
[Do not permit access from guest users] is set on the Security:
Administrator page, [Login] tab will not be displayed.
• If [View Multi-Camera page] or [View Buffered Image page] is not
permitted on the General User page, [Multi-Camera] or...

Operating Instructions
14

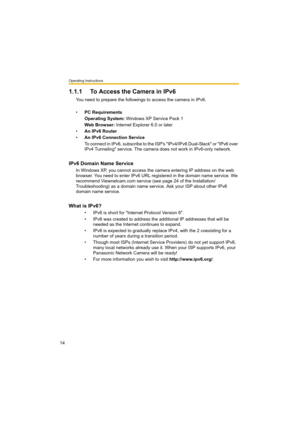

1.1.1 To Access the Camera in IPv6
You need to prepare the followings to access the camera in IPv6.
•PC Requirements
Operating System: Windows XP Service Pack 1
Web Browser: Internet Explorer 6.0 or later
•An IPv6 Router
•An IPv6 Connection Service
To  c o n n e c t  i n  I P v 6,  s u b s c r i b e  t o  t h e  I S P ' s  " I P v 4 / I P v 6 D u a l - St a c k "  o r  " I P v 6 o v e r
IPv4 Tunneling" service. The camera does not work in IPv6-only...

Operating Instructions
15[For assistance, please call: 1-800-272-7033]

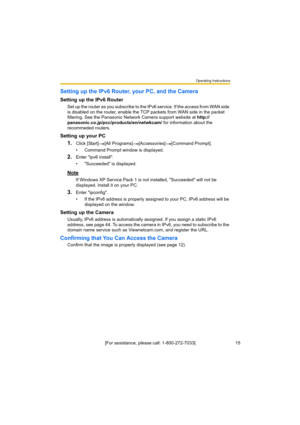

Setting up the IPv6 Router, your PC, and the Camera
Setting up the IPv6 Router
Set up the router as you subscribe to the IPv6 service. If the access from WAN side
is disabled on the router, enable the TCP packets from WAN side in the packet
filtering. See the Panasonic Network Camera support website at http://
panasonic.co.jp/pcc/products/en/netwkcam/ for information about the
recommeded routers.
Setting up your PC
1.Click [Start]...

Operating Instructions
16

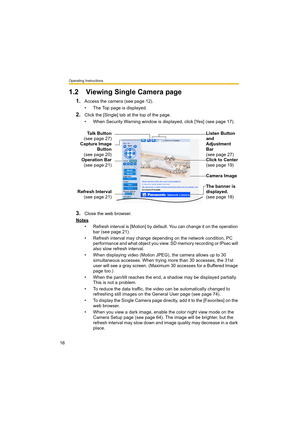

1.2 Viewing Single Camera page
1.Access the camera (see page 12).
• The Top page is displayed.
2.Click the [Single] tab at the top of the page.
• When Security Warning window is displayed, click [Yes] (see page 17).
3.Close the web browser.
Notes
• Refresh interval is [Motion] by default. You can change it on the operation
bar (see page 21).
• Refresh interval may change depending on the network condition, PC
performance and what object you view. SD memory recording or IPsec...

Operating Instructions
17[For assistance, please call: 1-800-272-7033]

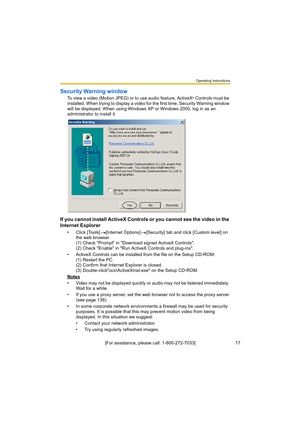

Security Warning window
To view a video (Motion JPEG) or to use audio feature, ActiveX® Controls must be
installed. When trying to display a video for the first time, Security Warning window
will be displayed. When using Windows XP or Windows 2000, log in as an
administrator to install it.
If you cannot install ActiveX Controls or you cannot see the video in the
Internet Explorer
• Click [Tools] [Internet Options] [Security] tab...

Operating Instructions
18

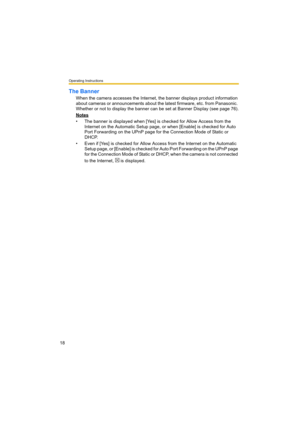

The Banner
When the camera accesses the Internet, the banner displays product information
about cameras or announcements about the latest firmware, etc. from Panasonic.
Whether or not to display the banner can be set at Banner Display (see page 76).
Notes
• The banner is displayed when [Yes] is checked for Allow Access from the
Internet on the Automatic Setup page, or when [Enable] is checked for Auto
Port Forwarding on the UPnP page for the Connection Mode of Static or...

Operating Instructions
19[For assistance, please call: 1-800-272-7033]

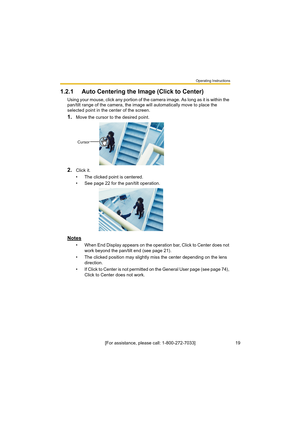

1.2.1 Auto Centering the Image (Click to Center)
Using your mouse, click any portion of the camera image. As long as it is within the
pan/tilt range of the camera, the image will automatically move to place the
selected point in the center of the screen.
1.Move the cursor to the desired point.
2.Click it.
• The clicked point is centered.
• See page 22 for the pan/tilt operation.
Notes
• When End Display appears on the operation bar,...

Operating Instructions
20

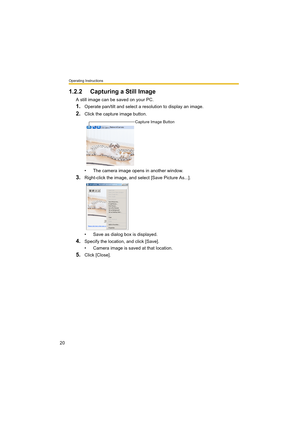

1.2.2 Capturing a Still Image
A still image can be saved on your PC.
1.Operate pan/tilt and select a resolution to display an image.
2.Click the capture image button.
• The camera image opens in another window.
3.Right-click the image, and select [Save Picture As...].
• Save as dialog box is displayed.
4.Specify the location, and click [Save].
• Camera image is saved at that location.
5.Click [Close].
Capture Image Button
