Panasonic Network Camera BB-HCM403A Getting Started Manual

Troubleshooting
9

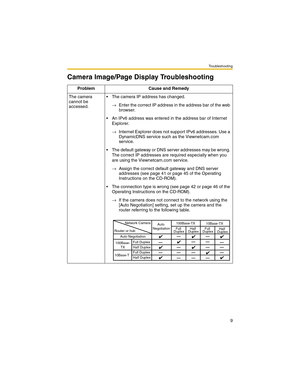

Camera Image/Page Display Troubleshooting
Problem Cause and Remedy
The camera
cannot be
accessed. The camera IP address has changed.
→Enter the correct IP address in the address bar of the web
browser.
 An IPv6 address was entered in the address bar of Internet
Explorer.
→Internet Explorer does not support IPv6 addresses. Use a
DynamicDNS service such as the Viewnetcam.com
service.
 The default gateway or DNS server addresses may be wrong.
The correct IP addresses are required...

Troubleshooting
10

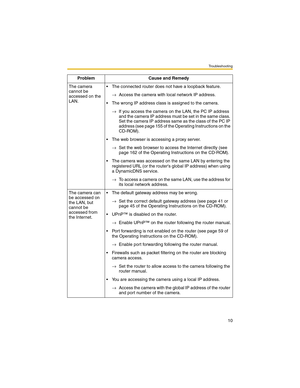

The camera
cannot be
accessed on the
LAN. The connected router does not have a loopback feature.
→Access the camera with local network IP address.
 The wrong IP address class is assigned to the camera.
→If you access the camera on the LAN, the PC IP address
and the camera IP address must be set in the same class.
Set the camera IP address same as the class of the PC IP
address (see page 155 of the Operating Instructions on the
CD-ROM).
 The web browser is accessing a proxy...

Troubleshooting
11
Authentication
windows are
consequently
displayed. The user name and password for the administrator have been
changed. Or the user name and password for the general
users have been changed.
→Close the web browser, and access the camera again.
Only half of the
image is
displayed. You are using Internet Explorer 4.xx or lower.
→Upgrade Internet Explorer to version 6.0 or greater.
The camera
image is not
displayed, or not
displayed
properly.ActiveX
® Controls are not...

Troubleshooting
12

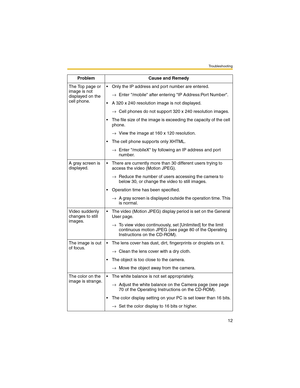

The Top page or
image is not
displayed on the
cell phone. Only the IP address and port number are entered.
→Enter /mobile after entering IP Address:Port Number.
 A 320 x 240 resolution image is not displayed.
→Cell phones do not support 320 x 240 resolution images.
 The file size of the image is exceeding the capacity of the cell
phone.
→View the image at 160 x 120 resolution.
 The cell phone supports only XHTML.
→Enter /mobileX by following an IP address and port
number.
A...

Troubleshooting
13
The image has
noise. The object is dark.
→Increase the light level in the area around the camera.
 The colors setting of the monitor is set to less than 16 bit high
color.
→Set it to 16 bit high color or greater.
An old image is
displayed. Old images are temporarily stored on the web browser.
→Set [Every visit to the page] on the web browser to check
for temporary Internet files (see page 165 of the Operating
Instructions on the CD-ROM).
The image
refreshes very
slowly....

Troubleshooting
14

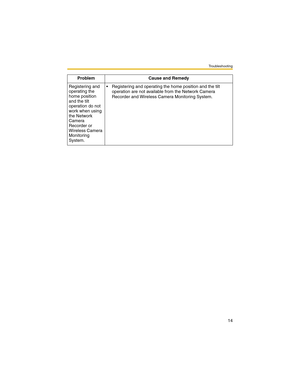

Registering and
operating the
home position
and the tilt
operation do not
work when using
the Network
Camera
Recorder or
Wireless Camera
Monitoring
System. Registering and operating the home position and the tilt
operation are not available from the Network Camera
Recorder and Wireless Camera Monitoring System. Problem Cause and Remedy

Troubleshooting
15

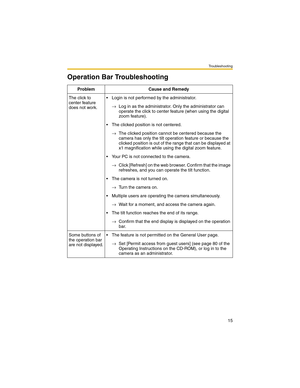

Operation Bar Troubleshooting
Problem Cause and Remedy
The click to
center feature
does not work. Login is not performed by the administrator.
→Log in as the administrator. Only the administrator can
operate the click to center feature (when using the digital
zoom feature).
 The clicked position is not centered.
→The clicked position cannot be centered because the
camera has only the tilt operation feature or because the
clicked position is out of the range that can be...

Troubleshooting
16

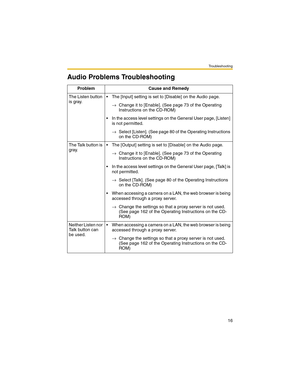

Audio Problems Troubleshooting
Problem Cause and Remedy
The Listen button
is gray. The [Input] setting is set to [Disable] on the Audio page.
→Change it to [Enable]. (See page 73 of the Operating
Instructions on the CD-ROM)
 In the access level settings on the General User page, [Listen]
is not permitted.
→Select [Listen]. (See page 80 of the Operating Instructions
on the CD-ROM)
The Talk button is
gray. The [Output] setting is set to [Disable] on the Audio page.
→Change it to...

Troubleshooting
17

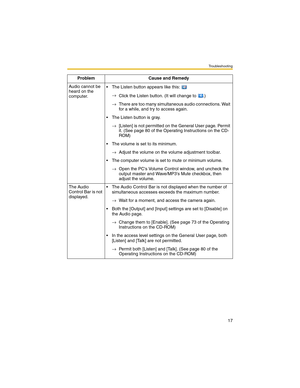

Audio cannot be
heard on the
computer. The Listen button appears like this:
→
Click the Listen button. (It will change to  .)
→There are too many simultaneous audio connections. Wait
for a while, and try to access again.
 The Listen button is gray.
→[Listen] is not permitted on the General User page. Permit
it. (See page 80 of the Operating Instructions on the CD-
ROM)
 The volume is set to its minimum.
→Adjust the volume on the volume adjustment toolbar.
 The computer volume...

Troubleshooting
18

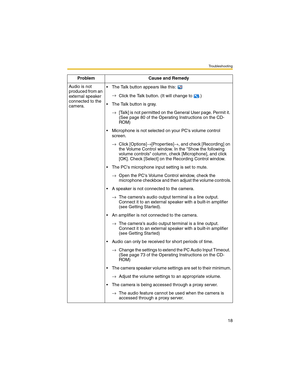

Audio is not
produced from an
external speaker
connected to the
camera. The Talk button appears like this:
→
Click the Talk button. (It will change to  .)
 The Talk button is gray.
→[Talk] is not permitted on the General User page. Permit it.
(See page 80 of the Operating Instructions on the CD-
ROM)
 Microphone is not selected on your PCs volume control
screen.
→Click [Options]→[Properties]→, and check [Recording] on
the Volume Control window. In the Show the following...
