Panasonic Network Camera Wv Sw138 Installation Guide

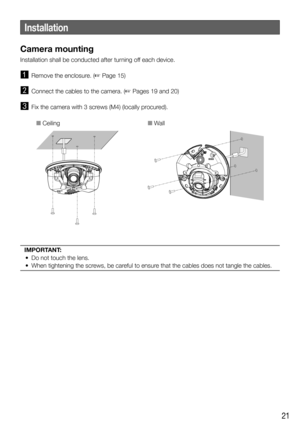

21
Installation
Camera mounting
Installation shall be conducted after turning off each device.

  Remove the enclosure. ( Page 15)
  Connect the cables to the camera. ( Pages 19 and 20)
  Fix the camera with 3 screws (M4) (locally procured).
O CeilingO Wall
IMPORTANT:
  •  Do not touch the lens.
  •  When tightening the screws, be careful to ensure that the cables does not tangle the cables.

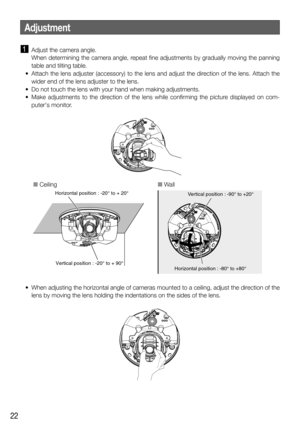

22
Adjustment

  Adjust the camera angle.
  When determining the camera angle, repeat fine adjustments by gradually moving the panning
table and tilting table.
  •  Attach the lens adjuster (accessory) to the lens and adjust the direction of the lens. Attach the
wider end of the lens adjuster to the lens.
  •  Do not touch the lens with your hand when making adjustments.
  •  Make adjustments to the direction of the lens while confirming the picture displayed on com-
puters monitor.
O CeilingO Wall...

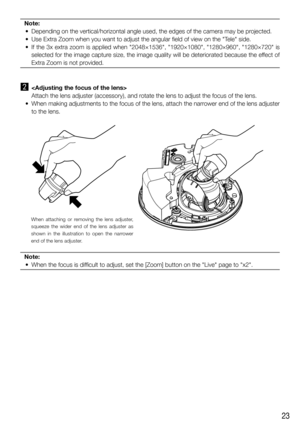

23
Note:
  •  Depending on the vertical/horizontal angle used, the edges of the camera may be projected.
  •  Use Extra Zoom when you want to adjust the angular field of view on the Tele side.
  •  If the 3x extra zoom is applied when 2048×1536, 1920×1080, 1280×960, 1280×720 is
selected for the image capture size, the image quality will be deteriorated because the effect of
Extra Zoom is not provided.


    Attach the lens adjuster (accessory), and rotate the lens to adjust the focus of the lens....

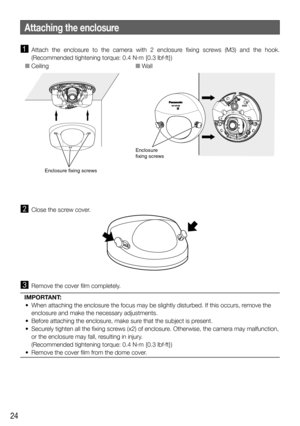

24

 Attach the enclosure to the camera with 2 enclosure fixing screws (M3) and the hook.
(Recommended tightening torque: 0.4 N·m {0.3 lbf·ft})
Enclosure fixing screws
Enclosure
fixing screws
O CeilingO Wall
  Close the screw cover.
  Remove the cover film completely.
IMPORTANT:
  •  When attaching the enclosure the focus may be slightly disturbed. If this occurs, remove the
enclosure and make the necessary adjustments.
  •  Before attaching the enclosure, make sure that the subject is present.
  •...

25

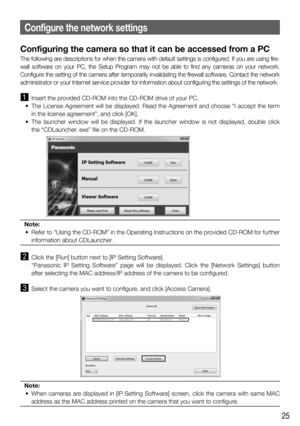

Configuring the camera so that it can be accessed from a PC
The following are descriptions for when the camera with default settings is configured. If you are using fire-
wall software on your PC, the Setup Program may not be able to find any cameras on your network.
Configure the setting of the camera after temporarily invalidating the firewall software. Contact the network
administrator or your Internet service provider for information about configuring the settings of the network.

  Insert the...

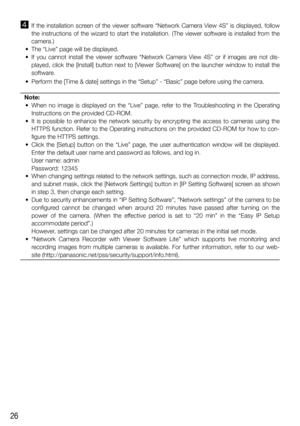

26
  If the installation screen of the viewer software “Network Camera View 4S” is displayed, follow
the instructions of the wizard to start the installation. (The viewer software is installed from the
camera.)
  •  The “Live” page will be displayed.
  •  If you cannot install the viewer software “Network Camera View 4S” or if images are not dis-
played, click the [Install] button next to [Viewer Software] on the launcher window to install the
software.
  •  Perform the [Time & date] settings in the...

27

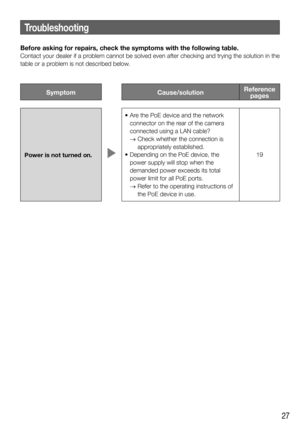

Troubleshooting
Before asking for repairs, check the symptoms with the following table.
Contact your dealer if a problem cannot be solved even after checking and trying the solution in the
table or a problem is not described below.
Symptom Cause/solutionReference
pages
Power is not turned on.
 •  Are the PoE device and the network
connector on the rear of the camera
connected using a LAN cable?
    Check whether the connection is
appropriately established.
 •  Depending on the PoE device,...

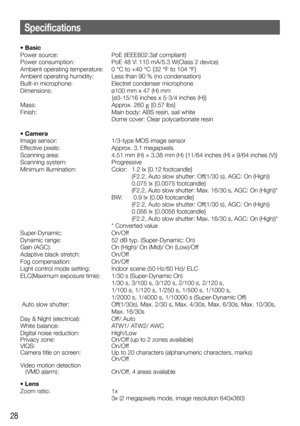

28
• Basic
Power source:  PoE (IEEE802.3af compliant)
Power consumption:  PoE 48 V: 110 mA/5.3 W(Class 2 device)
Ambient operating temperature:  0 °C to +40 °C {32 °F to 104 °F}
Ambient operating humidity:  Less than 90 % (no condensation)
Built-in microphone:  Electret condenser microphone
Dimensions:  ø100 mm x 47 (H) mm
{ø3-15/16 inches x 5-3/4 inches (H)}
Mass: Approx. 260 g {0.57 lbs}
Finish:  Main body: ABS resin, sail white
    Dome cover: Clear polycarbonate resin
• Camera
Image sensor:...

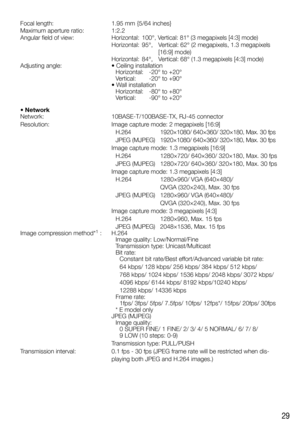

29
Focal length:  1.95 mm {5/64 inches}
Maximum aperture ratio:  1:2.2
Angular field of view:  Horizontal:  100°, Vertical: 81° (3 megapixels [4:3] mode)
    Horizontal:  95°,  Vertical: 62° (2 megapixels, 1.3 megapixels
  [16:9] mode)
    Horizontal:  84°,  Vertical: 68° (1.3 megapixels [4:3] mode)
Adjusting angle: • Ceiling installation
      Horizontal:  -20° to +20°
  Vertical:  -20° to +90°
  • Wall installation
      Horizontal:  -80° to +80°
      Vertical:  -90° to +20°
• Network
Network:...

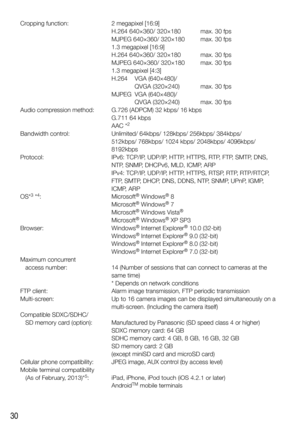

30
Cropping function:  2 megapixel [16:9]
    H.264 640×360/ 320×180  max. 30 fps
    MJPEG 640×360/ 320×180  max. 30 fps
    1.3 megapixel [16:9]
    H.264 640×360/ 320×180  max. 30 fps
    MJPEG 640×360/ 320×180  max. 30 fps
    1.3 megapixel [4:3]
   H.264 VGA (640×480)/
      QVGA (320×240)  max. 30 fps
   MJPEG VGA (640×480)/
      QVGA (320×240)  max. 30 fps
Audio compression method:  G.726 (ADPCM) 32 kbps/ 16 kbps
    G.711 64 kbps
   AAC *
2
Bandwidth control:  Unlimited/ 64kbps/ 128kbps/...
