Panasonic Portable CD Player Sl Ct700 Operating Instructions

≥You aren’t using the special rechargeable batteries.
≥You must insert two batteries before you can recharge them.
≥The unit must be off before you can recharge.Cannot recharge.
The AC adaptor becomes
warm during recharging.This is normal.
≥
This may occur after the first time you recharge the batteries or
after you haven’t used them for a long time. Play time should be
restored after a few recharges.
≥The batteries can go flat if you leave the AC adaptor
connected after recharging is complete.
The...

Batteries used
2 optional
alkaline batteries
2 supplied
rechargeable
batteries
2 supplied
rechargeable and 2
alkaline batteries
Audio (CD-DA)No. of channels: 2 (left and right, stereo)Frequency response: 20 to 20,000 Hz
(i0.5 dB toj10 dB)
DA converter: 1 bit, MASH
Headphone output level:
RMS max. 8 mW
i8 mW/
16≠(adjustable)
PickupLight source: Semiconductor laser
Wavelength: 780 nm
MP3Supported bit-rates:
32 kbps to 320 kbps
(128 kbps is recommended)
Supported sampling frequency:
48 kHz/44.1 kHz/32...

ONLY FOR U.S.A.
3
Panasonic Consumer Electronics Company,
Division of Matsushita Electric Corporation of America
One Panasonic Way Secaucus, New Jersey 07094Panasonic Sales Company, Division of Matsushita Electric of Puerto Rico, Inc.
Ave. 65 de Infantería, Km. 9.5
San Gabriel Industrial Park, Carolina, Puerto Rico 00985
Panasonic Portable Audio Products Limited WarrantyLimited Warranty CoverageIf your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer...

Location of controls/Connection to other equipment Turn off this unit and the other equipment  before connection.
4
To DC IN jack To Battery case terminal
(EXT BATT)
Audio system
Adjust the volume level
on the audio system.
AC adaptorHousehold AC outletExternal battery case
Car power adaptor (SH-CDC9) (not included)
≥You can recharge the batteries
with this connection.
Some cannot
be connected.
Car audio
To CD or AUX
terminals
Audio cable (not included)
Car stereo cassette adaptor
(SH-CDM10A) (not...

1         0:01
1
2
34
2
3
4

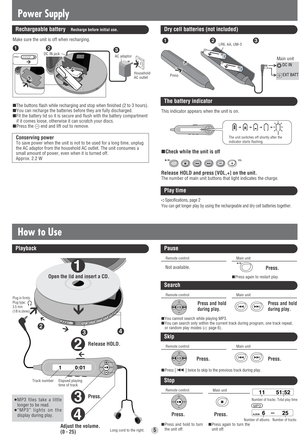

Power Supply
Playback
Open the lid and insert a CD.
Release HOLD.
Track number Elapsed playing
time of track
Press.
Adjust the volume.
(0 - 25)≥MP3 files take a little
longer to be read.
≥“MP3” lights on the
display during play.
5
Rechargeable battery   Recharge before initial use.
Make sure the unit is off when recharging.
∫The buttons flash while recharging and stop when finished (2 to 3 hours).
∫You can recharge the batteries before they are fully discharged.
∫Fit the...

ALBUM MODE
ALBUM3 –    10
1
4
3
2
M3   – – 01
Playing MP3
Starting play from an album (Album skip)
Press and hold until the
album you want appears.
Album numberNumber of tracks
Playing only the tracks in a selected album (Album mode)
Each time you press and hold [MODE]
No display
(canceled)
∫You can select another album with album skip.
∫You cannot turn album mode on during program play.
Changing the display
Each time you press and hold [$MEMO/%DISP]
Album
titleTrack
titleID3
album titleTrack number...
