≥You aren’t using the special rechargeable batteries.
≥You must insert two batteries before you can recharge them.
≥The unit must be off before you can recharge.Cannot recharge.
The AC adaptor becomes
warm during recharging.This is normal.
≥
This may occur after the first time you recharge the batteries or
after you haven’t used them for a long time. Play time should be
restored after a few recharges.
≥The batteries can go flat if you leave the AC adaptor
connected after recharging is complete.
The...

Batteries used
2 optional
alkaline batteries
2 supplied
rechargeable
batteries
2 supplied
rechargeable and 2
alkaline batteries
Audio (CD-DA)No. of channels: 2 (left and right, stereo)Frequency response: 20 to 20,000 Hz
(i0.5 dB toj10 dB)
DA converter: 1 bit, MASH
Headphone output level:
RMS max. 6 mW
i6 mW/
16≠(adjustable)
Speaker output level:
RMS max. 1.2 W
i1.2 W
PickupLight source: Semiconductor laser
Wavelength: 780 nm
MP3Supported bit-rates:
32 kbps to 320 kbps
(128 kbps is recommended)...

ONLY FOR U.S.A.
3
Panasonic Consumer Electronics Company,
Division of Matsushita Electric Corporation of America
One Panasonic Way Secaucus, New Jersey 07094Panasonic Sales Company, Division of Matsushita Electric of Puerto Rico, Inc.
Ave. 65 de Infantería, Km. 9.5
San Gabriel Industrial Park, Carolina, Puerto Rico 00985
Panasonic Portable Audio Products Limited WarrantyLimited Warranty CoverageIf your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer...

Location of controls/Connection to other equipment Turn off this unit and the other equipment  before connection.
Power Supply
Rechargeable battery   Recharge before initial use.
Make sure the unit is off when recharging.
∫You can recharge the batteries before they are fully discharged.
∫Fit the battery lid so it is secure and flush with the battery compartment
if it comes loose, otherwise it can scratch your discs.
HOL
OPEN
-
+-
+
HOLDOPEN
1
4
23AC power supply cord
DC IN jack AC adaptor
To household AC...

1         0:01
2
2
3
4
4
1
3

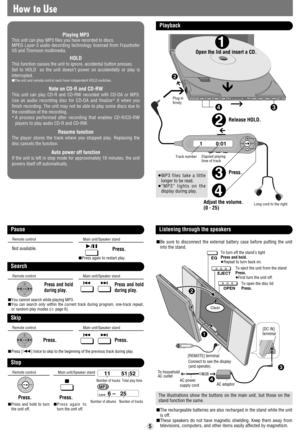

How to Use
Playback
Stop
Open the lid and insert a CD.
Release HOLD.
Track number Elapsed playing
time of track
Number of tracks Total play time
Number of albums Number of tracks
Press.
Adjust the volume.
(0 - 25)
Long cord to the right.
Remote controlMain unit/Speaker stand
Press.Press.
∫Press and hold to turn
the unit off.∫Press again to
turn the unit off.
Pause
Remote controlMain unit/Speaker stand
1/;Press.Not available.
∫Press again to restart play.
Search
Remote...

ALBUM MODE
ALBUM3 –    10
1
4
3
2
M3   – – 01
Playing MP3
Starting play from an album (Album skip)
Press and hold until the
album you want appears.
Album numberNumber of tracks
Playing only the tracks in a selected album (Album mode)
Each time you press and hold [MODE]
No display
(canceled)
∫You can select another album with album skip.
∫You cannot turn album mode on during program play.
Changing the display
Each time you press and hold [$MEMO/%DISP]
Album
titleTrack
titleID3
album titleTrack number...
