Panasonic Portable CD Player Sl Mp75 Operating Instructions

Panasonic Sales Company,
Division of Matsushita Electric of Puerto Rico, Inc. (“PSC”)
Ave. 65 de Infantería, Km. 9.5 San Gabriel Industrial Park, Carolina,\
 Puerto Rico 00985
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3www.panasonic.ca
C  2003 Matsushita Electric Industrial Co., Ltd.
Printed in Japan
Tr oubleshooting guide
1
Dear CustomerThank you for
purchasing this product.
Before connecting,
operating or adjusting
this product, please read
these instructions
completely....

IMPORTANT SAFETY INSTRUCTIONS
2
∫Batteries≥Do not peel off the covering on batteries and do not use if the covering
has been peeled off.
≥Align the poles iand jcorrectly when inserting the batteries.
≥Do not mix different types of batteries or old and new batteries.
≥Remove the batteries if you do not intend to use the unit for a long time.
≥Do not throw into fire, short-circuit, disassemble, or subject to excessive
heat.
≥Do not attempt to recharge dry cell batteries.
≥When carrying batteries in a...

3
Product service
1. Damage requiring service—The unit should be serviced by qualified service
personnel if:
1.(a) The AC power supply cord or AC adaptor has been damaged; or
1.(b) Objects or liquids have gotten into the unit; or
1.(c) The unit has been exposed to rain; or
1.(d) The unit does not operate normally or exhibits a marked change in
performance; or
1.(e) The unit has been dropped or the cabinet damaged.
2.
Servicing—Do not attempt to service the unit beyond that described in these
operating...

Audio (CD-DA)Sampling frequency: 44.1 kHz
No. of channels:
2 (left and right, stereo)
Headphone output level:
RMS max. 6 mWi6 mW/
16 ≠(adjustable)
Frequency response:
20 Hz to 20,000 Hz
(i0.5 dB to j7 dB)
PickupLight source: Semiconductor laser
Wavelength: 780 nm
MP3Supported bit-rates:
32 kbps to 320 kbps
(128 kbps is recommended)
Supported sampling frequency:
48 kHz/44.1 kHz/32 kHz
Maximum number of items
(total no. of albums and tracks): 999
Maximum album levels: 100
GeneralPower supply:
DC input (AC...

3
4
2
1
OPEN
T003A006WMAMP3
5:22 3WMAMP3
5:22
Plug in firmly.

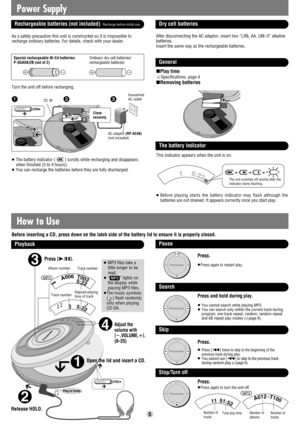

How to Use
Playback
Open the lid and insert a CD.
Release HOLD.
Track number
Elapsed playing
time of track
Press [1/;].
Adjust the
volume with
[s,VOLUME,r].
(0–25)
Pause
Press.
≥Press again to restart play.
Search
≥You cannot search while playing MP3.≥ You can search only within the current track during
program, one track repeat, random, random repeat
and AB repeat play modes (
➪page 6).
Skip
Press.
≥ Press [:] twice to skip to the beginning...

You can regenerate signal frequency lost during compression, restoring
to near pre-compression form.
While stopped, each time you press and hold [$
MEMO/%
DISP]
MP3This unit can play MP3, a method of compressing audio without overtly hurting audio quality.∫When creating MP3 files to play on this unitDisc formats: ISO9660 level 1 and level 2 (except for extended formats)
∫Limitations on MP3≥Only artist name and track name ID3 tags (version 1.0 and 1.1) are displayed.
≥This unit is compatible with...
