Panasonic Projector PT-AE7000U User Manual

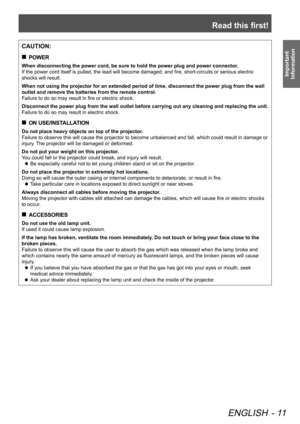

Read this first!
ENGLISH - 11
Important
Information
CAUTION:
POWER

„
When disconnecting the power cord, be sure to hold the power plug and po\
wer connector.
If the power cord itself is pulled, the lead will become damaged, and fire, short-circuits or serious electric
shocks will result.
When not using the projector for an extended period of time, disconnect \
the power plug from the wall
outlet and remove the batteries from the remote control.
Failure to do so may result in fire or electric...

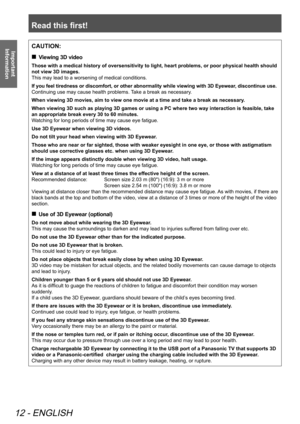

Read this first!
12 - ENGLISH
Important
InformationCAUTION:
Viewing 3D video

„
Those with a medical history of oversensitivity to light, heart problems\
, or poor physical health should
not view 3D images.
This may lead to a worsening of medical conditions.
If you feel tiredness or discomfort, or other abnormality while viewing \
with 3D Eyewear, discontinue use.
Continuing use may cause health problems. Take a break as necessary.
When viewing 3D movies, aim to view one movie at a time and take...

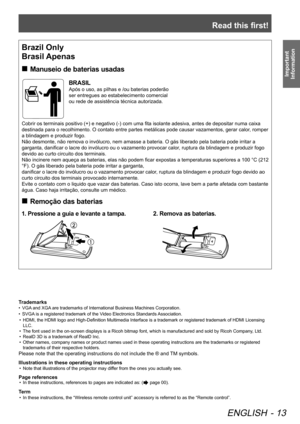

Read this first!
ENGLISH - 13
Important
Information
end of Read this first
Trademarks
VGA and XGA are trademarks of International Business Machines Corporation.
•
SVGA is a registered trademark of the Video Electronics Standards Association.
•
HDMI, the HDMI logo and High-Definition Multimedia Interface is a trademark or registered trademark of HDMI Licensing
•
LLC.
The font used in the on-screen displays is a Ricoh bitmap font, which is manufactured and sold by Ricoh Company , Ltd.
•
RealD 3D is...

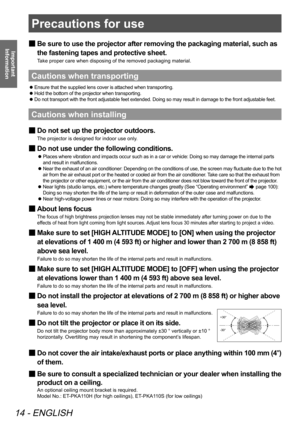

Precautions for use
14 - ENGLISH
Important
Information
Be sure to use the projector after removing the packaging material, such\
 as

■
the fastening tapes and protective sheet.
Take proper care when disposing of the removed packaging material.
Cautions when transporting
Ensure that the supplied lens cover is attached when transporting.

z
Hold the bottom of the projector when transporting.

z
Do not transport with the front adjustable feet extended. Doing so may result in damage to the front...

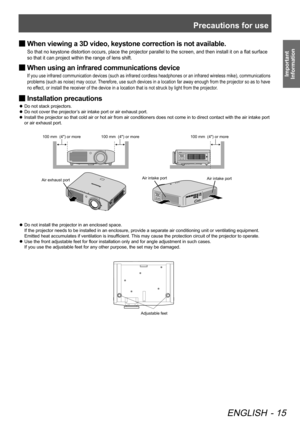

Precautions for use
ENGLISH - 15
Important
Information
When viewing a 3D video, keystone correction is not available.

■
So that no keystone distortion occurs, place the projector parallel to the screen, and then install it on a flat surface
so that it can project within the range of lens shift.
When using an infrared communications device

■
If you use infrared communication devices (such as infrared cordless headphones or an infrared wireless mike), communications
problems (such as noise) may...

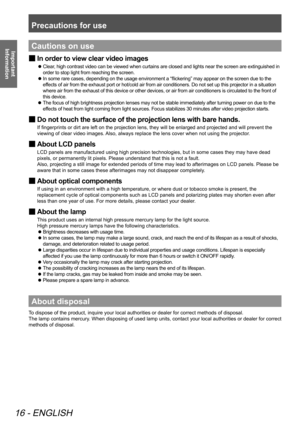

Precautions for use
16 - ENGLISH
Important
InformationCautions on use
In order to view clear video images

■
Clear, high contrast video can be viewed when curtains are closed and lights near the screen are extinguished in

z
order to stop light from reaching the screen.
In some rare cases, depending on the usage environment a “flickering” may appear on the screen due to the

z
effects of air from the exhaust port or hot/cold air from air conditioners. Do not set up this projector in a situation...

Precautions for use
ENGLISH - 17
Important
Information

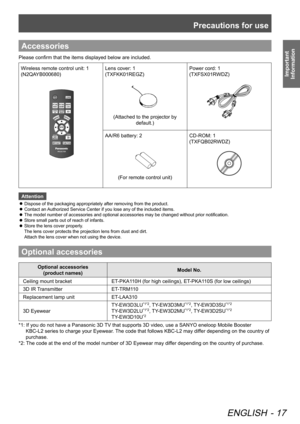

Accessories
Please confirm that the items displayed below are included.
Wireless remote control unit: 1
(N2QAYB000680)Lens cover: 1
(TXFKK01REGZ)
(Attached to the projector by
default.)  Power cord: 1
(TXFSX01RWDZ)
AA/R6 battery: 2
(For remote control unit)
CD-ROM: 1
(TXFQB02RWDZ)
Attention
Dispose of the packaging appropriately after removing from the product.

z
Contact an Authorized Service Center if you lose any of the included items.

z
The...

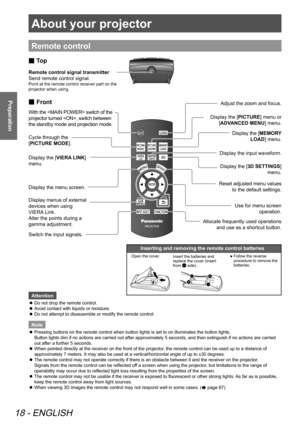

About your projector
18 - ENGLISH
Preparation
Remote control
Top

■
Front

■
Adjust the zoom and focus.
Display the [ MEMORY
LOAD ] menu.
Display the input waveform.
Reset adjusted menu values
to the default settings.
Use for menu screen  operation.
Display the [ 3D SETTINGS ]
menu.
Allocate frequently used operations  and use as a shortcut button.
Inserting and removing the remote control batteries
Open the cover. Insert the batteries and
replace the cover (insert
from
 side).
Display the menu...

About your projector

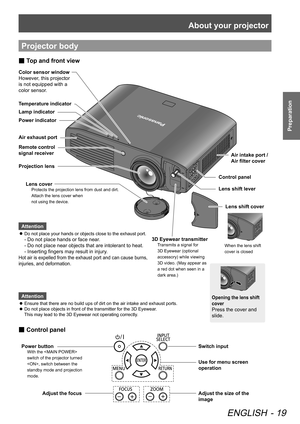

ENGLISH - 19
Preparation
Projector body
Attention
Ensure that there are no build ups of dirt on the air intake and exhaust ports.

z
Do not place objects in front of the transmitter for the 3D Eyewear .

z
This may lead to the 3D Eyewear not operating correctly.

Use for menu screen
operation
Switch input
Adjust the focusAdjust the size of the
Control panel

■
Power button
With the
switch of the projector turned
, switch between the
standby mode and projection
mode....

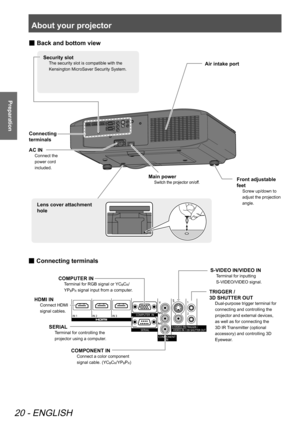

About your projector
20 - ENGLISH
Preparation

Main power
Switch the projector on/off.
Lens cover attachment
hole
Connecting
terminals
Air intake port
Back and bottom view

■
Security slot
The security slot is compatible with the
Kensington MicroSaver Security System.
Front adjustable
feet
Screw up/down to
adjust the projection
angle.
AC IN
Connect the
power cord
included.
Connecting terminals

■
SERIAL
Terminal for controlling the
projector using a computer.
HDMI IN
Connect HDMI
signal...
