ENGLISH – 71
Special Features
Press ENTER. 5.
The “3COLORS:RED”, “3COLORS:GREEN” or  •
“3COLORS:BLUE” screen will be displayed.
If you selected “7COLORS”, the
“7COLORS:RED”, “7COLORS:GREEN”,
“7COLORS:BLUE”, “7COLORS:CYAN”,
“7COLORS:MAGENTA”, “7COLORS:YELLOW”,
or “7COLORS:WHITE” screen will be displayed.
3COLORS:RED
RED
GREEN
BLUE2048
0
0
Press ◄► to adjust the values. 6.
These values can be adjusted from 0 (off) to  •
2 048 (full gain). The color value being adjusted
is added or subtracted from...

72 – ENGLISH
Display Option settings (continued)

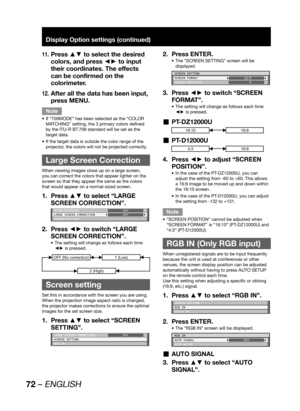

Press ▲▼ to select the desired 11.
colors, and press ◄► to input
their coordinates. The effects
can be confirmed on the
colorimeter.
After all the data has been input,
12.
press MENU.
Note
If “709MODE” has been selected as the “COLOR  •
MATCHING” setting, the 3 primary colors defined
by the ITU-R BT.709 standard will be set as the
target data.
If the target data is outside the color range of the  •
projector, the colors will not be projected...

ENGLISH – 73
Special Features

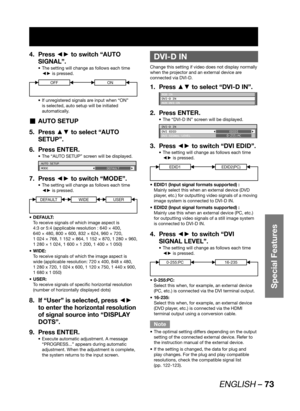

Press ◄► to switch “AUTO  4.
SIGNAL”.
The setting will change as follows each time  •
◄► is pressed.
OFFON
If unregistered signals are input when “ON”  •
is selected, auto setup will be initiated
automatically.
AUTO SETUP  „
Press ▲▼ to select “AUTO  5.
SETUP”.
Press ENTER. 6.
The “AUTO SETUP” screen will be displayed. •
AUTO SETUP
MODE
DEFAULT
Press ◄► to switch “MODE”. 7.
The setting will change as follows each time  •
◄► is pressed.
DEFAULTWIDEUSER
DEFAULT: •
To...

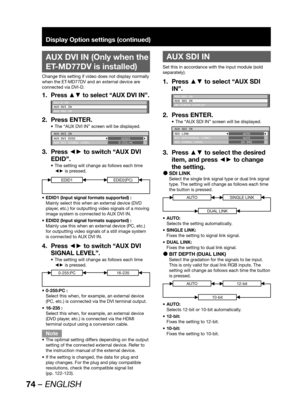

74 – ENGLISH
Display Option settings (continued)

AUX DVI IN (Only when the
ET-MD77DV is installed)
Change this setting if video does not display normally
when the ET-MD77DV and an external device are
connected via DVI-D.
Press ▲▼ to select “AUX DVI IN”.1.
DVI-D IN
AUX DVI IN
AUX SDI IN
Press ENTER. 2.
The “AUX DVI IN” screen will be displayed. •
AUX DVI IN
AUX DVI EDID
AUX DVI SIGNAL LEVELEDID1
0-255:PC
Press ◄► to switch “AUX DVI  3.
EDID”.
The setting will change as follows each time  •
◄► is...

ENGLISH – 75
Special Features

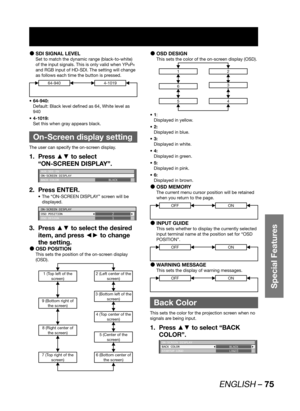

SDI SIGNAL LEVEL  z
Set to match the dynamic range (black-to-white)
of the input signals. This is only valid when YP
BPR
and RGB input of HD-SDI. The setting will change
as follows each time the button is pressed.
64-9404-1019
64-940: •
Default: Black level defined as 64, White level as
940
4-1019: •
Set this when gray appears black.
  On-Screen display setting
The user can specify the on-screen display.
Press ▲▼ to select  1.
“ON-SCREEN DISPLAY”.
AUX SDI IN
ON-SCREEN...

76 – ENGLISH
Display Option settings (continued)

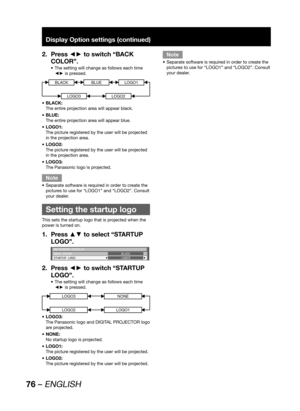

Press ◄► to switch “BACK  2.
COLOR”.
The setting will change as follows each time  •
◄► is pressed.
BLACKBLUE
LOGO3
LOGO1
LOGO2
BLACK:  •
The entire projection area will appear black.
BLUE: •
The entire projection area will appear blue.
LOGO1: •
The picture registered by the user will be projected
in the projection area.
LOGO2: •
The picture registered by the user will be projected
in the projection area.
LOGO3: •
The Panasonic logo is...

ENGLISH – 77
Special Features
Projector setup

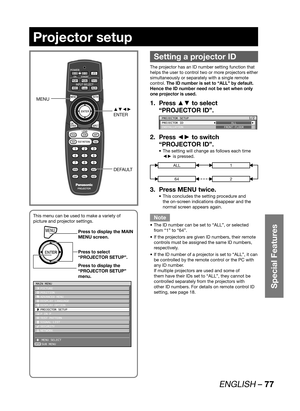

Setting a projector ID
The projector has an ID number setting function that
helps the user to control two or more projectors either
simultaneously or separately with a single remote
control. The ID number is set to “ALL” by default.
Hence the ID number need not be set when only
one projector is used.
Press ▲▼ to select  1.
“PROJECTOR ID”.
PROJECTOR SETUP
PROJECTOR ID
INSTALLATIONALL
FRONT-FLOOR1/2
Press ◄► to switch  2.
“PROJECTOR ID”.
The setting...

78 – ENGLISH
Projector setup (continued)

Installation Setting

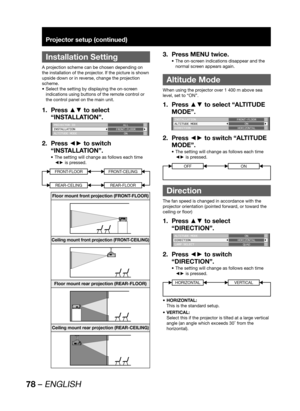

A projection scheme can be chosen depending on
the installation of the projector. If the picture is shown
upside down or in reverse, change the projection
scheme.
Select the setting by displaying the on-screen  •
indications using buttons of the remote control or
the control panel on the main unit.
Press ▲▼ to select  1.
“INSTALLATION”.
PROJECTOR ID
INSTALLATION
ALTITUDE MODEALL
FRONT-FLOOR
ON
Press ◄► to switch  2.
“INSTALLATION”....

ENGLISH – 79
Special Features

Lamp select

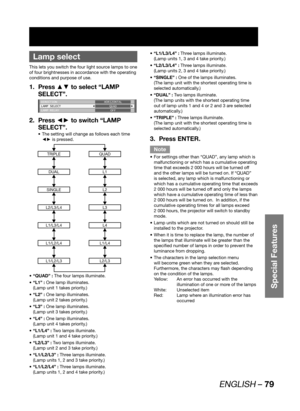

This lets you switch the four light source lamps to one
of four brightnesses in accordance with the operating
conditions and purpose of use.
Press ▲▼ to select “LAMP  1.
SELECT”.
DIRECTION
LAMP SELECT
LAMP RELAYHORIZONTAL
QUAD
OFF
Press ◄► to switch “LAMP  2.
SELECT”.
The setting will change as follows each time  •
◄► is pressed.
TRIPLEQUAD
DUALL1
SINGLEL2
L2/L3/L4L3
L1/L3/L4L4
L1/L2/L4L1/L4
L1/L2/L3L2/L3
“QUAD” : •   The four lamps illuminate.
“L1” : •...

80 – ENGLISH
Projector setup (continued)

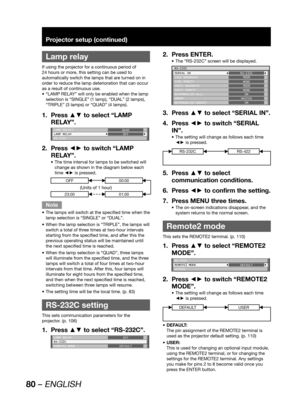

Lamp relay
If using the projector for a continuous period of
24 hours or more, this setting can be used to
automatically switch the lamps that are turned on in
order to reduce the lamp deterioration that can occur
as a result of continuous use.
“LAMP RELAY” will only be enabled when the lamp  •
selection is “SINGLE” (1 lamp), “DUAL” (2 lamps),
“TRIPLE” (3 lamps) or “QUAD” (4 lamps).
Press ▲▼ to select “LAMP  1.
RELAY”.
LAMP SELECT
LAMP RELAY
RS-232CQUAD...
