Panasonic Projector PT-DW640U User Manual

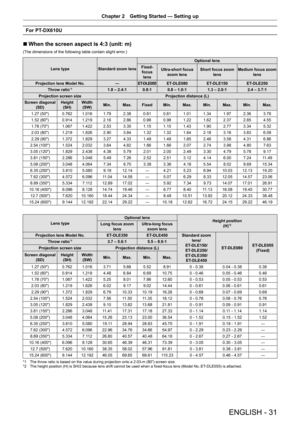

ENGLISH - 31
Chapter 2 Getting Started  —   Setting up
For PT-DX610U
r
r When the screen aspect is 4:3 (unit: m)
(The dimensions of the following table contain slight error.)
Lens type
Standard zoom lens Optional lens
Fixed- focus  lens Ultra-short focus
zoom lens Short focus zoom
lens Medium focus zoom
lens
Projection lens Model No. ―ET-DLE055 ET-DLE080 ET-DLE150 ET-DLE250
Throw ratio
*1  1.8 – 2.4:1 0.8:1 0.8 – 1.0:1 1.3 – 2.0:12.4 – 3.7:1
Projection screen size Projection distance (L)
Screen...

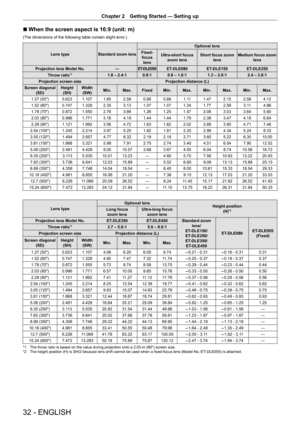

32 - ENGLISH
Chapter 2 Getting Started  —   Setting up
r
r When the screen aspect is 16:9 (unit: m)
(The dimensions of the following table contain slight error.)
Lens type
Standard zoom lens Optional lens
Fixed- focus  lens Ultra-short focus
zoom lens Short focus zoom
lens Medium focus zoom
lens
Projection lens Model No. ―ET-DLE055 ET-DLE080 ET-DLE150 ET-DLE250
Throw ratio
*1  1.8 – 2.4:1 0.8:1 0.8 – 1.0:1 1.3 – 2.0:12.4 – 3.8:1
Projection screen size Projection distance (L)
Screen diagonal (SD)...

ENGLISH - 33
Chapter 2 Getting Started  —   Setting up

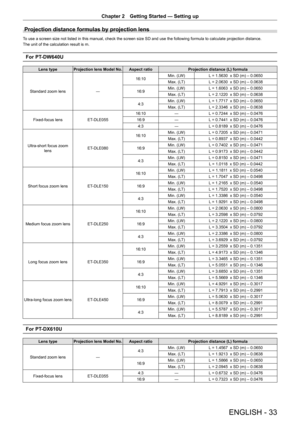

Projection distance formulas by projection lens
To use a screen size not listed in this manual, check the screen size SD and use the following formula to calculate projection distance.
The unit of the calculation result is m.
For PT-DW640U
Lens typeProjection lens Model No.Aspect ratio Projection distance (L) formula
Standard zoom lens ―16:10
Min. (LW)
L = 1.5630  x SD (m) – 0.0650
Max. (LT) L = 2.0630  x SD (m) – 0.0638
16:9 Min. (LW)
L = 1.6063  x...

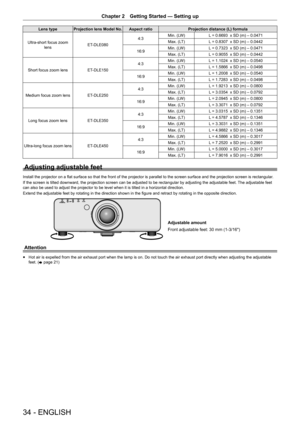

34 - ENGLISH
Chapter 2 Getting Started  —   Setting up
Lens typeProjection lens Model No.Aspect ratio Projection distance (L) formula
Ultra-short focus zoom  lens ET-DLE080 4:3
Min. (LW)
L = 0.6693  x SD (m) – 0.0471
Max. (LT) L = 0.8307  x SD (m) – 0.0442
16:9 Min. (LW)
L = 0.7323  x SD (m) – 0.0471
Max. (LT) L = 0.9055  x SD (m) – 0.0442
Short focus zoom lens ET-DLE1504:3
Min. (LW)
L = 1.1024  x SD (m) – 0.0540
Max. (LT) L = 1.5866  x SD (m) – 0.0498
16:9 Min. (LW)
L = 1.2008  x SD (m) – 0.0540
Max....

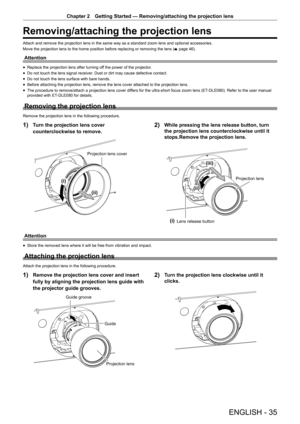

ENGLISH - 35
Chapter 2 Getting Started  —   Removing/attaching the projection lens
Removing/attaching the projection lens
Attach and remove the projection lens in the same way as a standard zoom lens and optional accessories.
Move the projection lens to the home position before replacing or removing the lens (
x


page   46).
Attention
rfReplace the projection lens after turning of f the power of the projector.
rfDo not touch the lens signal receiver

. Dust or dirt may cause defective contact.
rfDo not...

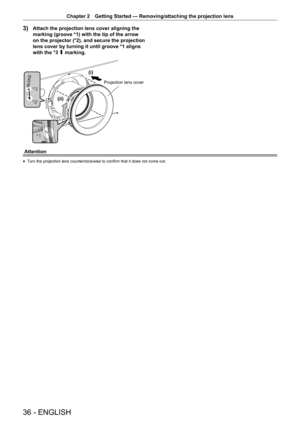

36 - ENGLISH
Chapter 2 Getting Started  —   Removing/attaching the projection lens
3) Attach the projection lens cover aligning the
marking (groove *1) with the tip of the arrow
on the projector (*2), and secure the projection
lens cover by turning it until groove *1 aligns
with the *3 P marking.



L
LL
3URMHFWLRQOHQVFRYHU
Attention
rf T urn the projection lens counterclockwise to confirm that it does not come out.

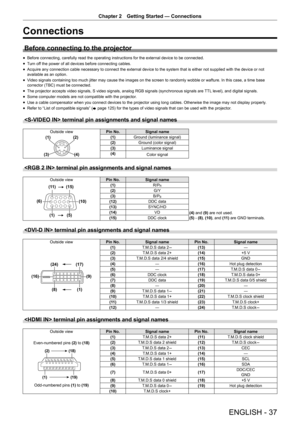

ENGLISH - 37
Chapter 2 Getting Started  —   Connections
Connections
Before connecting to the projector
rfBefore connecting, carefully read the operating instructions for the external device to be connected.
rfT

urn off the power of all devices before connecting cables.
rfAcquire any connection cable necessary to connect the external device to the system that is either not supplied with the device or not
available as an option.
rfV

ideo signals containing too much jitter may cause the images on the...

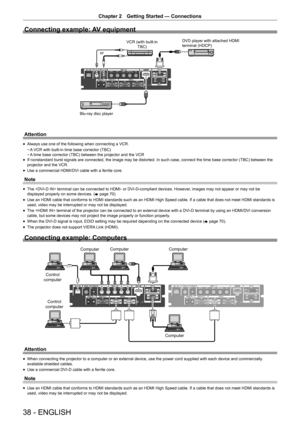

38 - ENGLISH
Chapter 2 Getting Started  —   Connections
Connecting example: AV equipment
9&5ZLWKEXLOWLQ
7%&9SOD\HUZLWKDWWDFKHG+0,WHUPLQDO+&3
RU
%OXUD\GLVFSOD\HU
Attention
rf Always use one of the following when connecting a VCR.
rgA

 VCR with built-in time base corrector (TBC)
rgA

 time base corrector (TBC) between the projector and the VCR
rfIf nonstandard burst signals are connected, the image may be distorted. In such case, connect the time base corrector (TBC) between the...

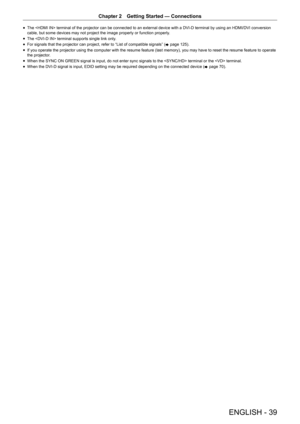

ENGLISH - 39
Chapter 2 Getting Started  —   Connections
rfThe  terminal of the projector can be connected to an external device with a DVI-D terminal by using an HDMI/DVI conversion
cable, but some devices may not project the image properly or function p\
roperly
.
rfThe  terminal supports single link only

.
rfFor signals that the projector can project, refer to “List of compatible signals” (
x

page   125).
rfIf you operate the projector using the computer with the resume feature (last memory), you...

40 - ENGLISH

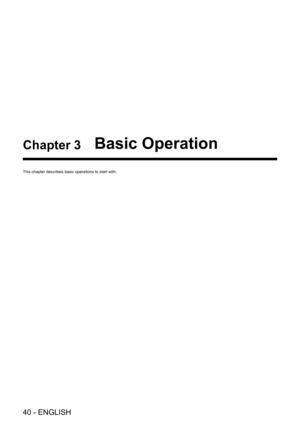

Chapter 3 Basic Operation
This chapter describes basic operations to start with.
