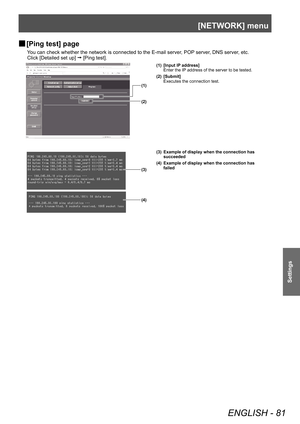

Page 81
![Page 81
[NETWORK] menu
ENGLISH - 81
Settings
■ [Ping test] page
You can check whether the network is connected to the E-mail server, POP server, DNS server, etc.
Click [Detailed set up]
[Ping test].
(1)
(2)
(3)
(4) (1) [Input IP address]
Enter the IP address of the server to be tested.
(2) [Submit] Executes the connection test.
(3) Example of display when the connection has succeeded
(4) Example of display when the connection has failed](http://img.usermanuals.tech/thumb/58/98963/w300_projector_manual_6382_d-80.png "Page 81
[NETWORK] menu
ENGLISH - 81
Settings
■ [Ping test] page
You can check whether the network is connected to the E-mail server, POP server, DNS server, etc.
Click [Detailed set up]
[Ping test].
(1)
(2)
(3)
(4) (1) [Input IP address]
Enter the IP address of the server to be tested.
(2) [Submit] Executes the connection test.
(3) Example of display when the connection has succeeded
(4) Example of display when the connection has failed")
[NETWORK] menu ENGLISH - 81 Settings ■ [Ping test] page You can check whether the network is connected to the E-mail server, POP server, DNS server, etc. Click [Detailed set up] [Ping test]. (1) (2) (3) (4) (1) [Input IP address] Enter the IP address of the server to be tested. (2) [Submit] Executes the connection test. (3) Example of display when the connection has succeeded (4) Example of display when the connection has failed
Page 82
![Page 82
[NETWORK] menu
82 - ENGLISH
Settings
■ [E-mail set up] page
An E-mail message can be sent to the E-mail address setup in advance (u\
p to two addresses) when
the problem occurred or the usage time of the lamp reached the specified value.
Click [Detailed set up]
[E-mail set up].
(1)
(2)
(3)
(4)
(5)
(6)
(7) (1) [ENABLE]
Select [ENABLE] when using the E-mail function.
(2) [SMTP SERVER NAME] Enter the IP address or the server name of the
E-mail server (SMTP). To enter the server name, the setup...](http://img.usermanuals.tech/thumb/58/98963/w300_projector_manual_6382_d-81.png "Page 82
[NETWORK] menu
82 - ENGLISH
Settings
■ [E-mail set up] page
An E-mail message can be sent to the E-mail address setup in advance (u\
p to two addresses) when
the problem occurred or the usage time of the lamp reached the specified value.
Click [Detailed set up]
[E-mail set up].
(1)
(2)
(3)
(4)
(5)
(6)
(7) (1) [ENABLE]
Select [ENABLE] when using the E-mail function.
(2) [SMTP SERVER NAME] Enter the IP address or the server name of the
E-mail server (SMTP). To enter the server name, the setup...")
[NETWORK] menu 82 - ENGLISH Settings ■ [E-mail set up] page An E-mail message can be sent to the E-mail address setup in advance (u\ p to two addresses) when the problem occurred or the usage time of the lamp reached the specified value. Click [Detailed set up] [E-mail set up]. (1) (2) (3) (4) (5) (6) (7) (1) [ENABLE] Select [ENABLE] when using the E-mail function. (2) [SMTP SERVER NAME] Enter the IP address or the server name of the E-mail server (SMTP). To enter the server name, the setup...

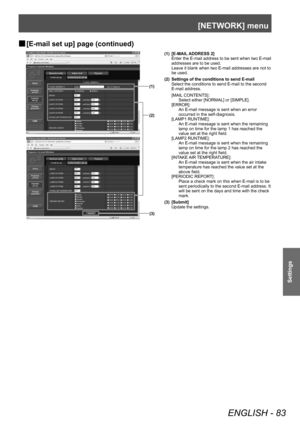

Page 83
![Page 83
[NETWORK] menu
ENGLISH - 83
Settings
■ [E-mail set up] page (continued)
(1)
(2)
(3)
(1) [E-MAIL ADDRESS 2]
Enter the E-mail address to be sent when two E-mail
addresses are to be used.
Leave it blank when two E-mail addresses are not to
be used.
(2) Settings of the conditions to send E-mail Select the conditions to send E-mail to the second
E-mail address.
[MAIL CONTENTS]: Select either [NORMAL] or [SIMPLE].
[ERROR]: An E-mail message is sent when an error
occurred in the self-diagn osis....](http://img.usermanuals.tech/thumb/58/98963/w300_projector_manual_6382_d-82.png "Page 83
[NETWORK] menu
ENGLISH - 83
Settings
■ [E-mail set up] page (continued)
(1)
(2)
(3)
(1) [E-MAIL ADDRESS 2]
Enter the E-mail address to be sent when two E-mail
addresses are to be used.
Leave it blank when two E-mail addresses are not to
be used.
(2) Settings of the conditions to send E-mail Select the conditions to send E-mail to the second
E-mail address.
[MAIL CONTENTS]: Select either [NORMAL] or [SIMPLE].
[ERROR]: An E-mail message is sent when an error
occurred in the self-diagn osis....")
[NETWORK] menu ENGLISH - 83 Settings ■ [E-mail set up] page (continued) (1) (2) (3) (1) [E-MAIL ADDRESS 2] Enter the E-mail address to be sent when two E-mail addresses are to be used. Leave it blank when two E-mail addresses are not to be used. (2) Settings of the conditions to send E-mail Select the conditions to send E-mail to the second E-mail address. [MAIL CONTENTS]: Select either [NORMAL] or [SIMPLE]. [ERROR]: An E-mail message is sent when an error occurred in the self-diagn osis....
Page 84
![Page 84
[NETWORK] menu
84 - ENGLISH
Settings
■ [Authentication set up] page
You can set the authentication items when POP authentication or SMTP authentication is necessary to send
an E-mail message.
Click [Detailed set up]
[Authentication set up].
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)(1) [Auth]
Select the authentication method specified by your
Internet service provider.
(2) [SMTP Auth] Set when the SMTP authentication is selected.
(3) [Pop Server name] Enter the POP server name.
Allowed characters:...](http://img.usermanuals.tech/thumb/58/98963/w300_projector_manual_6382_d-83.png "Page 84
[NETWORK] menu
84 - ENGLISH
Settings
■ [Authentication set up] page
You can set the authentication items when POP authentication or SMTP authentication is necessary to send
an E-mail message.
Click [Detailed set up]
[Authentication set up].
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)(1) [Auth]
Select the authentication method specified by your
Internet service provider.
(2) [SMTP Auth] Set when the SMTP authentication is selected.
(3) [Pop Server name] Enter the POP server name.
Allowed characters:...")
[NETWORK] menu 84 - ENGLISH Settings ■ [Authentication set up] page You can set the authentication items when POP authentication or SMTP authentication is necessary to send an E-mail message. Click [Detailed set up] [Authentication set up]. (1) (2) (3) (4) (5) (6) (7) (8)(1) [Auth] Select the authentication method specified by your Internet service provider. (2) [SMTP Auth] Set when the SMTP authentication is selected. (3) [Pop Server name] Enter the POP server name. Allowed characters:...

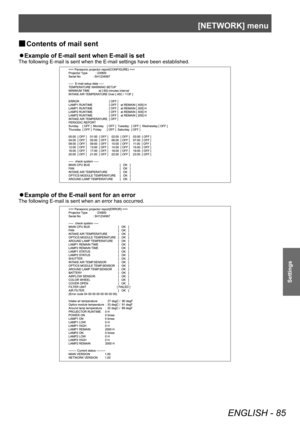

Page 85
![Page 85
[NETWORK] menu
ENGLISH - 85
Settings
■ Contents of mail sent
z
Example of E-mail sent when E-mail is set
The following E-mail is sent when the E-mail settings have been established.
z
Example of the E-mail sent for an error
The following E-mail is sent when an error has occurred.](http://img.usermanuals.tech/thumb/58/98963/w300_projector_manual_6382_d-84.png "Page 85
[NETWORK] menu
ENGLISH - 85
Settings
■ Contents of mail sent
z
Example of E-mail sent when E-mail is set
The following E-mail is sent when the E-mail settings have been established.
z
Example of the E-mail sent for an error
The following E-mail is sent when an error has occurred.")
[NETWORK] menu ENGLISH - 85 Settings ■ Contents of mail sent z Example of E-mail sent when E-mail is set The following E-mail is sent when the E-mail settings have been established. z Example of the E-mail sent for an error The following E-mail is sent when an error has occurred.

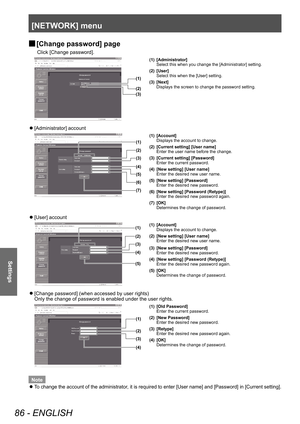

Page 86
![Page 86
[NETWORK] menu
86 - ENGLISH
Settings
■ [Change password] page
Click [Change password].
(1)
(2)
(3) (1) [Administrator]
Select this when you change the [Administrator] setting.
(2) [User] Select this when the [User] setting.
(3) [Next] Displays the screen to change the password setting.
z
[Administrator] account
(1)
(2)
(3)
(4)
(5)
(6)
(7) (1) [Account]
Displays the account to change.
(2) [Current setting] [User name] Enter the user name before the change.
(3) [Current setting] [Password] Enter...](http://img.usermanuals.tech/thumb/58/98963/w300_projector_manual_6382_d-85.png "Page 86
[NETWORK] menu
86 - ENGLISH
Settings
■ [Change password] page
Click [Change password].
(1)
(2)
(3) (1) [Administrator]
Select this when you change the [Administrator] setting.
(2) [User] Select this when the [User] setting.
(3) [Next] Displays the screen to change the password setting.
z
[Administrator] account
(1)
(2)
(3)
(4)
(5)
(6)
(7) (1) [Account]
Displays the account to change.
(2) [Current setting] [User name] Enter the user name before the change.
(3) [Current setting] [Password] Enter...")
[NETWORK] menu 86 - ENGLISH Settings ■ [Change password] page Click [Change password]. (1) (2) (3) (1) [Administrator] Select this when you change the [Administrator] setting. (2) [User] Select this when the [User] setting. (3) [Next] Displays the screen to change the password setting. z [Administrator] account (1) (2) (3) (4) (5) (6) (7) (1) [Account] Displays the account to change. (2) [Current setting] [User name] Enter the user name before the change. (3) [Current setting] [Password] Enter...
Page 87
LAMP/TEMP/FILTER Indicators ENGLISH - 87 Maintenance LAMP/TEMP/FILTER Indicators Managing the indicated problems If a problem should occur inside the projector, the lamp indicators /, the temperature indicator , and the filter indicator will inform you. Manage the indicated problems as follow. Attention z Before you take a remedial measure, follow the procedure of switching the power off indicated in “Powering off the projector” ( page 35). z C heck the power status with the power indicator...

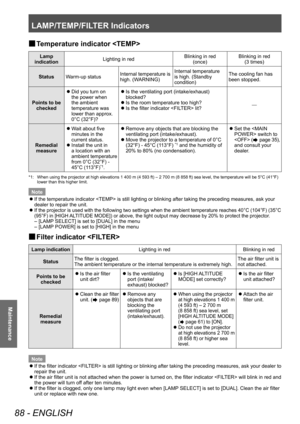

Page 88
LAMP/TEMP/FILTER Indicators 88 - ENGLISH Maintenance ■ Temperature indicator Lamp indication Lighting in red Blinking in red (once) Blinking in red (3 times) Status Warm-up status Internal temperature is high. (WARNING) Internal temperature is high. (Standby condition) The cooling fan has been stopped. Points to be checked z Did you turn on the power when the ambient temperature was lower than approx. 0° C (32 ° F)? z Is the ventilating port (intake/exhaust) blocked? z Is the room...

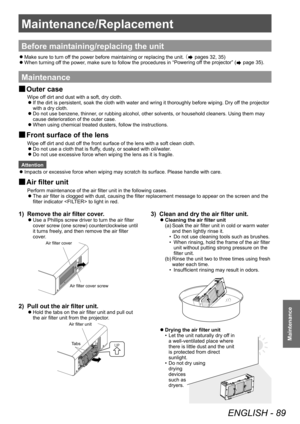

Page 89
Maintenance/Replacement ENGLISH - 89 Maintenance Maintenance/Replacement Before maintaining/replacing the unit z Make sure to turn off the power before maintaining or replacing the unit. ¢ pages 32, 35) z When turning off the power, make sure to follow the procedures in “Powering off the projector” ( page 35). Maintenance ■ Outer case Wipe off dirt and dust with a soft, dry cloth. z If the dirt is persistent, soak the cloth with water and wring it thoroughly before wiping. Dry off the...

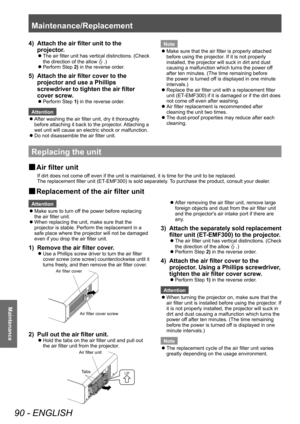

Page 90
Maintenance/Replacement 90 - ENGLISH Maintenance 4) Attach the air filter unit to the projector. z The air filter unit has vertical distinctions. (Check the direction of the allow 0ö0ñ.) z Perform Step 2) in the reverse order. 5) Attach the air filter cover to the projector and use a Phillips screwdriver to tighten the air filter cover screw. z Perform Step 1) in the reverse order. Attention z After washing the air filter unit, dry it thoroughly before attaching it back to the...
